Network AV receiver Yamaha RX-S601 5.1 MusicCast

INFORMACIJA

The slim and compact 5.1 channel receiver offers Bluetooth and Wi-Fi Built-In compatibility. Additional features include high definition audio playback. Ability to stream music remotely via AirPlay, Spotify and other apps.

• Dynamic power per channel: 8 / 6 / 4 / 2 ohms - 90 / 110 / 140 / 160 W
• Supports applications: AirPlay, Spotify, MusicCast
• HDMI (6 in/1 out) 4K Ultra HD full support with 4K60p (4:4:4)
• Integrated: Bluetooth, Wi-Fi
• Supports audio formats: AAC, AIFF, Apple Lossless, DSD, FLAC, MP3, PCM, WAV, WMA
• YPAO ™ - RSC audio optimization
• Dimensions: 435 x 111 x 327 mm / Weight: 7.8 kg

VIDEO

DESCRIPTION

MusicCast expands the possibilities

Bluetooth support for the latest technologies

Slim and compact for a neat home theater look

4K Ultra HD full support with 4K/60p, HDCP2.2, HDR Video and BT.2020

Excellent sound and many additional functions in a compact body

Integrated Wi-Fi

Network functions

TECHNICAL DATA

Amplifier Section

• Channel 5.1
• Rated Output Power (1kHz, 1ch driven) 95 W (6ohms, 0.9% THD)
• Rated Output Power (20Hz-20kHz, 2ch driven) 60 W (6ohms, 0.09% THD)
• Maximum Effective Output Power (1kHz, 1ch driven) (JEITA) 125W (6ohms, 10% THD)
• Dynamic Power per Channel (8/6/4/2 ohms) 90 / 110 / 140 / 160 W

Surround Sound Processing

• CINEMA DSP Yes (3D)
• DSP Programs 17
• Virtual Presence Speaker Yes
• SILENT CINEMA / Virtual CINEMA DSP Yes (Virtual CINEMA FRONT)
• Dolby TrueHD Yes
• Dolby Digital Plus Yes
• DTS-HD Master Audio Yes

Audio Features

• Compressed Music Enhancer Yes (incl. enhancer for Bluetooth)
• YPAO sound optimization Yes
• Adaptive DRC (Dynamic Range Control) Yes
• Initial Volume & Maximum Volume Setting Yes
• Audio Delay Yes (0-500 ms)
• 192kHz/24-bit DACs for all channels Yes (Burr-Brown)

Video Features

• 4K Ultra HD Pass-through Yes
• HDMI 3D passthrough Yes
• HDMI Audio Return Channel Yes
• Deep Color/xvColor/24Hz Refresh Rate/Auto Lip-Sync Yes

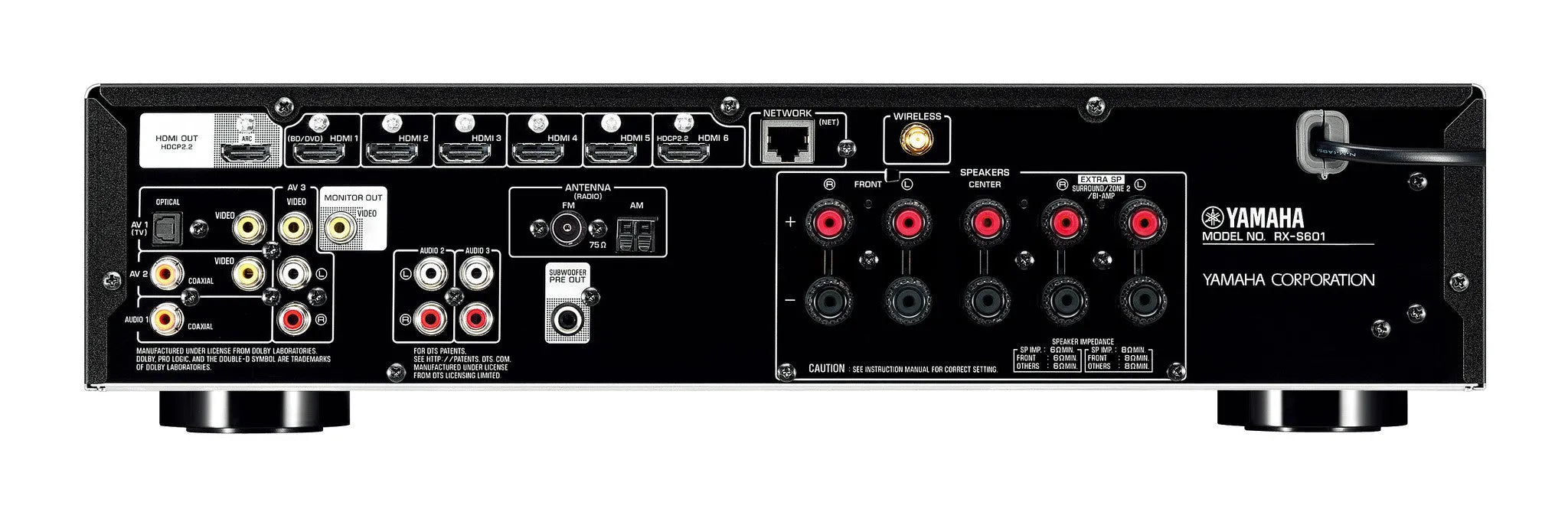

Connectivity

• HDMI Input/Output 6 (HDMI6: HDCP2.2 compatible) / 1 (HDCP2.2 compatible)
• HDMI CEC Yes (SCENE, Device Control)
• USB Input iPod / iPhone, USB Memory, Portable Audio Player
• Network Port Yes
• Wi-Fi Yes (with Wireless Direct)
• AirPlay Yes
• Bluetooth Yes (SBC/AAC)
• Front AV Input USB / Mini Jack
• Digital Audio Input/Output: Optical 1 / 0
• Digital Audio Input/Output: Coaxial 2 / 0
• Analog Audio Input/Output 4 (front 1) / 0
• Composite Video Input/Output 3 (front 1) / 1
• Preout Subwoofer
• Headphone Output 1

Tuner Section

• FM/AM Tuner Yes

User Interface

• On-screen display Yes (color OSD)
• SCENE SCENE (4 sets)
• App Control Yes (iPhone / iPad / Android phone / tablet)
• Remote Control Unit Yes

General

• Standby Power Consumption (IR only) ≤0.1W
• Auto Power Standby Yes
• ECO mode Yes
• Dimensions (W x H x D) 435 x 111 x 327 mm (with antenna up: 435 x 176 x 327 mm) ; 17-1/8” x 4-3/8” x 12-7/8” (with antenna up: 17-1/8” x 6-7/8” x 12-7/8”)
• Weight 7.8 kg; 17.2 lbs.

DOCUMENTS

The MusicCast Guide

User manual (EN)
