Network AV receiver Yamaha RX-V679 7.2 MusicCast

• MusicCast for audio enjoyment in every room
• 7-channel powerful surround sound
• --- 90 W per channel (6 ohms, 20Hz-20kHz, 0.06% THD, 2 ch driven)
• --- 150 W per channel (4 ohms, 1 kHz, 0.9 % THD, 1 ch driven)
• --- 150 W per channel (8 ohms, 1kHz, 10% THD, 1ch driven)
• Wi-Fi Built-in and Wireless Direct Compatible for Easy Network
• Bluetooth for wireless music streaming and Compressed Music Enhancer for Bluetooth
• AirPlay, Napster®*, Spotify®*, Pandora®*, JUKE* music streaming service and AV Controller app
• *Music service availability varies by region.
• DSD 2.8MHz/5.6MHz, FLAC/WAV/AIFF 192kHz/24bit, Apple Lossless 96kHz/24-bit playback
• Gapless playback compatibility allows play without interruption
• 4K60p 4:4:4 Pass through, HDMI (6 in/1 out) with HDCP2.2 (3 in/1 out), 3D and Audio Return Channel

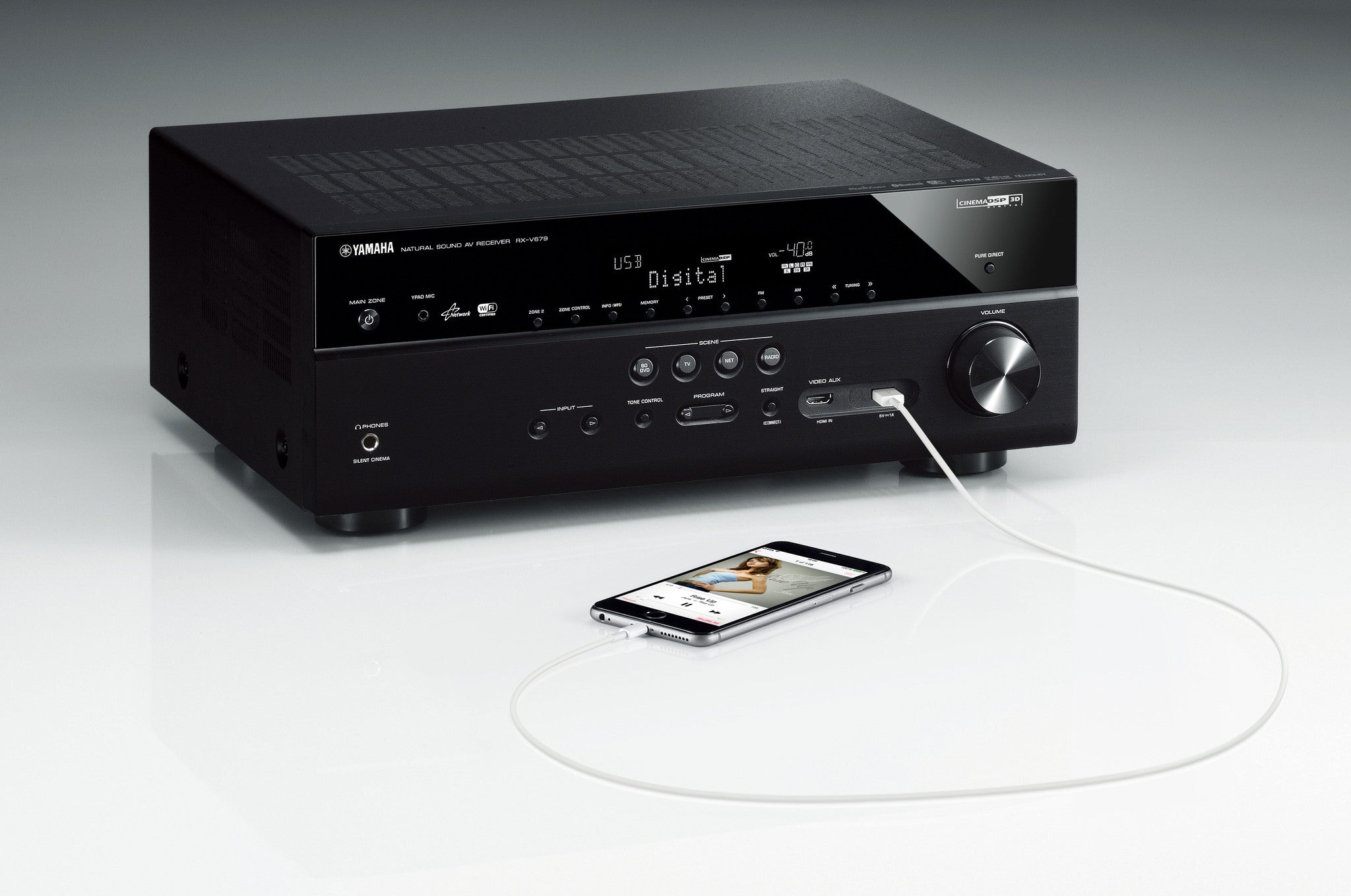

• HDMI input on front panel, USB Digital Connection for iPod and iPhone
• YPAO Reflected Sound Control (RSC) sound optimization for automatic speaker setup
• YPAO Volume to ensure natural sounds even at low volume
• Virtual Surround Back Speaker for playing 7.1-channel content with a 5.1-channel system
• Extra Bass enriches powerful bass sound even with small speakers
• Advanced GUI on-screen display with (English, German, French, Spanish, Russian, Italian, Japanese and Chinese)
• Multi-zone audio support (Zone2)
• ECO mode operation for about 20% less power consumption

TECHNICAL DATA

• Channel 7.2
• Rated Output Power (1kHz, 1ch driven) 150 W (4ohms, 0.9% THD)
• Rated Output Power (20Hz-20kHz, 2ch driven) 90 W (8ohms, 0.06% THD)
• Maximum Effective Output Power (1kHz, 1ch driven) (JEITA) 150 W (8ohms, 10% THD)
• Dynamic Power per Channel (8/6/4/2 ohms) 125 / 165 / 190 / 235 W

• CINEMA DSP Yes (3D)
• DSP Programs 17
• Dialog Level Adjustment Yes
• Virtual Presence Speaker Yes
• Virtual Surround Back Speaker Yes
• Dialogue Lift Yes (no presence speakers required)
• SILENT CINEMA / Virtual CINEMA DSP Yes (Virtual CINEMA FRONT)
• Dolby TrueHD Yes
• Dolby Digital Plus Yes
• Dolby Pro Logic IIx Yes
• DTS-HD Master Audio Yes

• Pure Direct Yes (with video on mode)
• Compressed Music Enhancer Yes (incl. enhancer for Bluetooth)
• YPAO sound optimization Yes (RSC)
• YPAO Volume Yes
• Adaptive DRC (Dynamic Range Control) Yes
• Initial Volume & Maximum Volume Setting Yes
• Bi-amp capability Yes
• Audio Delay Yes (0-500 ms)
• 192kHz/24-bit DACs for all channels Yes (Burr-Brown)

• 4K Ultra HD Pass-through and upscaling Yes (4K60p 4:4:4)
• HDMI 3D passthrough Yes
• HDMI Audio Return Channel Yes
• HDMI upscaling Yes (Analogue to HDMI / HDMI to HDMI)
• Deep Color/xvColor/24Hz Refresh Rate/Auto Lip-Sync Yes

• HDMI Input/Output 6 (HDMI1,2,3: HDCP2.2 compatible) / 1 (HDCP2.2 compatible)
• HDMI CEC Yes (SCENE, Device Control)
• USB Input iPod / iPhone, USB Memory, Portable Audio Player
• Network Port Yes
• Wi-Fi Yes (with Wireless Direct)
• AirPlay Yes
• Bluetooth Yes (SBC/AAC)
• Front AV Input HDMI / USB
• Digital Audio Input/Output: Optical 2 / 0
• Digital Audio Input/Output: Coaxial 2 / 0
• Analog Audio Input/Output 4 / 0
• Component Video Input/Output 2 / 1
• Composite Video Input/Output 4 / 1
• Preout Subwoofer (2 x mono)
• Headphone Output 1

• FM/AM Tuner Yes

• On-screen display Graphical User Interface
• SCENE SCENE (4 sets)

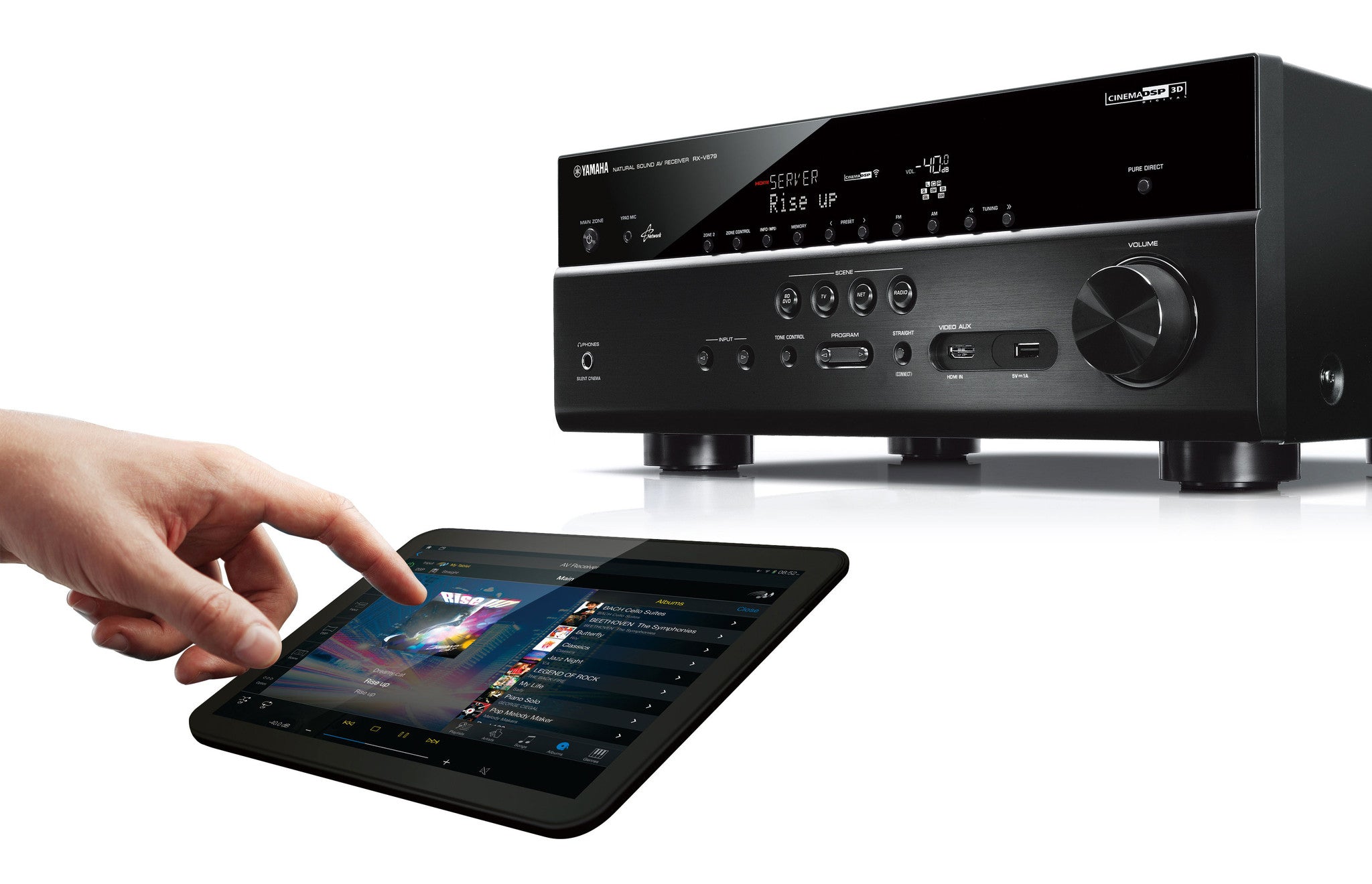

• App Control Yes (iPhone / iPad / Android phone / tablet)
• Web Browser Control Yes
• Remote Control Unit Yes

• Zone 2 Audio Output Line output
• Powered Zone Zone 2
• +12V Trigger Output 1
• Remote (IR) Input/Output 1 / 1

• Standby Power Consumption (IR only) ≤0.1W
• Auto Power Standby Yes
• ECO mode Yes
• Dimensions (W x H x D) 435 x 171 x 378 mm (with antenna up: 435 x 234 x 378 mm); 17-1/8” x 6-3/4” x 14-7/8” (with antenna up: 17-1/8” x 9-1/4” x 14-7/8”)
• Weight 10 kg; 22.1 lbs.
