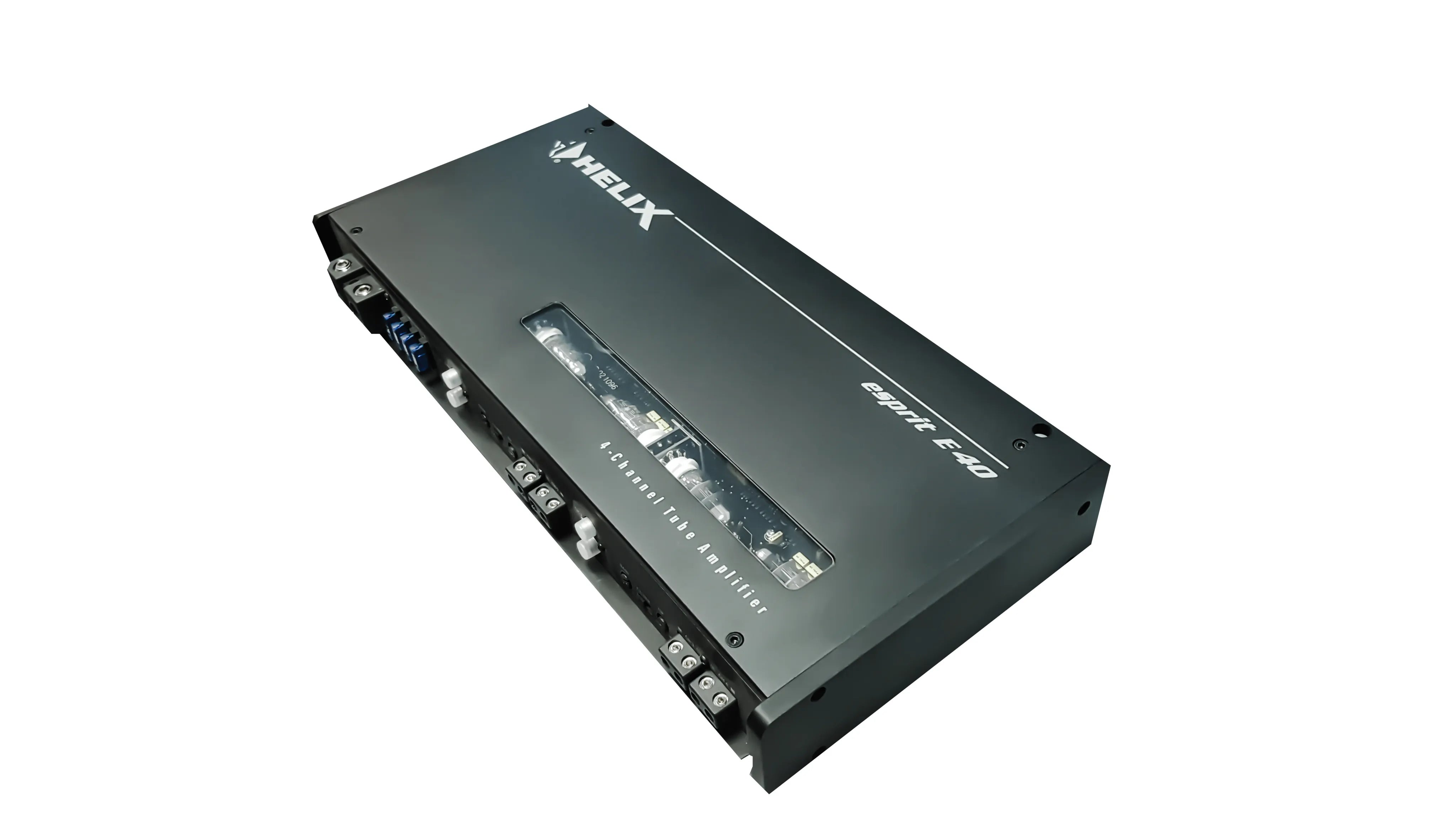

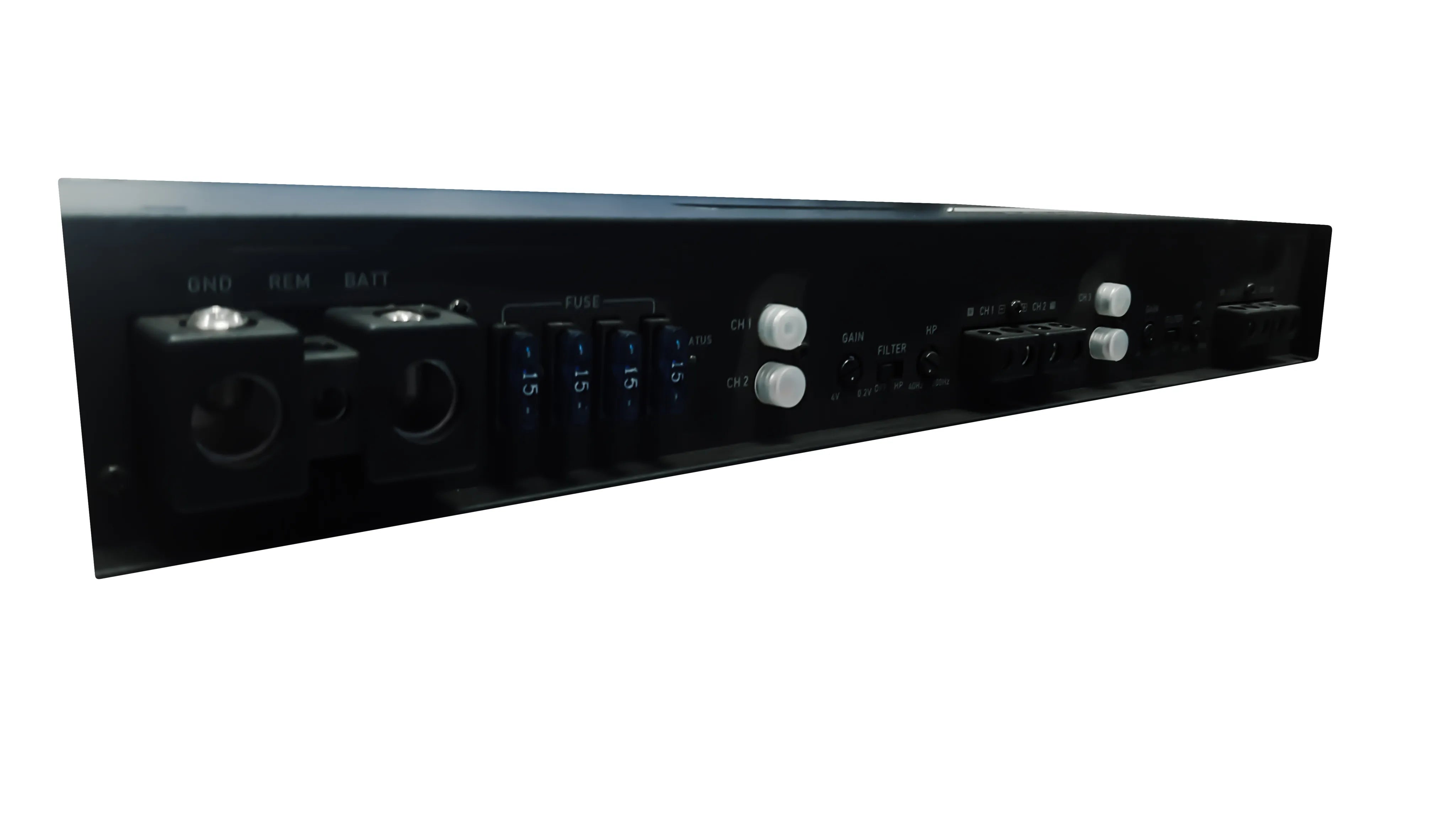

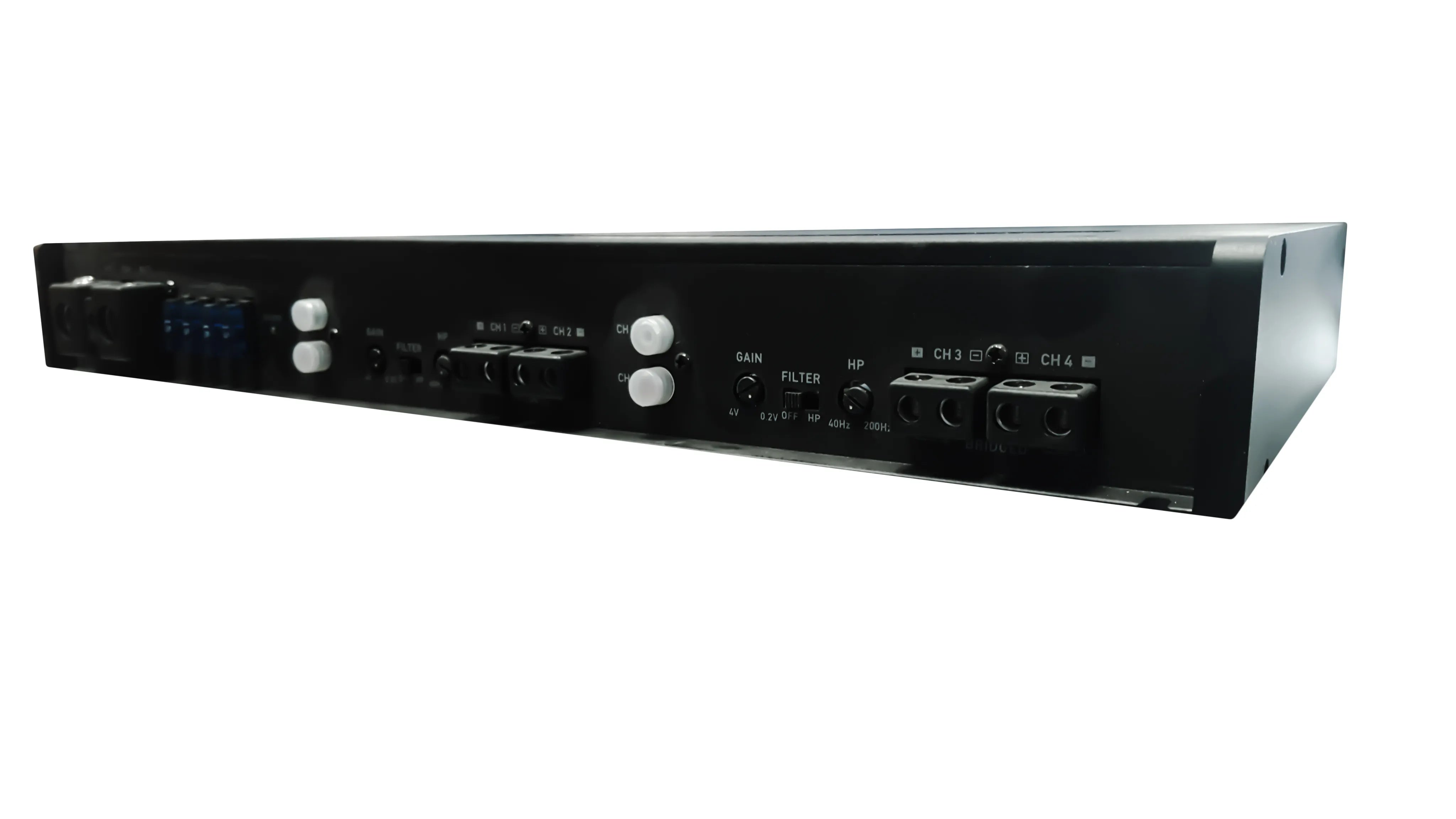

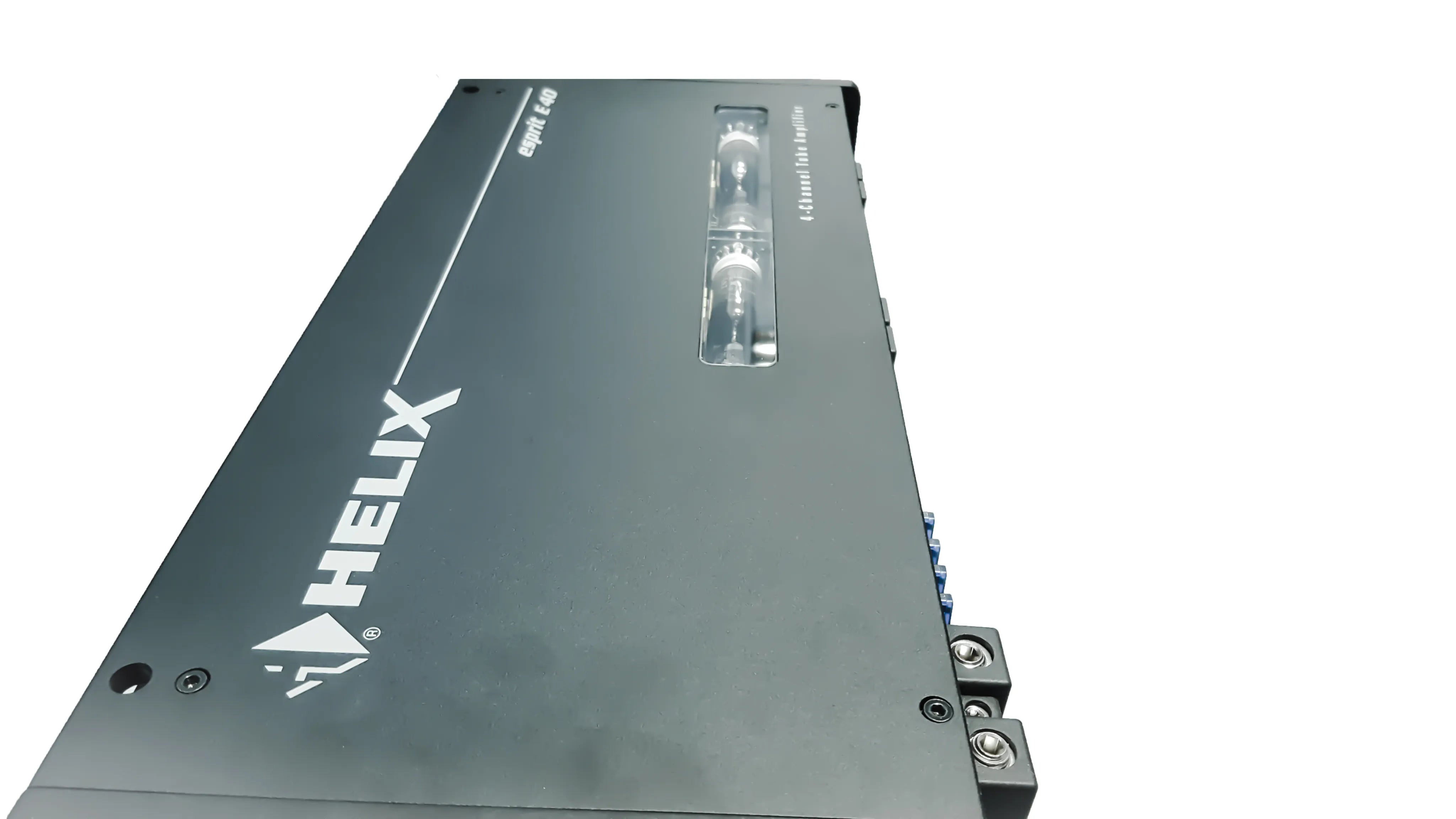

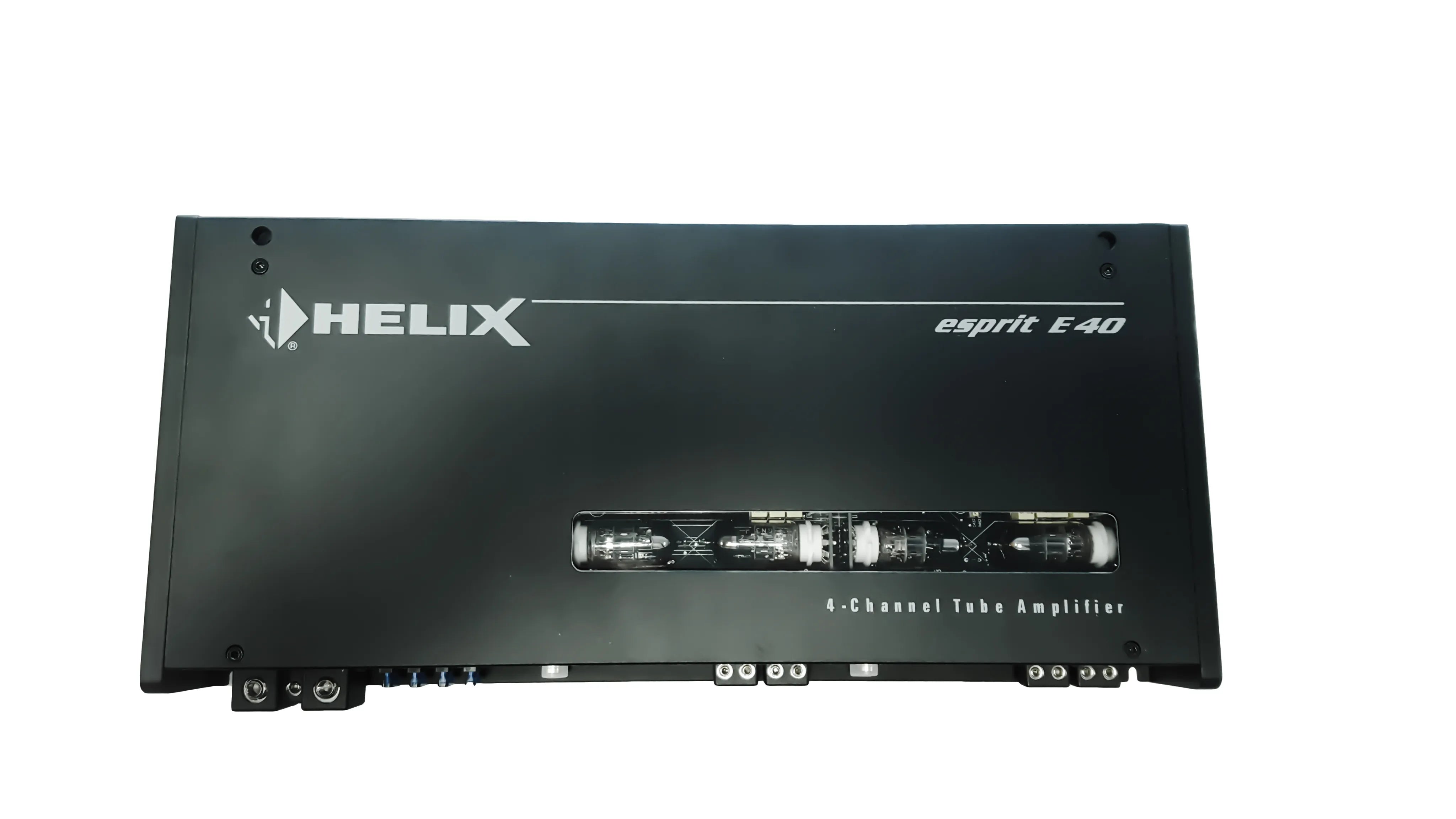

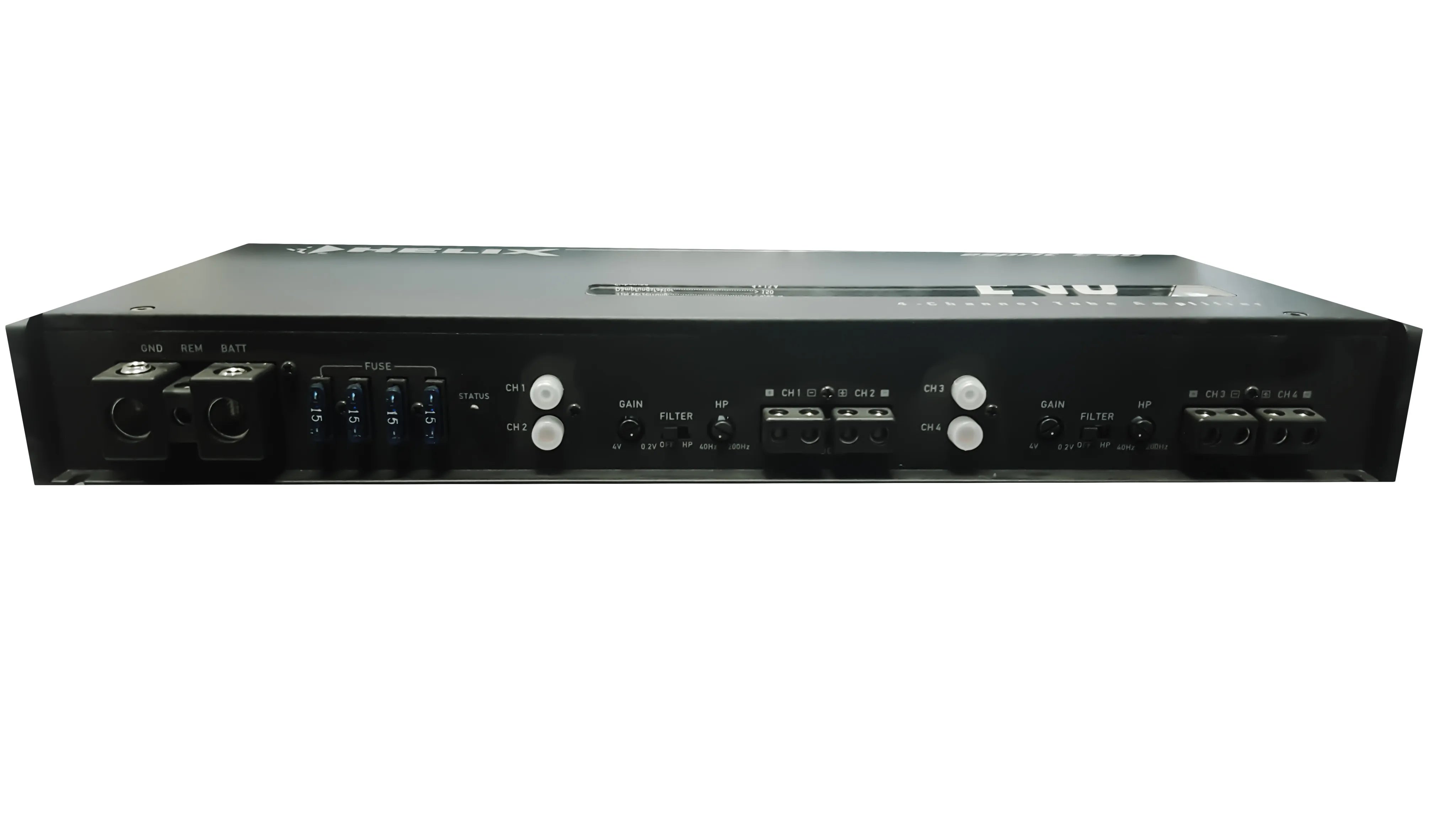

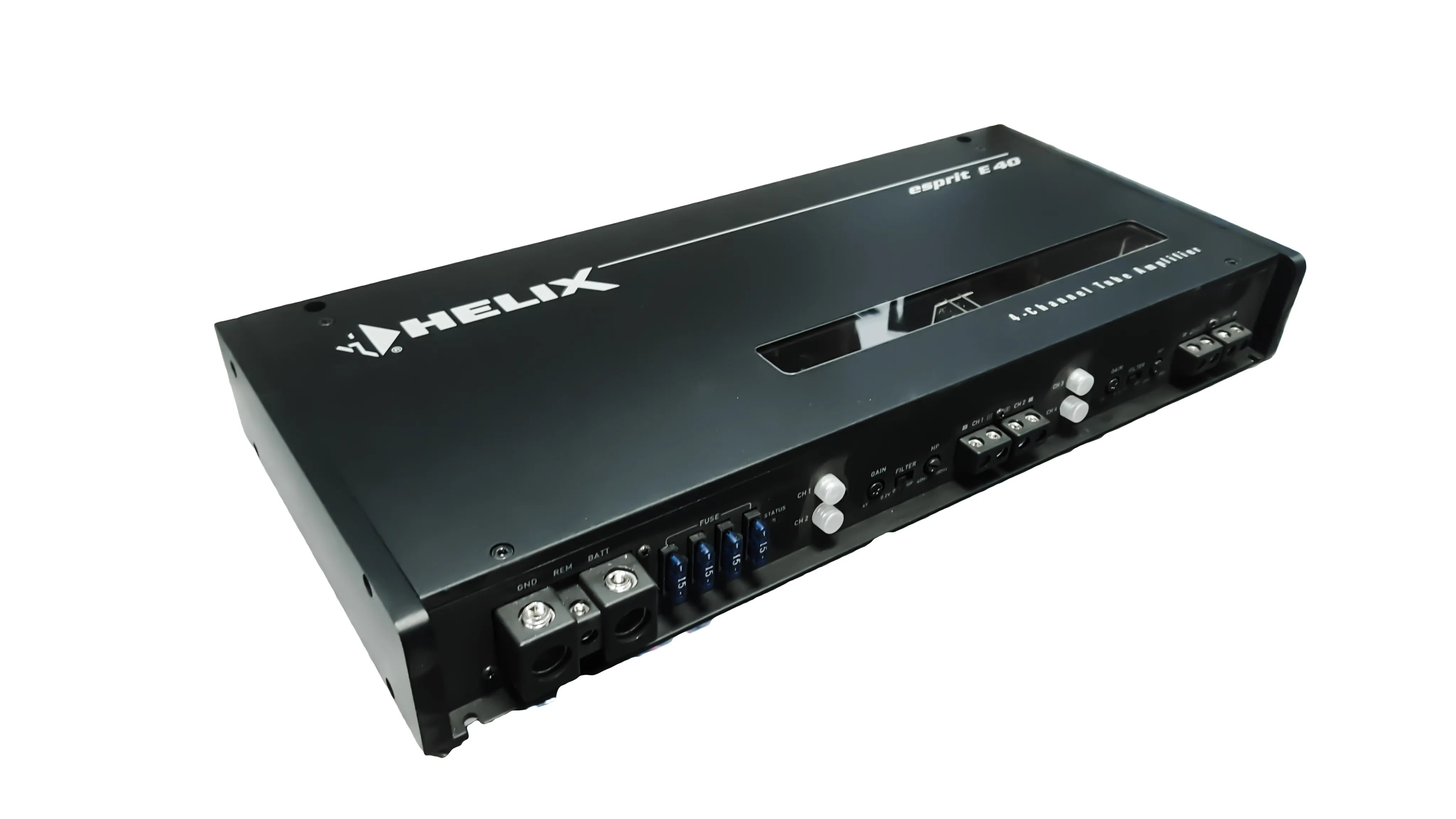

4-channel sound amplifier Helix Esprit E40

Power RMS/MAX: @ at 4 ohms RMS / 12V - 4 x 60W @ at 4 ohms / 13.
€479.00 EUR

▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.

Inbank lizingas | Autogarsas.lt

Free delivery in Lithuania from € 100

In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.

Pick up the goods in the store for € 0

Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00

INFORMACIJA

  • Power RMS/MAX:
    @ at 4 ohms RMS / 12V - 4 x 60W
    @ at 4 ohms / 13.8V - 4 x 85W / 100W
    @ at 2 ohms / 13.8V - 4 x 110W / 150W
    By bridge @ at 4 ohms - 2 x 220W / 300W
  • Frequency range: 20 Hz - 20,000 Hz
  • Damping factor: > 150
  • Input sensitivity: 0.2 - 4 Volts
  • Dimensions: 58 x 470 x 217 mm / Weight: 5.1 kg

FUNCTIONS

  • Hybrid transistor-tube amplifier;
  • RMI - Real Mixed Input, the system for forming an optimized input signal from the left and right channels;
  • Built-in electronic crossover;
  • Input 4 V / 6 V for connection of various signal sources;
  • Power source for the production of powerful sound within a small space;
  • Silent "smart" on / off prevents transients, even if there are other connected devices;
  • The system protects against overloads in temperature and current, as well as from voltage drops;
  • Separate loudspeaker protection system with current limiter to protect against short circuit to the car body, reduce impedance and improper connection;
  • PCB with double-sided copper coating for improved transmission of powerful and weak signals and protection from vibrations;
  • ADC - Anti Distortion Choke. System of distortion suppression;
  • Precision components with 1% tolerance for high sound quality and maximum power;
  • Connectors with gold coating 24 carats to reduce signal loss and supply voltage;
  • CPS (Color Protection System) - color indication of protection systems;
  • Optimized heatsink for increased efficiency;
  • HPF 40 - 200 Hz.

      TECHNICAL DATA

      • Total harmonic distortion (THD) < 0.05 %
      • Signal-to-noise ratio > 90 dB
