5-channel Class D sound amplifier Focal PERFORMANCE FPX 5.1200

INFORMACIJA

.

• CEA power (4 ohms) 4 x 75 Wrms + 1 x 420 Wrms
• MAX power (2 ohms) 4 x 120 Wrms + 1 x 720 Wrms
• MAX power (channels 1 to 4 bridged at 4 ohms) + channel 5 at 2 ohms 2 x 240 Wrms + 1 x 720 Wrms
• Frequency range: 10Hz - 20KHz
• SNR (1W / a) > 75dBA
• Dimensions: 337 x 175 x 57 mm / Weight: 4.1 kg

Protections: short circuit, low impedance, DC, power loss, overheating.

DESCRIPTION

5-channel FPX 5.1200 amplifier has a maximum power of 4 x 120 Watt + 1 x 720 Watt at 2 Ohms!

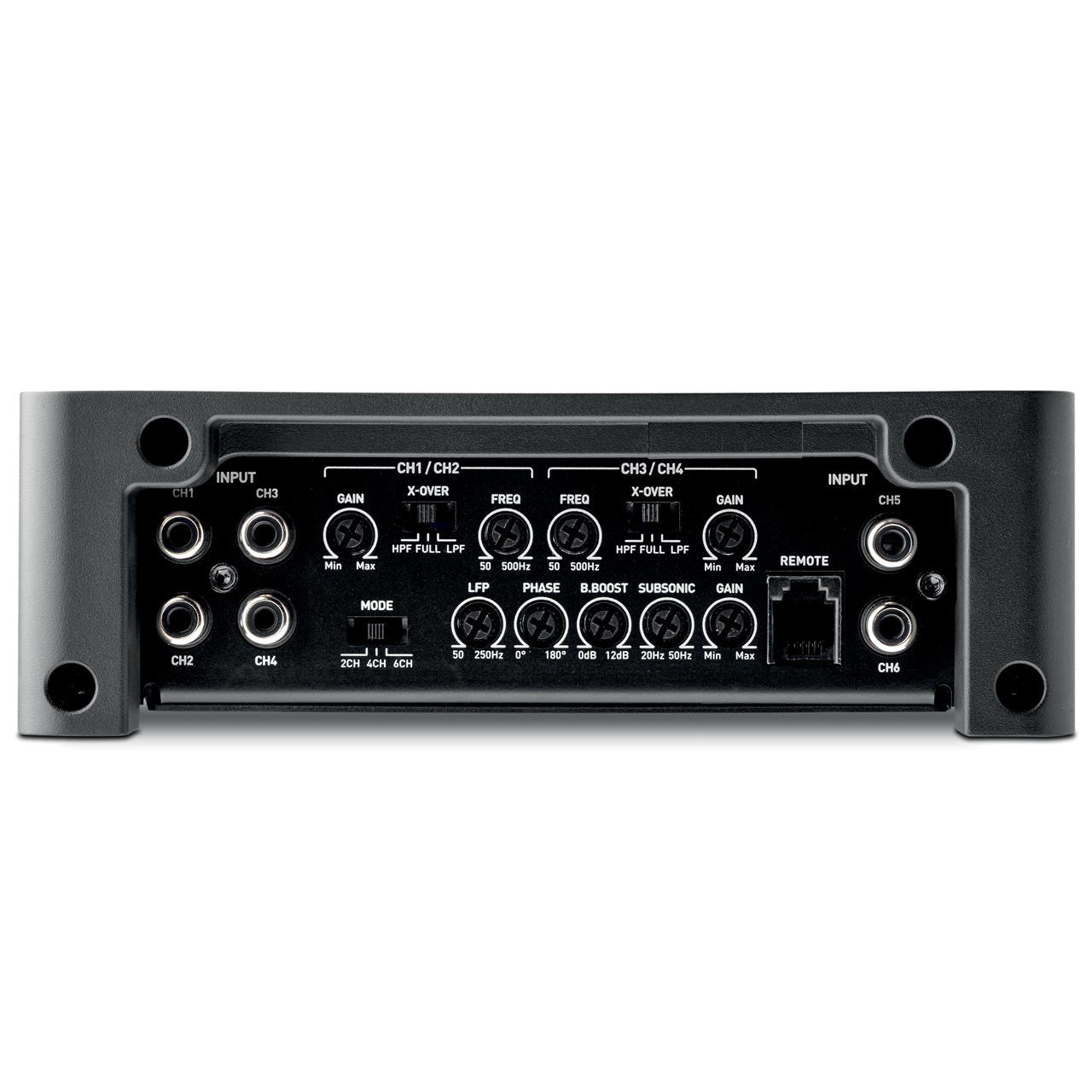

The input selector (2/4/6 channels) duplicates channels, meaning there will always be 5 output channels, even if the head unit only has one or two stereo outputs.

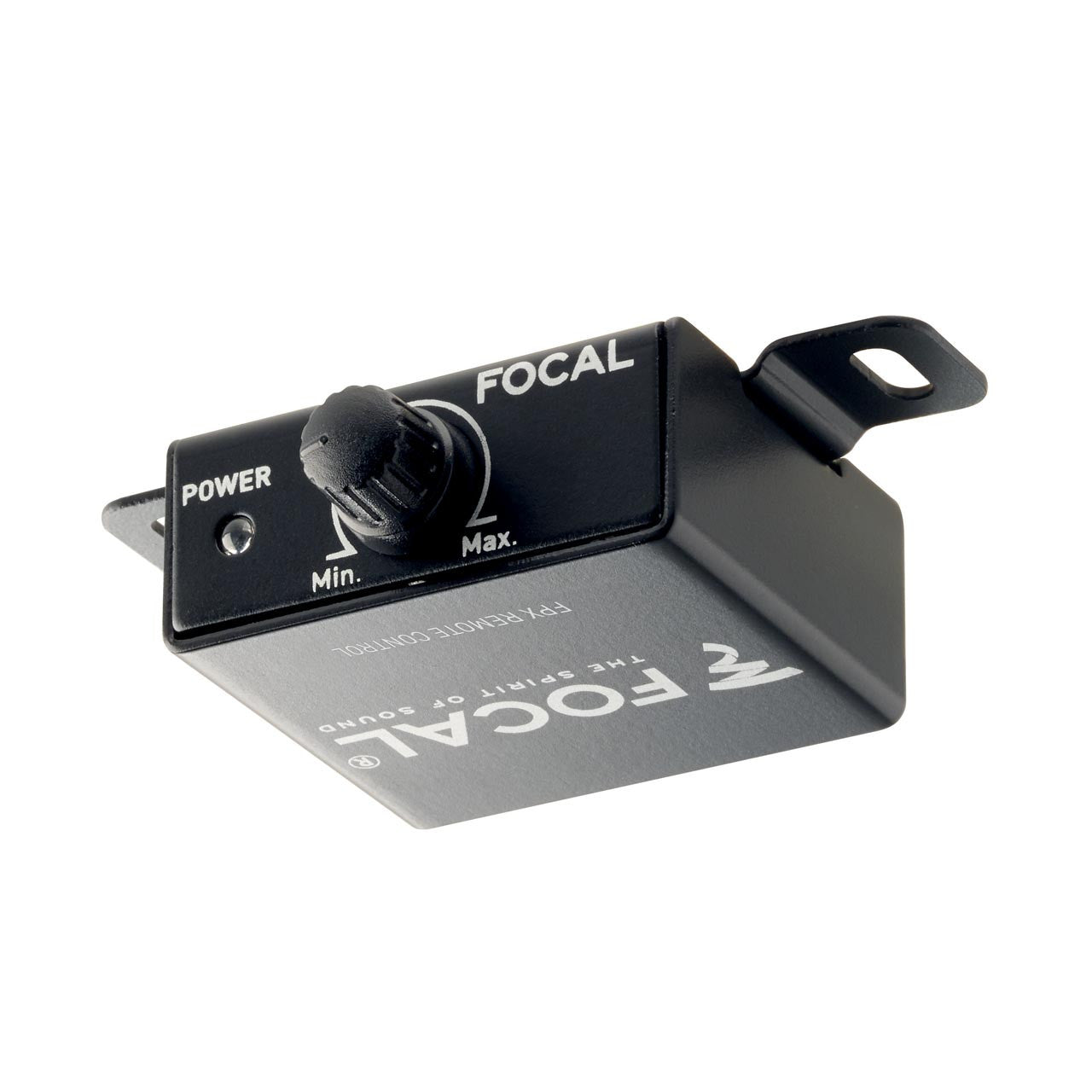

To perfectly tune the subwoofer to the rest of the installation, the bass channel has a low-pass active crossover, a bass equalizer, phase adjustment and a subsonic filter (particularly useful for cutting off frequencies which are too low for a small subwoofer). The remote control enables you to adjust the bass level from the driving seat depending on the type of music you're listening to.

Stable at 4 and 2 Ohms, this new FPX amplifier will drive most speaker drivers on the market with just the right amount of power: 4 x 75 Watts + 1 x 420 Watts RMS at 4 Ohms (CEA standard). With its power and contained volume, FPX 5.1200 makes the installation easier in order to make the most of your boot space.

TECHNICAL DATA

• Subsonic filter 10Hz-50Hz(24dB/oct)
• High-pass/low-pass filter 50 Hz - 500 Hz
• Bass boost 0 to 12 dB linear
• Phase 0 to 180° linear
• Full-range function ✓
• Mirror mode ✓
• Standby current (A) 1.7
• Protections Short circuit/low impedance/reverse polarity/DC/voltage drop/overheat protection
