Adastra WA-225, sieninis stereo stiprintuvas su Bluetooth

INFORMACIJA

Adastra WA-225 - modernus sieninis stereo stiprintuvas, sujungiantis kompaktišką dizainą ir universalias muzikos atkūrimo galimybes. Integruotas 2 × 25 W stiprintuvas leidžia prijungti pasyvias garso kolonėles, o „Bluetooth“, USB, „microSD“ ir FM radijas suteikia laisvę rinktis mėgstamą muziką. 2,8 colio spalvotas jutiklinis ekranas, nuotolinio valdymo pultas ir programuojamas muzikos atkūrimas užtikrina patogų naudojimą. Elegantiškas, į sieną montuojamas sprendimas namų, biurų ar komercinių patalpų įgarsinimui.

Išėjimo galia: 2 × 25 W (4 Ω) / 2 × 15 W (8 Ω)
Garso šaltiniai: Bluetooth, USB, microSD, FM radijas, AUX
Ekranas: 2,8 colio spalvotas TFT, jutiklinis valdymas
Dažnių diapazonas: 20 Hz – 20 kHz (±2 dB)
Maitinimas: 110–250 V AC, 50/60 Hz

APRAŠYMAS

WA-225 Wall-Mount Amplifier with USB/SD, FM Tuner and Bluetooth
Compact audio control panel with 2 x 25W digital amplifier built into a single gang wall plate. Powered directly from a 100-250Vac mains supply, the unit can be installed into a partition wall or 47mm back box and provides a minimal yet fully functional control surface. The WA-225 has an inbuilt USB/MicroSD audio player, an FM tuner and a Bluetooth receiver. Additional features include date/time display with an alarm clock and even a playback scheduler for background music automation. Bluetooth has a programmable name and pairing code to avoid confusion in multi room installations. Menu options and playback are operated from the front touch panel or by using the supplied IR remote control, displayed on a full colour 2.8” TFT screen. Left & Right speaker outputs for 2 or 4 speakers, mains power, FM antenna and an external line input are provided at the rear on screw terminal Euroblock connectors. A trigger contact is also included for a built-in doorbell function. A complete and versatile audio solution for wall or ceiling background music speakers in the home or commercial premises.

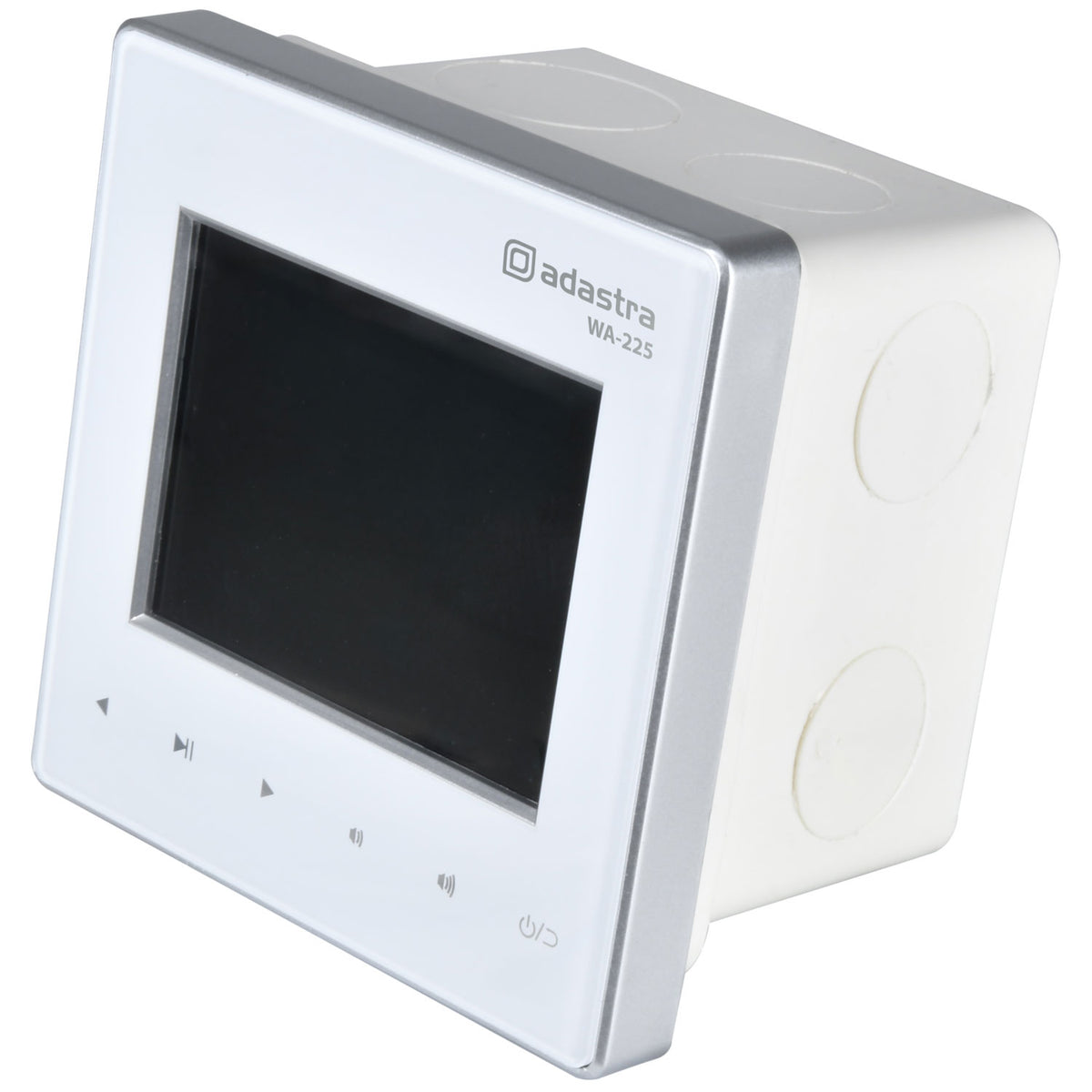

Supplied with 50mm back box and IR remote control handset.
58 x 43mm full colour TFT display
Wipe clean touch control panel
Built in USB/microSD player and FM tuner
Bluetooth receiver

TECHNINIAI DUOMENYS

Power supply
110-250Vac 50/60Hz (screw terminals)
Output power @ 4 ohms
2 x 25W
Output power @ 8 ohms
2 x 15W
Inputs
microSD slot, USB-A port, 3.5mm Aux jack

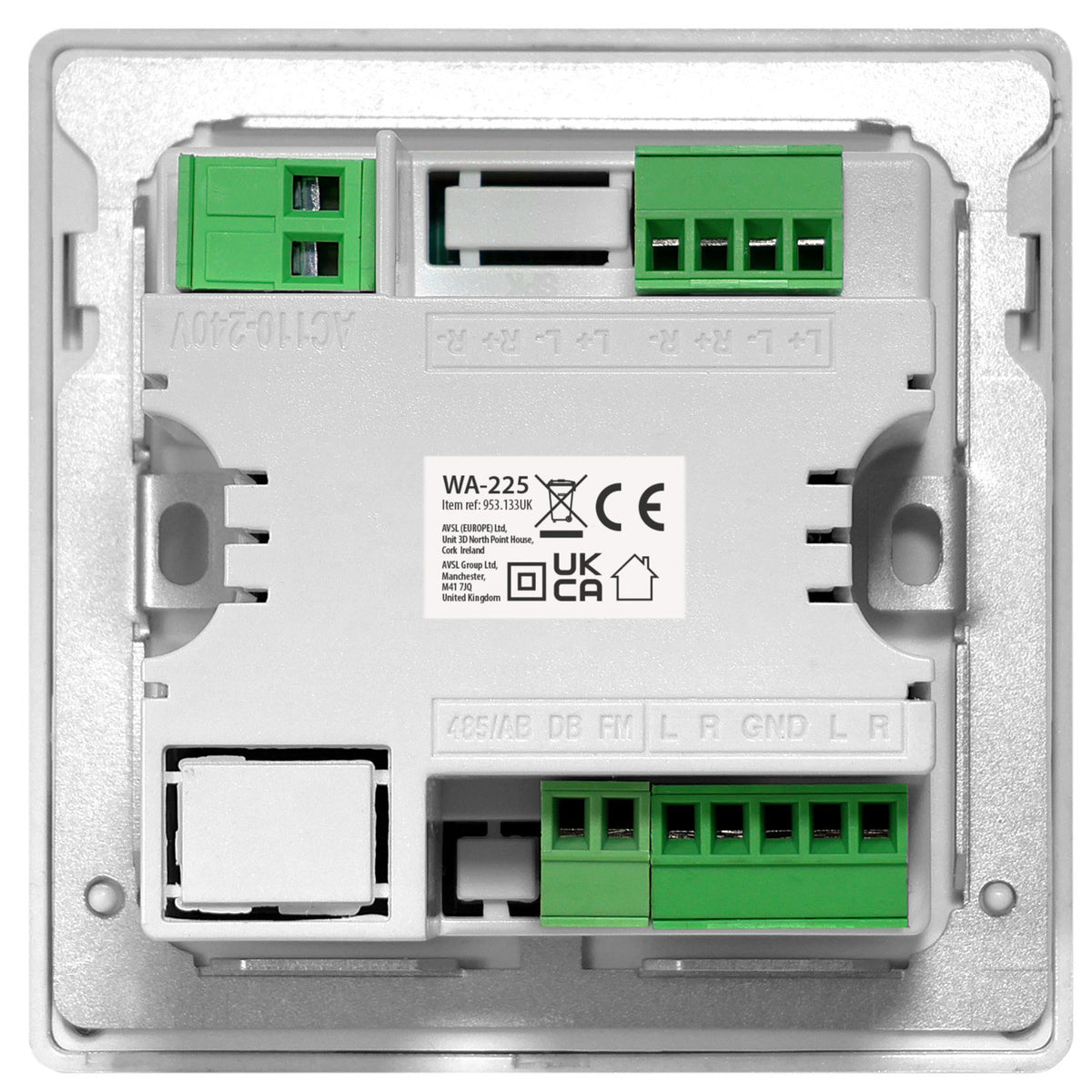

Terminals
L+N power, Doorbell, Aux L+R in/out, Speaker out L+R, GND, FM
Modes
mp3, Bluetooth, FM tuner, Aux in
Audio format
mp3, wma, wav, aac, waw, ape
USB/SD player
32GB max. FAT32
Bluetooth range
Up to 10m
THD
0.03% (1W/1m)
SNR
98dB
Frequency response
20Hz-20kHz (±2dB)
Mounting depth
37mm (no back box)
Dimensions
86 x 86 x 50mm (inc. back box)
Weight
224g (inc. back box

Komplektacija

Adastra WA-225 sieninis stiprintuvas
ABS montavimo dėžutė
Metalinė montavimo plokštelė

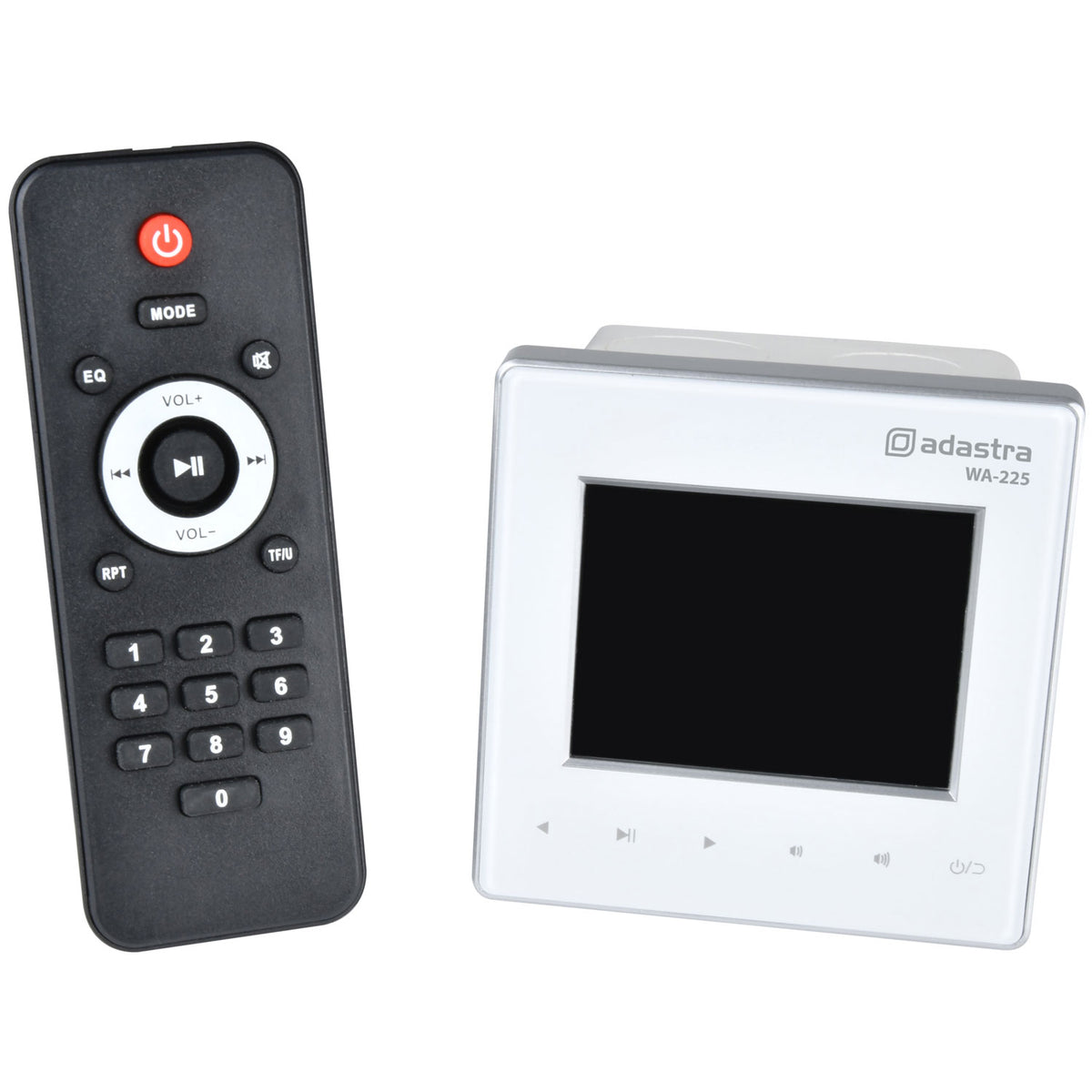

Nuotolinio valdymo pultas
Mažas atsuktuvas jungčių gnybtams
