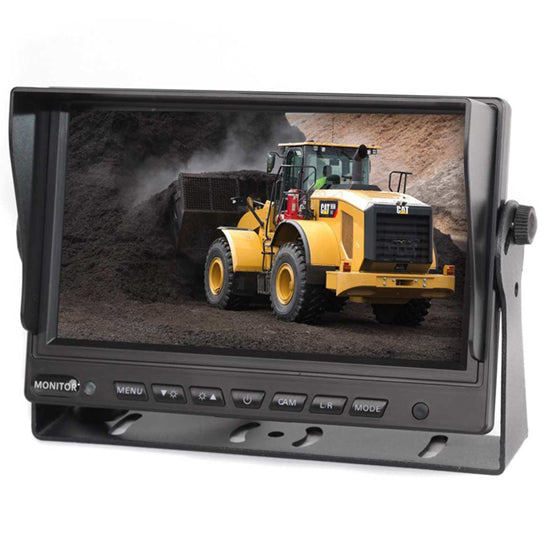

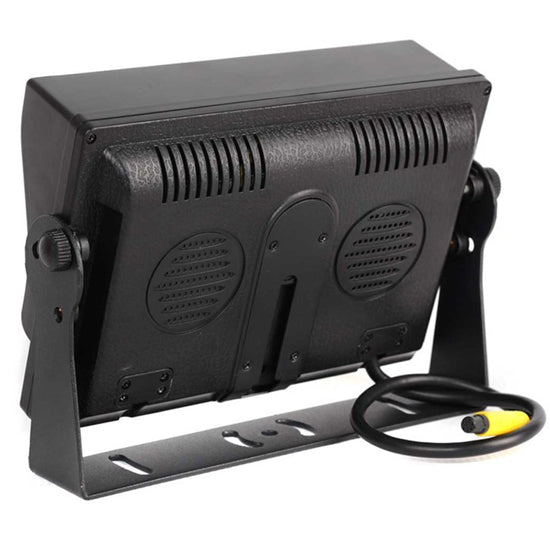

AHD TFT7HD2, monitor

AHD 10 inch monitor for ivehicles, supports connecting up to four cameras, simultaneous multiple view, M12 4PIN connectors, 1024x600 resolution, for 12 / 24V on-board voltage.
€170.00 EUR

AHD TFT7HD2, monitor - Ask you before buying whether we have this item in a warehouse if we do not have to be ordered and arrive within 2-21 days.

▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.

Free delivery in Lithuania from € 100

In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.

Pick up the goods in the store for € 0

Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00

INFORMACIJA

AHD 10 inch monitor for ivehicles, supports connecting up to four cameras, simultaneous multiple view, M12 4PIN connectors, 1024x600 resolution, for 12 / 24V on-board voltage.

  • 7 inch TFT liquid crystal display 16: 9.
  • 1024 x 600 RGB resolution.
  • AV input 3 x 720p HD video input.
  • Display options: 1 camera, 2 cameras.

DESCRIPTION

AHD 10 inch monitor for ivehicles, support to connect up to four cameras, simultaneous multiple view, M12 4PIN connectors, 1024x600 resolution for 12 / 24V on-board voltage, compatible with AHD cameras or analog cameras with M12 or RCA plugs, 180 ° flip image function, ideal for use with rear view camera, side and front camera or cargo monitoring.

TECHNICAL DATA

SPECIFICATIONS

  • 7 inch TFT liquid crystal display 16: 9
  • 1024 x 600 RGB resolution
  • AV input 3 x 720p HD video input
  • display options: 1 camera, 2 cameras
  • trigger wire for each video input (2x)
  • adjusting image orientation (left, right, up, down)
  • Parking lines
  • Loudspeaker
  • shock resistance 4G
  • DC power supply 12-24V
  • operating temperature from -20 to +70 °C
  • dimensions 178 x 117 x 23
