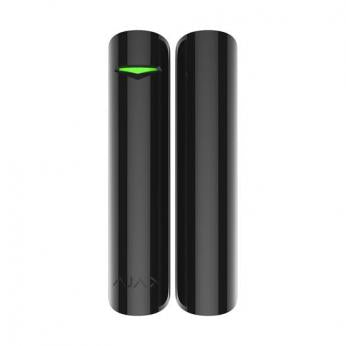

Ajax DoorProtect Plus, door opening detector

Ajax DoorProtect is a compact and wireless door and window opening detector with a magnetic sensor that detects intrusion as soon as doors and windows are opened, even across multiple floors.
Long distance is not an obstacle
Thanks to Jeweler's long-range communication technology, Ajax DoorProtect door and window detectors can be mounted up to 1000 meters away from the system control center.
100% protection
For even better protection, Ajax DoorProtect Plus has a special signal-encrypted anti-suppression system. Periodically sending signals every 12-300 sec. for detectors, their operation is also checked by the smart control unit.
Easy to install and operate
You can connect the Ajax DoorProtect Plus motion detector to the Ajax security system by scanning the QR code on the package with your smart device and following a few steps in the Ajax Security System app. In addition, thanks to the special SmartBracket holders, you can easily attach the detector to vertical surfaces. in the package you will find 2 magnets of different sizes. Which of the two to use depends on the design of the window or door.
Long-lasting battery
The Ajax DoorProtect Plus door opener detector uses a standard replaceable CR123A battery. The device uses energy very sparingly, so one battery will last up to 5 years.

Technical data

• Detector type: wireless
• Installation: on the surface
• Detection elements: Reed button, accelerometer
• Distance to the magnet: up to 1 cm (small magnet), up to 2 cm (large magnet)
• Place of use: interior
• Compatibility: Only works with Ajax Hub
• Additional inputs: Yes
• Anti-hacking: Yes
• Signal power: 20 mW
• Communication protocol: Jeweler (868.0-868.6 MHz)
• The maximum distance between the detector and the control panel: 1000 m (in open area)
• Battery type: CR123A
• Supply voltage: 3 V
• Battery life: 5 years.
• Works at temperatures: from 0°C to + 50°C
• Moisture protection: up to 80%
• Dimensions: 20x90 mm

Complete set

• Detector
• 2 magnets
• CR123A battery
• External contact
• Installation kit
• Instruction
