Helix  |  Bar code: 4057204330910

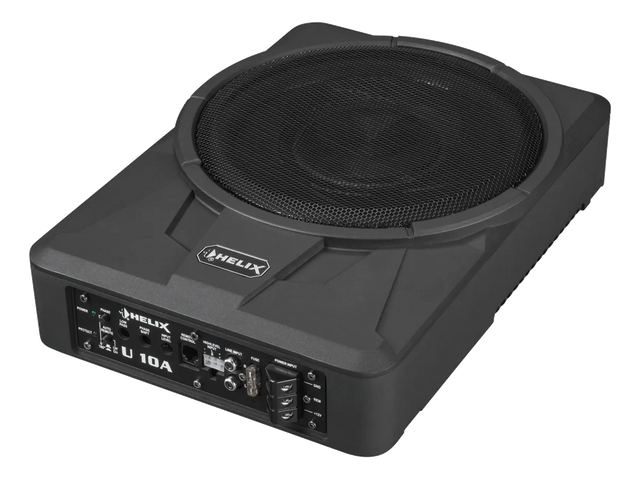

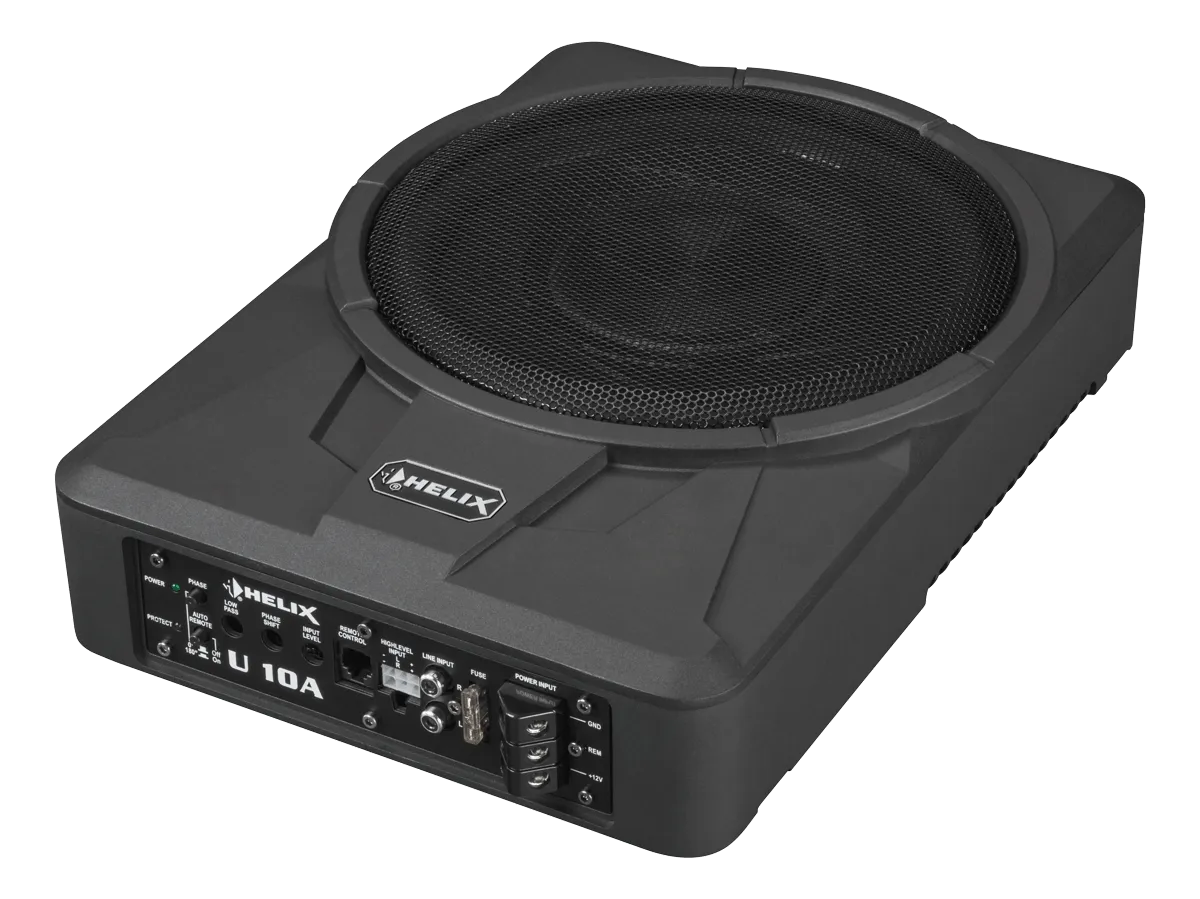

Helix U 10A, 360W active subwoofer in enclosure

Power: RMS 180 W / MAX 360 W Frequency range: 40 - 150 Hz Diameter: 250 mm Dimensions: 78 x 245 x 345 mm DESCRIPTION Bass in the smallest enclosure – If space for installation in the vehicle is limited and existing car hi-fi systems need an extra kick in the low-frequency range without much effort, the new HELIX active subwoofers U 10A and U 8A are the right choice.
Regular price 289,00 €

  • Free delivery in Lithuania from 100 €: courier or parcel locker
  • Pick up at our showroom in Kaunas, Armatūrininkų g. 1
  • We install at our service centre in Kaunas. Book installation
  • 14-day returns
Questions about this product? +370 683 90000 Write to us

▪️ Have questions about this product❓We can advise you by phone +370 683 90000 or visit our showroom at Armatūrininkų g. 1, Kaunas.


Delivery

In Lithuania, we deliver parcels to your door by DPD courier for 5.99€ within 1-2 business days (if the item is in stock). Orders over 100€ qualify for free delivery.

Delivery outside Lithuania takes 3-7 business days. Delivery prices start from 15.00€.

Pick up in store

You can pick up items ordered online at our store at Armatūrininkų g. 1, Kaunas. Please bring your order number.

We recommend calling before you arrive: +370 683 90000

Opening hours: Mon-Fri 9:00-18:00

INFORMATION

  • Power: RMS 180 W / MAX 360 W
  • Frequency range: 40 - 150 Hz
  • Diameter: 250 mm
  • Dimensions: 78 x 245 x 345 mm

DESCRIPTION

Bass in the smallest enclosure – If space for installation in the vehicle is limited and existing car hi-fi systems need an extra kick in the low-frequency range without much effort, the new HELIX active subwoofers U 10A and U 8A are the right choice. Powered by robust, integrated Class AB amplifiers delivering 180 W RMS, the heavy-duty drivers—with their rigid aluminum cones and heat-resistant voice coils—easily transform amplifier power into punchy bass. Thanks to comprehensive adjustment options, such as the adjustable, steep-slope low-pass filter and particularly precise phase control, low-frequency reproduction can be perfectly adapted to the vehicle's acoustics. Equipped with a 2-channel high-level input with an automatic turn-on function, as well as a 2-channel low-level RCA input, seamless integration is guaranteed. And thanks to the exceptionally shallow enclosure design, installation is a breeze, especially when space is extremely limited—these small "bass boosters" may even fit under the seats, for example.

Features

  • Powerful, integrated Class AB amplifier delivering 180 W RMS for punchy bass
  • Solid, low-resonance die-cast aluminum housing for precise bass reproduction and optimal heat dissipation
  • Heavy-duty 10” / 250 mm driver with an exceptionally rigid aluminum cone for converting amplifier power into sound pressure without compression

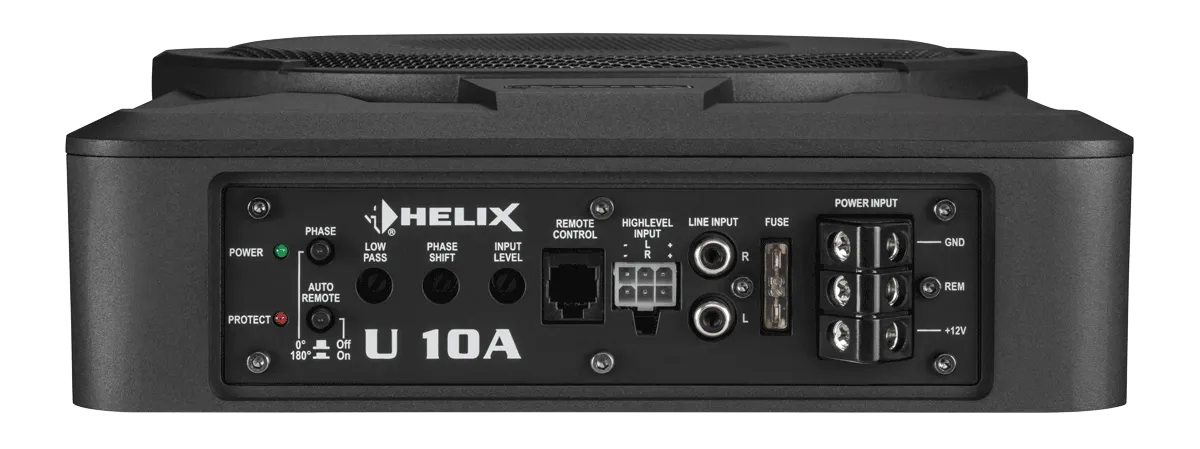

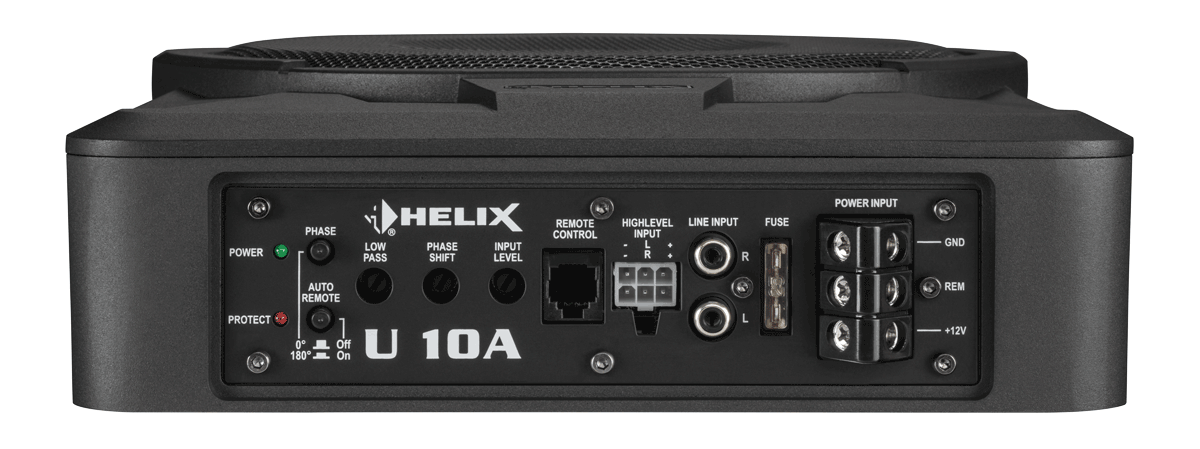

  • 2-channel high-level input with Auto Turn-on function, as well as 2-channel low-level input
  • Continuously adjustable, steep-slope low-pass filter
  • Particularly precise phase adjustment

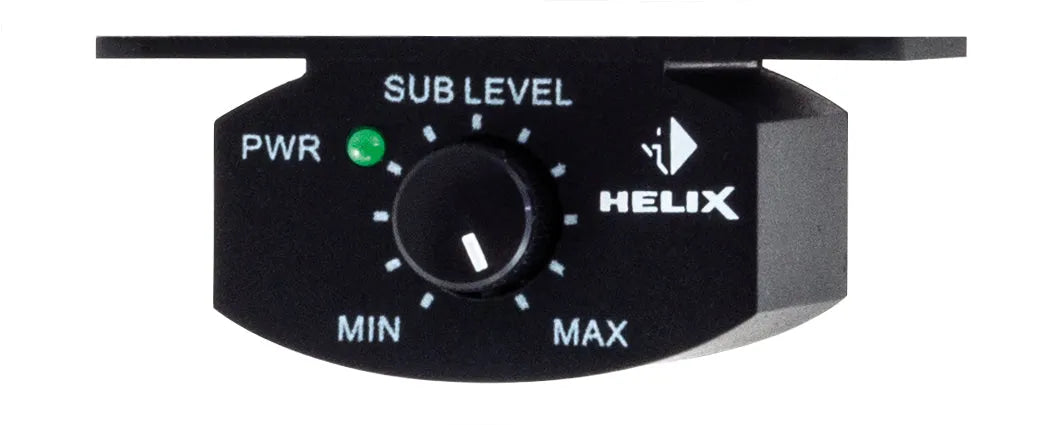

  • Cable remote control for volume adjustment included
  • Exceptionally flat enclosure design—ideal for space-saving under-seat installation

TECHNICAL DATA

Power RMS / max. 180 / 360 Watts
Woofer diameter 10" / 250 mm
Inputs 2 x RCA / Cinch
2 x High-level speaker input
1 x Remote In
1 x Remote control input
Input sensitivity High-level 1.2 - 20 Volts
RCA / Cinch 0.3 - 4 Volts
Input impedance RCA / Cinch 10 kOhms
Input impedance high-level 33 Ohms
Frequency response 40 - 150 Hz
Low-pass 50 - 150 Hz adjustable
Subsonic 16 Hz / 12dB/Oct.
Phase switch 0° / 180° switchable
Phase shift 0 - 180° adjustable
Low-pass slope 24 dB/Oct.
Signal-to-noise ratio > 92 dB (A-weighted)
Distortion (THD) < 0.4 %
Operating voltage 10.5 - 16 Volts
Fuse 25 A Maxi-fuse (APX)
Additional features Die-cast aluminum housing, cable remote control for volume adjustment, Auto Remote switch
Dimensions (H x W x D) 78 x 245 x 345 mm /
3.07 x 9.65 x 13.58"
