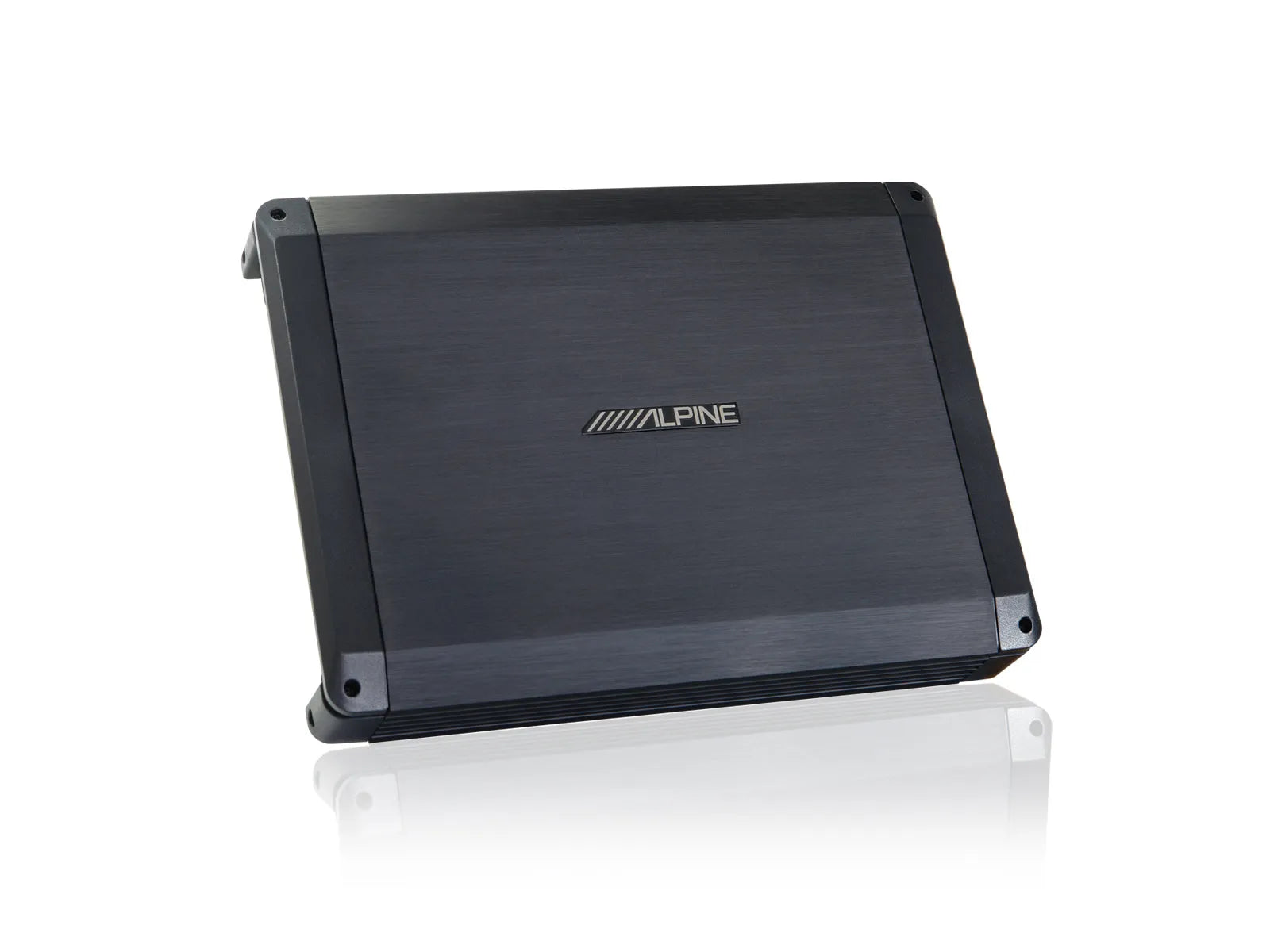

Alpine BBX-F1200, 4-channel car audio amplifier

The new BBX amplifiers reproduce the power and quality of Alpine sound at a great price.
€125.00 EUR

Alpine BBX-F1200, 4-channel car audio amplifier - Ask you before buying whether we have this item in a warehouse if we do not have to be ordered and arrive within 2-21 days.

▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.

Free delivery in Lithuania from € 100

In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.

Pick up the goods in the store for € 0

Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00

INFORMACIJA

The new BBX amplifiers reproduce the power and quality of Alpine sound at a great price. They are designed to complement almost any audio system.

  • Total maximum power: 600W.
  • RMS power per channel at 2Ω (≤1%THD+N): 4 x 70W.
  • Amplifier type: Class - A/B.
  • Number of channels: 4/3/2 channels.


    DESCRIPTION

    Designed for the European market

    . They are designed to complement almost any sound system.

    Great power, great quality

    It is an amplifier with high power and exceptional sound characteristics. A great choice to upgrade your car's sound system without spending a lot of money.

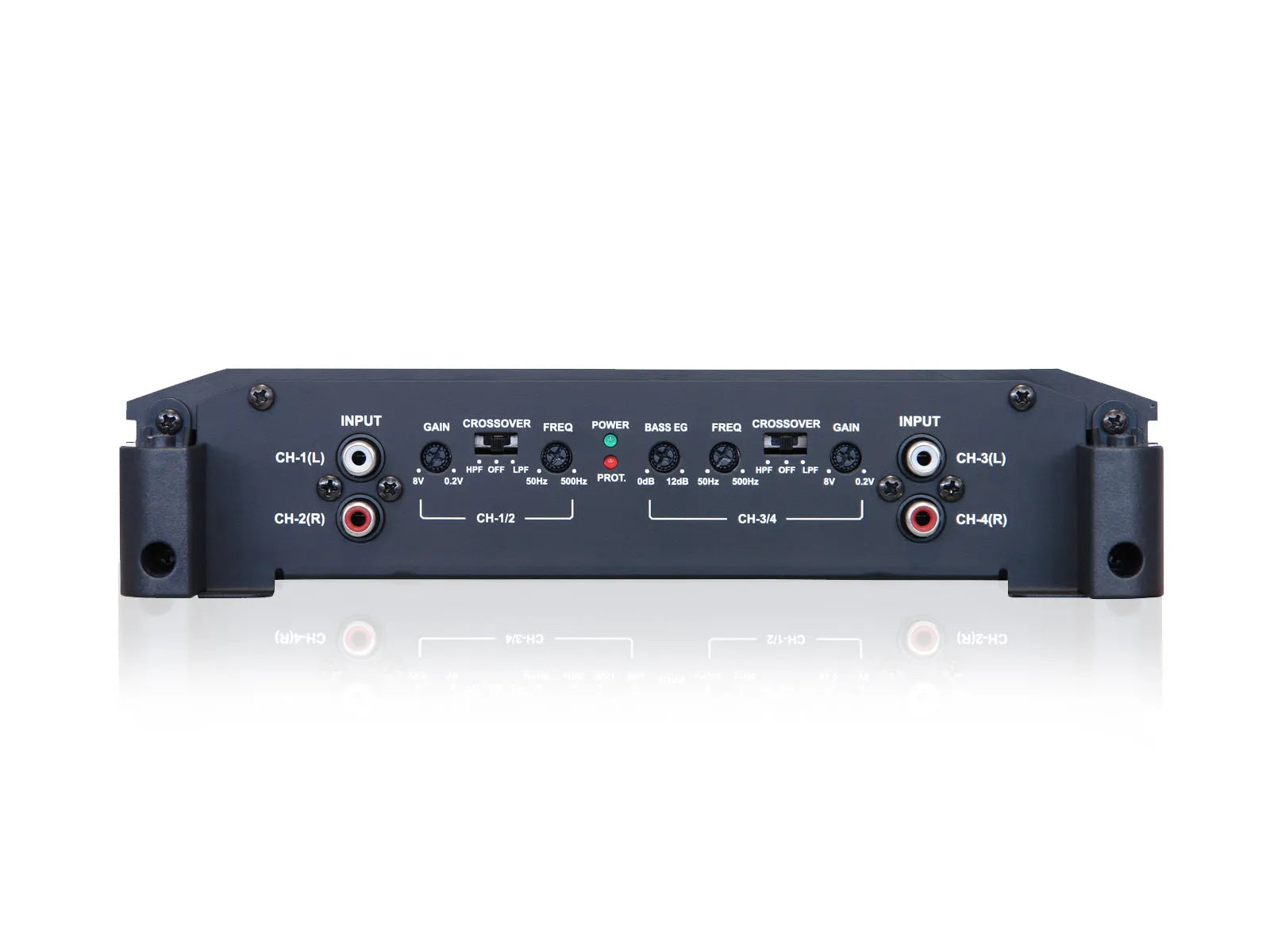

    High and low pass filters

    These two filters allow you to correctly adjust the high, medium and low frequency bands according to the speakers used in the audio system and ensure their optimal performance.

    Bass EQ - to make low frequencies sound powerful

    With Bass EQ you will optimize the capabilities of the sound system and the low frequencies will sound even more powerful.

    TECHNICAL DATA

    SPECIFICATIONS

    Functions

    Installation

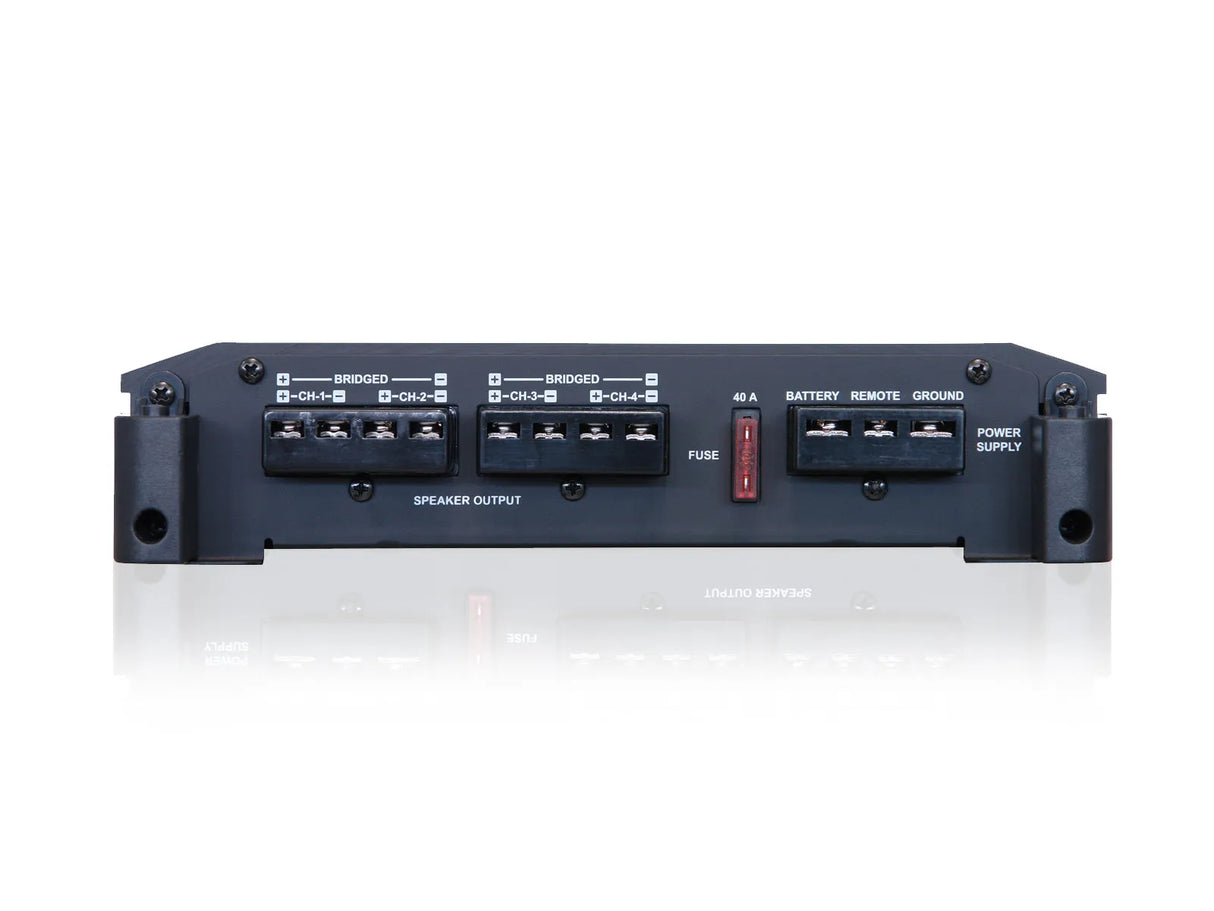

    • Connection contacts: on two sides
    • Fastening/wire protection: Integrated protection for wires and fasteners.

    General data

    • Amplifier type: Class - A/B
    • Number of channels: 4/3/2 channels
    • Thermal protection
    • DC-DC PWM power supply
    • Power supply: MOSFET
    • Protection circuits: limit current, overvoltage and thermal protection
    • Frequency filter: adjustable high and low frequency filter
    • Green/red LED status indicator
    • 2 pairs of RCA inputs

    Specification

    Maximum output power

    • Total maximum power: 600W

    RMS power

    • For channel at 4Ω (≤1%THD+N): 4 x 50W
    • For channel at 2Ω (≤1%THD+N): 4 x 70W
    • Bridged at 4Ω (≤1%THD+N): 2 x 130W

    Sound settings

    • Frequency filters (adjustable, selectable OFF/LPF/HPF)
      1/2 Ch: LP/HP: 50Hz - 500Hz
      3/4 Ch: LP/HP: 50Hz - 500Hz
    • EQ (equalizer): Bass EQ fixed frequency 45 Hz, Q=0.5, adjustable gain 0dB to +12dB (for 3/4 channel only)

    Dimensions

    • Overall dimensions: 330mm x 52mm x 240mm

    General data

    • Supply voltage: 14.4 V DC (11 V to 16 V)
    • Input sensitivity: 0.2 - 8.0 V
    • Frequency range: 5 Hz - 50 kHz (+ 0.-3 dB)
    • Speaker impedance: 4 or 2 Ω
    • Signal to noise ratio: (rated power at 4Ω) 95 dB
    • Weight: 2.7 Kg

    DOCUMENTS

    INSTRUCTIONS

    User Manual (EN).
