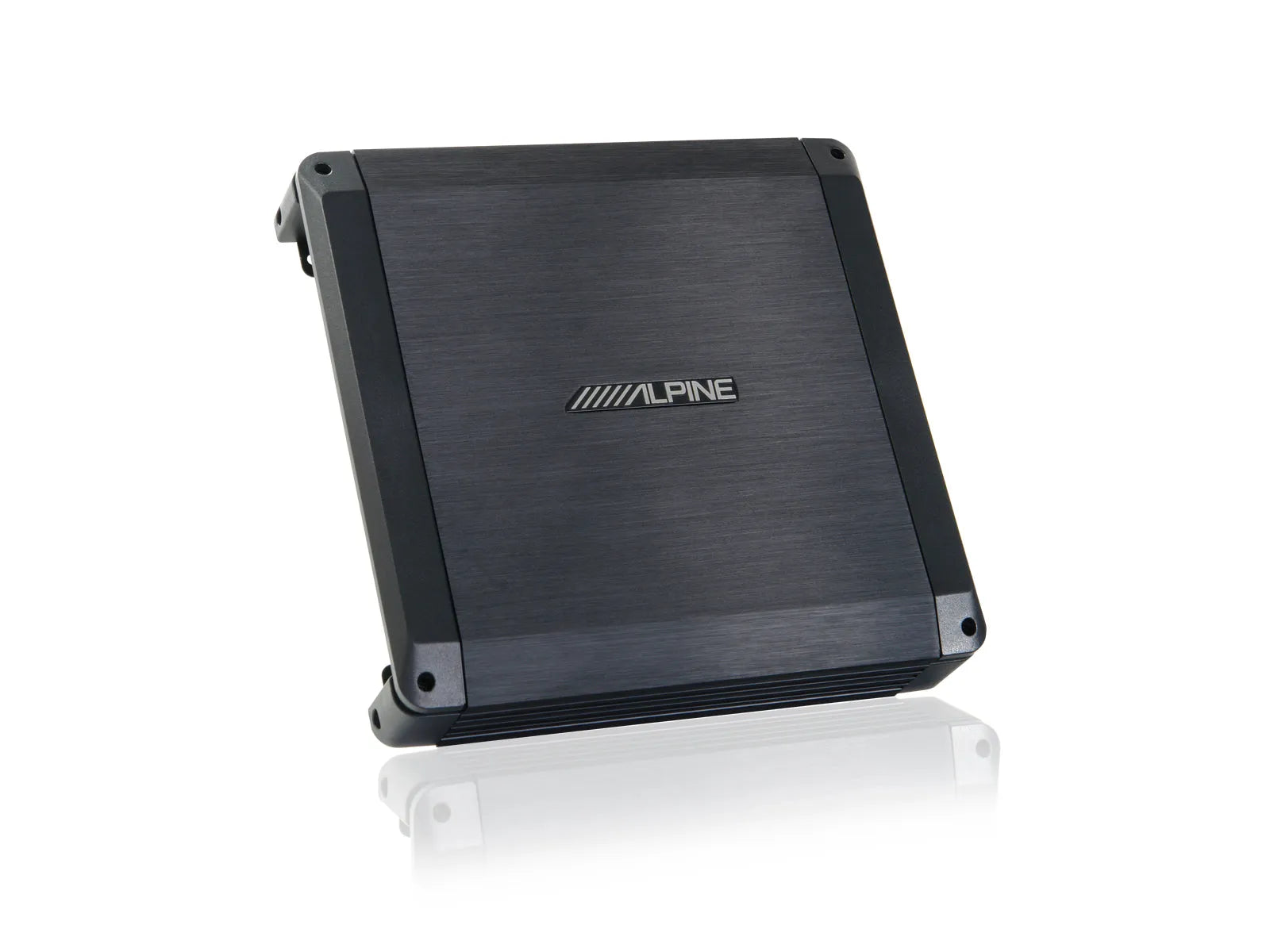

Alpine BBX-T600, 2-channel car audio amplifier
The new BBX amplifiers reproduce the power and quality of Alpine sound at a great price.
Alpine BBX-T600, 2-channel car audio amplifier - Ask you before buying whether we have this item in a warehouse if we do not have to be ordered and arrive within 2-21 days.
▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.
Free delivery in Lithuania from € 100
Free delivery in Lithuania from € 100
In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.
Pick up the goods in the store for € 0
Pick up the goods in the store for € 0
Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00
INFORMACIJA
. They are designed to complement almost any audio system.- Total maximum power: 300W.
- RMS power per channel at 2Ω (≤1%THD+N): 2 x 70W.
- Amplifier type: Class - A/B.
- Number of channels: 2/1 channels.
DESCRIPTION
Designed for the European market
The new BBX amplifiers reproduce the power and quality of Alpine sound at a great price. They are designed to complement almost any audio system.
Great power, great quality
It is an amplifier with high power and exceptional sound characteristics. A great choice to upgrade your car's sound system without spending a lot of money.
High and low pass filters
These two filters allow you to correctly adjust the high, medium and low frequency bands according to the speakers used in the audio system and ensure their optimal performance.
Bass EQ - to make low frequencies sound powerful
With Bass EQ you will optimize the capabilities of the sound system and the low frequencies will sound even more powerful.
TECHNICAL DATA
SPECIFICATIONS
Functions
Installation

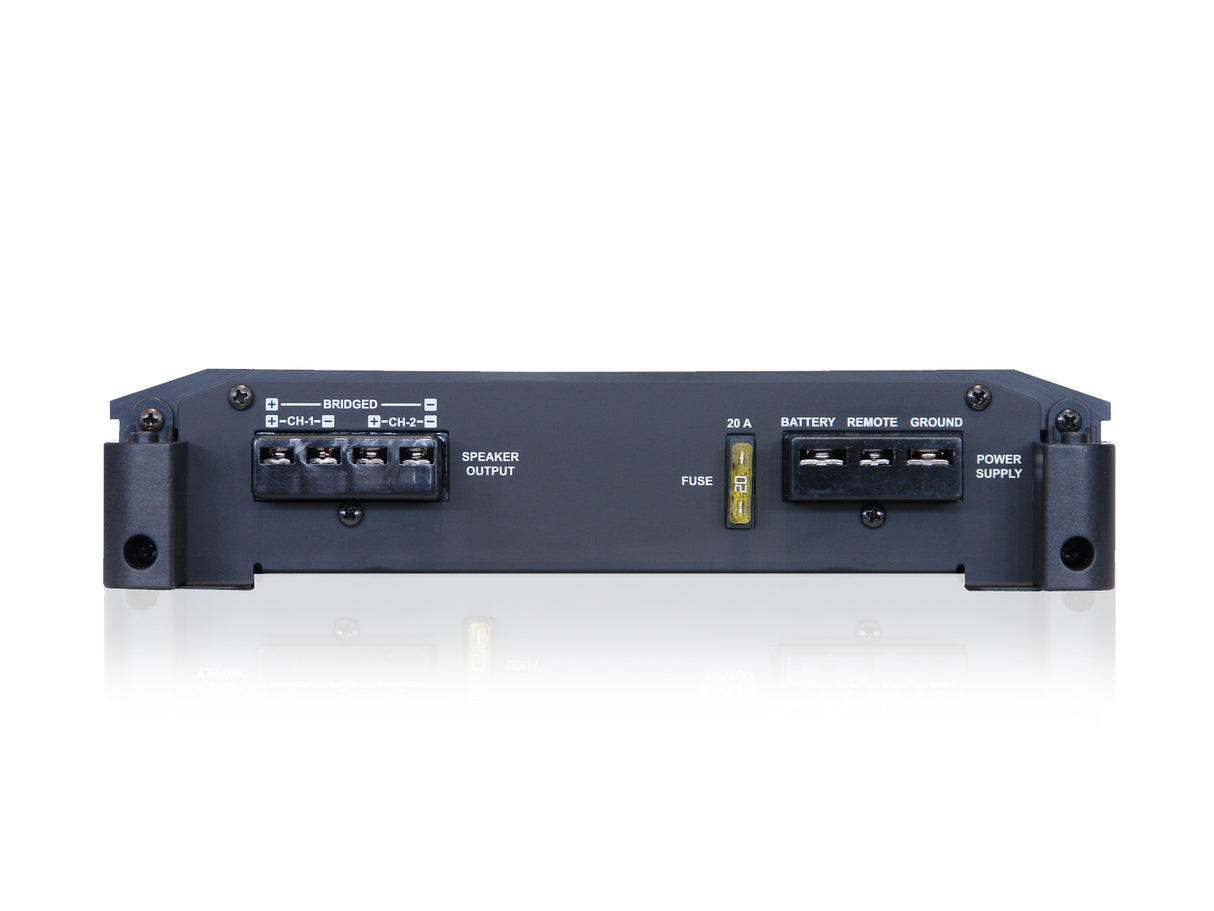

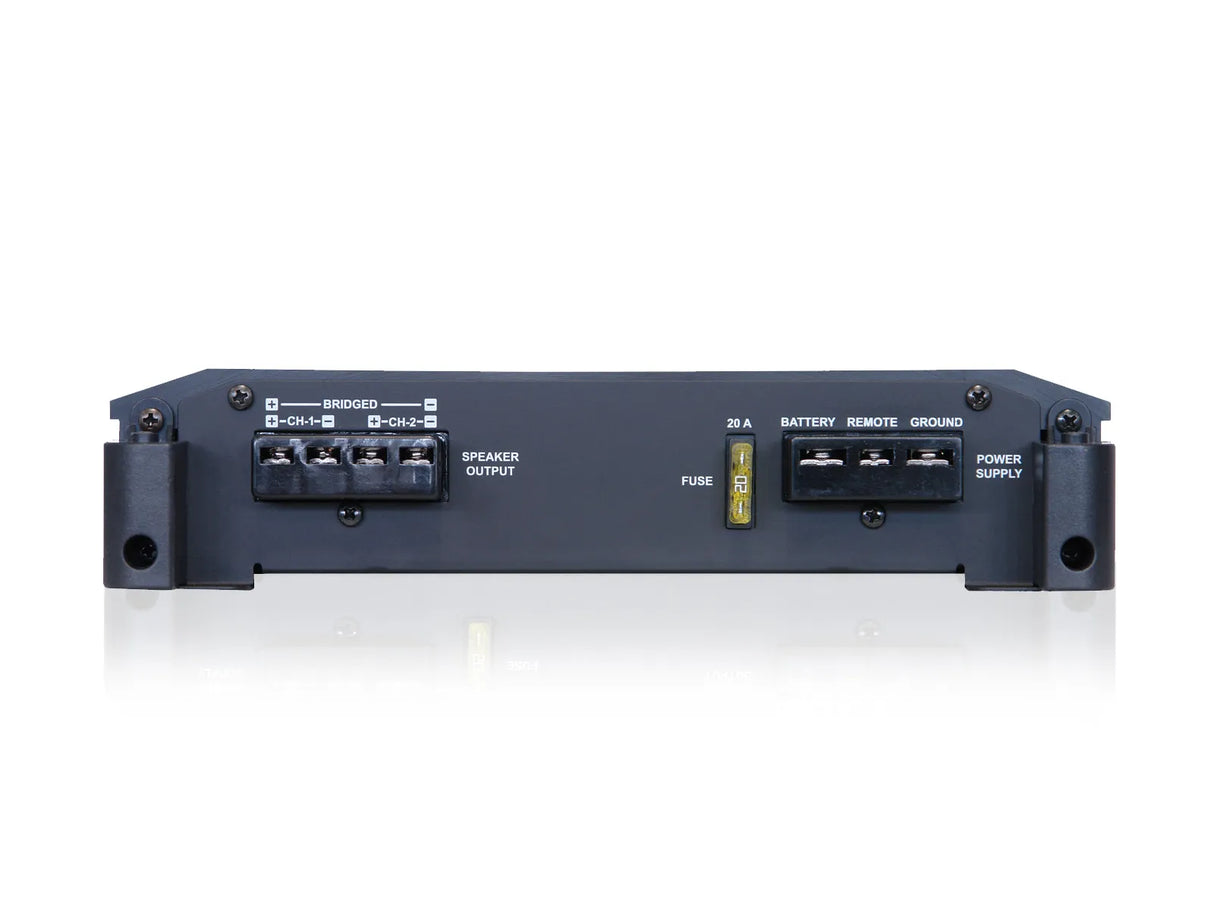

- Connection contacts: on two sides
- Fastening/wire protection: Integrated protection for wires and fasteners.
General data
- Amplifier type: Class - A/B
- Number of channels: 2/1 channels
- Thermal protection
- DC-DC PWM power supply
- Power supply: MOSFET
- Protection circuits: limit current, overvoltage and thermal protection

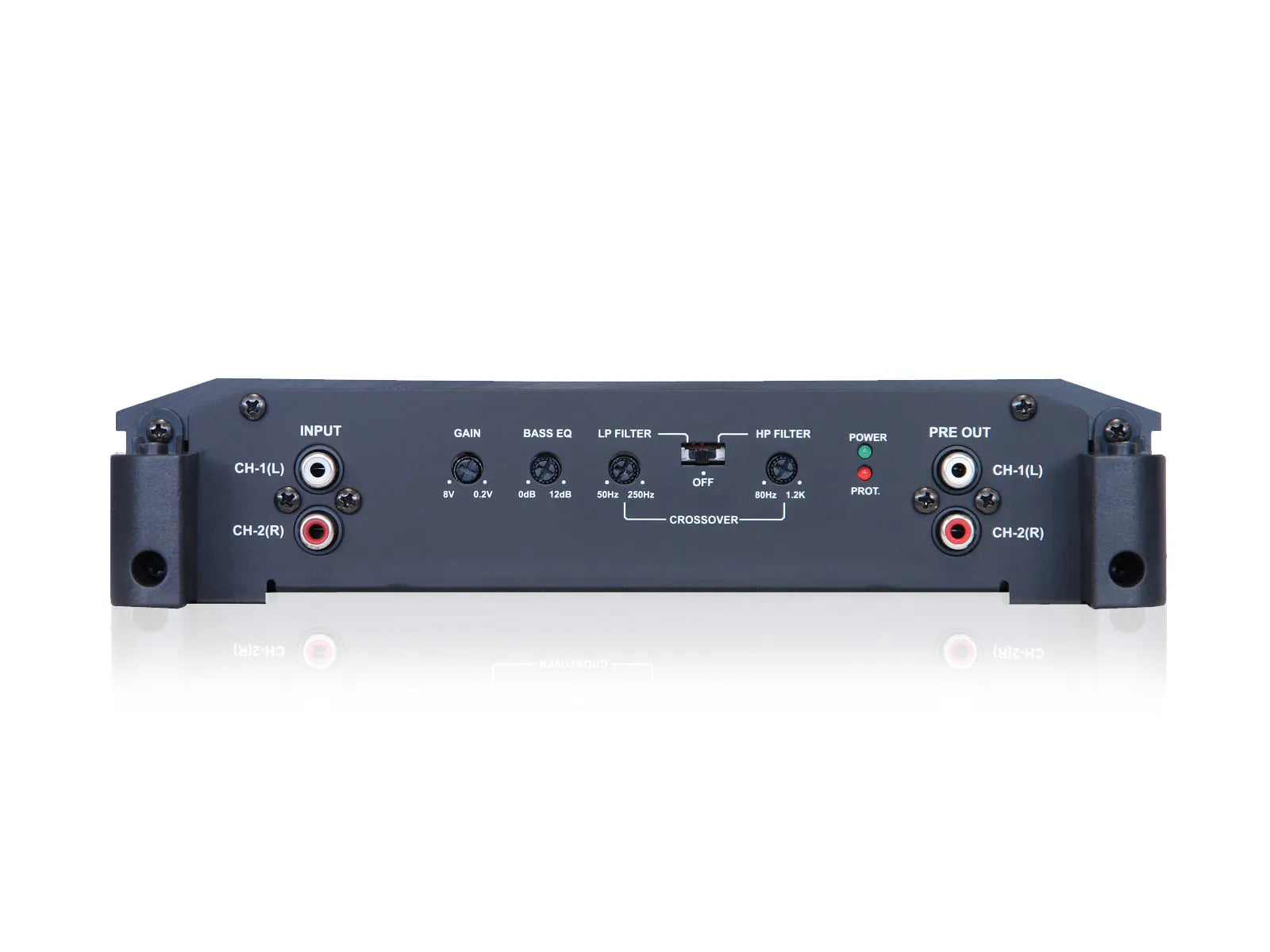

- Frequency filter: adjustable high and low frequency filter
- Green/red LED status indicator
- 1 pair of RCA inputs
- 1 pair of RCA outputs
Specification
Maximum output power
- Total maximum power: 300W
RMS power
- For channel at 4Ω (≤1%THD+N): 2 x 50W
- For channel at 2Ω (≤1%THD+N): 2 x 70W
- Bridged at 4Ω (≤1%THD+N): 1 x 130W
Sound settings
- Frequency filters (adjustable, selectable OFF/LPF/HPF): 1/2 Ch: LP: 50Hz – 250Hz HP: 80Hz – 1.2kHz
- EQ (equalizer): Bass EQ fixed frequency 45 Hz, Q=0.5, adjustable gain 0dB to +12dB
Dimensions
- Overall dimensions: 250mm x 52mm x 240mm
General data
- Supply voltage: 14.4 V DC (11 V to 16 V)
- Input sensitivity: 0.2 - 8.0 V
- Frequency range: 5 Hz - 50 kHz (+ 0.-3 dB)
- Speaker impedance: 4 or 2 Ω
- Signal to noise ratio: (rated power at 4Ω) 95 dB
- Weight: 1.9 Kg
