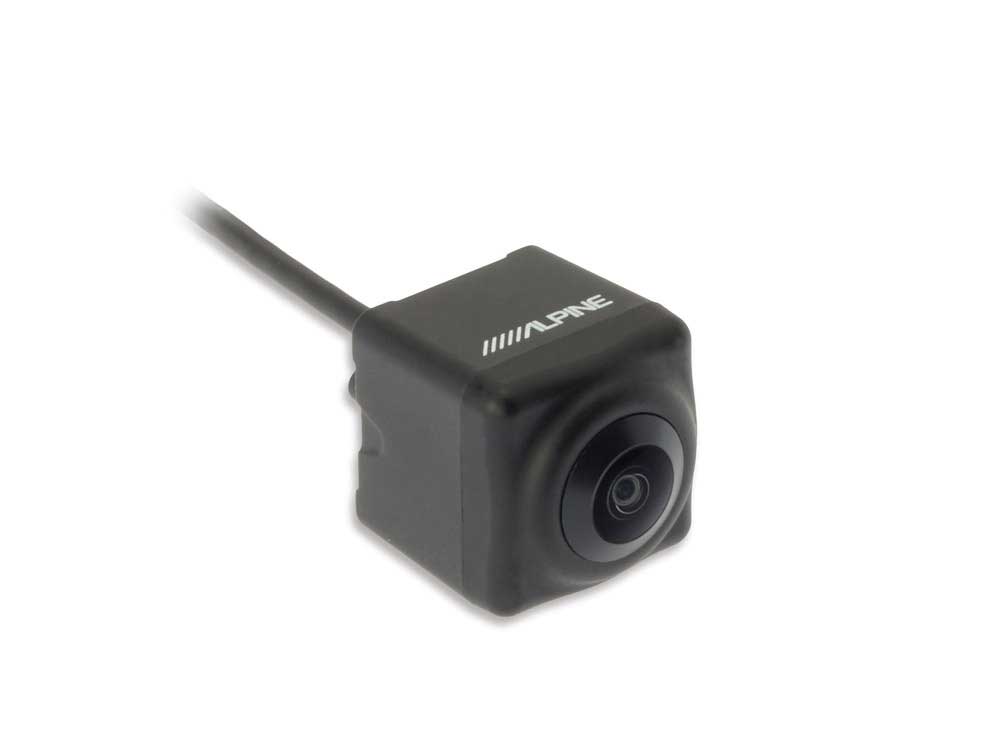

- Alpine HCE-C2100RD, HDR galinio vaizdo kamera

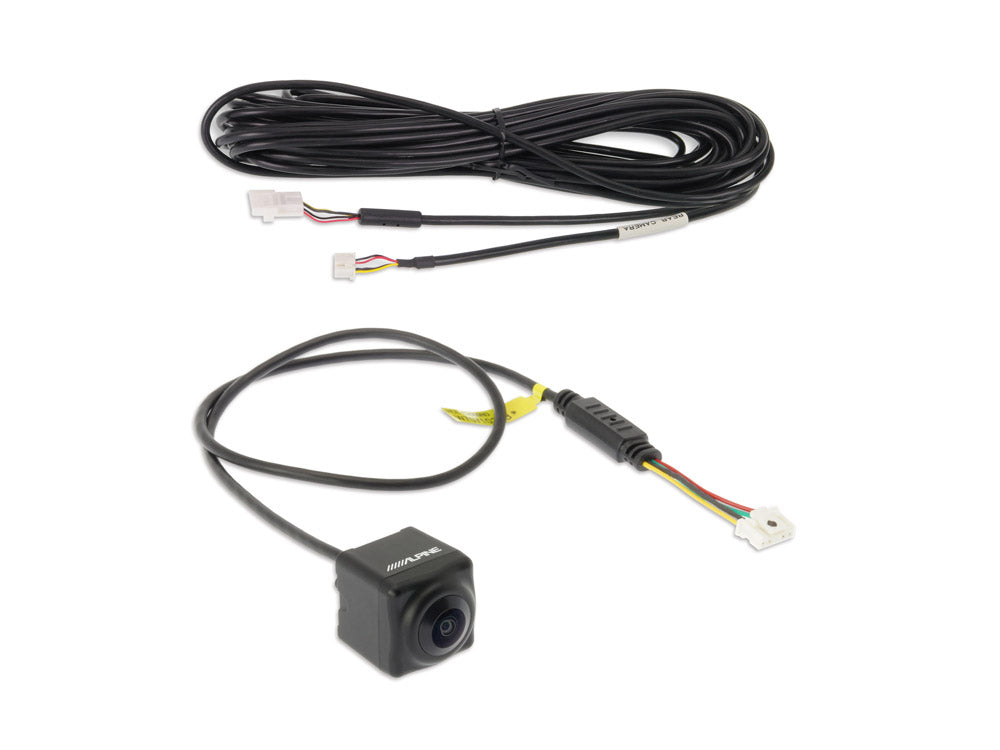

- Alpine HCE-C2100RD, HDR galinio vaizdo kamera - komplekte
Alpine HCE-C2100RD, HDR rear view camera
Alpine HCE-C2100RD, HDR rear view camera - Ask you before buying whether we have this item in a warehouse if we do not have to be ordered and arrive within 2-21 days.
▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.
Free delivery in Lithuania from € 100
Free delivery in Lithuania from € 100
In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.
Pick up the goods in the store for € 0
Pick up the goods in the store for € 0
Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00
INFORMACIJA
Small and extremely "good seeing" Alpine rear view camera. It will ensure a clear and transparent image when maneuvering, and dashed lines on the screen will help you perform the correct maneuvers.
- CMOS image sensor.
- HDR video resolution.
- Power consumption: 0.5W.
- Cable extension 10.5 m.
- Cable length: 0.5 m.
DESCRIPTION
All New Alpine HDR Cameras
Alpine's all new HDR cameras are simply amazing and offer many new technologies that make maneuvering your vehicle easier and safer.
- High-resolution camera for great picture quality and high details
- Amazing night-view capabilities in low-light environments
- Fast exposure adjustment when moving from dark to bright environments (for example underground parking, tunes, etc.)
- New, small connectors for easy installation of cameras and cables
Rear View [Back]
Rear View displays what is directly behind the car. Use this when reserving into a parking space, for example.
Panorama View
Panorama View displays a wide view behind the car. Use this when you want to view a wider than normal area behind the car.
Corner View [Corner]
Corner View splits the screen so you have a clearer view of both left and right behind the car. There's also a picture-in-picture function that shows the regular rear view in a small screen.
Ground View [Top]
Top View is convenient for precise reversing, for example to hook up a trailer. There's also a picture-in-picture function that shows the regular rear view in a small screen.
Connect up to 3 cameras
The optional KCX-C250MC enables connection of up to three Alpine direct connection cameras. You can switch between cameras via touch operation on your Alpine screen and select different viewing modes.
Extension Cable
This camera has a total cable length of 10.5 meters. if you need a longer cable for trucks, camper vans, etc., Alpine offers the option KWE-EX5CAM camera extension cable that gives you an extra 5 meters.
TECHNICAL DATA
SPECIFICATIONS
FEATURES
General
- High Dynamic Range (HDR) Rearview Image
- Direct Camera Connection
- Vehicle Reverse Signal Synchronization
- Multi View Angle Selection: Rear View [Back], Panorama View [Panorama], Ground View [Top], Corner View [Corner]
- For use with Alpine monitors with touch-screen operation
- For use without a touch-screen display, the HDR Multi View Front Camera (HCE-C2600FD), sold separately, is required.
Camera
- Mirror Image Output
- Color CMOS Image Sensor
- Automatic Exposure Adjustment
- Automatic White Balance Adjustment
- Internal Synchronization
SPECIFICATIONS
Dimensions
- Camera: 23.6 x 23.6 x 25.8mm (excluding projection on the rear)
- Camera Cable Length: 0.5 m
- Camera Extension Cable Length: 10m
General
- Power Requirement: 6.0V DC (5.0 to 9.0VDC allowable)
- Ground Type: Negative Ground
- Max. Power Consumption: 1.2W (6.0V)
Camera
- Output Image: Mirror image, CVBS (NTSC Video signal), for 16:9 wide-screen
- Image Output Impedance: 75 Ohms (1Vp-p)
- Image Sensor: 1/4" Type Color CMOS Image Sensor, Aspect Ratio 4:3
- Effective Number of Pixels: 1280 (horizontal) x 960 (vertical) approximately 1.2 Mega pixels
- Lens Focal Length: f=1.27mm
- Lens Brightness: F=1.8
- Angle of Field: Horizontal = 180°, Vertical = 125°
- Resolution (Horizontal. Center Area): 330 TV Lines
- Operating Temperature: -30°C - +70°C
- Illumination Range: Approximately 1.5Lx to 100kLx
- Weight: 32g (including cable but not including bracket and screw)
