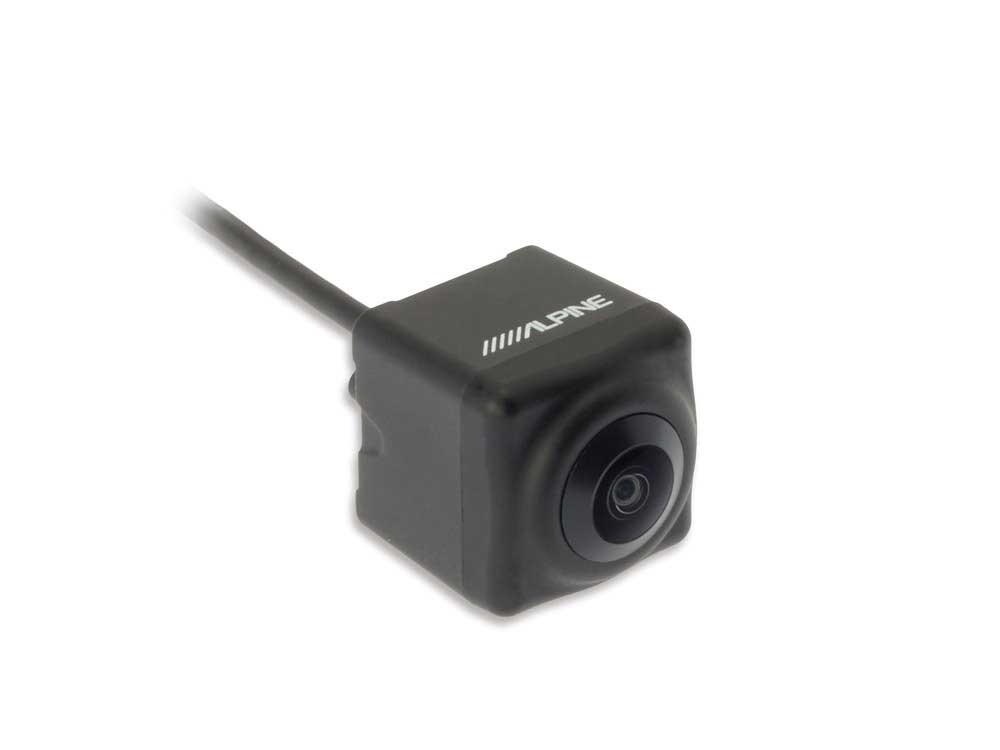

Alpine HCE-C2600FD, HDR front camera

The HCE-C2600FD is an HDR front-facing camera for Alpine devices.

€240.00 EUR

Alpine HCE-C2600FD, HDR front camera - Ask you before buying whether we have this item in a warehouse if we do not have to be ordered and arrive within 2-21 days.

▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.

Free delivery in Lithuania from € 100

In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.

Pick up the goods in the store for € 0

Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00

INFORMACIJA

.

  • Image sensor: 1/4" Type Color CMOS Image Sensor.
  • Resolution: 1280 x 720 px.
  • Camera cable length: 1 m.

DESCRIPTION

All New Alpine HDR Cameras

Alpine's all new HDR cameras are simply amazing and offer many new technologies that make maneuvering your vehicle easier and safer.

  • High-resolution camera for great picture quality and high details
  • Amazing night-view capabilities in low-light environments
  • Fast exposure adjustment when moving from dark to bright environments (for example underground parking, tunes, etc.)
  • New, small connectors for easy installation of cameras and cables

Lets you see right in front of your car to help in parallel parking and other situations.

Provides better visibility when coming out of 'blind' alleys or around obstructed corners. Especially useful for reducing blind spots with SUVs and minivans.

Panorama View

Panorama View displays a wide view in front of the car. Use this when you want to view a wider than normal area in front of the car.

Corner View [Corner]

Corner-view splits the screen so you have a clearer view of both left and right in front of the car. There's also a picture-in-picture function that shows the regular front view in a small screen.

Ground View [Top]

Top view is convenient for precise parking. There's also a picture-in-picture function that shows the regular front view in a small screen.

Connect up to 3 cameras

The optional KCX-C250MC enables connection of up to three Alpine direct connection cameras. You can switch between cameras via touch operation on your Alpine screen and select different viewing modes.

TECHNICAL DATA

SPECIFICATIONS

FEATURES

General

  • High Dynamic Range (HDR) Frontview Image
  • Video Signal (NTSC) Output
  • Multi View Angle Selection: Panorama View [Panorama], Ground View [Top], Corner View [Corner]

Camera

  • Normal Image Output
  • Color CMOS Image Sensor
  • Automatic Exposure Adjustment
  • Automatic White Balance Adjustment
  • Internal Synchronization

SPECIFICATIONS

Dimensions

  • Camera: 23.6 x 23.6 x 26.1mm (excluding projection on the rear)
  • Camera Cable Length: 1 m

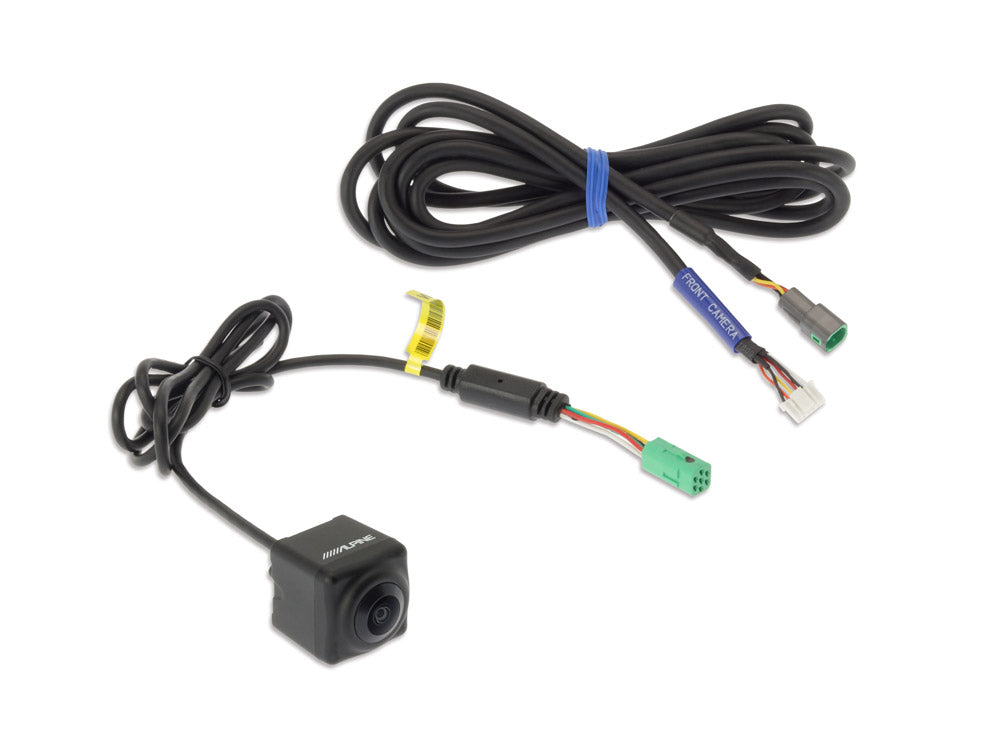

  • Camera Extension Cable Length: 3m

General

  • Power Requirement: 6.0V DC (5.0 to 9.0VDC allowable)
  • Ground Type: Negative Ground
  • Max. Power Consumption: 1.2W (6.0V)

Camera

  • Output Image: Normal image, CVBS (NTSC Video signal), for 16:9 wide-screen
  • Image Output Impedance: 75 Ohms (1Vp-p)
  • Image Sensor: 1/4" Type Color CMOS Image Sensor, Aspect Ratio 16:9
  • Effective Number of Pixels: 1280 (horizontal) x 720 (vertical) approximately 1.2 Mega pixels
  • Lens: Focal Length: f=1.27mm
  • Lens: Brightness: F=1:1.8
  • Angle of Field: Horizontal = 180°, Vertical = 70°
  • S/N Ratio: 41 dB or more
  • Resolution (Horizontal. Center Area): 330 TV Lines
  • Operating Temperature: -30°C - +70°C
  • Illumination Range: Approximately 1.5Lx to 100kLx
  • Weight: 41g (including cable but not including bracket and screw)
