The Alpine HCS-T100 360° camera system is designed for campers and motorhomes

INFORMACIJA

. Thanks to it, you will get excellent vision when parking and maneuvering your vehicle.

• 4 HD video cameras creating 360° vision and a view from above
• The ability to control the angle of the camera with the touch screen or using the remote control
• Dynamic cornering view (the camera shows the blind zone during turns)
• Compatible with any motor home or camper
• Compatible with Alpine and third-party displays

DESCRIPTION

Upgrade your motorhome or camper with the HCS-T100 Alpine 360° camera system and get a great view while parking or maneuvering your vehicle.

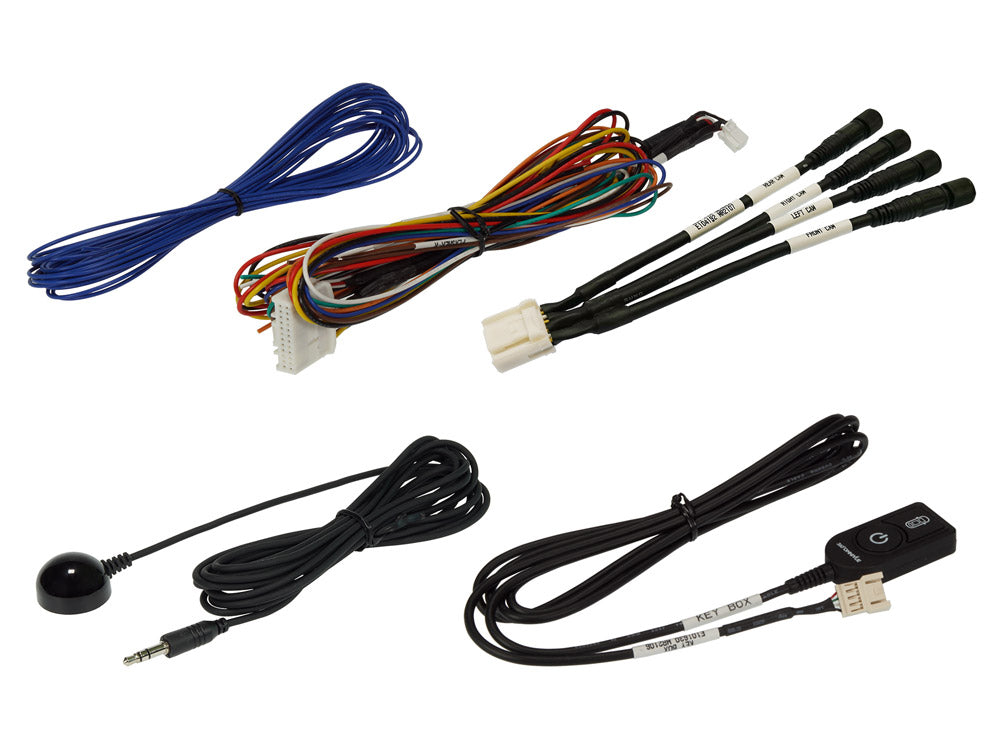

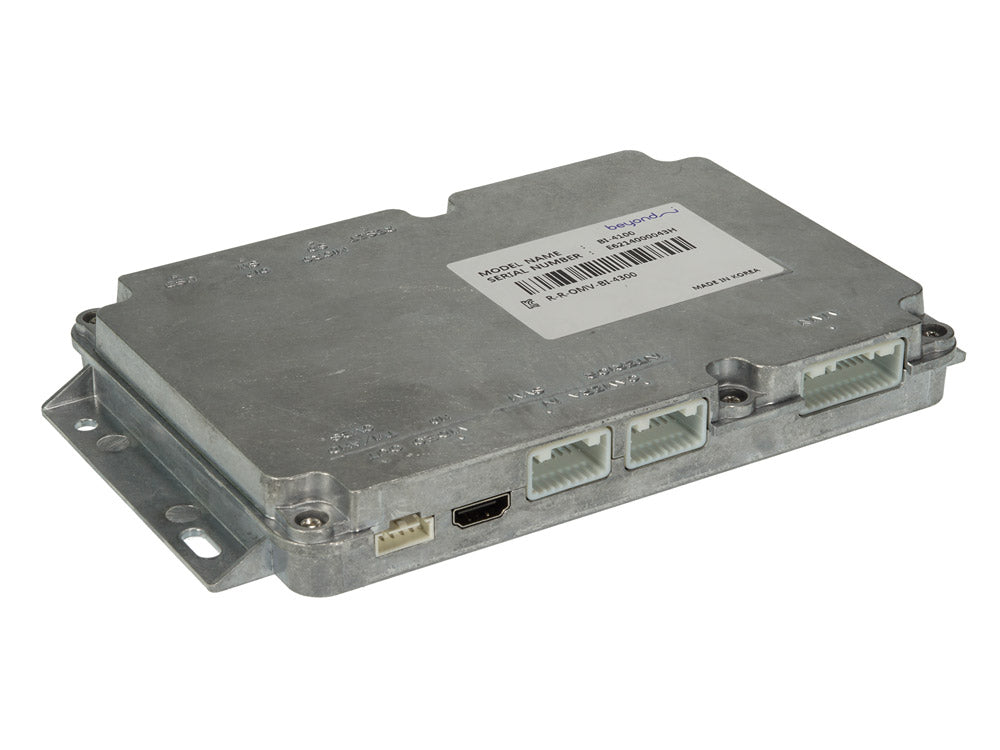

The new system includes 4 HD cameras with silver mounts, a main control unit and all necessary cables to complete the installation.

When used with Alpine's touchscreen, you can simply touch-control the video settings directly from the head unit (feature will be enabled after a software update in summer 2023). It is also compatible with third-party displays (analog video signal and remote control).

You can expand the system even further with up to 4 additional cameras: monitor your pets traveling with you at the back of the cabin, monitor greywater disposal or even height clearance on narrow bridges. There are several additional cameras to choose from.

Get the maximum overview with the top view and even use the split screen setting to show 2 camera angles at once. The system also completely eliminates all blind spots in a turn to prevent accidents.

Alpine 360° video experience

360° camera systems used to be exclusive to the latest high-end passenger cars, but now they can also be fitted to campervans and motorhomes. The all-new Alpine HCS-T100 camera system provides maximum visibility, visibility and safety, and can be installed in virtually any motorhome. 4 HD cameras on the front, sides and rear of the vehicle allow the control unit to create a complete 360° view of the vehicle's environment.

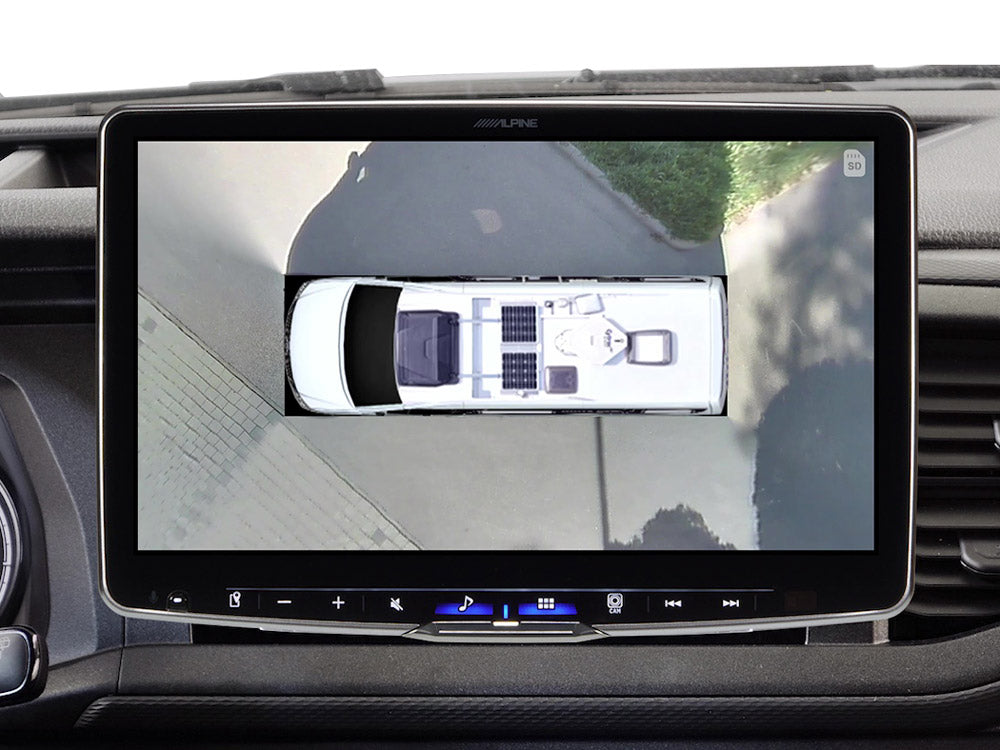

View from above

The overhead view shows your motorhome and the surrounding area directly from above. This gives you maximum visibility when parking or maneuvering to prevent accidents and reduce driver stress.

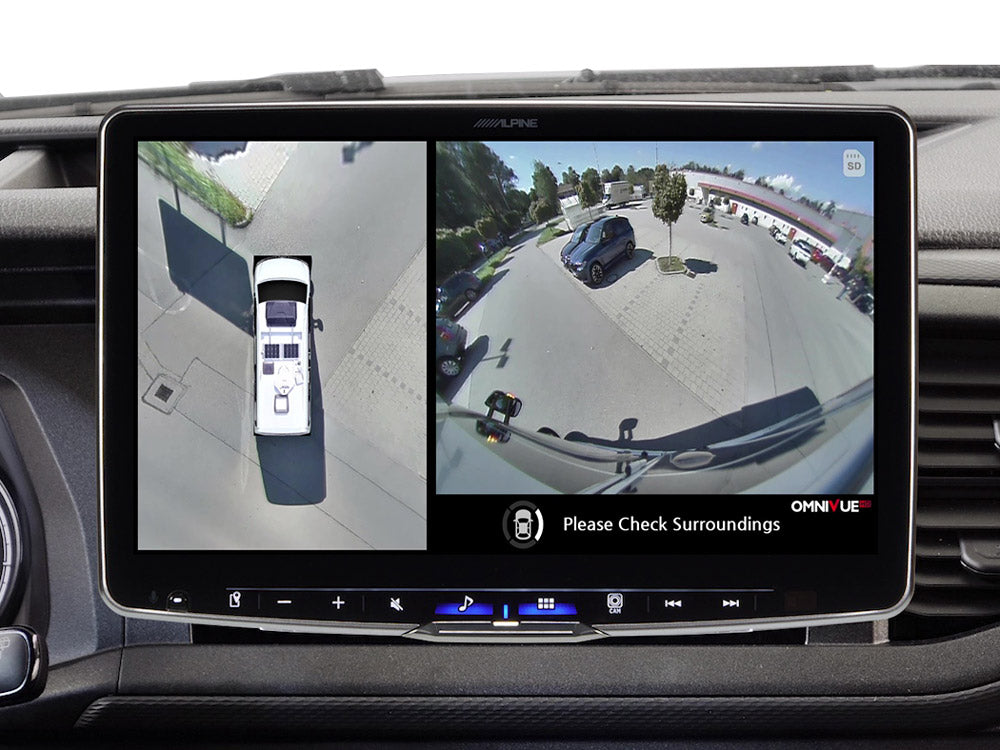

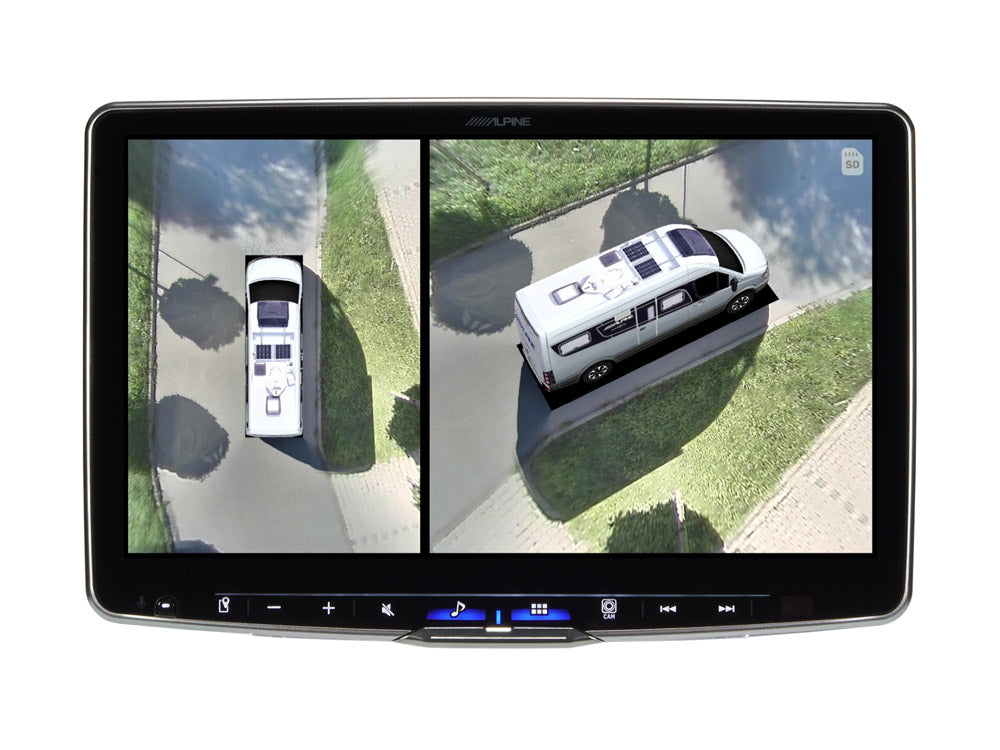

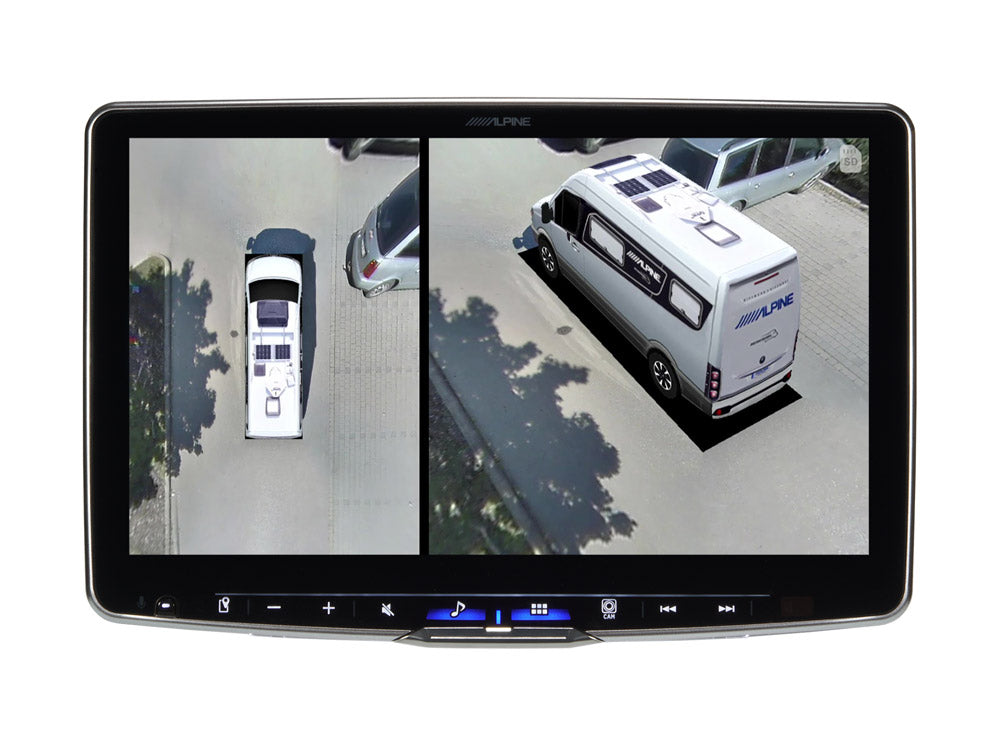

Split screen

One of the key features of the HCS-T100 camera system is the ability to display 2 camera modes simultaneously. For example, you can display an overhead view and a corner view in a split screen to increase overall driving awareness.

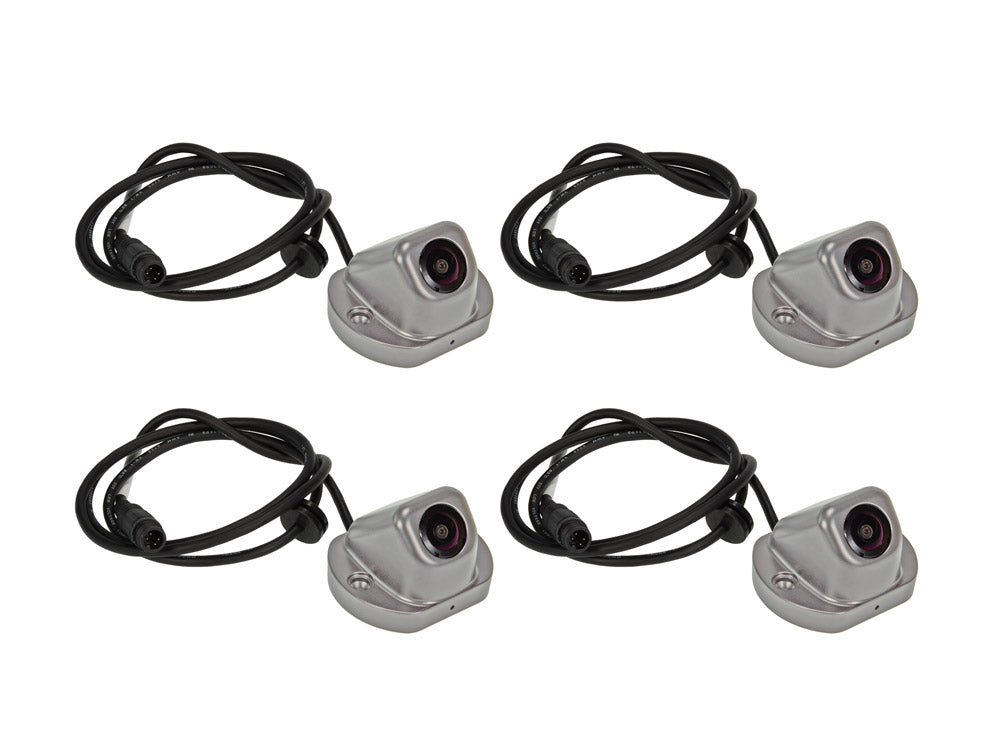

4 HD widescreen cameras

The package includes 4 HD widescreen cameras with 1280 x 720p resolution and 190° (H) / 119° (V) viewing angles. Each camera comes with a silver universal mounting bracket (note that your vehicle must have holes drilled in the body for the video signal cables) and has a cable of sufficient length (5mx 1 front camera, 10mx 2 side cameras, 18mx 1 rear camera).

Choice of camera angle

You can switch camera angles using the included wired remote control. in 2023 a software update coming in the summer to allow full touch control of all settings and camera angles when using a system with a compatible Alpine Head Unit with touch screen. If you use the HCS-T100 with a third-party monitor, you can control all settings with the remote control.

Eliminates blind spots

This camera system contributes significantly to driving safety by virtually eliminating blind spots. If you are using your vehicle's left or right turn indicators, the camera view instantly turns on and shows the full view of the side of your vehicle in the direction you intend to turn. No cyclist or object will be forgotten in the turning process.

Additional cameras

You can connect up to 4 additional cameras for the best monitoring. Check your pets or kids in the back of your motor home, pay attention to gray water disposal, check height clearance on narrow bridges, the possibilities are endless. There are plenty of extra cameras and other accessories available - check out the features and spec area below.

Compatible with any motor home

The HCS-T100 360° camera system can be installed in virtually any motorhome or camper because it is designed for universal use. The camera cables are very long enough for even very large motorhomes (front camera: 5m, side cameras: 10m, rear camera 18m).

Sold and installed by certified dealers

The HCS-T100 camera system must be installed by certified installers and requires special calibration tools and software. System calibration is not possible without these special tools.

VIDEO

TECHNICAL DATA

Cameras

• Power supply: DC 5 volts
• Power consumption: max 220mA
• Viewing angle: 190° (H) / 119° (V)
• Resolution: TVI 1280 (H) x 720 (V)
• Min. Lighting: 1 lux
• Waterproof: IP69K
• Operating temperature: -30°C to +75°C
• Dimensions: 60(L) x 50(H) x 43(D) mm
• Weight: 92g (with holder)
• Frame rate: 30 frames per second
• Aperture (F/#): 2.0

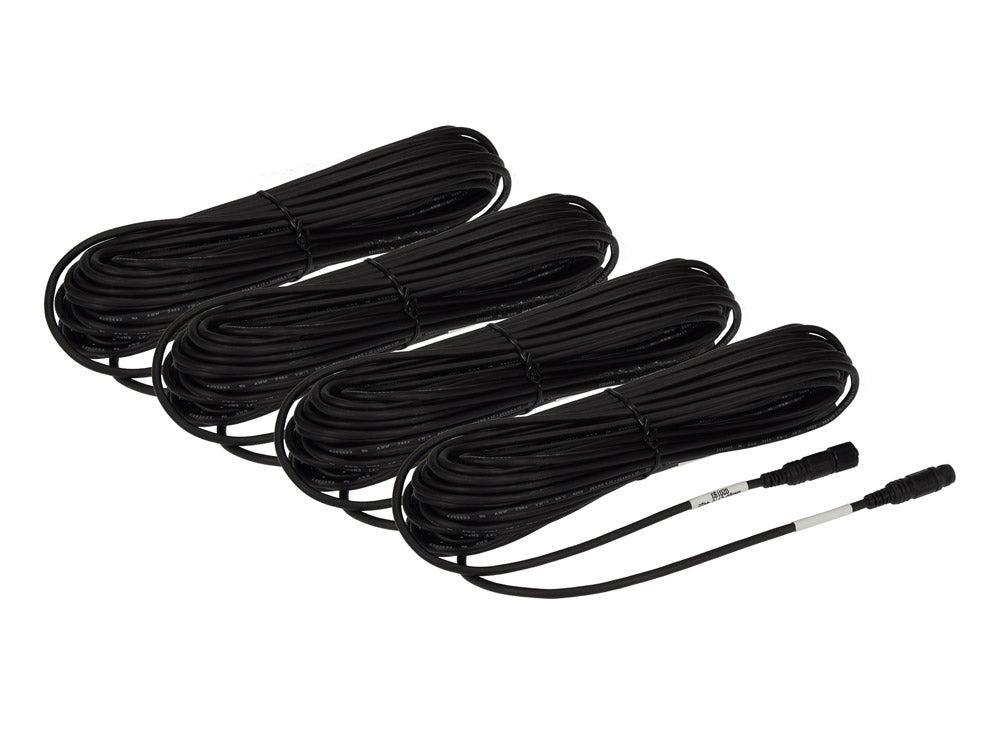

• Cable length: 5m (x1 front), 10m (x2 sides) and 18m (x1 rear)

• Power supply: DC 12-24 volts
• Energy consumption: max 13.5W (with cameras)
• Video signal and inputs: HD TVI 4CH (1280 x 720)
• Operating temperature: -30°C to +75°C
• Dimensions: 216 (L) x 25.4 (H) x 134 (D) mm
• Weight: 564g
• Trigger: reverse gear, indicator left and right
• Video signal and outputs: TVI 1CH (1280 x 720), CVBS 1CH (720 x 480)
• Sleep current: max 5mA

Attachments

• KWE-EX5T – 5m Extension Cable for HCS-T100 cameras
• KWE-EX10T – 10m Extension Cable for HCS-T100 cameras
• KWE-HCS04 – Accessory Camera Input Harness for 4 additional Cameras
• HCS-AC120R – Under-floor camera 120° lens, mirrored image
• HCS-AC120 – Under-floor camera 120° lens, non-mirrored image
• HCS-AC90R – Roof Camera 90° lens, mirrored
• HCS-AC90 – Roof Camera 90° lens, non-mirrored
• DVM-70RCU – Drive recording activation kit (including remote control and 128GB microSD card)
