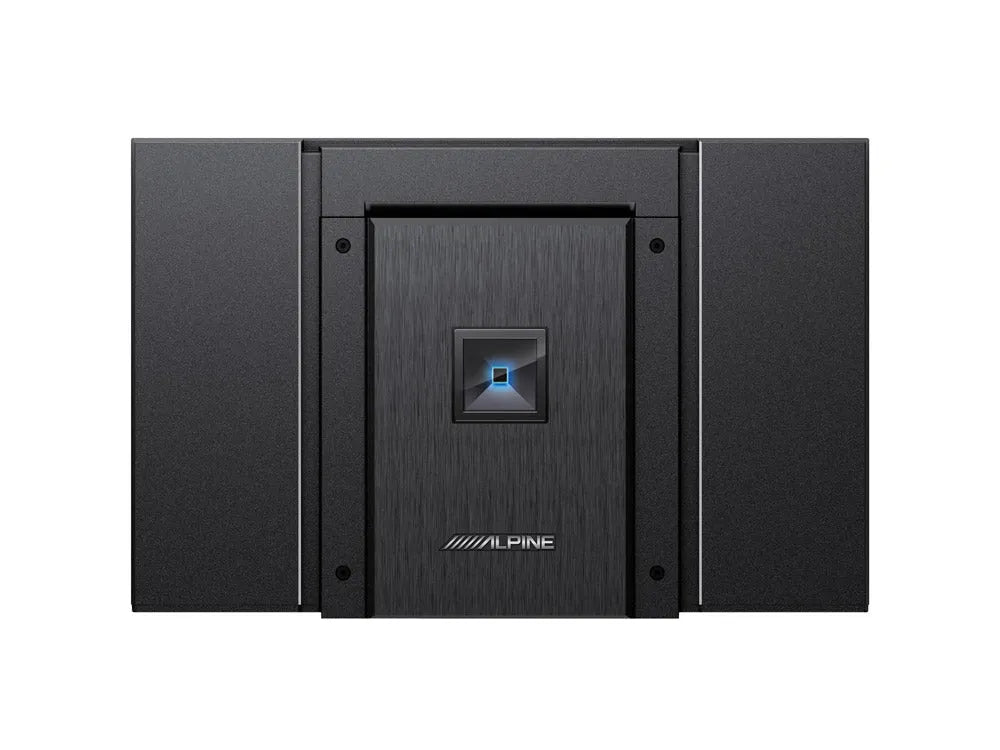

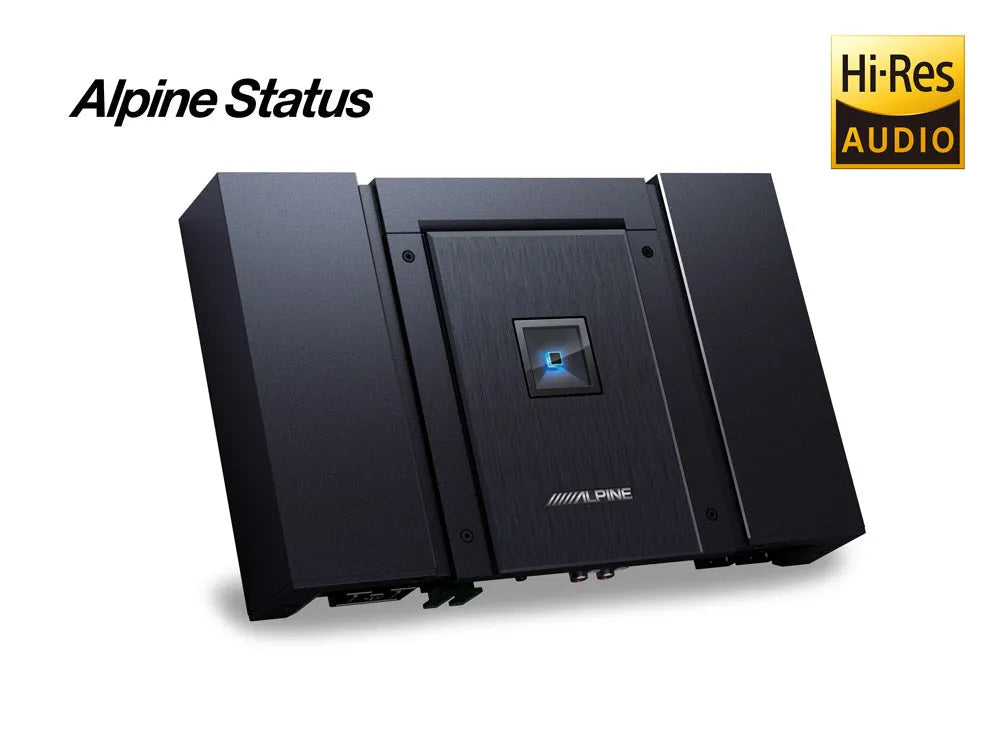

Alpine HDA-F60, power amplifier for cars

Name: Alpine HDA-F60, power amplifier for cars
Brand: Alpine
SKU: HDA-F60
Price: 650.00 EUR
Availability: InStock

€650.00 EUR ~~850.00 €~~

Alpine HDA-F60, power amplifier for cars - Ask you before buying whether we have this item in a warehouse if we do not have to be ordered and arrive within 2-21 days.

▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.

Free delivery in Lithuania from € 100

In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.

Pick up the goods in the store for € 0

Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00

INFORMACIJA
DESCRIPTION
TECHNICAL DATA
DOCUMENTS

INFORMACIJA

Alpine Unveils All-New Alpine Status Sound System: Alpine developed Alpine Status using the same engineering and design concepts used in the third-generation Ultra High Definition AlpineF#1Status system to achieve high-resolution audio. at a more affordable price. In addition, the Alpine Status system is extremely flexible: all components can be purchased and used separately.

Power: 4 x 150W at 2 ohms .
Frequency band: 10Hz - 60kHz.
D-class, 4-channel amplifier.
Can work in 4/3/2 channel mode.

DESCRIPTION

Hi-Res Audio Made Accessible

The Alpine Status system features many technologies, components and materials of the AlpineF#1Status system to achieve ultra high-precision music reproduction - at an affordable price tag. It is designed to play music tracks at 192kHz / 24bit format, which are widely accessible in many online stores and streaming platforms. High-Res Audio playback of 192kHz / 24bit allows Alpine Status to create a heightened listening experience in the vehicle that emulates the feeling of an intimate recording studio session.

Class-D 4-Channel Amplifier

Excellent Sound Quality

Class-D 4-Channel Amplifier

The HDA-F60 4-Channel Power Amplifier features a Class-D amplification circuit with Sierra-H technology (see below for more details on Sierra-H). It features an RMS power output of 4x 100 Watts @ 4Ohm, 4x 150 Watts @ 2Ohm or 2x 300W @ 4Ohm bridged and a frequency response of 10Hz to 60kHz.

Excellent sound quality

Alpine Status amplifiers feature many audiophile technologies and selected high-end components to reproduce excellent sound quality. A copper shield keeps electromagnetic interferences away from the black PCB board, to ensure the best audio reproduction. The Signal to noise ratio is >87dB (1W into 4 Ohm).

Alpine Status Full System

Alpine Status features many components that are optimized in both power and performance as a complete system to play at their intended high-resolution spec for excellent, audiophile sound quality. However, each component can be purchased independently for custom system building.

Sierra-H Circuit

One-Sided Terminal

Sierra-H Circuit

After the original analog sound wave is converted to a digital signal and amplified, the Sierra-H circuit compares and corrects the amplified signal with the original waveform twice, to reproduce a highly accurate signal without any gaps.

One-Sided Terminal

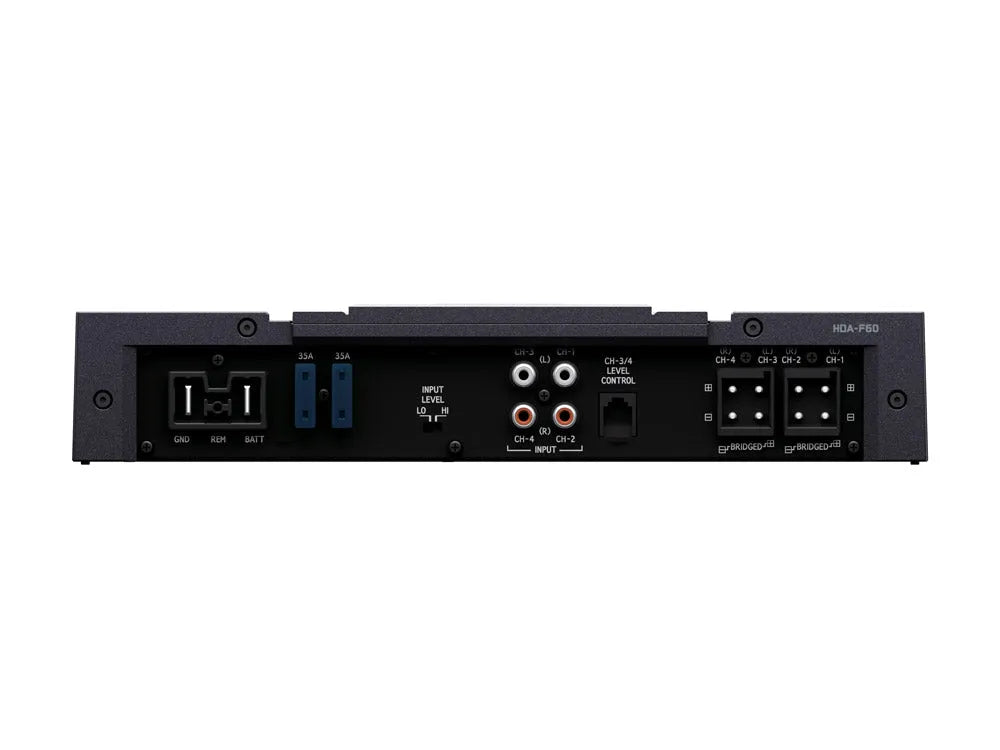

All connections (power supply, speaker outputs, RCA inputs / outputs and the remote bass knob connector), as well as all fuses are located on the down-side of the amplifier. This makes it much easier to achieve a clean installation in your vehicle. You can connect the RUX-KNOB2 for subwoofer level control (in bridged mode channel 3 + 4).

Thermal Protection

Power and Speaker Connectors

Thermal Protection

Along with Alpine's new intelligent amplifier platform, the new Alpine Status amplifiers feature an improved heat sink and protection circuit design that eliminates thermal shut-down, for dependable music playback.

Power and Speaker Connectors

All Alpine Status amplifiers feature power supply and speaker terminal connectors for easier installation and handling. The very compact connector design features screw terminals and allows clean and simple installation with lossless connectivity.

Studio Recording Spec

Alpine Status achieves 192kHz/24Bit playback, which is 6.5 times the amount of digital audio data in a standard CD or digital streaming service and exceeds the standard High-Resolution spec of 96kHz/24Bit found in most aftermarket sound solutions. This allows Alpine Status to capture and accurately reproduce details like the breath of the artist or a musician's subtle interaction with an instrument. This capability not only reproduces music to the artist's original intention, but emulates the experience of a studio recording in the vehicle.

TECHNICAL DATA

SPECIFICATIONS

Features

General

Channel Design: 4/3/2 Channel
Class-D amplification circuit
Power supply and speaker channel connectors
Copper-plated chassis
Top control panel (below top cover)
Black circuit board
Non-Shutdown design
Thermal Protection
One-sided terminal
Blue power LED
Compatible with RUX-KNOB2 bass controller

Specifications

RMS Power Ratings

Per Channel into 2 Ohms, 14.4V: 4 x 150W
Per Channel into 4 Ohms, 14.4V: 4 x 100W
Bridged into 4 Ohms, 14.4V: 2 x 300W

Sound Tuning

Crossover: Variable HPF/LPF: 50-400Hz (-12dB/oct )

General

Input Sensitivity (RCA Input): Hi: 0.5V - 10V / Low: 0.2V - 4.0V
Frequency Response (+0/ -3dB: 1W into 4 Ohms): 10Hz – 60kHz
THD+N (@ 10W into 4 Ohms): <0.02%
Damping Factor (@ 10 W into 4 Ohms at 100 Hz): >500
Weight: 3.8 kg

Dimensions:

Width 291 mm
Height 53.5 mm
Depth 189.5 mm
