Alpine S-A55V, 5-channel car audio amplifier

Alpine introduces new S-Series amplifiers, perfect for S-Series speakers.

€350.00 EUR

Alpine S-A55V, 5-channel car audio amplifier - Ask you before buying whether we have this item in a warehouse if we do not have to be ordered and arrive within 2-21 days.

▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.

Free delivery in Lithuania from € 100

In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.

Pick up the goods in the store for € 0

Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00

INFORMACIJA

. In the Class D category, these amplifiers have an excellent "Watts per Euro" ratio, very high heat resistance and protection against overheating.

  • RMS power per channel at 2Ω 14.4V (≤1%THD+N): 4 x 60W + 1 x 300W.
  • Amplifier class D.
  • Number of channels: 5/4/3 channels.


    DESCRIPTION


    Alpine introduces new S-Series amplifiers, perfect for S-Series speakers. In the Class D category, these amplifiers have an excellent "Watts per Euro" ratio, very high heat resistance and protection against overheating. They also have excellent sound quality for their price range.

    S-series amplifiers are available in mono, 4-channel and 5-channel configurations.

    Three new S-series amplifiers with reliable performance, complements the S series family of products, known for their high quality and competitive prices. All three S-series amplifiers (mono, 4-channel and 5-channel) feature technologies currently implemented in the R and X-series models. S Series amplifiers are attractively priced and perfectly matched to existing S Series speakers.

    Fully digital solutions

    Compact and powerful: the new digital amplification circuit allows you to achieve high power while maintaining a small size. The S-A55V measures just 286mm wide x 204mm long for easy installation in almost any vehicle .

    Temperature protection

    Together with Alpine's new advanced amplifier platform, new S series amplifiers features an improved cooling system and protection circuit that eliminates amplifier shutdown due to overheating for reliable music playback.

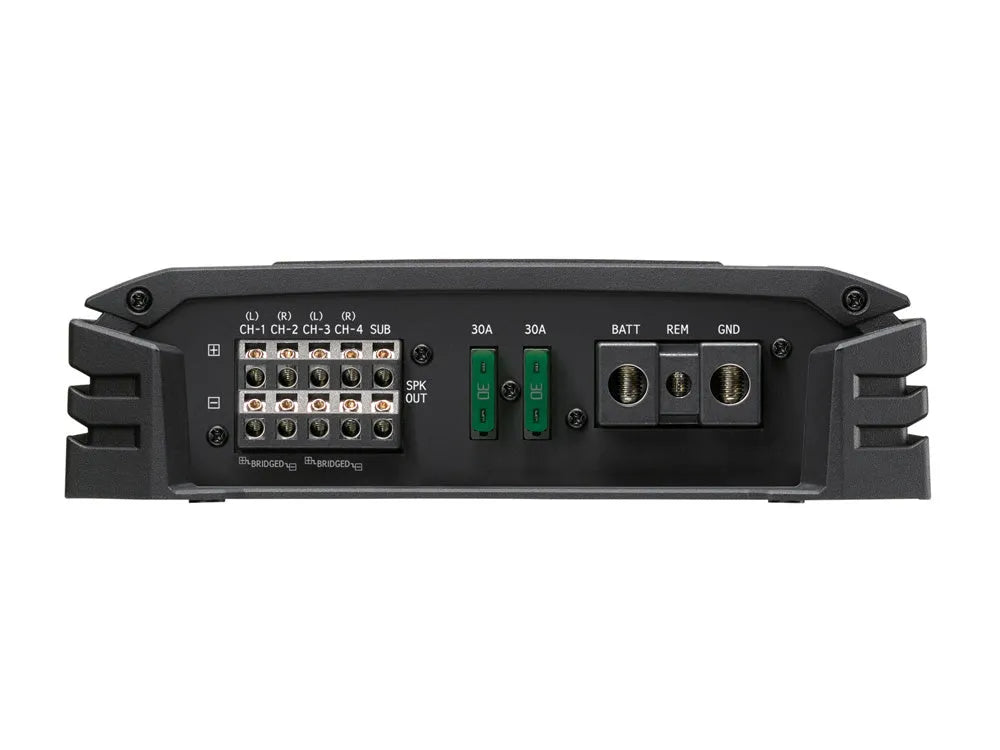

    All wiring terminals - on one side

    For more convenient installation, all power and speaker wire connection terminals are located on one side of the amplifier.

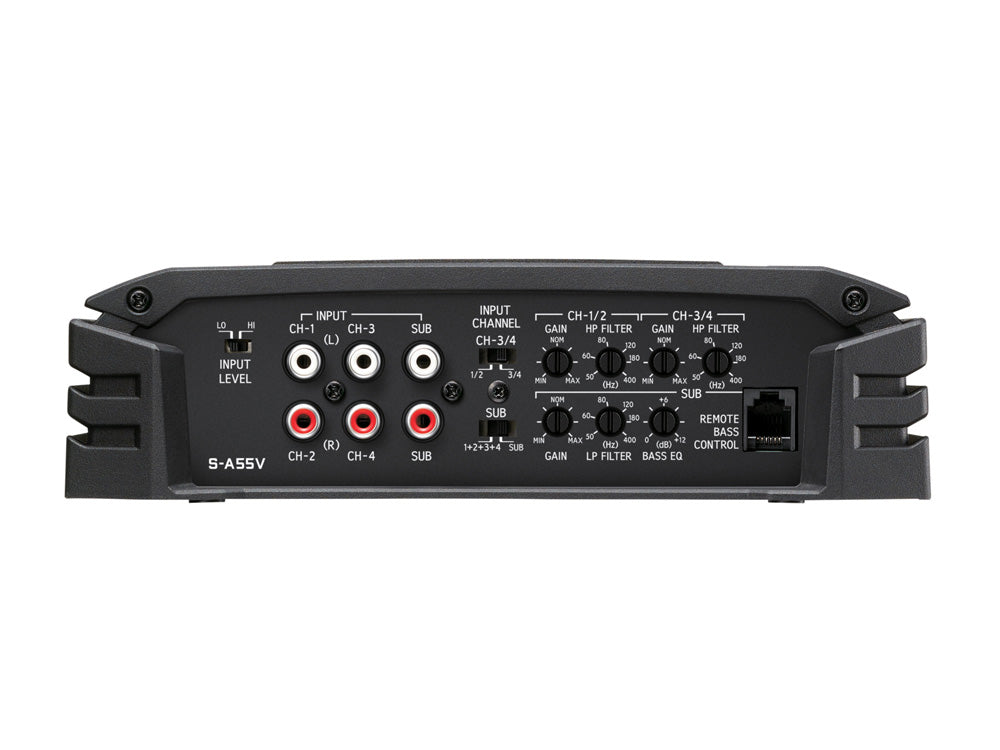

    Low/high level signal inputs

    You can connect both low (line) and high (speaker) level input signals to the 5-channel RCA inputs. This allows you to easily connect the S-A55V directly to your original car stereo, regardless of your stereo's output power (RCA connectors with open cable wires are sold separately).

    Control the subwoofer

    You can connect RUX-KNOB2 remote subwoofer control (sold separately) to the S-A55V to control the subwoofer level (applies to channel 5 when using a subwoofer).

    Low/high pass filters

    With this filter you can assign an amplifier channel (pair) to a speaker or subwoofer. You can then adjust the filter cutoff frequency more precisely.

    TECHNICAL DATA

    SPECIFICATIONS

    FEATURES
    Install

    • Terminal Layout: One side
    • Small footprint for easy installation
    • Screw terminals (for speakers and power cables)
    • Heavy gauge power terminals (AWG 4)

    General

    • Amplifier Type: Class-D (Digital)
    • Channel Design: 5/4/3 Channel
    • Thermal Management Control
    • Top Mounted LED Power/Status Indicator
    • Speaker Level Input with remote turn on
    • Crossover: Adjustable Low-pass (LPF) / High-pass Filter (HPF)
    • Gain Control: Adjustable
    • Bass EQ (subwoofer channel)
    • Bass Control: Remote Bass Control ( RUX-KNOB2 ) Ready

    SPECIFICATIONS
    Max Power Output Ratings

    • Total Max Power: 1100W

    RMS Power Ratings

    • Per Channel into 2 Ohms, 14.4V (≤1%THD+N): 4 x 60W + 1 x 300W
    • Per Channel into 4 Ohms, 14.4V (≤1%THD+N): 4 x 40W + 1 x 200W
    • Bridged into 4 Ohms, 14.4V (≤1%THD+N): 2 x 120W

    Sound Tuning

    • Crossover: Variable LPF, 50-400Hz (-12dB/oct )
    • Crossover: Variable HPF, 50-400Hz (-12dB/oct )

    General

    • Power Requirements: 14.4 V.DC (9 - 16 V allowable)
    • Input Sensitivity (RCA Input): Hi: 0.5 - 10 V Lo: 0.2 - 4.0 V
    • High Level Input with automatic power on
    • Cable size: Power Cable AWG 4, SPK Cable AWG 12
    • Frequency Response (+0, -3dB: 1W into 4 ohms) for CH-1/2/3/4: 10Hz - 30kHz
    • Frequency Response (+0, -3dB: 1W into 4 ohms) for CH-5: 10Hz - 400Hz
    • THD+N (@ 10W into 4 ohms): <0.03%
    • THD+N (@ 50W into 4 ohms): <0.07%
    • Damping Factor: Channel 1/2/3/4: >100, Channel 5: >750
    • Signal to Noise (@ 50 Watts into 4 Ohms): >98dB
    • Weight: 2.9 kg

    Dimensions

    • Heat Sink (WxHxD) mm: 286 x 58 x 204

    DOCUMENTS

    INSTRUCTIONS

    User Manual (EN).
