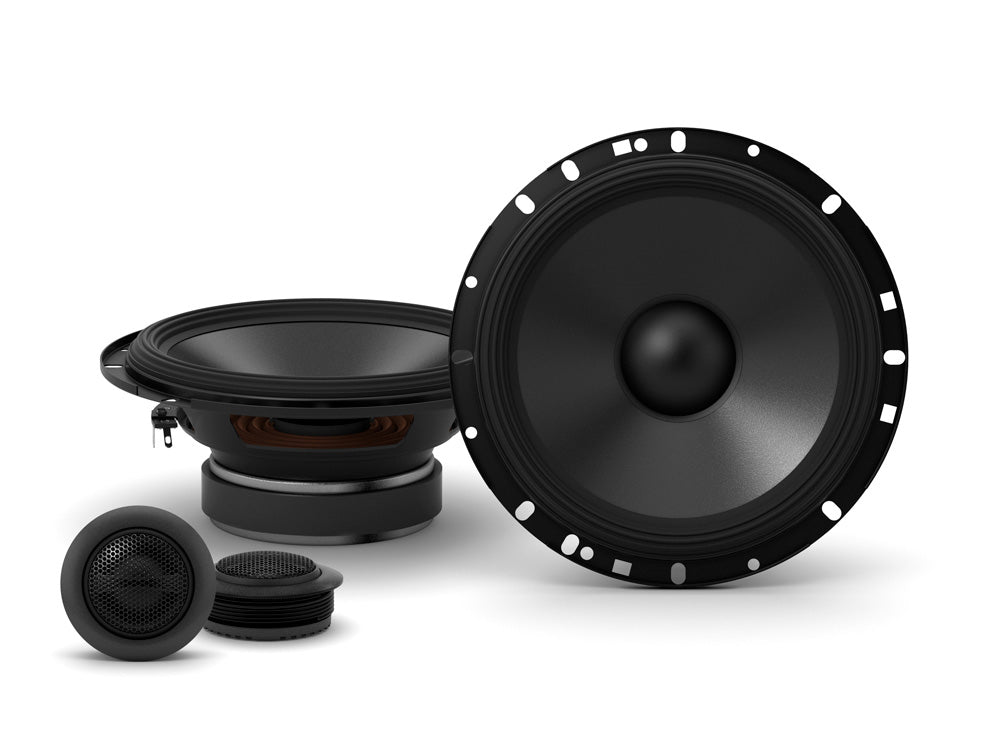

Alpine S-S65C, component car speakers

Name: Alpine S-S65C, component car speakers
Brand: Alpine
SKU: S-S65C
Price: 110.00 EUR
Availability: OutOfStock

€110.00 EUR

▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.

Free delivery in Lithuania from € 100

In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.

Pick up the goods in the store for € 0

Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00

INFORMACIJA
DESCRIPTION
TECHNICAL DATA

INFORMACIJA

The Alpine S series delivers incredibly high performance for speakers in this class. Excellent price-quality ratio guaranteed!

Recommended amplifier power: 80W.
Frequency range: 70 Hz - 22kHz.
Sensitivity: 88 dB/W.
Resistance: 4 ohms.

DESCRIPTION

Introducing the S-Series speaker line

The all-new Alpine S-Series speakers offer an amazing price vs. performance ratio and come in many configurations. They are perfect for OEM upgrades with many sizes to choose from to suit a wide variety of vehicles.

HAMR Surround

Alpine's patented HAMR (High Amplitude Multi-Roll) surround is now found on the S-Series speakers. This proven technology increases excursion while maintaining accuracy and linearity. The multi-roll design allows an even unfolding of the surround, which creates incredible linearity and colorization rejection.

Powerful Speaker Motor

The S-Series speakers have a large voice coil. The 6.5-inch and 6x9-inch models for example feature a 35-mm voice coil, and this large voice coil size increases their driving power and control of the motor.

CFRP (Carbon Fiber Reinforced Plastic) Cone

CFRP Cone

The S-Series speakers are the first in the industry to use a material called CFRP (Carbon Fiber Reinforced Plastic), a very lightweight yet rigid material. On a standard, off-the-shelf oval cone, the edges are naturally weaker than the center due to the elongated shape. Since the CFRP material is directional, it can be manipulated during the molding process to strengthen the areas of the cone that are normally weak. The result is rigidity throughout the cone that delivers accurate and efficient performance.

Protect Your Speakers

Speaker grills are available for several of the S-Series speakers and are sold separately. The durable mesh grills are sold in pairs.

TECHNICAL DATA

SPECIFICATIONS

FEATURES

Woofer

CFRP (Carbon Fiber Reinforced Plastic) cone with special rubber surround
HAMR (High Amplitude Multi-Roll) Surround
Large 35mm Voice Coil
Magnet Material: Ferrite
Grill sold separately: KTE-S65G

Twitter

Tweeter Type: 1" Wide-Range Silk Dome
Magnet Material: Neodymium
Application Type: External/Swivel Tweeter Mounting Kit
Flush mount
Grill: Punched even

Crossover Network

Grade: In-line 2nd order Network Design

SPECIFICATIONS

Power Handling

Peak Power: 240 Watts
RMS Power: 80 Watts (CTA-2031 Compliant)

Dimensions Woofer

Frame 165 mm
Mounting depth: 57.7 mm
Mounting height: 12.0 mm
Magnet: 90.0 mm

Dimensions Tweeter

Frame: 37.8 mm
Dome: 26.6 mm
Height: 17.4 mm

General

Frequency Range: 70 Hz - 22 kHz
Impedance: 4 Ohms
Sensitivity: 88 dB/W
