AMPIRE AMX125, 12.4" RSE Android car monitor with HDMI

INFORMACIJA

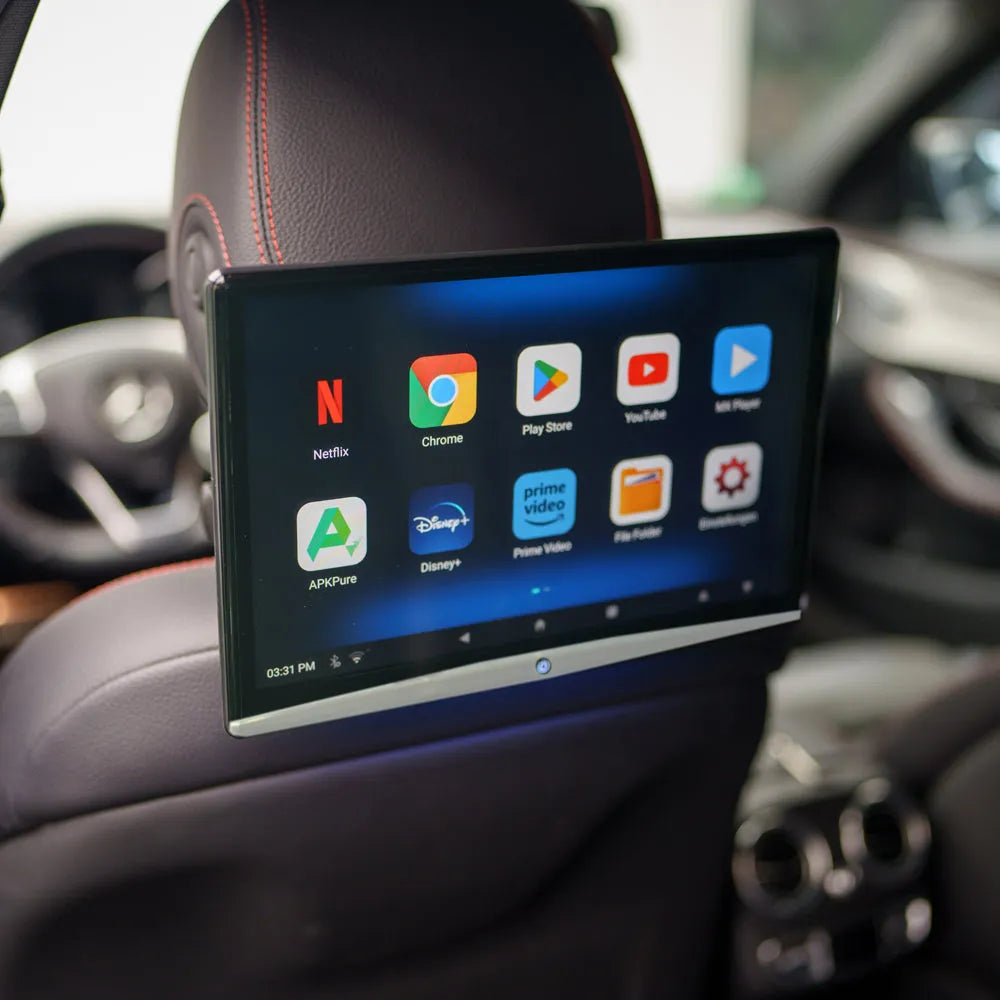

AMPIRE AMX125 - high-definition 12.4" Android 10 car monitor with HDMI input/output. Allows you to stream content from Netflix, YouTube or other apps, controlled by touchscreen or phone, mounted on a headrest mount.

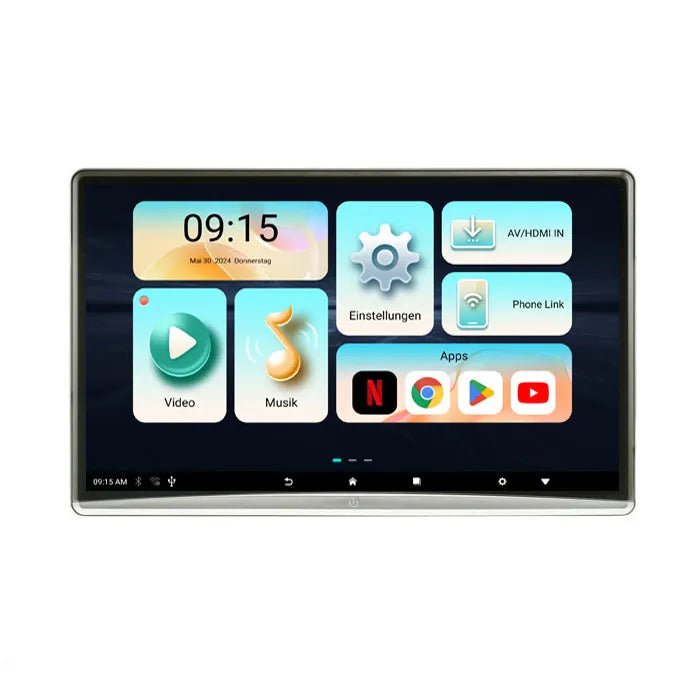

Display: 12.4-inch LED IPS touchscreen (1920×1200 resolution)
System: Android 10
Memory: 3 GB RAM + 16 GB internal, supports microSD cards up to 128 GB
Sound: integrated 2×5 W stereo speakers, Bluetooth A2DP audio streaming, FM transmitter

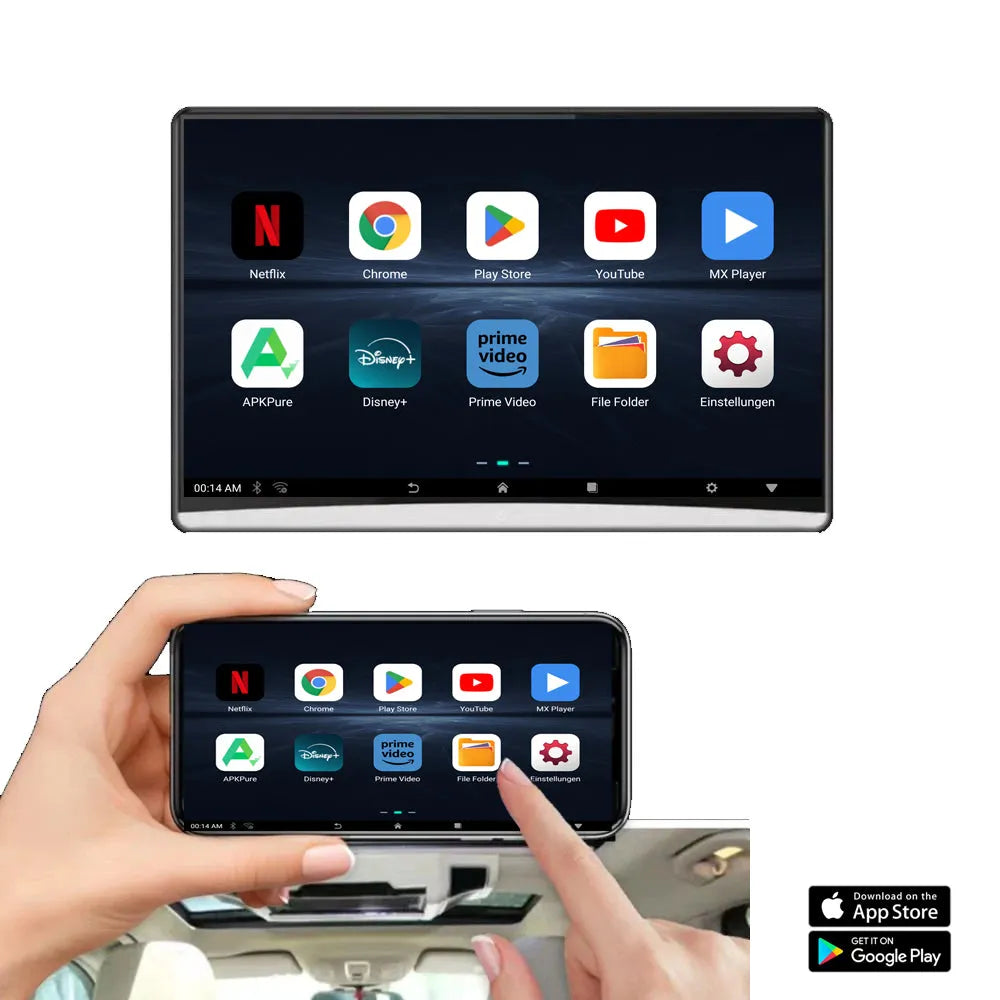

Control: via touchscreen or phone via the MyCar Link app

DESCRIPTION

This high-resolution monitor is characterized by the almost unlimited possibilities of the Android operating system and its outstanding picture quality.

While driving, you can either stream your entertainment program, eg from Netflix, YouTube, Prime and Co. live or download it in advance from the WLAN in your home and watch it offline. Of course, the monitor has one digital HDMI input and output each, as well as an analogue video input.

The AMX125 can play back the sound wirelessly via optional wireless headphones, or via A2DP of the car radio. Alternatively, the monitor has a built-in speaker, as well as a stereo RCA output for connecting to the AUX input of your factory-fitted car stereo.

The AMX125 is connected to the hotspot of your smartphone or a WLAN router during the journey to have access to the Internet. To save data volume, you can also download the films and series in the home WLAN before the journey and then enjoy them "offline". The revised operating menu now supports the following languages: German, English, Portuguese, French, Turkish, Spanish, Japanese, Korean, Chinese, Czech, Russian, Vietnamese, Arabic, Hebrew

TECHNICAL DATA

Display
- Digital 31.5cm (12.4'') LED IPS display (New Grade A)
- capacitive G+G multipoint touch screen
- Resolution 1920 (H) x 1200 (V)
- Brightness 350 cd/m²
- Contrast 800:1
- Viewing angle 170° horizontal, 170° vertical
- 4K video decoder
- NTSC/PAL playback automatic
- Display complies with ISO 9241-307, pixel error class II

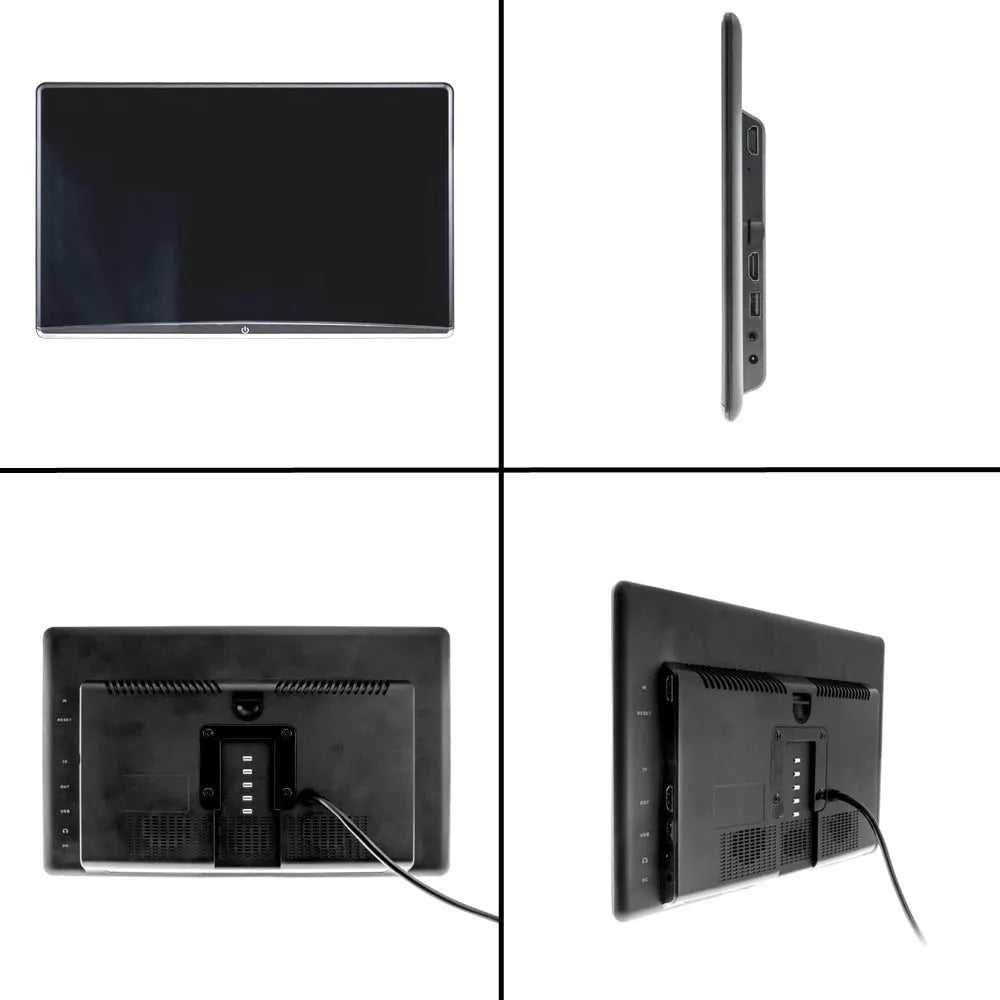

Inputs/Outputs
- Inputs: Video (Cinch), HDMI, USB 2.0 and micro SD card
- Outputs: HDMI, audio output via cinch, 3.5 mm headphone connection
- Two integrated stereo loudspeakers (2x 5 watts)
- With the integrated FM transmitter, you can play back the sound as an FM radio station via the car radio. FM frequencies can be set from 88 to 108MHz: We recommend using the FM transmitter to transmit sound only as a stopgap measure, as the sound quality from FM is not high quality.
- WLAN IEEE 802.11 a/b/g/n, 2.4GHz+5.0GHz
- Built-in A2DP transmitter for an optional wireless headset (maximum one headset), or for audio transmission to your car radio*.
*Only if supported by the car radio. Please follow the manufacturer's instructions.

General
- Controlling the monitor via smartphone using the "MyCar Link" app
- Android 10.0
- 64bit Deca-Core processor with up to 2.0GHz
- 3GB RAM / 16GB flash memory
- microSD card reader (max. 128GB)
- Mood lighting with 7 colors
- Supported video formats: AVI/MP4/VOB/RM/RMVB/DAT/MPEG1/MPEG2/MPEG4/Real Video/FLV/H.263/H.264/H.265/VC-1/VP6/VP8/MVC ...(4K)
- Supported audio formats: MP3/WMA/PCM/CD
- Supported photo formats: JPG/JEPG/BMP
- OTA update
- Dimensions monitor 292x197x27mm
- Weight monitor without bracket 1100g
- Weight universal mount 258g
- Weight special mount 270g
- Operating voltage 12VDC (min. 10VDC, max. 24 VDC)
- Operating temperature -10° - +70°C
- Power consumption (operation) 1.1 to 1.66A
- Power consumption (standby, ignition on) 0.03A
- Power consumption (ignition off) 0.00A

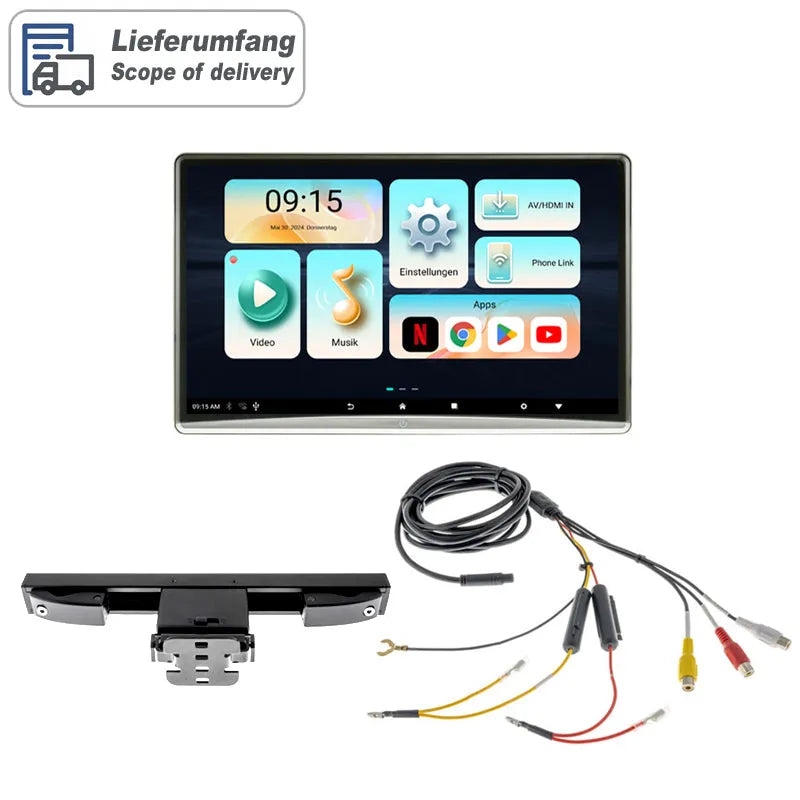

Scope of delivery
- 1x 12.4" monitor

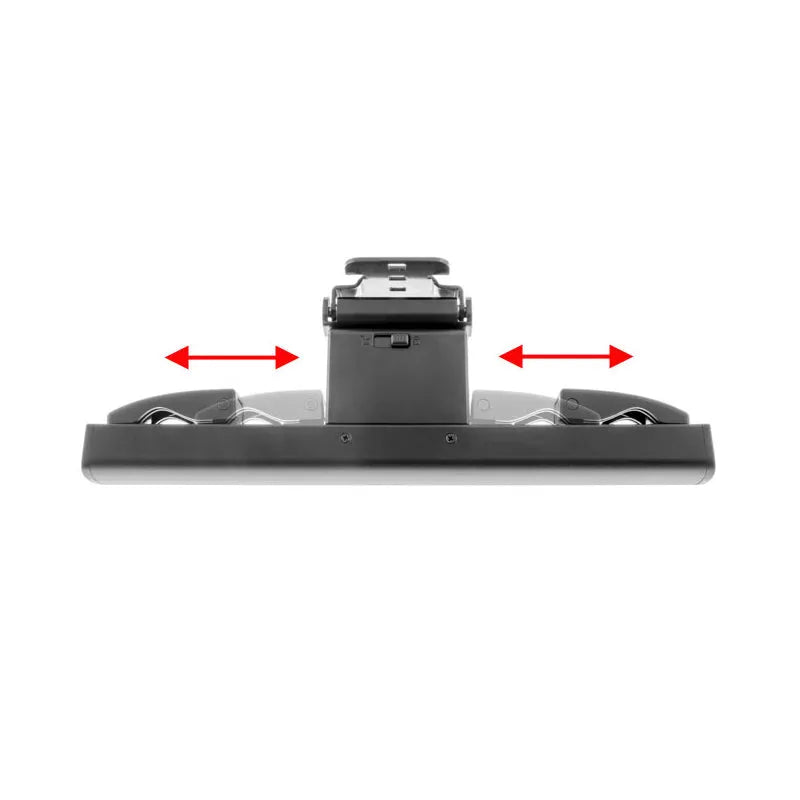

- 1x sturdy metal bracket for the headrest poles
- 1x main connection cable, 300cm
- 1x instruction manual

DOCUMENTS

User manual (EN)
