AMPIRE CPM103, automobilinė multimedija su belaidžiu Apple CarPlay, Android Auto

INFORMACIJA

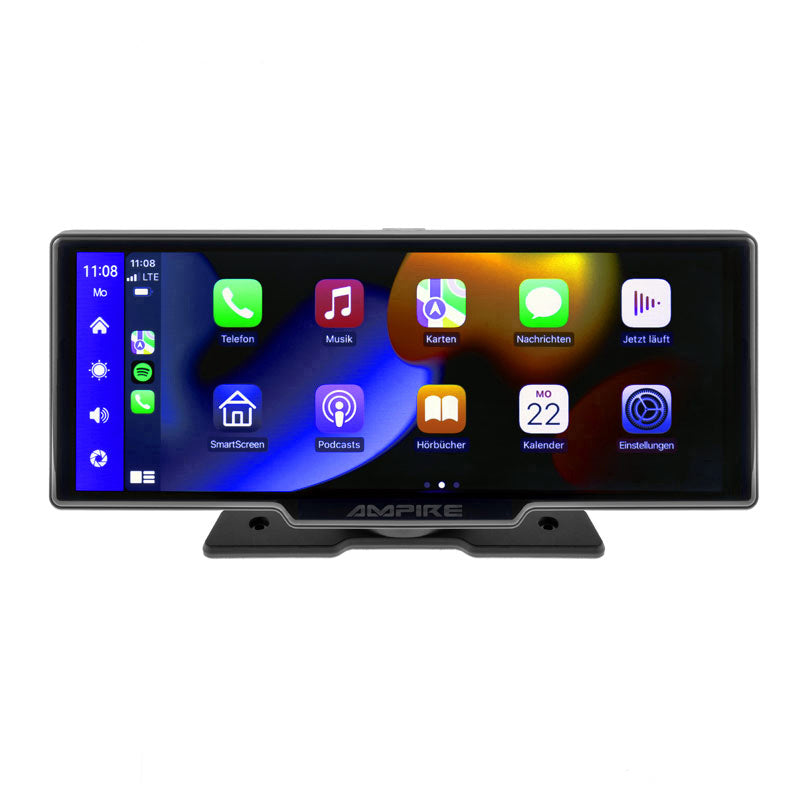

AMPIRE CPM103 - modernus 10 colių automobilinis multimedijos ekranas, leidžiantis naudotis belaidžiu „Apple CarPlay“ ir „Android Auto“ net automobiliuose, kuriuose nėra gamyklinės išmaniosios multimedijos sistemos. Aukštos raiškos 1600 × 600 px IPS jutiklinis ekranas užtikrina ryškų vaizdą ir patogų navigacijos, muzikos bei skambučių valdymą. Integruotas Full HD 1080p vaizdo registratorius, galinės AHD kameros prijungimo galimybė ir valdymas balsu suteikia daugiau funkcionalumo kasdienėse kelionėse.

Ekranas: 10″ IPS LCD, matoma įstrižainė 9,2″ (23,4 cm)
Raiška: 1600 × 600 px
Ekrano ryškumas: 750 cd/m²
Vaizdo registratorius: AHD 1080p, 25 kadr./s
Belaidis ryšys: Bluetooth 4.0, 5 GHz Wi-Fi

APRAŠYMAS

You want to retrofit Apple CarPlay or Android Auto on your factory car radio without monitor? Then the smartphone monitor CPM103 is exactly the right product. This high-resolution 10'' touchscreen monitor allows them in almost any vehicle the integration of their smartphone and also the display of an optional rear camera.

Our smartphone monitor CPM103 with integrated smartphone interface is compatible with wireless Apple CarPlay® and Android Auto (please note the minimum requirements), making it a smarter and safer way to use your smartphone in the car.

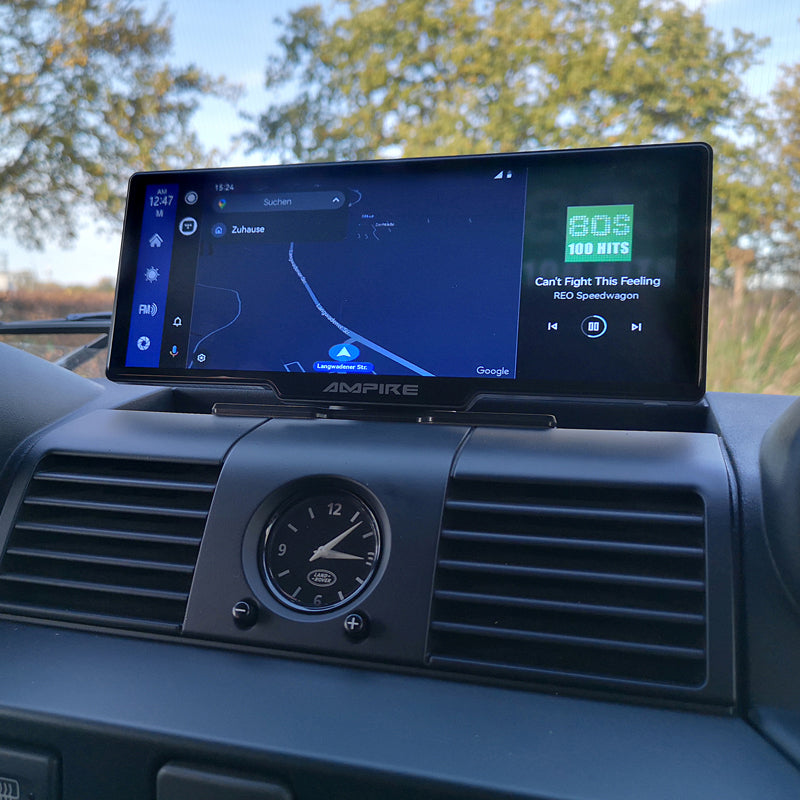

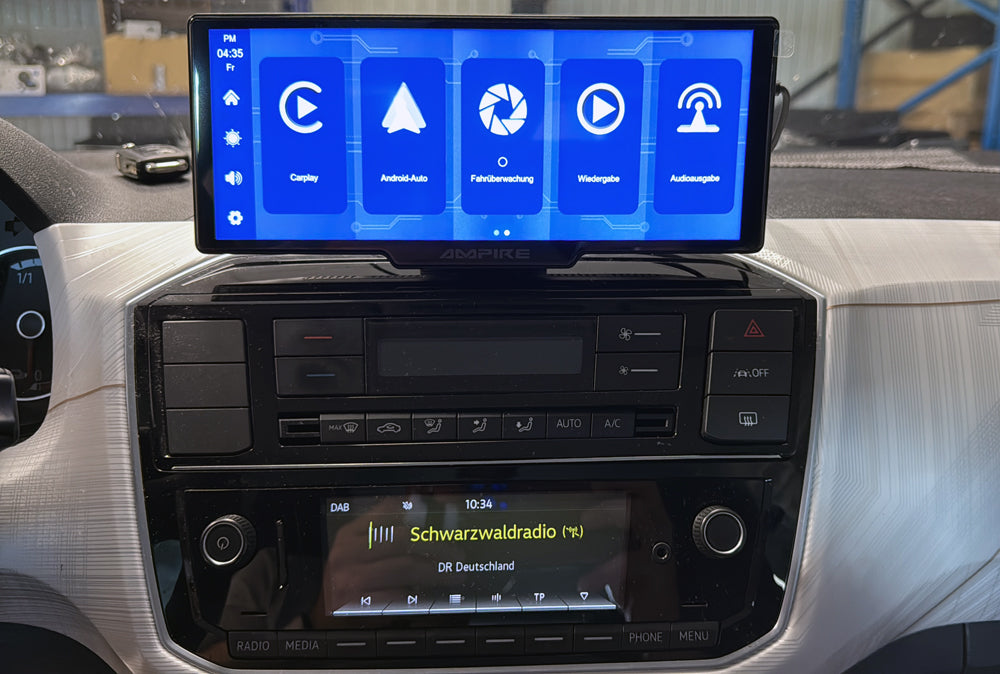

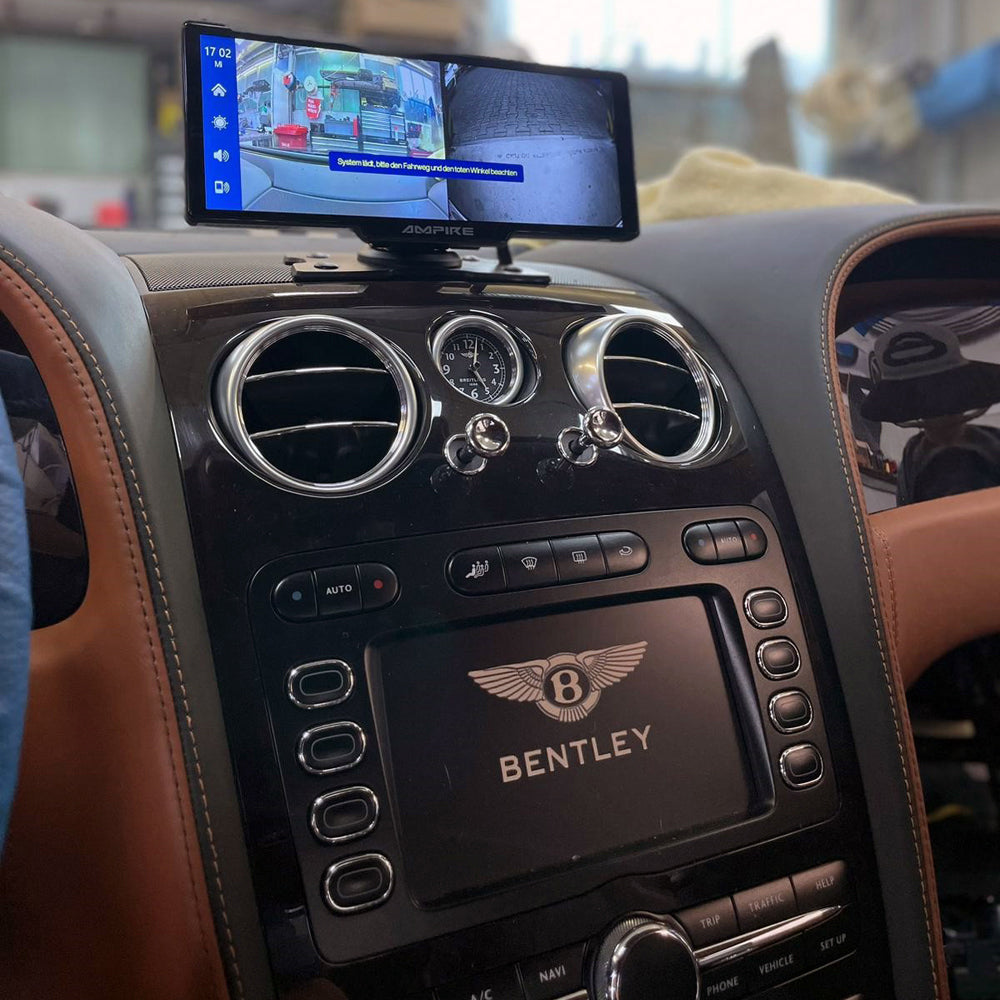

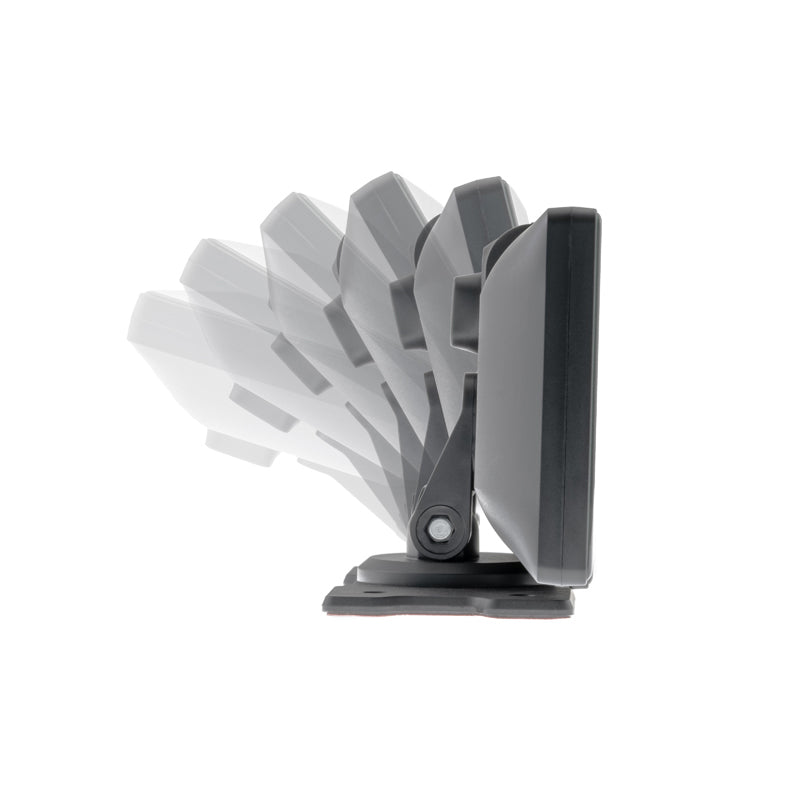

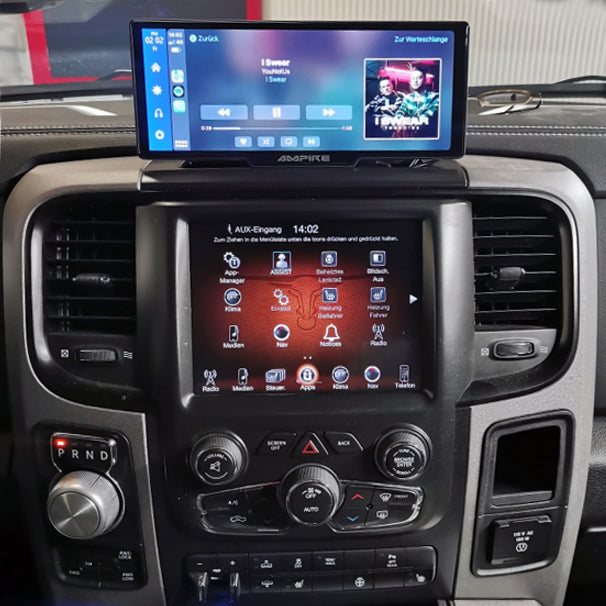

Everything is operated via the intelligent voice control Siri or OK Google or on the 10" touchscreen monitor, which you can securely mount on the dashboard, for example, with an included foot holder.

Everything you want to do with your smartphone while driving can be done directly through this monitor with Apple CarPlay® or Android Auto. You can easily get directions or send and receive messages. If your vehicle has a factory wireless hands-free system, you can operate it via our smartphone integration and use it to make phone calls. While navigating, you can listen to your favorite music via Spotify or your favorite radio station via a radio app - and still concentrate on the road.

Simply connect your smartphone wirelessly via WLAN to our monitor and off you go. The audio playback is fed in via the audio-AUX input (3.5mm jack plug) of your factory car radio. If your vehicle has factory A2DP audio streaming, you can also send the sound of the CPM103 directly to your radio via A2DP without detours and without loss of quality. Alternatively, an FM transmitter is also integrated, which can send the sound as an FM signal and be received by your car radio. In addition, a small loudspeaker is integrated in the housing, which can play back navigation messages, for example.

If you do not have a Bluetooth hands-free kit installed in your car, you can also make your phone calls via Bluetooth using the CPM103. It has an integrated microphone and loudspeaker for this purpose.

TECHNINIAI DUOMENYS

DISPLAY
- 10" IPS LCD Touch Screen Monitor
- 9.2" / 23.4cm visible diagonal
- Aspect ratio 24:9
- Touch screen operation
- Adjustable LED backlight
- Extremely high resolution 1600 x 600
- Brightness 750cd/m²
- Contrast 1000:1
- Clock frequency 60Hz
- Vertical viewing angle 130°
- Horizontal viewing angle 150°
- Our monitors are subject to ISO 9241-307, pixel error class II

SMARTPHONE INTEGRATION
Wireless Apple CarPlay
Minimum requirement: iPhone 5 and higher

Wireless Android Auto
Minimum requirements: Android 11, Android Auto 4.8 and WLAN 5GHz*.
*IEE standards 802.11a, 802.11ac, 802.11ax, 802.11be & 802.11n
ATTENTION! Devices that only have WLAN 2.4GHz are not supported and are not compatible!

Pair your smartphone with the CPM102 and then connect your smartphone to the A2DP input of your car radio. The CarPlay or Android Auto sound is then sent directly and without detours from your smartphone to the car radio* via A2DP.
(*Requires an A2DP-capable car radio.)

AHD DASHCAM

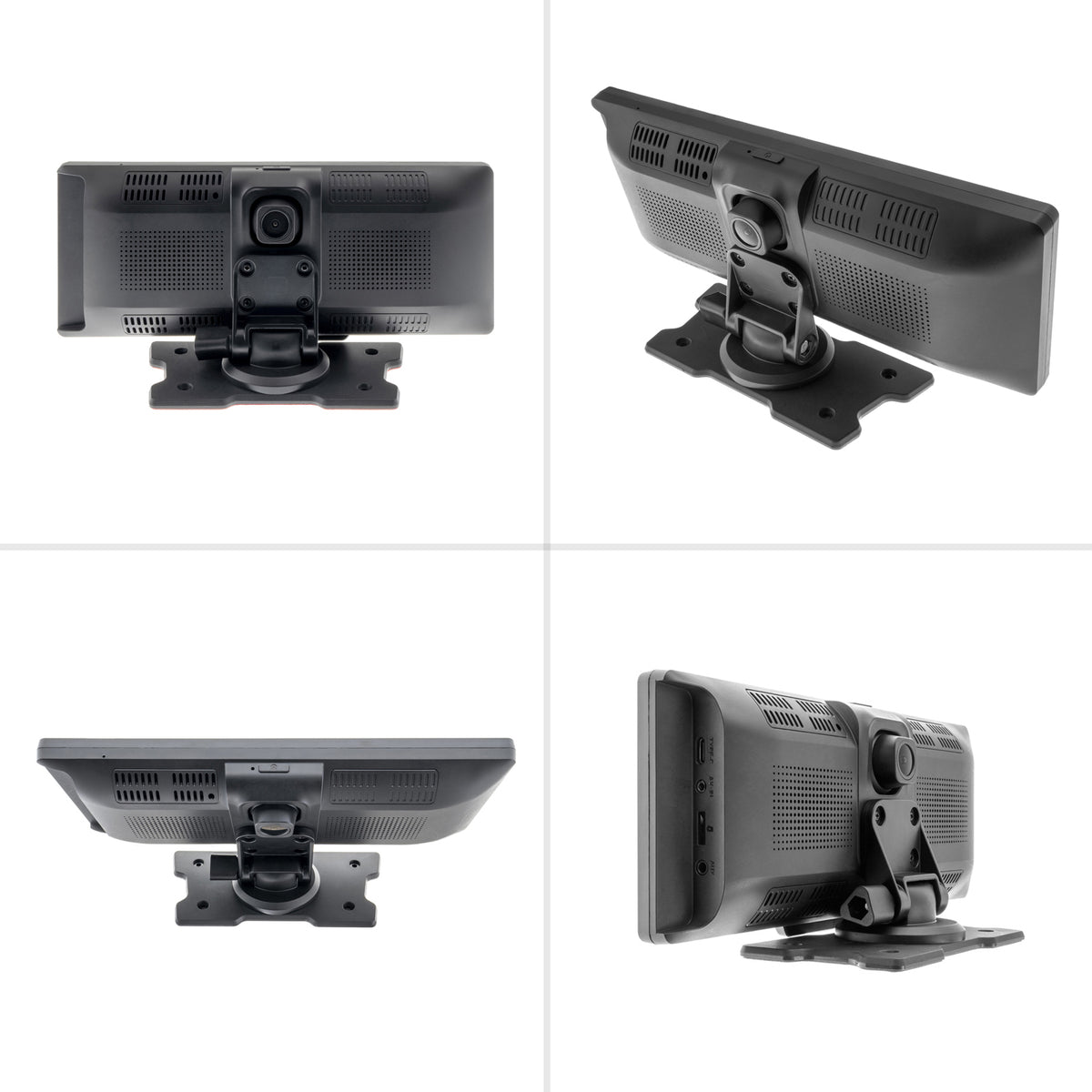

Integrated front camera on the back of the monitor
- AHD Analog High Definiton
- 1080p (1920 x 1080 pixel resolution)
- 30 fps frame rate
- Viewing angle: 120° horizontal, 145° diagonal

REAR CAMERA INPUT
- AHD Analog High Definiton
- 720p/1080p (1920 x 1080 pixel resolution)
- 25/30 fps frame rate
- 4P MINI-DIN system connector
- 12 Volt switch input for activation
- Immediate switchover to the system rear camera in full screen with auxiliary lines when reverse gear is engaged
- Auxiliary lines individually adjustable
- Switch off delay of 3 seconds when reverse gear is disengaged
- Dashcam recording function is not interrupted in reverse camera mode
- Image playback normal/mirrored adjustable

DVR RECORDER
- Recording resolution: 1080p+1080p or 720p+720p (adjustable)
- Segment length: 1minute, 3 minutes, 5 minutes
- Audio recording can be switched on
- Parking lot mode with motion detection and time-lapse recording. 12h or 24h adjustable, low voltage protection at 11.8V
- Memory card type: microSD (not included)
- microSD speed class: Class 10 or higher
- microSD memory capacity: min. 32GB to max. 256GB
- Recording capacities: 32GB approx. 4.5 hrs, 64GB approx. 9.5 hrs, 128GB approx. 19 hrs, 256GB approx. 38 hrs, then the oldest recordings are overwritten.
- Power on delay (ACC ON): 17 seconds
- Power on delay in parking mode: 0 seconds
- OFF delay (ACC OFF): 15 seconds

AUDIO OUTPUT
- Stereo audio output with 3.5mm jack cable
- A2DP audio streaming of all CarPlay and Android Auto content directly from the smartphone. No additional app required.
- FM transmitter for alternative sound reproduction (87-108 MHz.)
- Integrated 2 watt speaker with its own housing

OTHER
- LINUX 4.9 OS operating system with 1GB memory

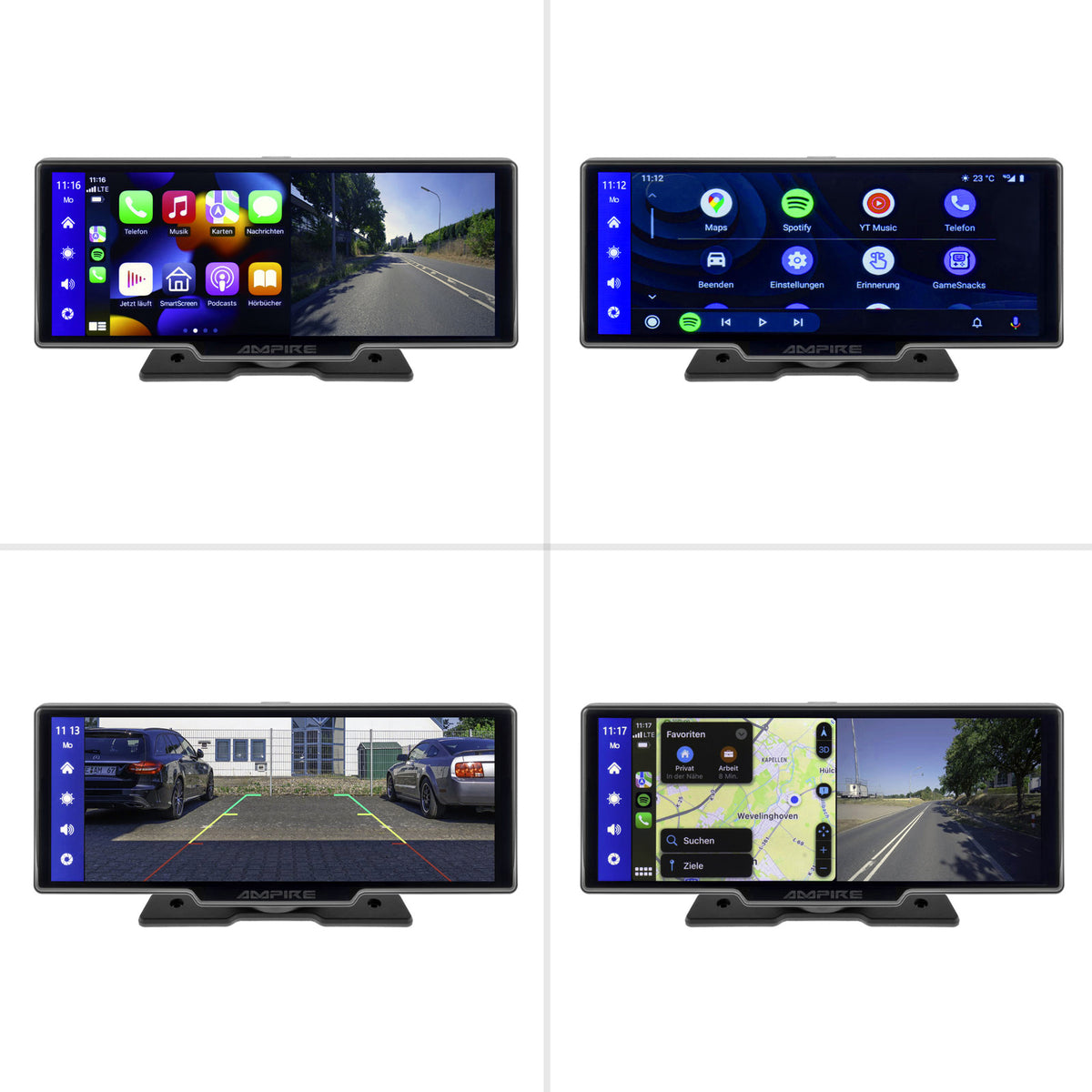

- Apple CarPlay and Adroid Auto in full screen mode, or in half screen mode with simultaneous display of a camera (selectable)
- SD card reader (Mirco SD)
- USB-C input for power supply
- USB-C wired power adapter with ACC ignition logic
- Menu languages: DE, EN, FR, ESP, RU, JPN, CN, KOR
- automatic switch on when operating voltage is applied
- operating voltage 9V - 36V DC
- current consumption ACC ON: 600mA@12VDC
- current consumption ACC OFF: 8.1mA@12VDC
- Current consumption in parking mode: 290mA@12VDC
- Operating temperature: -20° to 70°C
- Storage temperature: -30° to 80°C
- Dimensions monitor (without base): 240 x 100 x 33mm (42mm with front camera)
- Weight of monitor with base: 518g

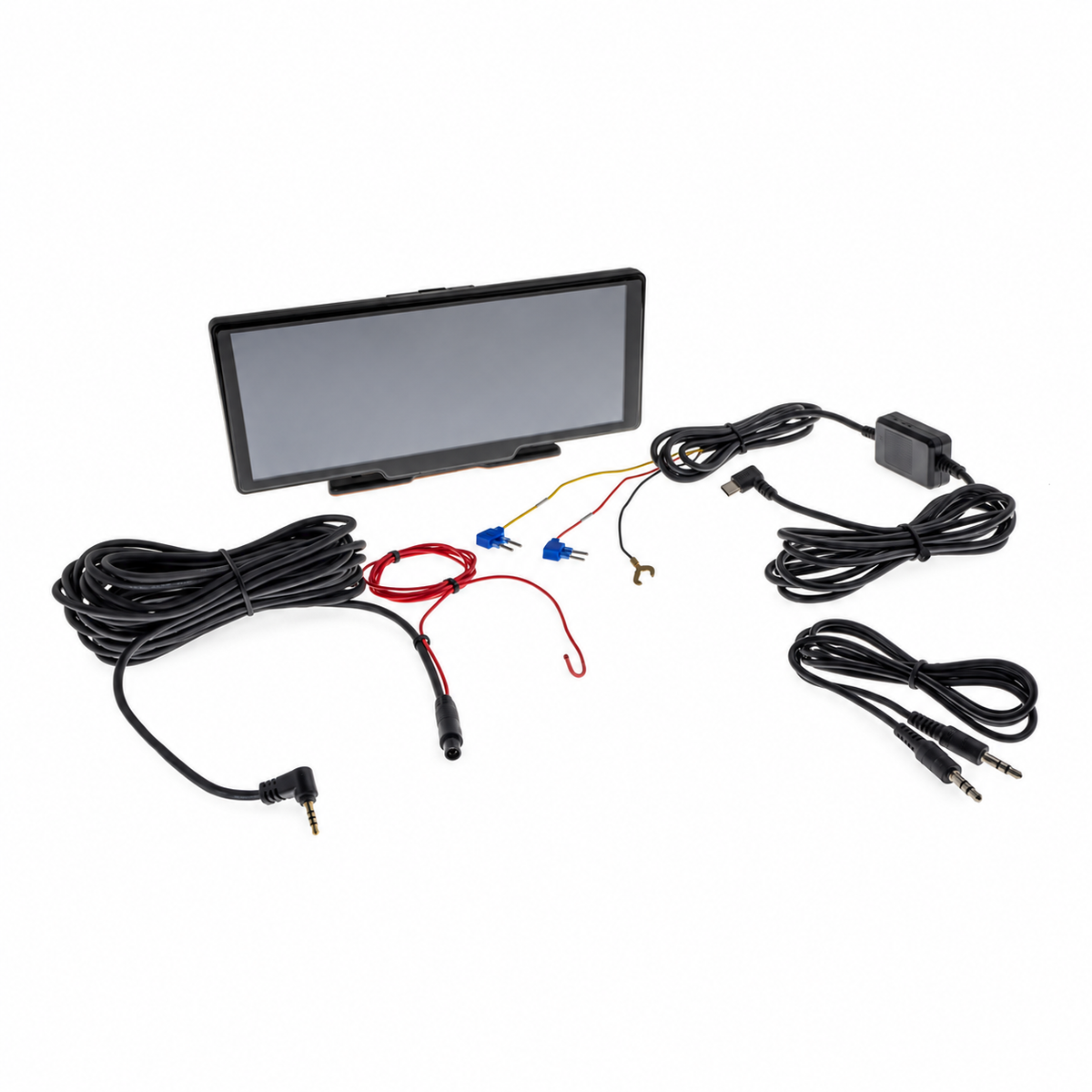

SCOPE OF DELIVERY
- 10" (25.4cm) touch screen monitor
- Foot mount
- USB-C connection cable for power supply with +12V, ground and ignition (ACC), 320cm
- Connection cable for an optional AHD rear camera, 550cm
- Connection cable audio output (3.5mm jack), 120cm

DOKUMENTAI

Vartotojo vadovas (EN)
AMPIRE 4 PIN jungčių techninė schema ir kontaktų išdėstymas (EN)
