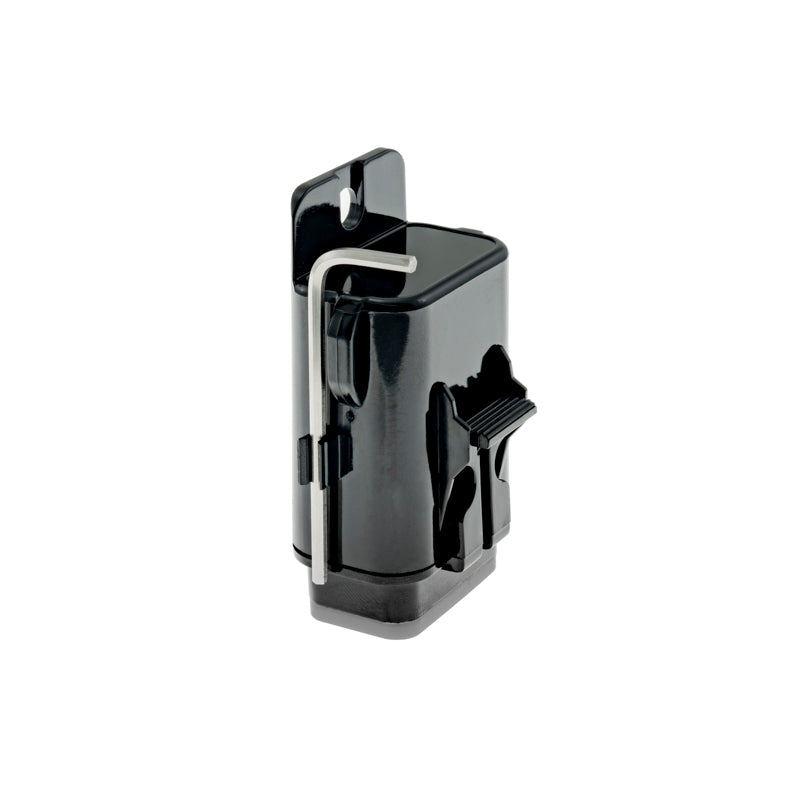

AMPIRE XSM10, fuse holder (6-10 mm²) with ATO fuses


One or two parallel-connected ATO fuses can be used, allowing for flexible adjustment of the total current protection. The waterproof design, wide operating temperature range and complete package ensure reliable and long-lasting use even in difficult conditions.

Suitable cable cross-section: 6 mm² and 10 mm².
Fuse type:ATO (automotive).

€15.00 EUR

AMPIRE XSM10, fuse holder (6-10 mm²) with ATO fuses - Ask you before buying whether we have this item in a warehouse if we do not have to be ordered and arrive within 2-21 days.

▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.

Free delivery in Lithuania from € 100

In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.

Pick up the goods in the store for € 0

Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00

INFORMACIJA

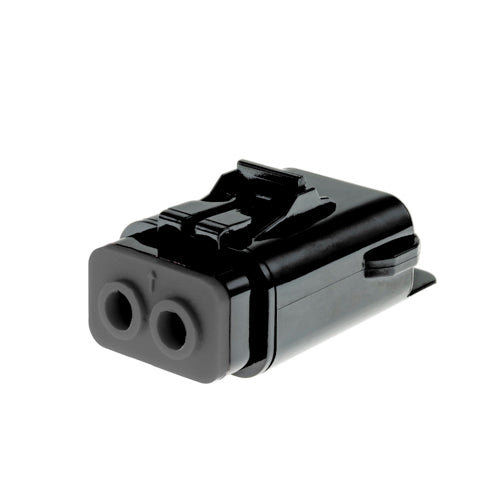

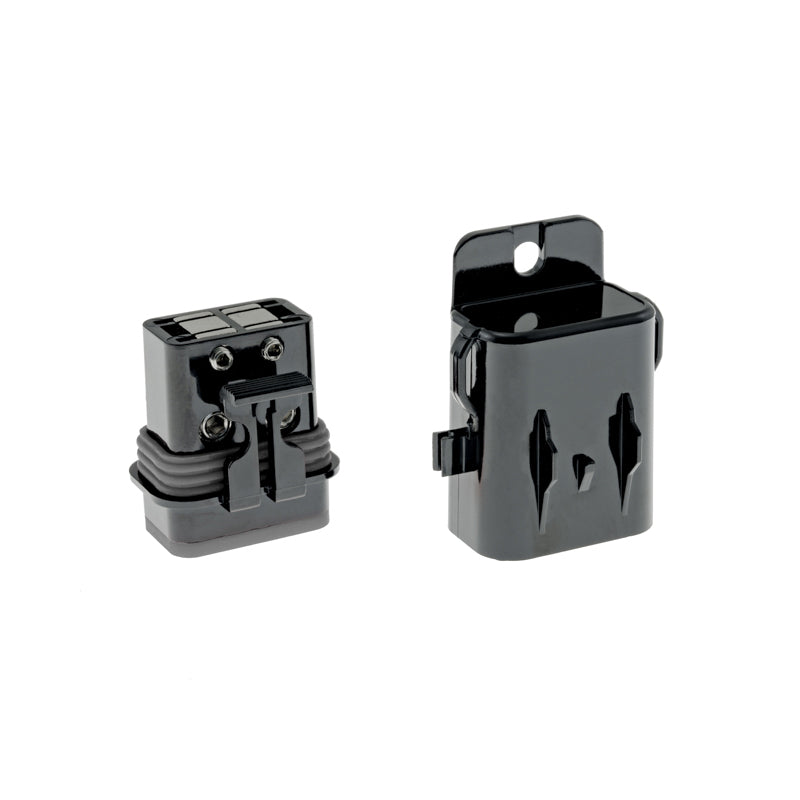

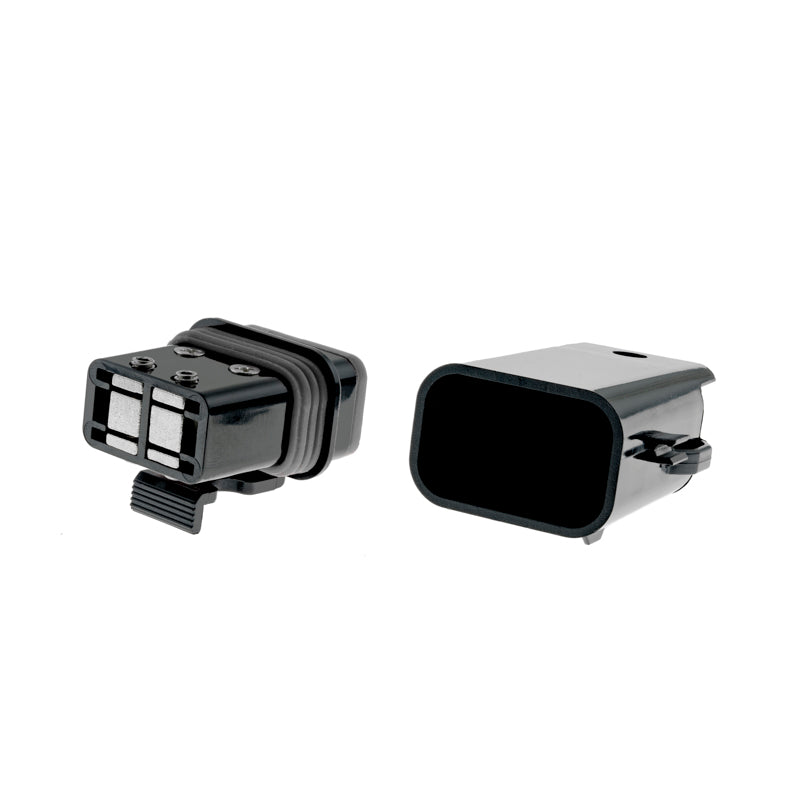

AMPIRE XSM10 is a reliable, waterproof ATO fuse holder with ATO fuses for safe and tidy connection of power cables. It is ideal for automotive, motorcycle and marine electrical installations where resistance to moisture, temperature fluctuations and reliable short circuit protection are required.

Construction: Waterproof.
Suitable cable cross-section : 6 mm² and 10 mm².

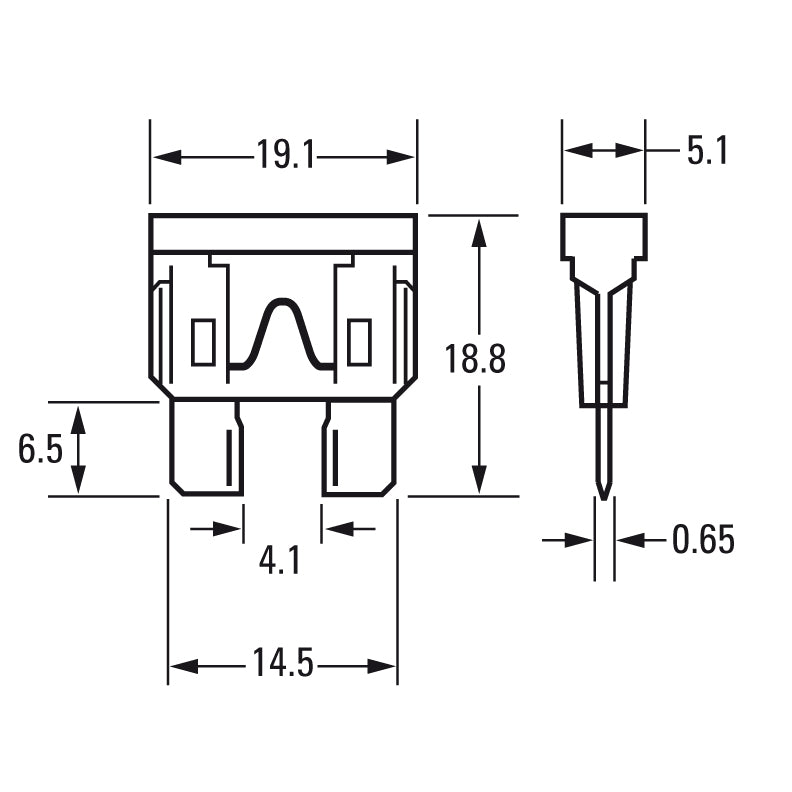

Fuse type: ATO (automotive).
Fuses included in the kit:
2 × 30 A (nickel-plated);
1 × 40 A (nickel-plated).
Contacts/tips: nickel-plated, with red and black insulation.
Operating temperature : from -40 °C to +105 °C.
Application:
Car engine compartment;
Motorcycles;
Ships and boats.

DESCRIPTION

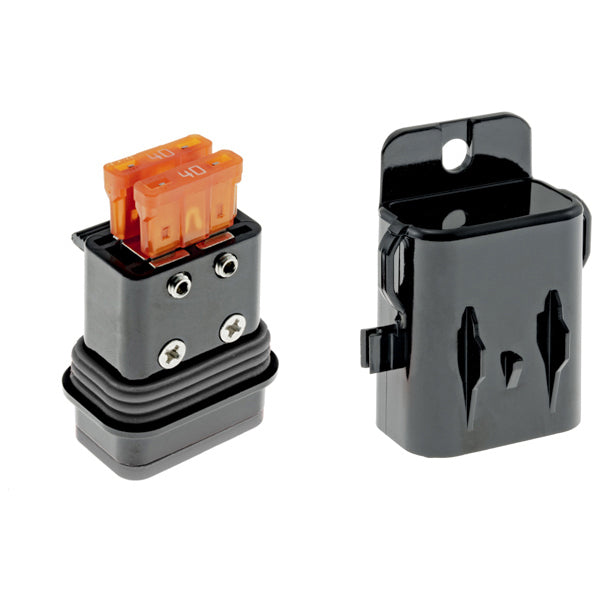

Complete set of a waterproof ATO fuse holder for 6 and 10mm² power cables. Ideal for use in the car engine compartment, motorcycle or boats. The fuse holder you can either equip with one fuse or connect two fuses of the same value in parallel. In this case, the total fuse value is doubled. For example, with two 20A fuses inserted, the total fuse value is 40A.

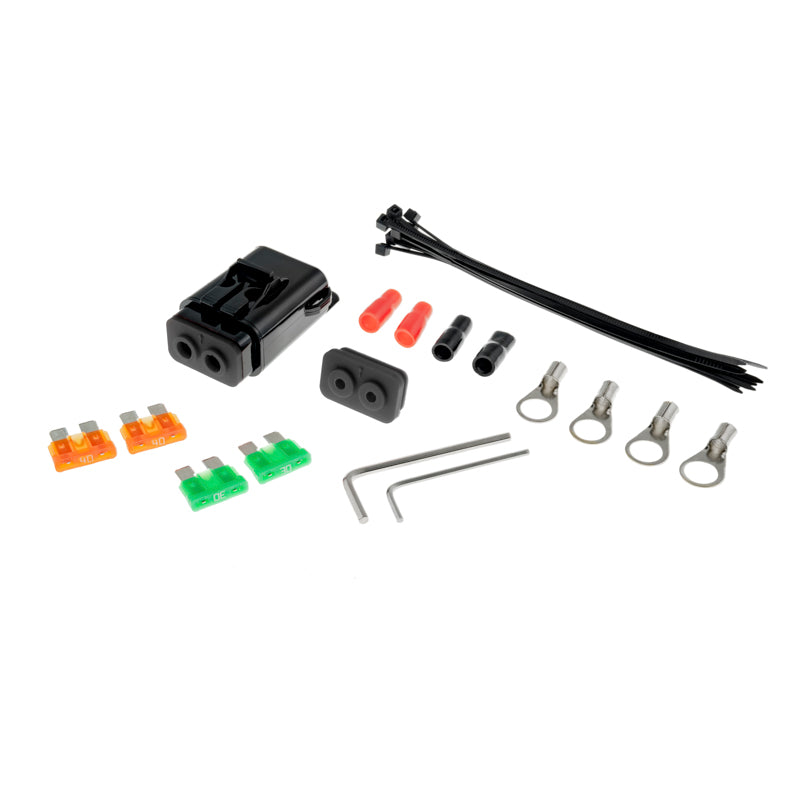

SCOPE OF SUPPLY
1 ATO fuse holder (waterproof)
2 ATO fuse 30 Ampere (nickel plated)
1 ATO fuse 40 Ampère (nickel plated)
1 gasket for 10mm² wires
1 gasket for 6mm² wires
2 ring cable lug 10mm² with red insulation (nickel plated)
2 ring cable lug 10mm² with black insulation (nickel plated)
10 black cable ties, 150mm length
1 Allen wrench

WORKING TEMPERATURE
-40 to 105 degrees Celsius

IMPORTANT INSTALLATION NOTE

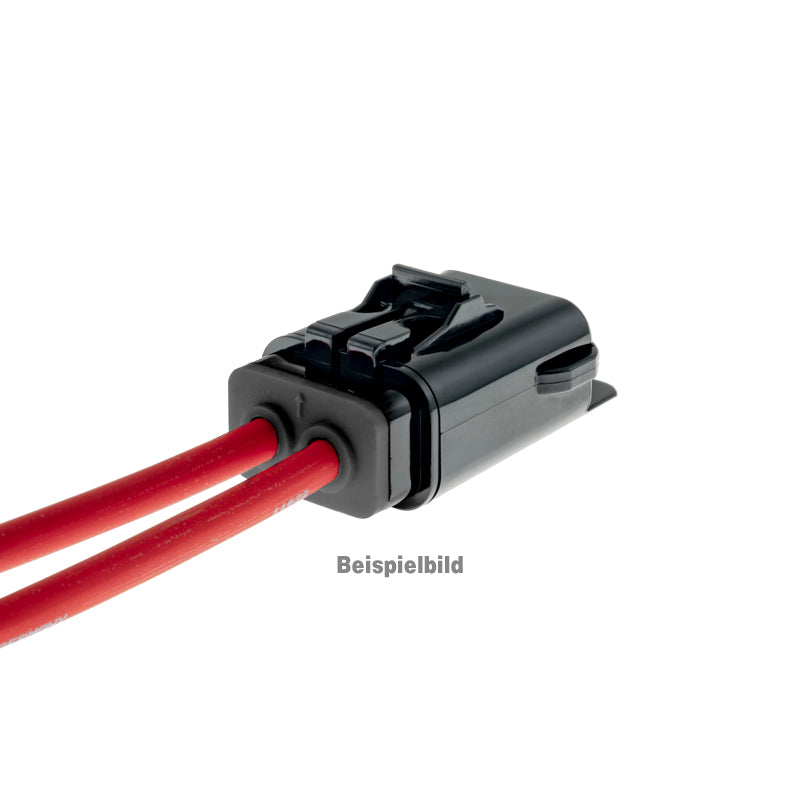

- Please strip the cable end by 12mm long and use wire end ferrules for perfect electrical connection.

IMPORTANT NOTE
- After installation, please tighten all the screws of the cable terminals and fuse again to ensure proper contact.
