ARCAM AVA25, 9-ių kanalų namų kino stiprintuvas

INFORMACIJA

ARCAM AVA25 - aukštos klasės 9 kanalų namų kino stiprintuvas, sukurtas reiklioms muzikos ir kino sistemoms. Firminis Class AB stiprinimas užtikrina natūralų, detalų ir dinamišką garsą, o Dolby Atmos, DTS:X, IMAX Enhanced, AURO-3D bei Dirac Live leidžia sukurti tiksliai pagal patalpą sukalibruotą erdvinį skambesį.

Kanalai: 9
Stiprinimo klasė: Class AB
Maks. apdorojamų kanalų skaičius: 16
Galia prie 8 Ω: 120 W / kanalui, 2 kanalai
Galia prie 4 Ω: 160 W / kanalui, 2 kanalai
7 kanalų galia prie 8 Ω: 90 W / kanalui
7 kanalų galia prie 4 Ω: 100 W / kanalui
HDMI: 7 įėjimai / 3 išėjimai
Vaizdo palaikymas: 8K/60 Hz, 4K/120 Hz

APRAŠYMAS

Step into a world where every note and every scene is delivered with uncompromising precision and emotional depth. The AVA25 isn’t just an amplifier—it’s the culmination of nearly 50 years of ARCAM’s mastery in sound design, created for those who demand nothing less than excellence.

Expertly engineered in Cambridge, UK, the AVA25 builds on our heritage with advanced Class AB amplification, developed in-house to deliver a richer, more musical performance. This is how we achieve sound that feels alive—rich, detailed, and effortlessly immersive.

With nine channels of powerful amplification, the AVA25 effortlessly drives immersive setups like 7.1.2 or 5.1.4, and offers expansion to 16 total channels with additional subwoofers, height, or surround speakers. Dolby Atmos, DTS:X, IMAX Enhanced and AURO-3D transport you with a cinematic experience, while Dirac Live room correction ensures flawless detail tailored to your space.

At ARCAM, sound quality isn’t just a promise—it’s our obsession. The AVA25 is the result of rigorous testing and listening sessions to award it the ARCAM name.

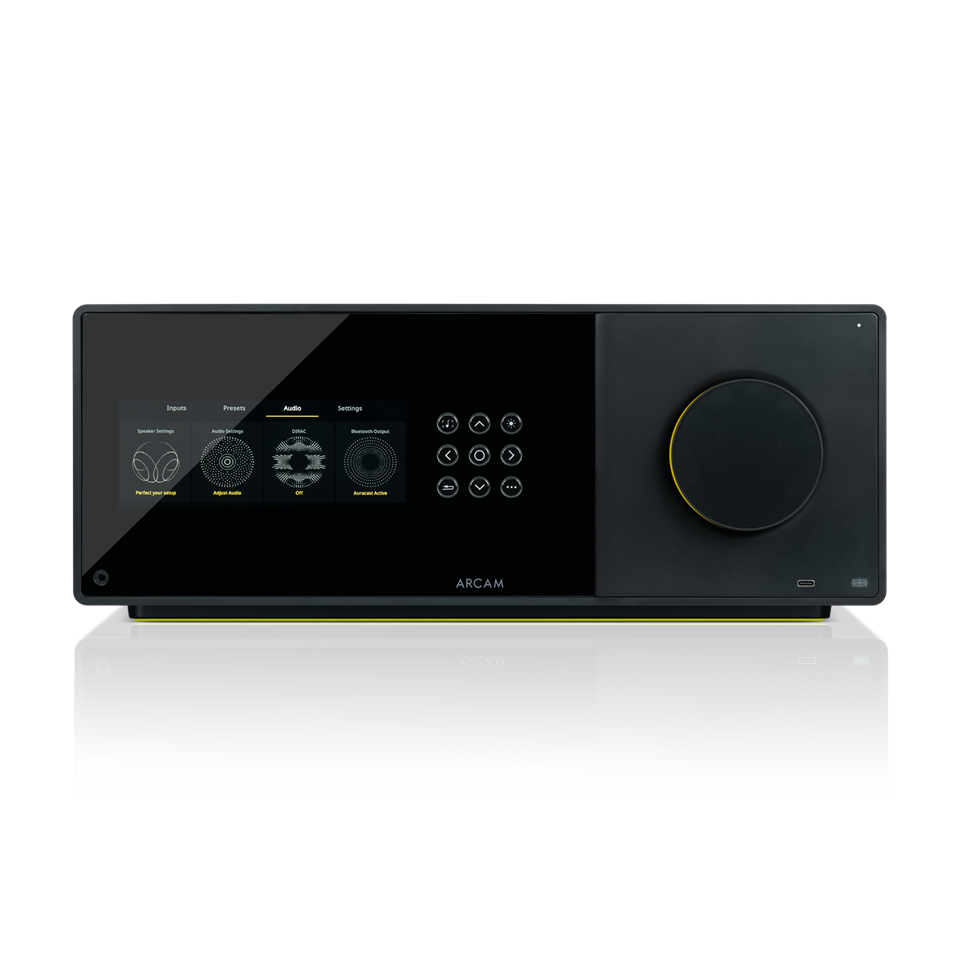

And with a vibrant 6.5" colour display, intuitive on-screen menus, and the new Radia App, setup and streaming are effortless.

Nine channels of high power ARCAM Class AB Amplification.

Dolby Atmos - Bring even the smallest details to life with sound that moves in all directions.

DTS:X and IMAX Enhanced, place sound where it would occur naturally in space, creating the most lifelike, multi-dimensional audio experience ever.

AURO-3D A revolutionary way of delivering audio that wraps you in a cocoon of life-like sound.

Dirac Live Room Correction for exceptional, calibrated audio in any room - upgrade with Dirac Live Bass Control and Dirac Live Active Room Treatment

Back-lit, Bluetooth remote control for continuous out-of-sight control

Works with the new ARCAM Radia AV Control app for setup, control, Internet Radio, Podcasts and UPnP playback from iOS, Android and Windows devices and PCs.

Works with Spotify Connect, Tidal Connect and Qobuz Connect, with direct connection from lossless music services

Roon Ready

Supports Apple Airplay and Google Cast

Bluetooth with Snapdragon Sound and Auracast for the best wireless sound with the most convenience

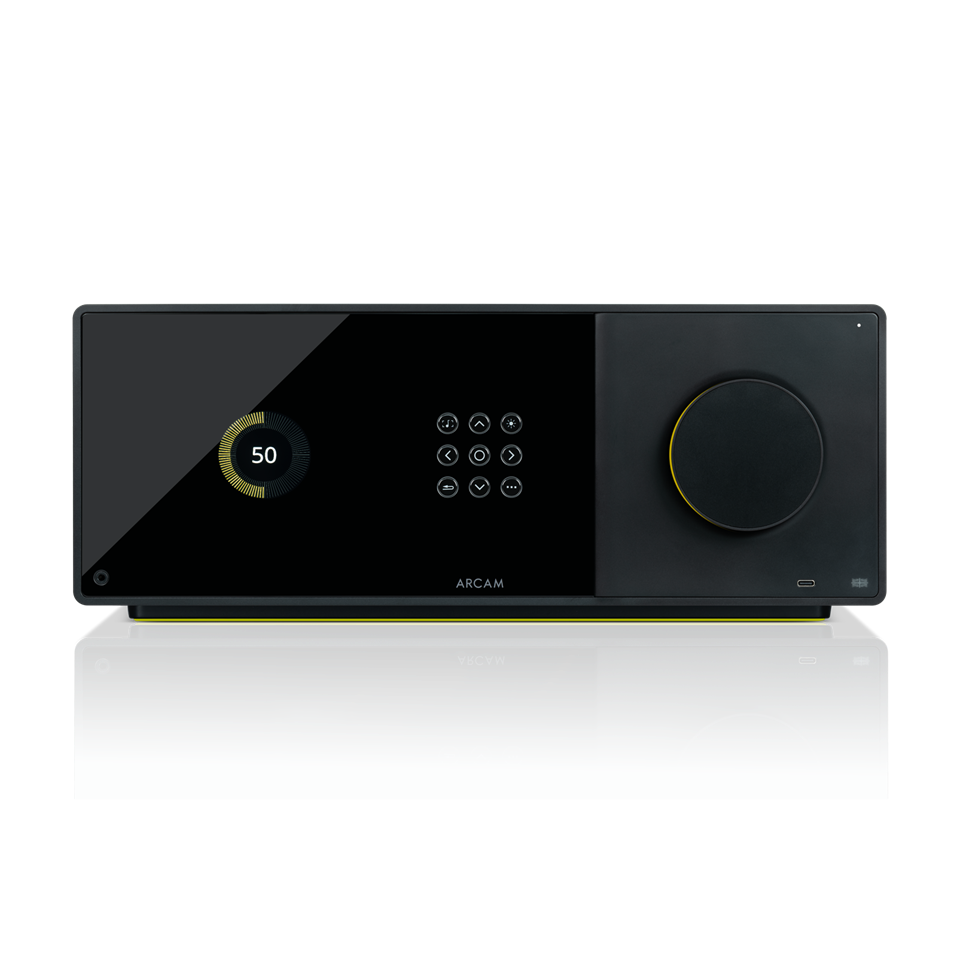

Large High-resolution display for clearly visible status and metadata from the comfort of your main listening position

TECHNINIAI DUOMENYS

Decoding / Encoding
Maximum Channel Count: 16
Reassignable Channels:
Front, Surround Back, Height Channels
Supported Decoding and Encoding:
Dolby Atmos, Dolby TrueHD, Dolby Atmos Height Virtualisation, Dolby Surround
DTS:X, DTS HD Master, DTS Neural:X, DTS Virtual:X
MPEG H
IMAX Enhanced
AURO-3D, AURO-2D

HDMI
Inputs/Outputs: 7/3 (Zone 1 outputs = 2, Zone 2 outputs = 1)
HDMI/HDCP Versions: 2.1a/2.3
Resolution support (resolution/framerate):
Up to 8K/60Hz or 4K/120Hz
Supported Dynamic Range Profiles:
HDR, HDR10, HDR10+, HDR10+ Gaming, Dolby Vision, HLG
Supported HDMI features:
Variable Refresh Rate (VRR), Auto Low Latency Mode (ALLM), CEC, eARC/ARC (Zone 1, Output 1) On Screen Display

Streaming
Works with (apps):
ARCAM Radia AV Control, Spotify Connect, Tidal Connect, Qobuz Connect, Roon (Ready)
Works with (services):
Apple Airplay, Google Cast, Internet Radio, Podcasts, UPnP
Supported Hi-res media:
FLAC, WAV (LPCM), AAC, ALAC, AIFF, MP3, OGG
Gapless Playback Supported
Supported Hi-res Bit depth: 16, 24
Supported samples rates (kHz): Up to 192 kHz
Frequency response: 20Hz—20kHz ± 0.05dB

Digital Inputs
Number of inputs (Coaxial/Toslink): 2/2
Supported Sample Rates (kHz):
Coaxial (RCA): 192, 176.4, 96, 88.2, 48, 44.1
Optical (Toslink): 96, 88.2, 48, 44.1
Bit depths (bit) (Coaxial/Toslink): 24, 16
Frequency response: 20Hz—20kHz ± 0.2dB
Signal/noise ratio (A-wtd, ref. 50W, 0dBFS): 100dB

Analogue Inputs
Number of inputs: 3 (RCA pairs)
Signal/noise ratio (A-wtd, ref. 50W, 1V input): 100dB
Frequency response: 20Hz—20kHz ± 0.2dB

Preamplifier Outputs
Number of Outputs RCA/XLR: 16/0
Single-ended (RCA) peak output level per channel: 2V RMS
THD+N (20 Hz to 20 kHz): –100dB

Amplification
Amplifier Channels: 9, Class AB

Continuous power output (0.5% THD)
8Ω, 20Hz - 20kHz, 2 channels driven: 120W
4Ω, 1kHz, 2 channels driven: 160W
8Ω, 1kHz, 7 channels driven: 90W
4Ω, 1kHz, 7 channels driven: 100W
Harmonic distortion @80% power, 8Ω at 1kHz: 0.005%

General
Mains voltage (V/Hz): 100–120V or 220–240V, 50–60Hz
Max Power consumption: 900W
Max Thermal dissipation: 3070 BTU/hour
Idle Power consumption: 87W
Idle Thermal dissipation: 300 BTU/hour
Standby Power consumption (Default/Low Power): 2W/0.4W
Dimensions W x D (including speaker terminals) x H (including feet): W432 x D459.1 x H170mm
Weight (net): 21.5kg
Weight (packed): 28.2kg

Supplied accessories:
Region Specific Power Cord(s)
Rear panel cowl
Remote control with 2 x AAA batteries
Measurement Microphone
5m USB Cable
Quick Start Guide
Important Safety Instructions

Wireless Specifications
Bluetooth Version: 5.4
Bluetooth Profiles: A2DP Sink/Source, AVRCP, Snapdragon Sound, AAC, LE Audio, Auracast, GATT, VCP, MCP, BAP, CAP
Bluetooth Transmitter Frequency Range and Power:
2,402 MHz to 2,480 MHz <Max 10.73dBm
Wi-Fi Network: IEEE 802.11 a/b/g/n/ac (2.4GHz/5GHz)
2.4G Wi-Fi Transmitter Frequency Range and Power:
2.400 GHz to 2.4835 GHz < Max 17.4dBm
5G Wi-Fi Transmitter Frequency Range and Power:
5.15-5.35GHz, 5.47-5.725GHz, 5.725-5.875GHz, < Max 19.26dBm
