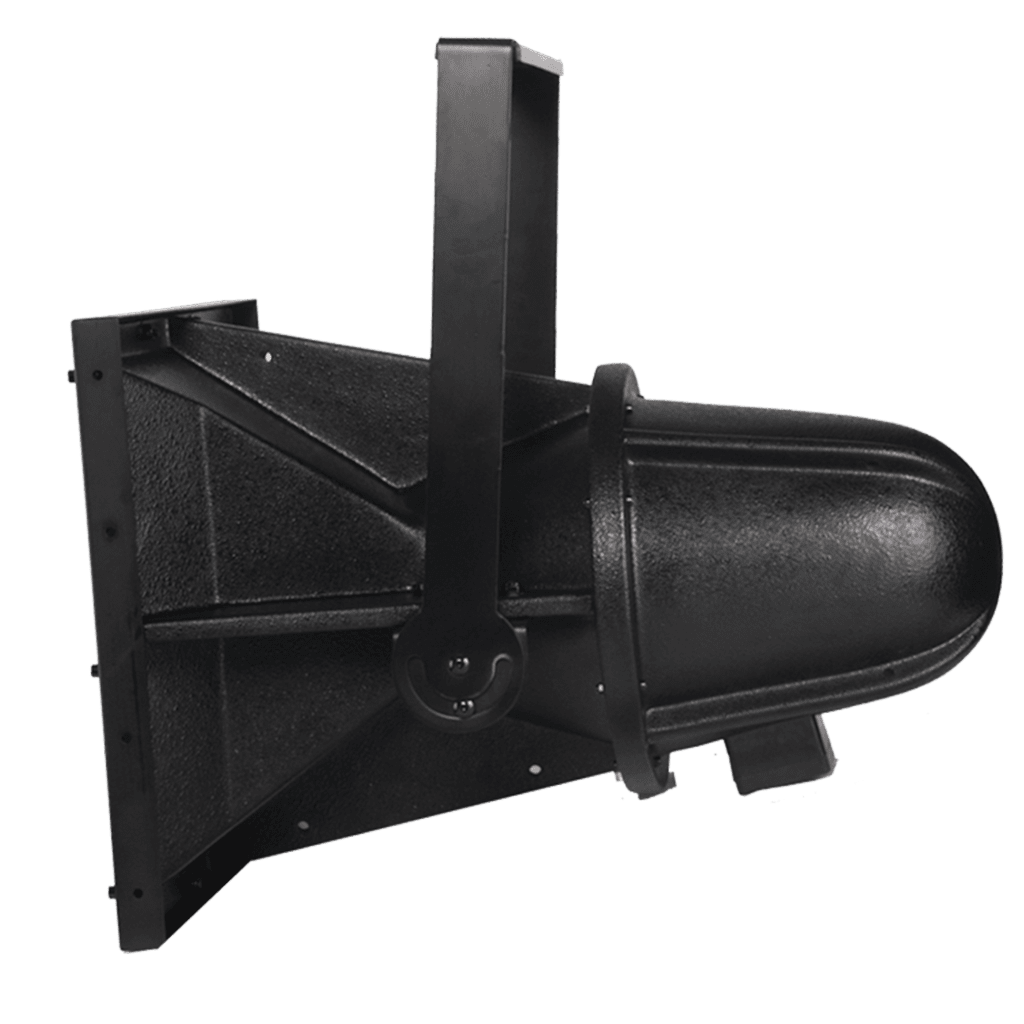

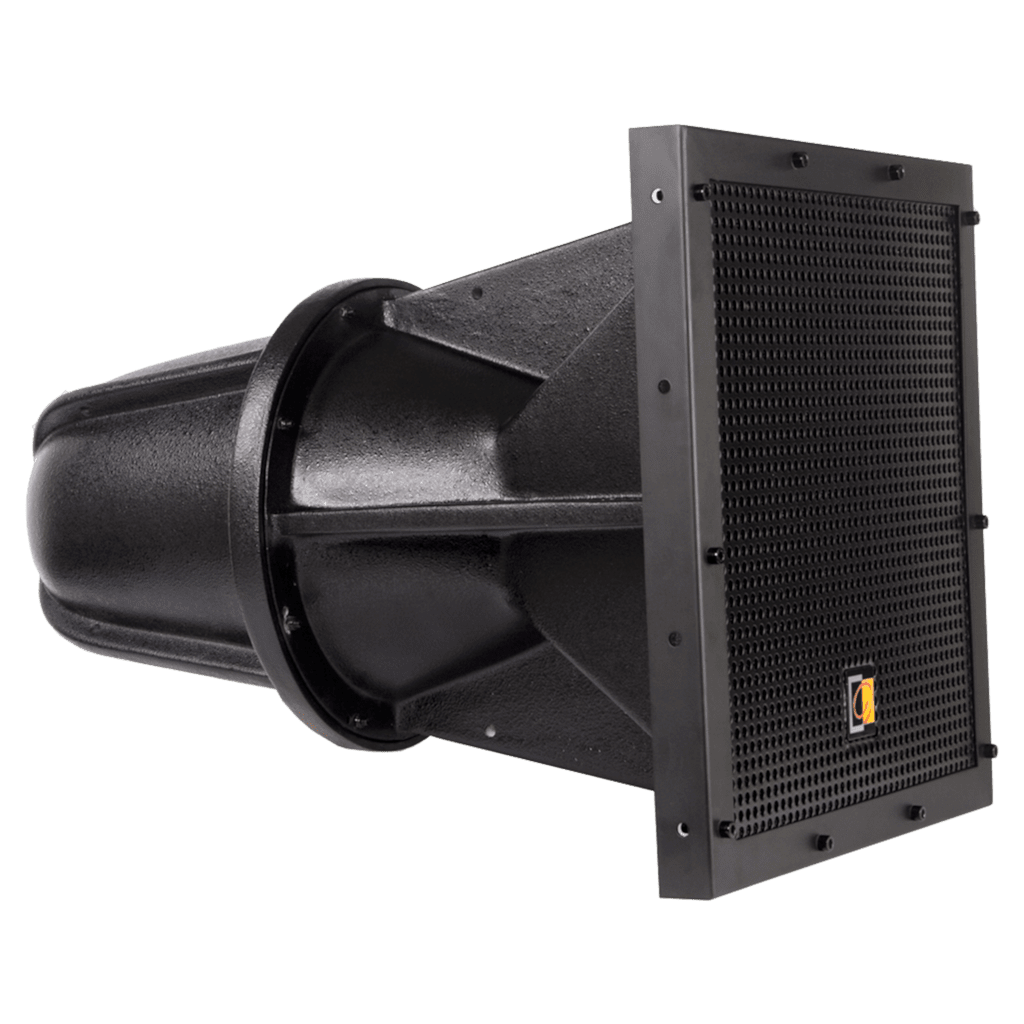

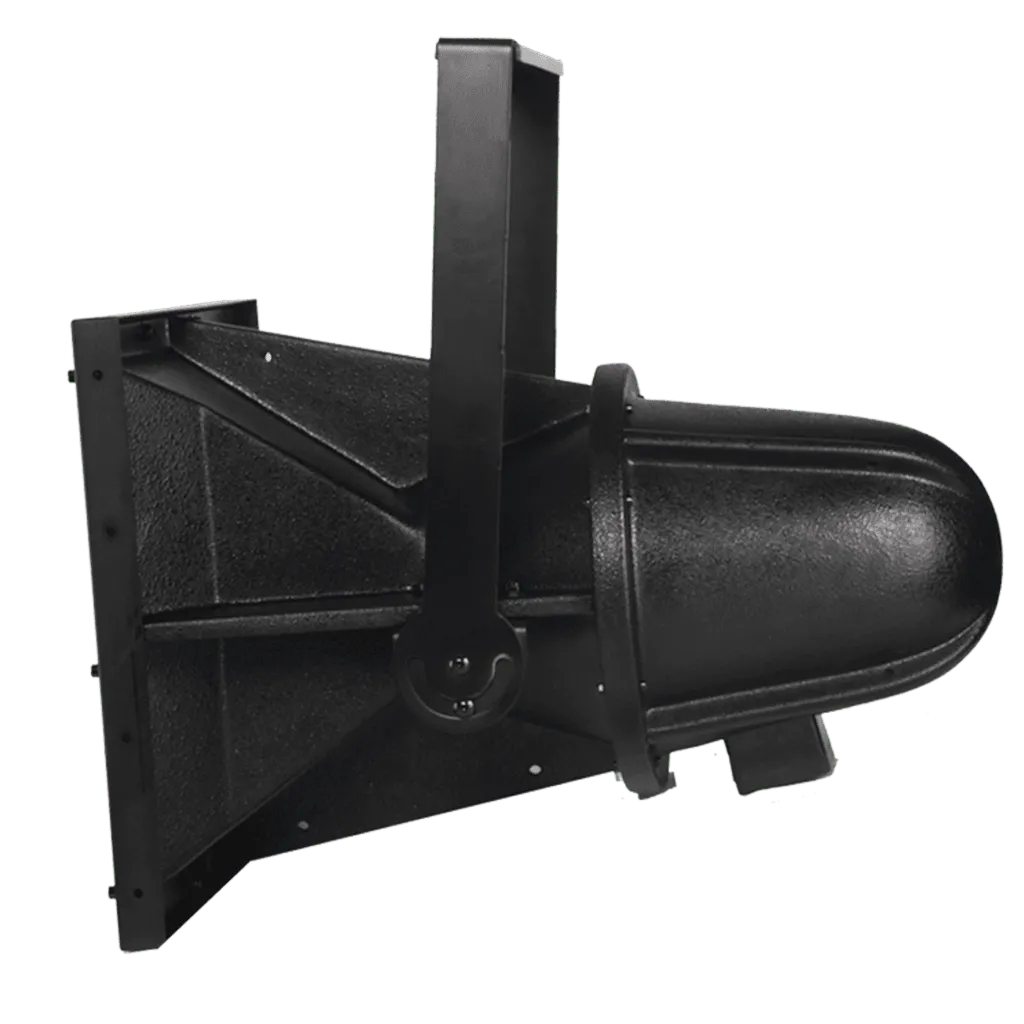

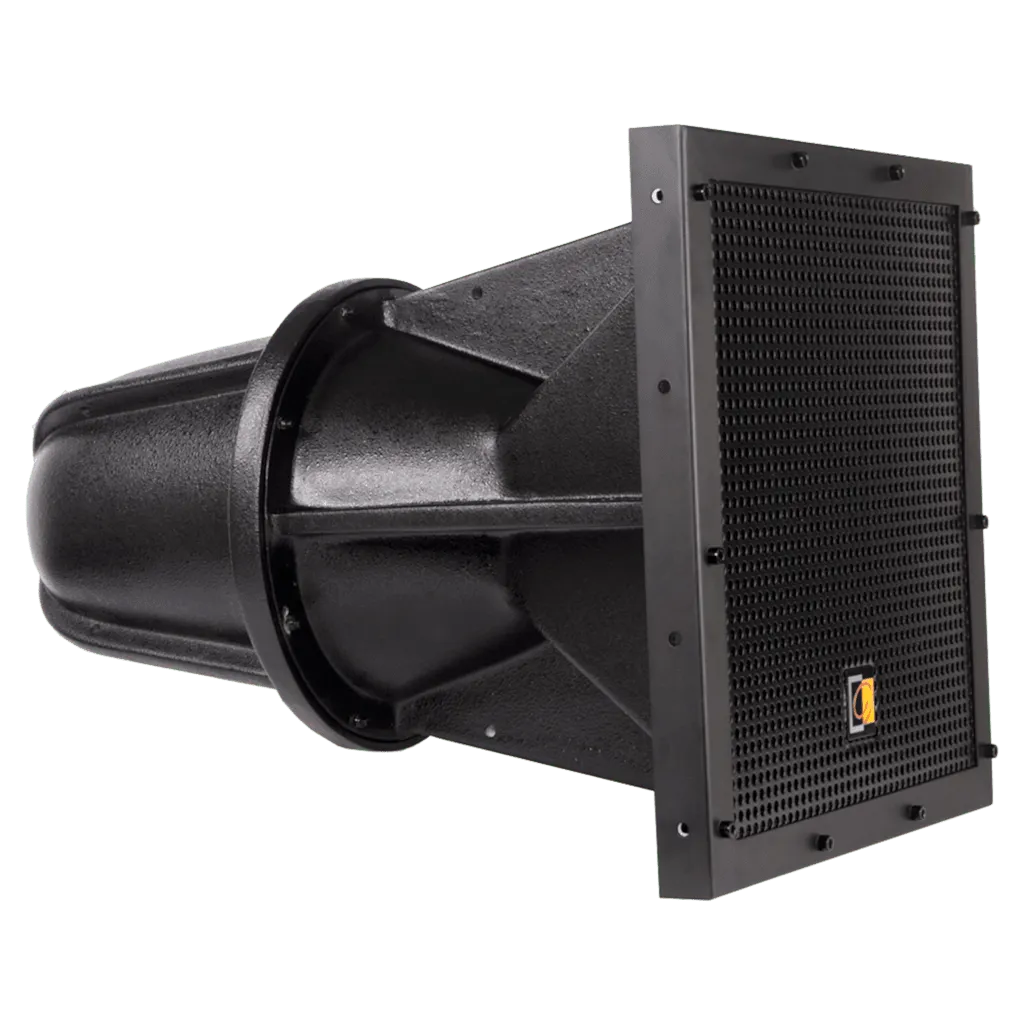

Audac HS212T, 12" mounted horn speaker IP65

INFORMACIJA

. Perfect for sports stadiums, arenas, industrial areas and factories, outdoor events and concerts, and public spaces where high sound pressure is required.

-Power: 350W / 700W / 1400W MAX
-Impedance: 8 Ω
-Transformer taps (for 100V line): 240 W / 42 Ω ; 120 W / 83 Ω ; 60 W / 167 Ω
-Sensitivity (1W/1m): 95 dB
-Maximum sound pressure (W/1m): 125 dB
-Frequency response (±3 dB): 80 Hz - 18 kHz
-Frequency range (-10 dB): 65 Hz - 20 kHz
-Crossover frequency: 1.5 kHz
-Dispersion: Horizontal: 40°, Vertical: 40°
-Input connector: 3-pin Euro terminal block (balanced)
-Housing material: Multi-layer glass composite material with textured EPDM black coating
-Protection class: IP65
-Operating temperature: -20 - +50 °C / Weight 34.5kg

DESCRIPTION

The AUDAC HS212T is a full-range loudspeaker system engineered to provide long throw, full range sound projection in a variety of fixed indoor and outdoor applications. Its wide, smooth frequency response and high efficiency ensure high-fidelity music reproduction along with superb projection of clear, intelligible speech at very low distortion. The HS212T features a 1.8” HF driver with an 12” LF loudspeaker combination for the best sound reproduction and has a very special coverage pattern of 40° horizontally and vertically. The HS212T contains the possibility to choose from power tapping for: - 240 Watt, 120 Watt, 60 Watt @ 100V - 8 Ohm impedance. The construction of the HS212T is made of polyester with textured EDPM black coating and a perforated aluminum grill front finish. Behind the aluminum grill, there's an acoustic foam assembled, which prevents rain coming into the speaker. Due to an Ingress Protection rating (IP) of 65, this speaker is suitable for any environment where humidity or moisture are present. At the rear, you'll find cable clamps to select the line transformer as desired. The cable clamps are shielded to obstruct moisture and humidity. Mounting brackets: - MBK212Z (Stainless Steel)

TECHNICAL DATA

DOCUMENTS

INSTRUCTIONS

User Manual (EN).
