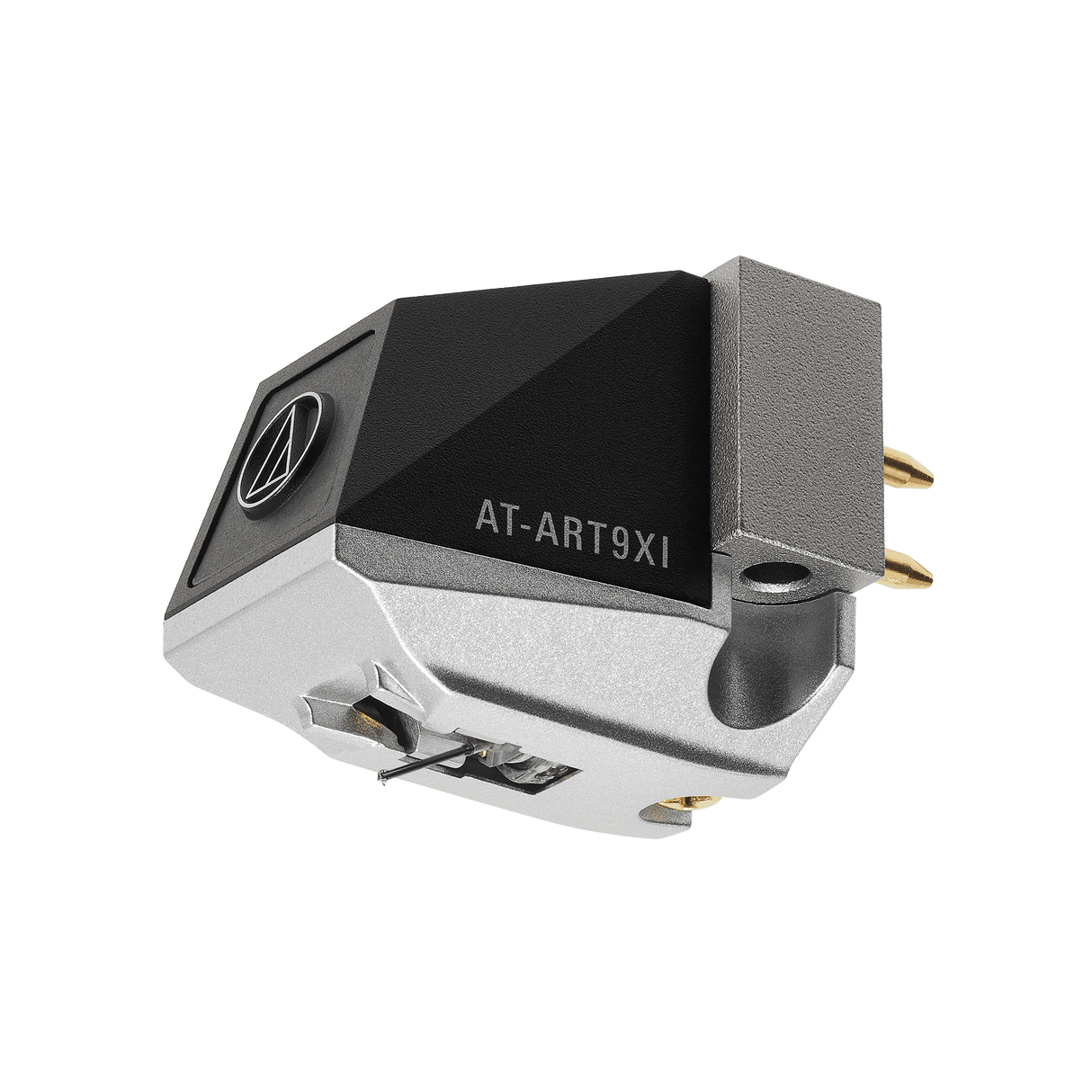

Audio-Technica AT-ART9XI, cartridge

The AT-ART9XI features a special linear contact stylus on a 0.

€1,549.00 EUR

Audio-Technica AT-ART9XI, cartridge - Ask you before buying whether we have this item in a warehouse if we do not have to be ordered and arrive within 2-21 days.

▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.

Free delivery in Lithuania from € 100

In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.

Pick up the goods in the store for € 0

Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00

INFORMACIJA

.28mm diameter solid boron cantilever, making the AT-ART9XI a replacement for the AT-ART9 and Audio-Technica's flagship magnetic core MC cartridge.

  • Frequency band: 20-50,000 Hz .
  • Channel separation: 30 dB (1 kHz).
  • Nude type cartridge.


DESCRIPTION


Featuring a special line contact stylus on a 0.28 mm diameter solid boron cantilever, the AT-ART9XI replaces the AT-ART9 as Audio-Technica's flagship magnetic core MC cartridge.
  • Audio-Technica's flagship magnetic core moving coil cartridge

  • Dual moving coils are aligned in an inverted V shape, providing high separation and wide response for clear sound localization and minimal distortion

  • Special line contact stylus ensures faithful reproduction of the music signal, and the 0.28 mm diameter solid boron cantilever provides excellent response characteristics

  • Neodymium magnet and permendur yoke significantly increase magnetic energy

  • Specially designed magnetic circuit provides an output voltage of 0.5 mV (1 kHz, 5 cm/sec)

  • PCOCC coils ensure high-fidelity transmission

  • Machined aluminum base supports both the magnetic circuit and the vibration system, ensuring excellent playback stability

  • Hybrid body of machined aluminum and high-rigidity plastic reduces undesirable parasitic resonance

  • Threaded cartridge mounting holes allow easy installation to a headshell or integrated tonearm


    TECHNICAL DATA

    SPECIFICATIONS

    Cartridge & Stylus
    Frequency Response 20-50,000 Hz
    Channel Separation 30 (dB at 1 kHz)
    Vertical Tracking Angle 20°
    Vertical Tracking Force 1.6-2.0 g (1.8 g standard)
    Stylus Construction Naked
    Recommended Load Impedance Min. 100 ohms (when head amplifier connected)
    Coil Impedance 12 ohms (1kHz)
    DC Resistance 12 ohms
    Coil Inductance 25µH (1kHz)
    Output Voltage 0.5 mV (1 kHz, 5 cm/sec.)
    Output Channel Balance 0.5dB (1kHz)
    Stylus Shape Special line contact
    Cantilever 0.28 mm diameter solid boron
    Static Compliance 25 x 10-6 cm/dyne
    Dynamic Compliance 15 x 10-6 cm/dyne (100 Hz)
    Mounting Half-inch
    Cartridge Weight 8.5 g (0.30 oz)
    Dimensions 17.3 mm (0.68") H × 16.8 mm (0.66") W × 25.0 mm (0.98") D
    Accessories Included Non-magnetic screwdriver; 2 washers; cartridge installation screws (M2.6) (5.0 mm × 2, 8.0 mm × 2, 10.0 mm × 2, 12.0 mm × 2); protector; brush
    Threaded Hole M2.6 x 2
    Notes Note: moving coil cartridges require receivers or preamps with compatible inputs; their stylus assemblies are not field-replaceable.
