Audio-Technica

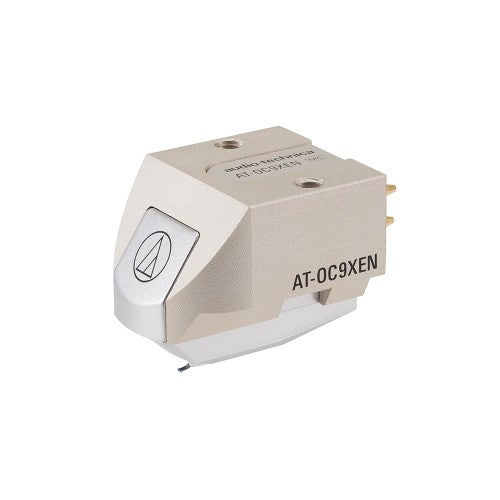

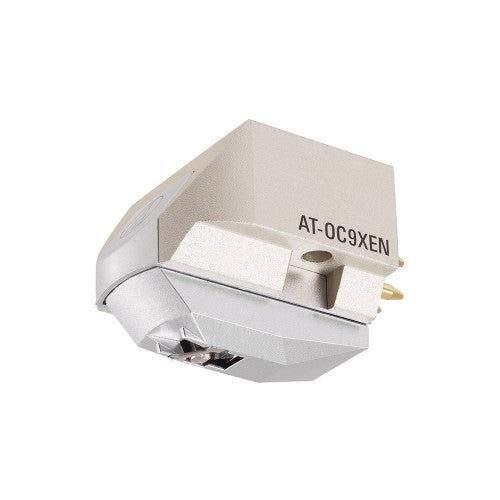

Audio-Technica AT-OC9XEN, cartridge

A new generation cartridge from the legendary OC9 series cartridge with double moving coil and cap.
€339.00 EUR

▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.

Free delivery in Lithuania from € 100

In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.

Pick up the goods in the store for € 0

Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00

INFORMACIJA

.

  • Frequency band: 20 - 30,000 Hz.
  • Cantilever: Aluminum.
  • Channel separation: 25 dB (1 kHz).
  • DC Impedance: 12 ohms.

DESCRIPTION

Since its introduction more than 30 years ago, Audio-Technica's pioneering moving coil OC9 cartridge series has been prized by demanding vinyl listeners and professional critics alike for its musical transparency, expression of sound and precise construction. Featuring a square shank for accurate stylus alignment and nude diamond for increased fine detail retrieval.

  • Features low mass nude elliptical stylus and aluminum cantilever
  • A neodymium magnet and pure iron yoke provide increased magnetic energy
  • Threaded inserts in the cartridge body enable the cartridge to be mounted on to the headshell or integral tonearm with just two screws – no nuts required
  • Aluminum body minimizes unwanted vibration for reduced resonance and a superior audio reproduction
  • Pure Copper by Ohno Continuous Casting process (PCOCC) is used for the coils to achieve the purest signal possible

        TECHNICAL DATA

        SPECIFICATIONS

        Model AT-OC9XEN
        Mounting 1/2” centers / Threaded inserts
        Frequency Response 20 - 30,000 Hz
        Body Material Aluminium
        Channel Separation 25dB (1kHz)
        Output Channel Balance 1.5dB (1kHz)
        Output Voltage 0.35 mV (@ 1 kHz, 5 cm/sec)
        Vertical Tracking Angle 20 degrees
        Vertical Tracking Force Range 1.8 to 2.2 g (standard 2.0 g)
        Stylus Shape Elliptical Nude
        Stylus Size 0.3 x 0.7 mil
        Stylus Construction Nude square shank
        Cantilever Aluminum pipe
        Coil Impedance 12 Ohms (1 kHz)
        Coil Inductance 25 μH (1 kHz)
        DC Resistance 12 Ohms
        Static Compliance 20 x 10 - 6 cm / dyne
        Dynamic Compliance 9 x 10 - 6 cm / dyne (100 Hz)
        Terminal Pins Brass
        Wire Used for Coil PCOCC (Copper by Ohno Continuous Casting process.)
        Recommended Load Impedance Min 100 Ohms
        Cartridge Weight 7.6 g
        Dimensions 17.3 (H) x 16.8 (W) x 25.7 (L) mm
        Accessories Included 1 non-magnetic screw driver
        1 brush
        2 washers
        4 pairs of mounting screws: 5mm, 8mm, 10mm, 12mm
        1 plastic protector
