Audio-Technica

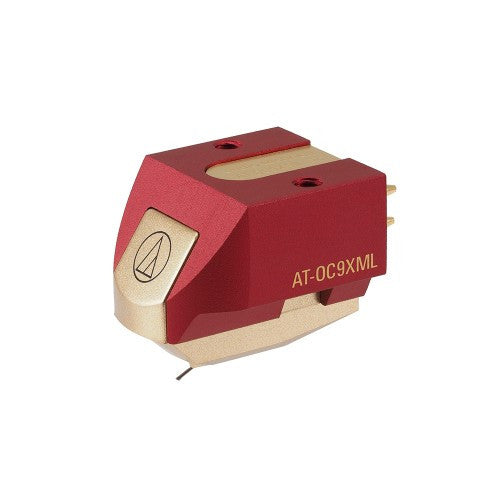

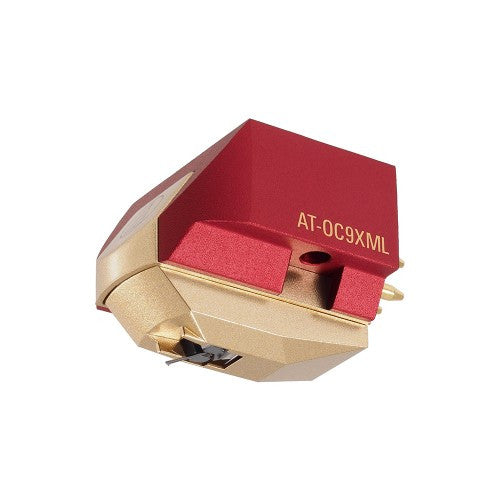

Audio-Technica AT-OC9XML, cartridge

A new generation cartridge from the legendary OC9 series cartridge with double moving coil and cap.
€549.00 EUR

▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.

Free delivery in Lithuania from € 100

In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.

Pick up the goods in the store for € 0

Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00

INFORMACIJA

.

  • Frequency band: 20 - 47,000 Hz.
  • Cantilever: 0.28 mm Ø baron.
  • Channel separation: 27 dB (1 kHz).
  • DC Impedance: 12 ohms.

DESCRIPTION

Since its introduction more than 30 years ago, Audio-Technica's pioneering moving coil OC9 cartridge series has been prized by demanding vinyl listeners and professional critics alike for its musical transparency, expression of sound and precise construction. Microlinear complex diamond profile enabling higher frequency response, detail like never before experienced and limiting inner groove distortion. Microlinear diamond profile provides low record and stylus wear.

  • Features nude Microlinear stylus and boron cantilever which provides lower distortion and high transient response
  • A neodymium magnet and permendur yoke provides dramatically increased magnetic energy
  • Threaded inserts in the cartridge body enable the cartridge to be mounted on to the headshell or integral tonearm with just two screws – no nuts required
  • Aluminum body minimizes unwanted vibration for reduced resonance and a superior audio reproduction
  • Pure Copper by Ohno Continuous Casting process (PCOCC) is used for the coils to achieve pure signal transfer

      TECHNICAL DATA

      SPECIFICATIONS

      Model AT-OC9XML
      Mounting 1/2” centers / Threaded
      Frequency Response 20 - 47,000 Hz
      Body Material Aluminium
      Channel Separation 27dB (1kHz)
      Output Channel Balance 1.0dB (1kHz)
      Output Voltage 0.4 mV (@ 1 kHz, 5 cm/sec)
      Vertical Tracking Angle 20 degrees
      Vertical Tracking Force Range 1.8 to 2.2 g (standard 2.0 g)
      Stylus Shape Microlinear
      Stylus Size 2.2 x 0.12 mil
      Stylus Construction Nude square shank
      Cantilever 0.28 mm Ø nude boron
      Coil Impedance 12 Ohms (1 kHz)
      Coil Inductance 25 μH (1 kHz)
      DC Resistance 12 Ohms
      Static Compliance 20 x 10 - 6 cm / dyne
      Dynamic Compliance 16 x 10 - 6 cm / dyne (100 Hz)
      Terminal Pins Brass
      Wire Used for Coil PCOCC (Copper by Ohno Continuous Casting process.)
      Recommended Load Impedance Min 100 Ohms
      Cartridge Weight 7.6 g
      Dimensions 17.3 (H) x 16.8 (W) x 25.7 (L) mm
      Accessories Included 1 non-magnetic screw driver
      1 brush
      2 washers
      4 pairs of mounting screws: 5mm, 8mm, 10mm, 12mm
      1 plastic protector
