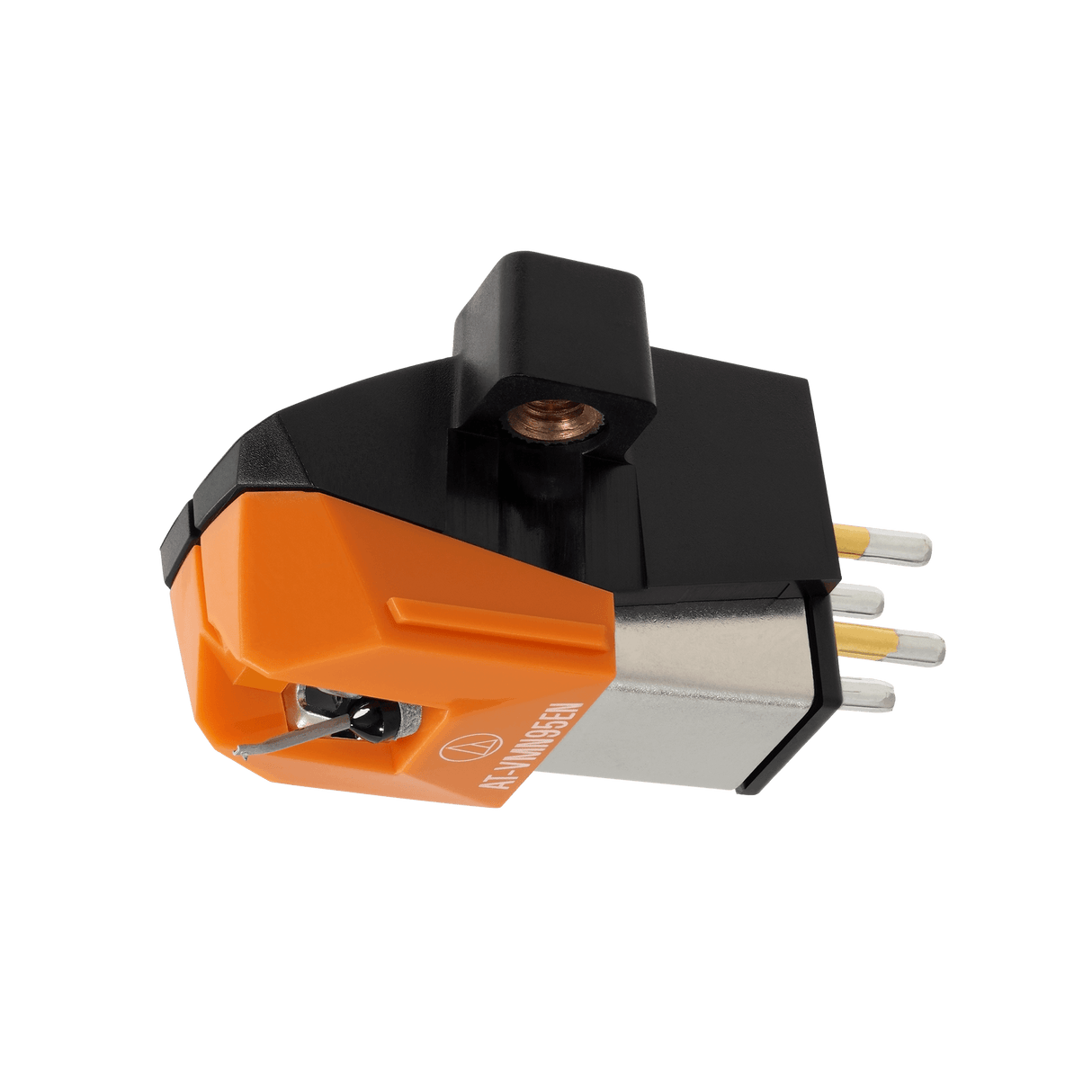

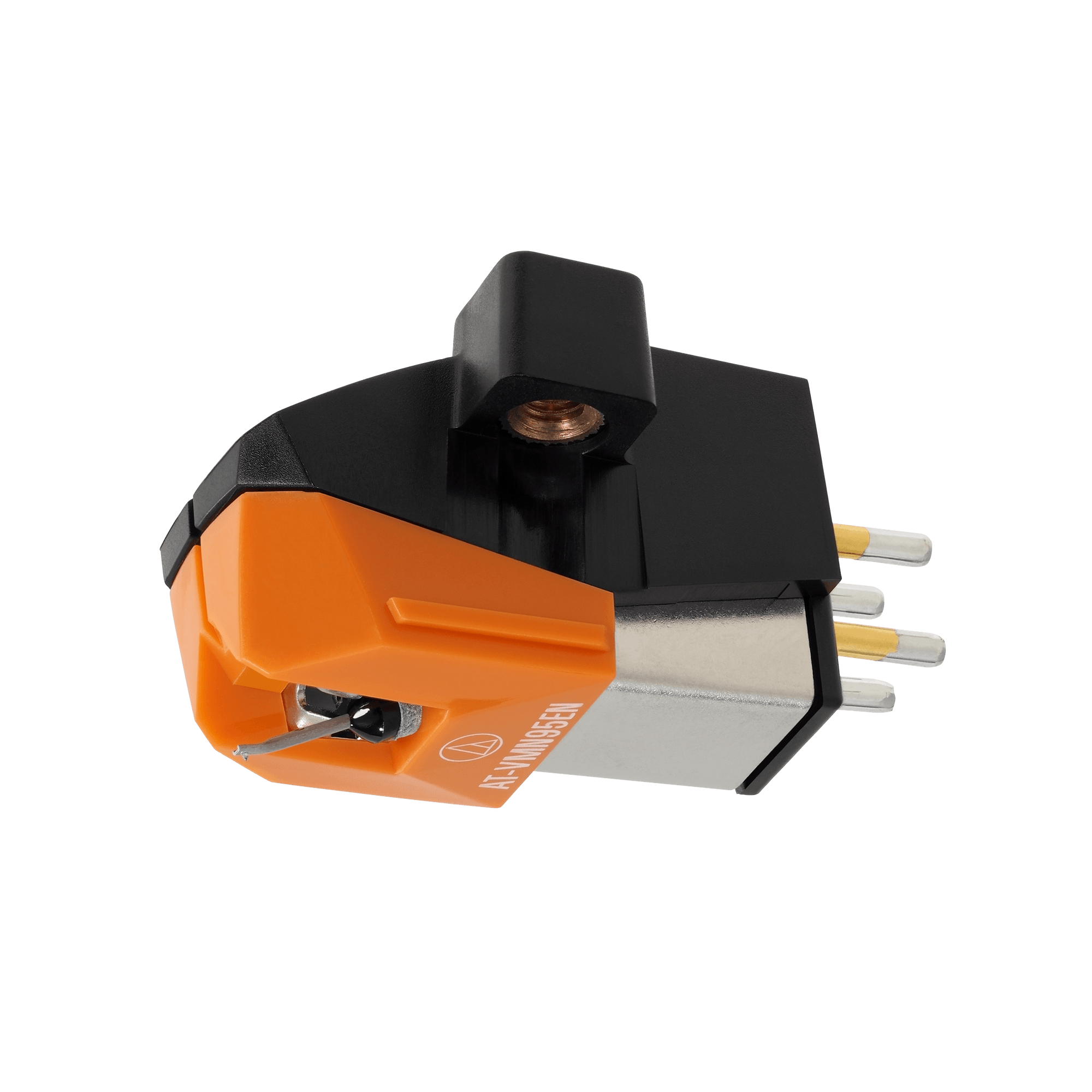

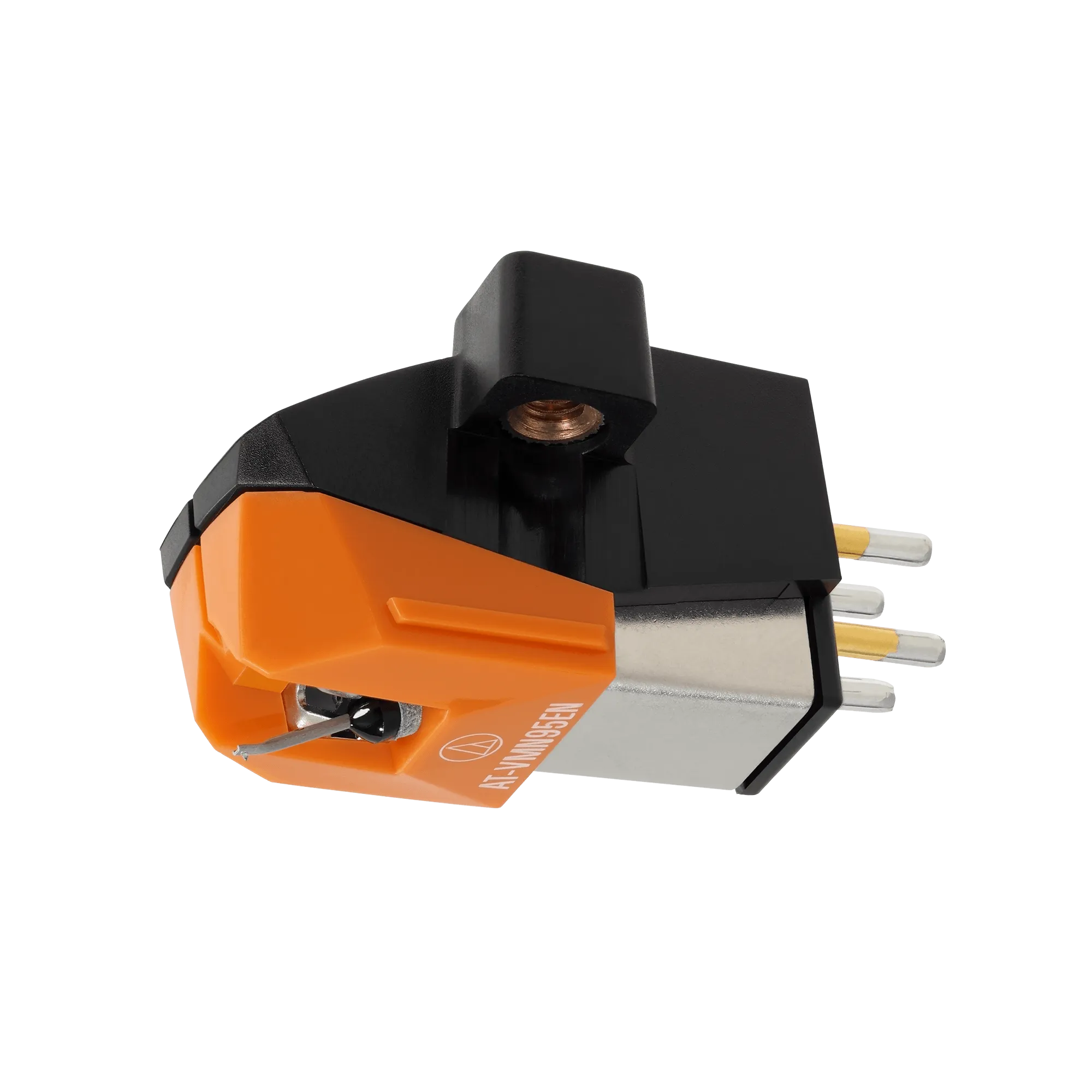

Audio-Technica AT-VM95EN, cartridge
VM95 series elliptical stereo cartridge (with double magnet).
Regular price
€119.00 EUR
Unit price
/
Unattainable
Audio-Technica AT-VM95EN, cartridge - Ask you before buying whether we have this item in a warehouse if we do not have to be ordered and arrive within 2-21 days.
▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.
Free delivery in Lithuania from € 100
Free delivery in Lithuania from € 100
In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.
Pick up the goods in the store for € 0
Pick up the goods in the store for € 0
Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00
INFORMACIJA
- Frequency band: 20 - 23.000 Hz.
- Cantilever: Aluminum.
- Channel separation: 22 dB (1 kHz).
- VM type cartridge.
DESCRIPTION
VM95 series Elliptical Nude stereo cartridge
TECHNICAL DATA
SPECIFICATIONS
| Frequency Response | 20 - 23,000 Hz |
|---|---|
| Channel Separation | 22dB (1kHz) |
| Vertical Tracking Angle | 23° |
| Stylus Construction | Nude Round Shank |
| Recommended Load Impedance | 47,000 Ω |
| Coil Impedance | 3.3 kΩ (1 kHz) |
| DC Resistance | 485 Ω |
| Coil Inductance | 550 mH (1 kHz) |
| Output Voltage | 3.5 mV (@ 1 kHz, 5 cm/sec) |
| Output Channel Balance | 2.0dB (1kHz) |
| Stylus Shape | Elliptical |
| Cantilever | Aluminum Pipe |
| Static Compliance | 20 x 10 - 6 cm / dyne |
| Dynamic Compliance | 7 x 10 - 6 cm / dyne (100 Hz) |
| Mounting | 1/2” centers |
| Cartridge Weight | 6.1g |
| Dimensions | 17.2 x 18.9 x 28.3 (H x W x D mm) |
| Accessories Included | Two 11 mm installation screws; Two 8 mm installation screws; Two washers Non-magnetic screwdriver |
| Model | AT-VM95EN |
| Recommended Load Capacitance | 100-200 pF |
| Replacement Stylus | AT-VMN95EN |
| Stylus Size | 0.3 x 0.7 mil |
| Type | VM Stereo Dual Magnet |
| Wire Used for Coil | TP Copper |
