Audio-Technica

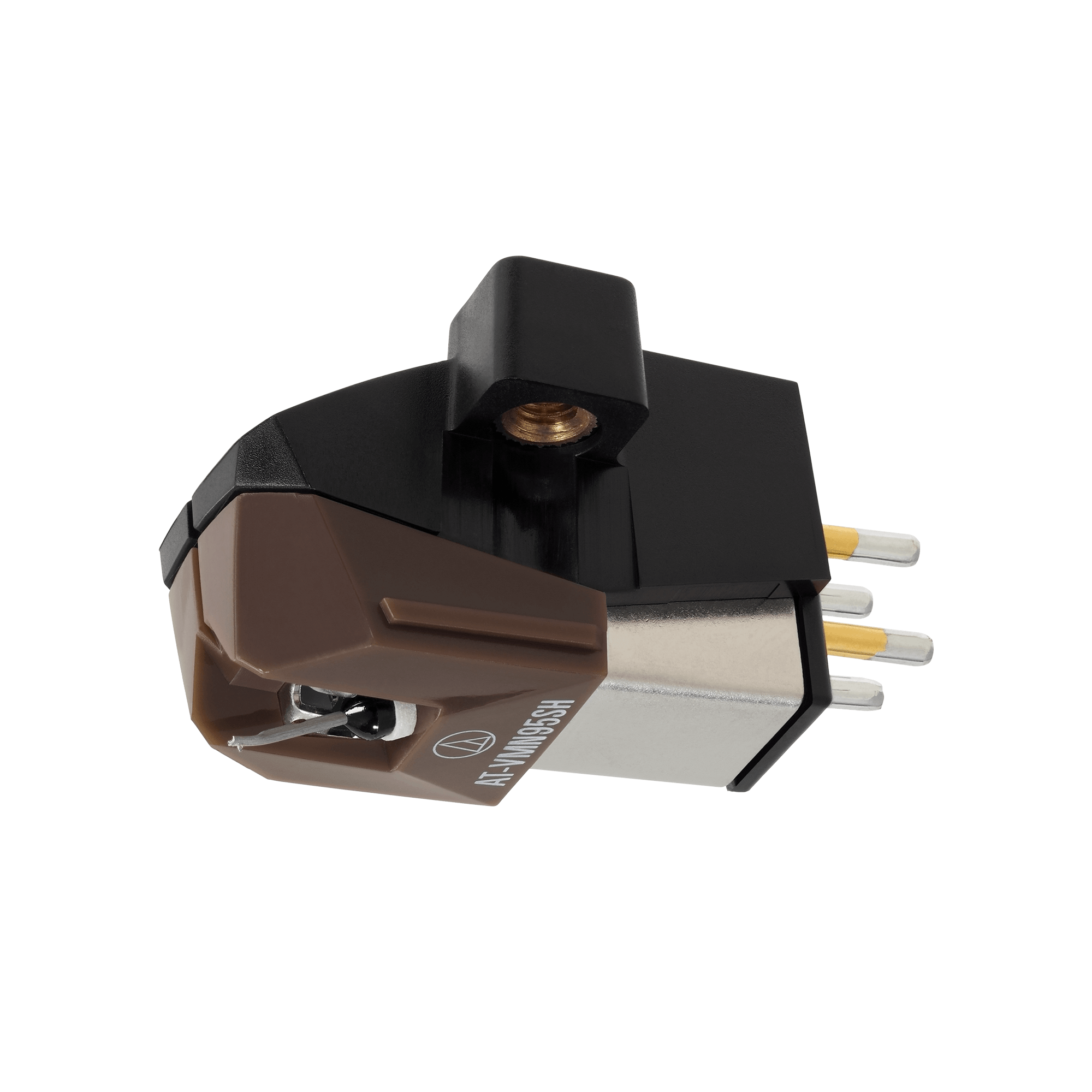

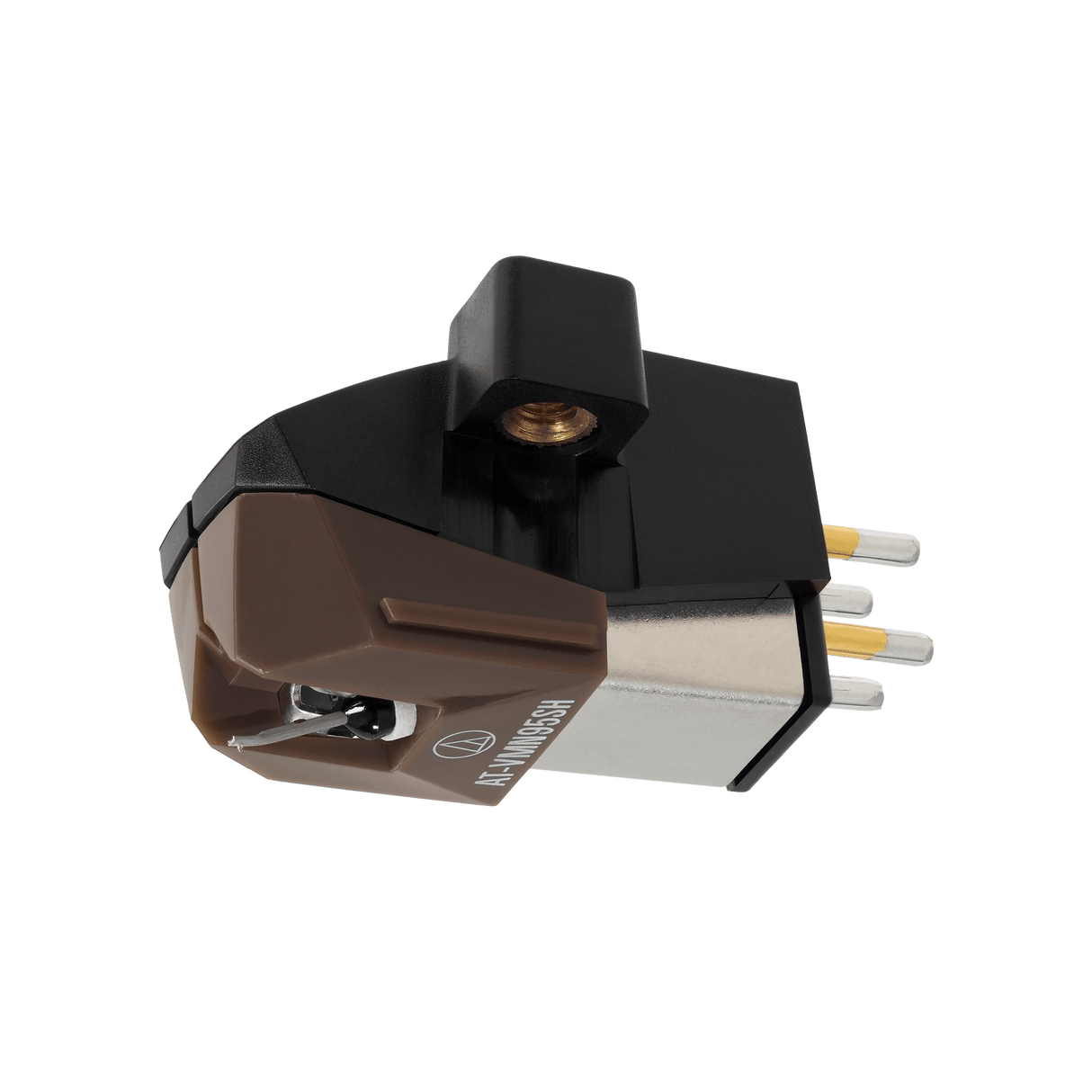

Audio-Technica AT-VM95SH, cartridge

VM95 series Shibata stereo cartridge (with double magnet).
€199.00 EUR

▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.

Inbank lizingas | Autogarsas.lt

Free delivery in Lithuania from € 100

In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.

Pick up the goods in the store for € 0

Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00

INFORMACIJA


  • Frequency band: 20 - 25,000 Hz.
  • Cantilever: Aluminum.
  • Channel separation: 23 dB (1 kHz).
  • VM type cartridge.

DESCRIPTION


AT-VM95SH VM95 series Shibata stereo cartridge - Aluminum cantilever, 3.5mV output voltage and Compatible body with all VM95 Series stylus assemblies


    TECHNICAL DATA

    SPECIFICATIONS

    Frequency Response 20-25,000 Hz
    Channel Separation 23 (dB at 1 kHz)
    Vertical Tracking Angle 23°
    Stylus Construction Nude square shank
    Recommended Load Impedance 47,000 ohms
    Coil Impedance 3.3k ohms (1kHz)
    DC Resistance 485 ohms
    Coil Inductance 550 mH (1 kHz)
    Output Voltage 3.5 mV (1 kHz, 5 cm/sec.)
    Output Channel Balance 1.5dB (1kHz)
    Stylus Shape 2.2 x 0.12 mil Microlinear
    Cantilever Aluminum pipe
    Static Compliance 20 x 10 - 6 cm / dyne
    Dynamic Compliance 10 x 10 - 6 cm / dyne (100 Hz)
    Mounting Half-inch
    Cartridge Weight 6.1g
    Dimensions 17.2 mm (0.68") H × 18.9 mm (0.74") W × 28.3 mm (1.20") D
    Accessories Included Two 11 mm installation screws, two 8 mm installation screws, two washers, non-magnetic screwdriver
    Model AT-VM95ML
    Mounting Feature Half-inch mount
    Recommended Load Capacitance 100 to 200 pF
    Replacement Stylus AT-VMN95ML
    Stylus Size 2.2 x 0.12 mil
    Type VM Stereo Dual Magnet
    Weight 6.1 g (0.22 oz)
    Wire Used for Coil TP Copper
