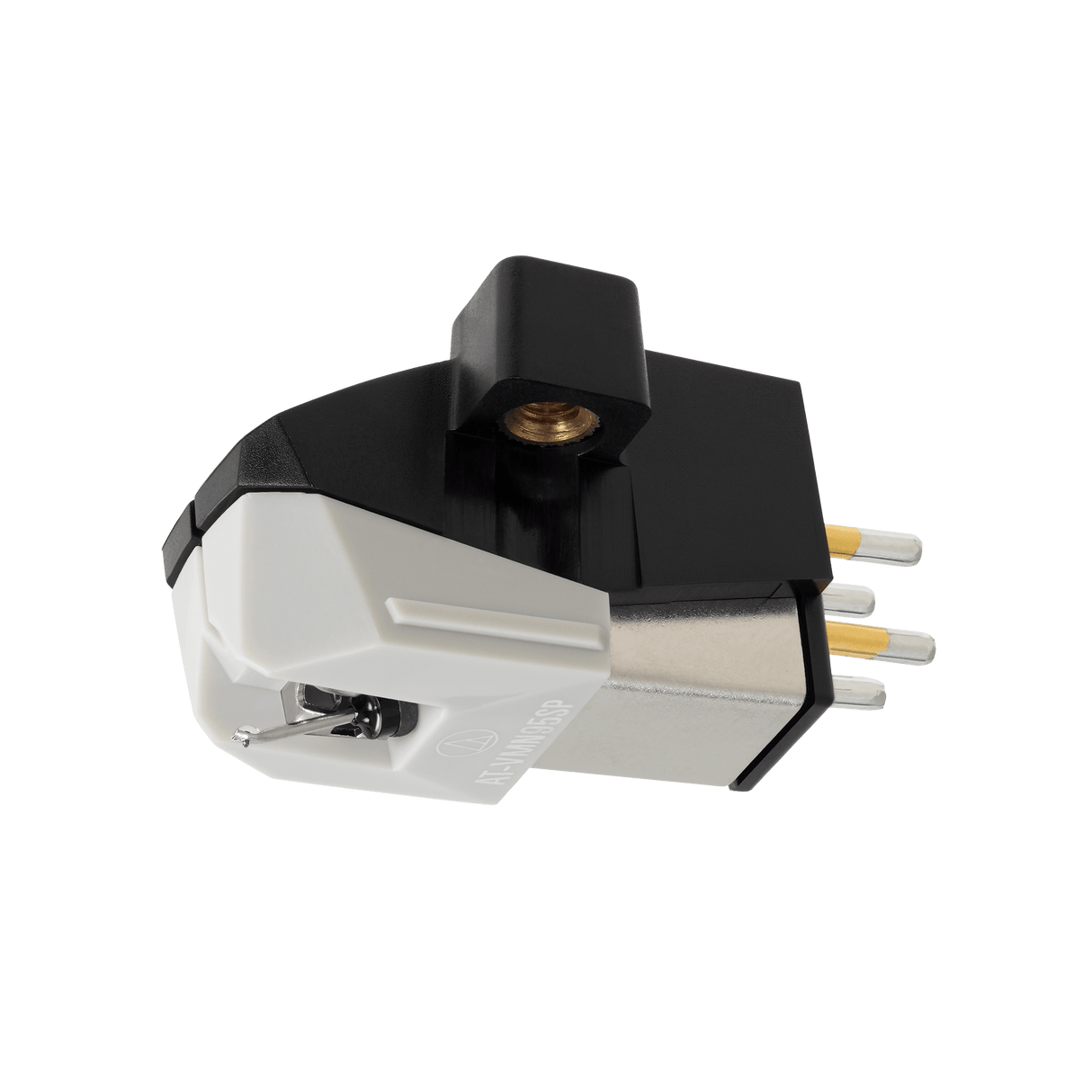

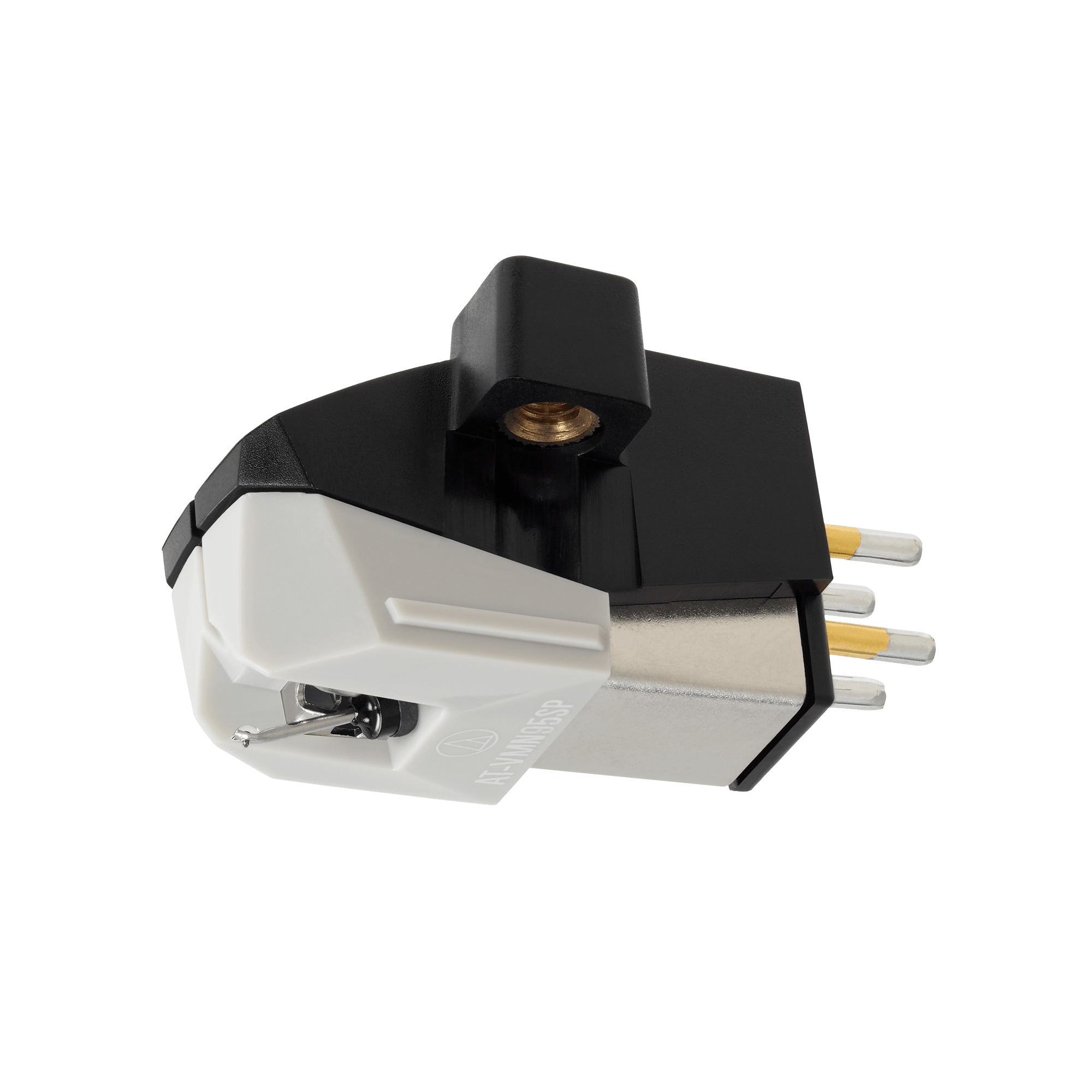

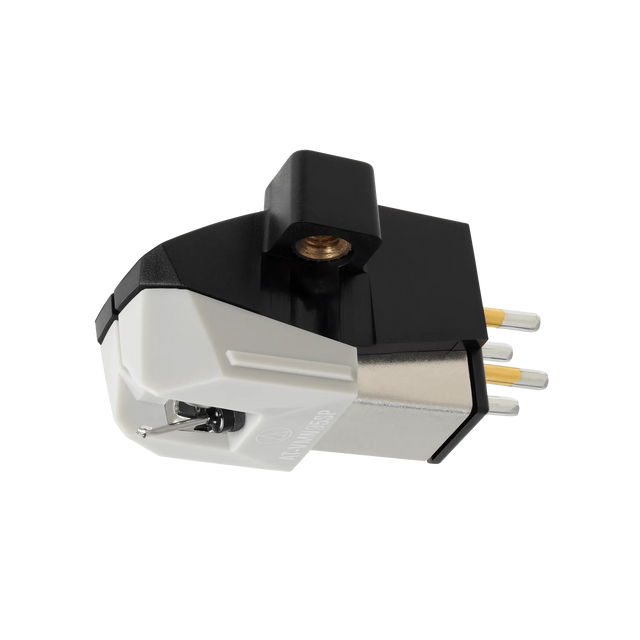

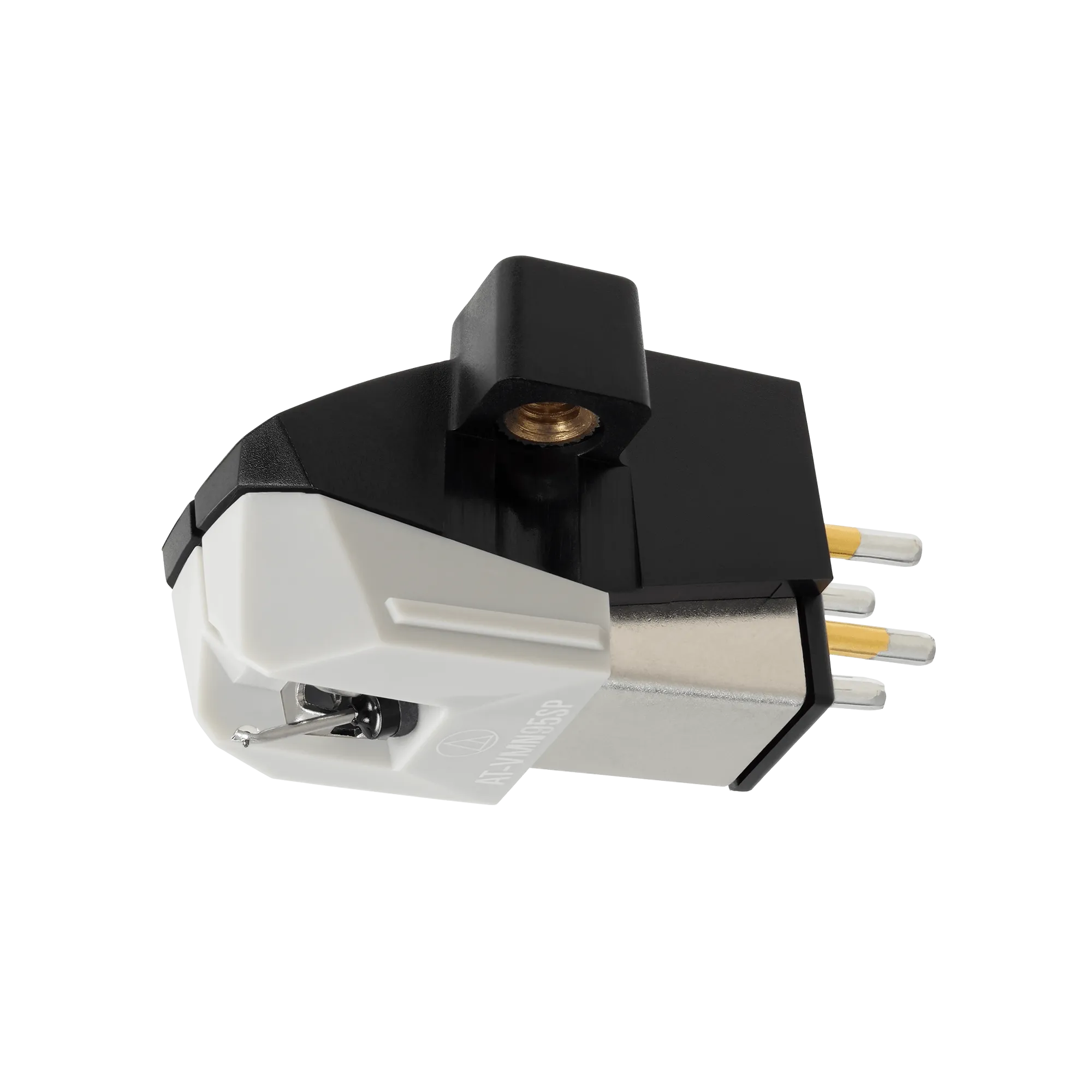

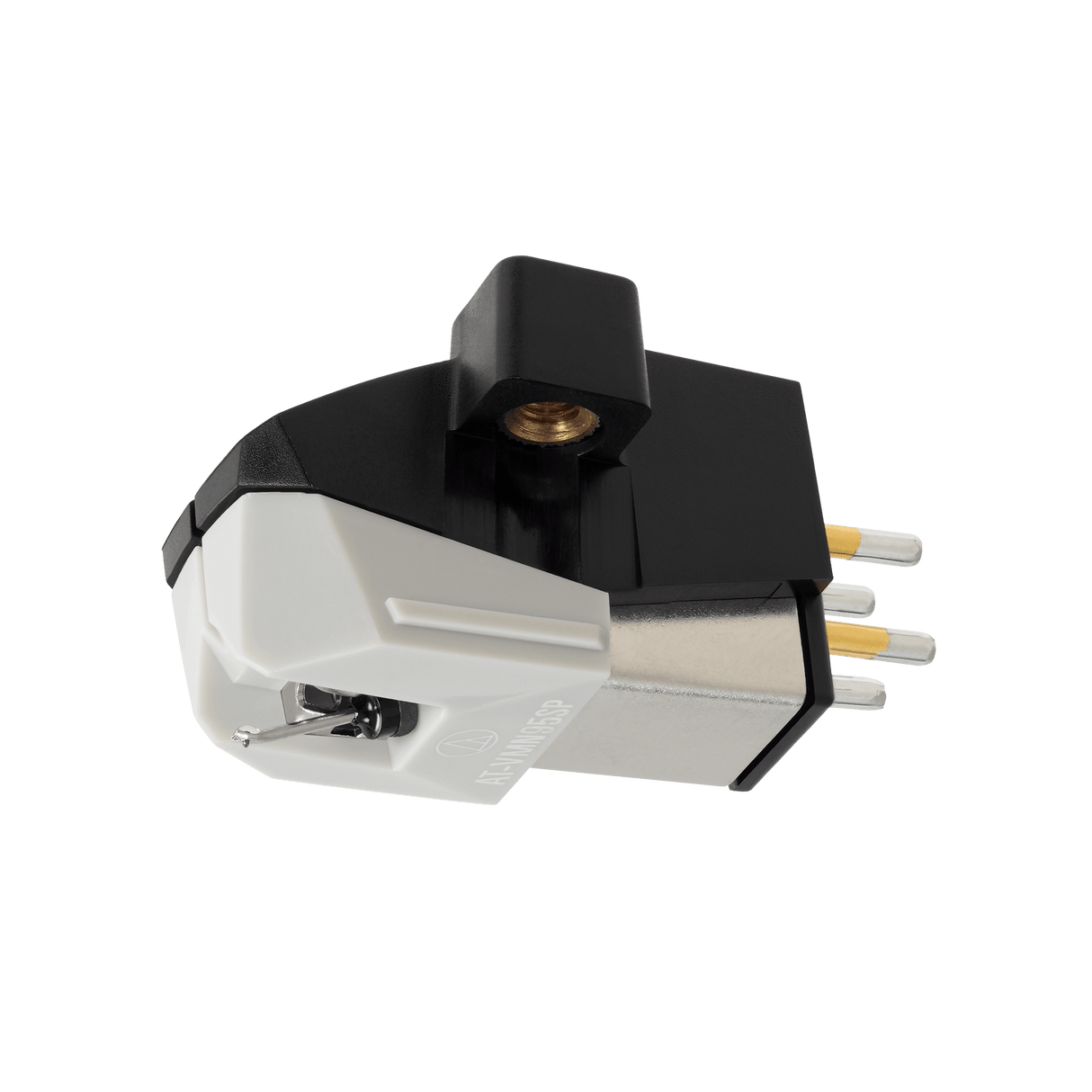

Audio-Technica AT-VM95SP, cartridge
VM95 series 78rpm, SP stereo cartridge (with dual magnet).
Regular price
€79.00 EUR
Unit price
/
Unattainable
Audio-Technica AT-VM95SP, cartridge - Ask you before buying whether we have this item in a warehouse if we do not have to be ordered and arrive within 2-21 days.
▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.
Free delivery in Lithuania from € 100
Free delivery in Lithuania from € 100
In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.
Pick up the goods in the store for € 0
Pick up the goods in the store for € 0
Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00
INFORMACIJA
- Frequency band: 20 - 20,000 Hz.
- Cantilever: Aluminum.
- DC resistance: 485 Ω.
- VM type cartridge.
DESCRIPTION
TECHNICAL DATA
SPECIFICATIONS
| Frequency Response | 20 - 20,000 Hz |
|---|---|
| Vertical Tracking Angle | 23° |
| Stylus Construction | Bonded Round Shank |
| Recommended Load Impedance | 47,000 Ω |
| Coil Impedance | 3.3 kΩ (1 kHz) |
| DC Resistance | 485 Ω |
| Coil Inductance | 550 mH (1 kHz) |
| Output Voltage | 2.7 mV (@ 1 kHz, 5 cm/sec) |
| Output Channel Balance | 1.5dB (1kHz) |
| Stylus Shape | SP 3 mil Conical Bonded |
| Cantilever | Aluminum Pipe |
| Static Compliance | 12 x 10 - 6 cm / dyne |
| Dynamic Compliance | 2 x 10-6 cm/dyne (100 Hz) |
| Mounting | 1/2” centers |
| Cartridge Weight | 6.1g |
| Dimensions | 17.2 x 18.9 x 28.3 (H x W x D mm) |
| Accessories Included | Two 11 mm installation screws; Two 8 mm installation screws; Two washers |
| Model | AT-VM95SP |
| Recommended Load Capacitance | 100-200 pF |
| Replacement Stylus | AT-VMN95SP |
| Stylus Size | 3 million |
| Type | VM Stereo Dual Magnet |
| Wire Used for Coil | TP Copper |
