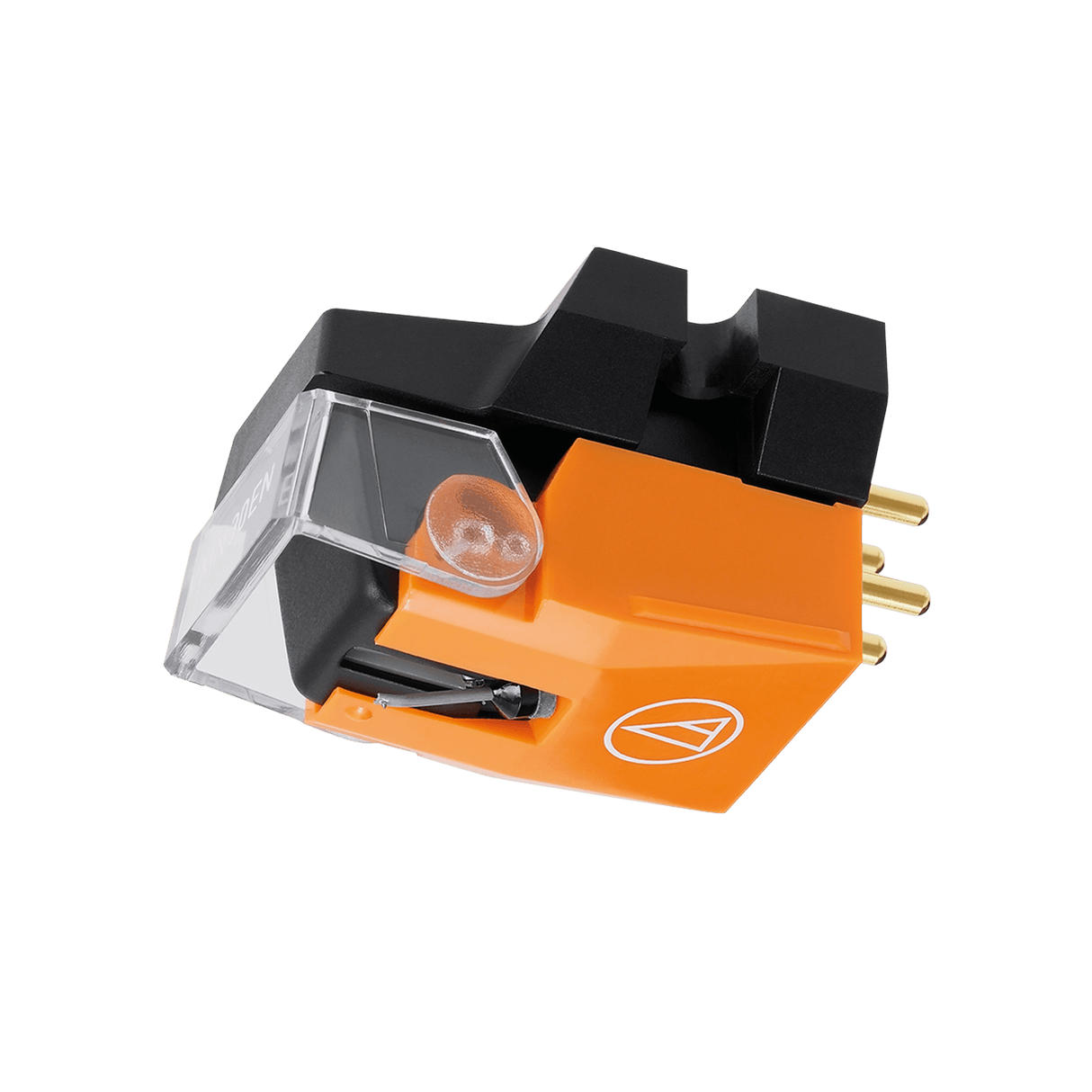

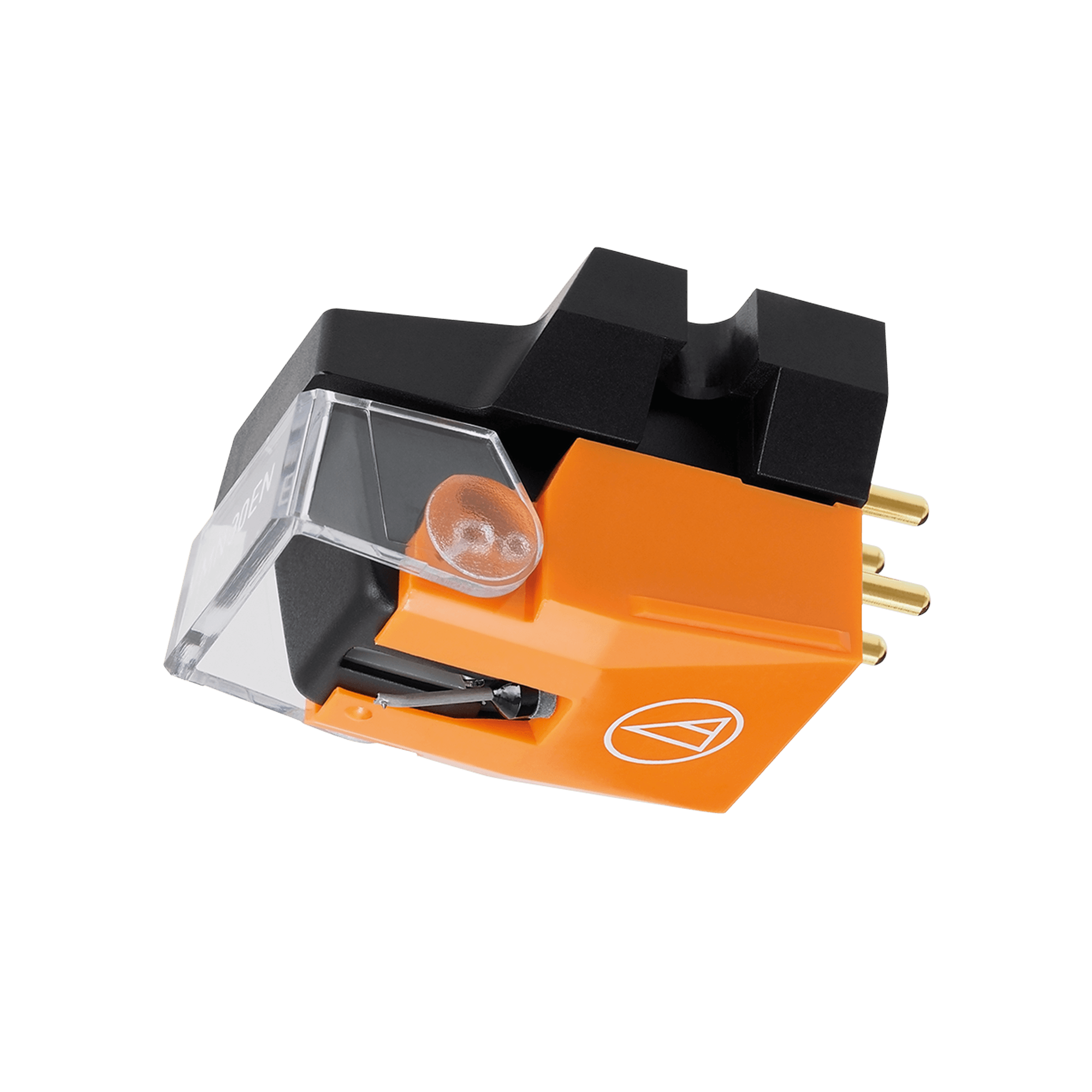

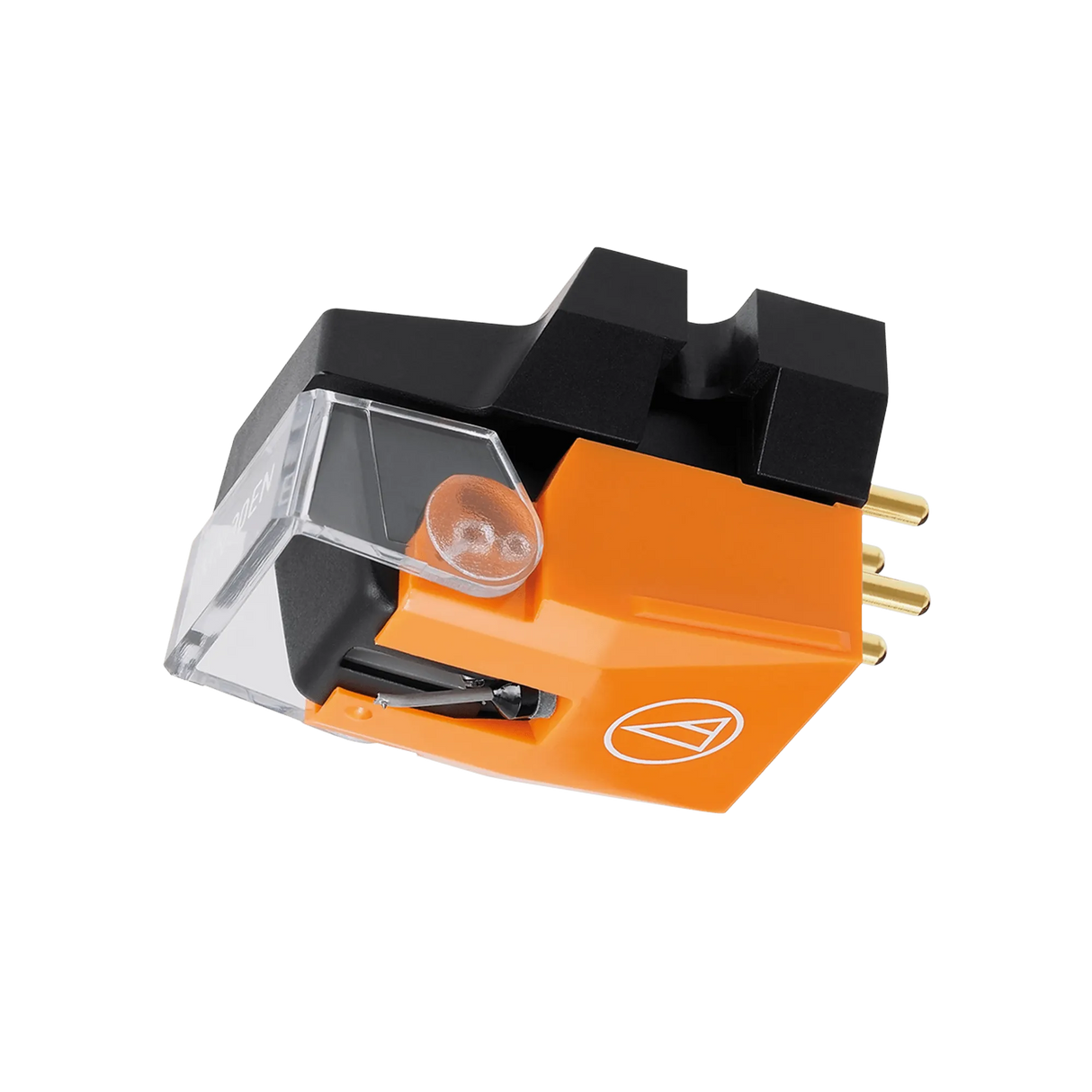

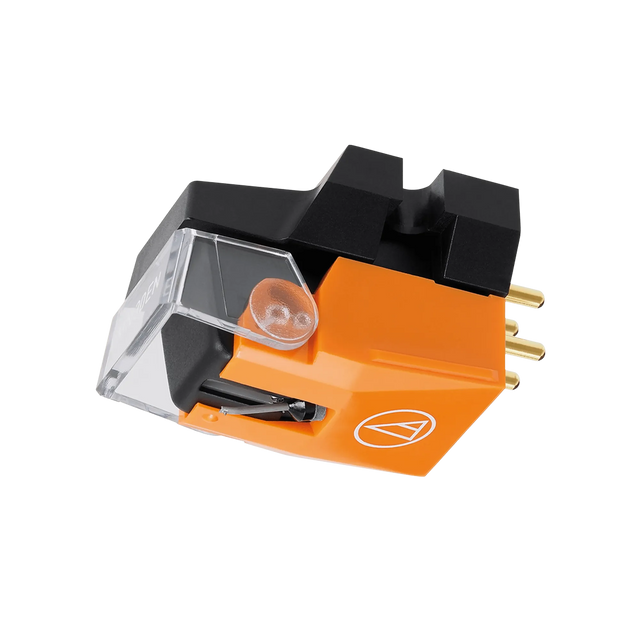

Audio-Technica VM530EN, cartridge
Magnetic Stereo Cartridge in elliptical style (with double magnet).
Regular price
€179.00 EUR
Unit price
/
Unattainable
Audio-Technica VM530EN, cartridge - Ask you before buying whether we have this item in a warehouse if we do not have to be ordered and arrive within 2-21 days.
▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.
Free delivery in Lithuania from € 100
Free delivery in Lithuania from € 100
In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.
Pick up the goods in the store for € 0
Pick up the goods in the store for € 0
Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00
INFORMACIJA
.
- Frequency band: 20 - 25,000 Hz.
- Cantilever: Aluminum.
- Channel separation: 27 dB (1 kHz).
- VM type cartridge.
DESCRIPTION
TECHNICAL DATA
SPECIFICATIONS
| Cartridge & Stylus | |
|---|---|
| Frequency Response | 20 - 25,000Hz |
| Channel Separation | 27dB (1kHz) |
| Vertical Tracking Angle | 23˚ |
| Stylus Construction | Nude Round Shank |
| Recommended Load Impedance | 47,000Ω |
| Coil Impedance | 2,700Ω (1kHz) |
| Output Voltage | 4.0mV (1kHz, 5cm/sec.) |
| Output Channel Balance | 1.5dB (1kHz) |
| Stylus Shape | Elliptical Nude |
| Cantilever | Aluminum Pipe |
| Static Compliance | 35 x 10-6 cm/dyne |
| Dynamic Compliance | 8 x 10-6 cm/dyne (100Hz) |
| Mounting | 1/2” centers |
| Dimensions | 17.3 (H) x 17.0 (W) x 28.2 (L) mm |
| Accessories Included | Cartridge installation screws 5mm ×2 and 10mm ×2, Washer ×2, Hexagon nut ×2, Non-magnetic screwdriver ×1, Brush ×1 |
| Recommended Load Capacitance | 100 - 200pF |
| Replacement Stylus | VMN30EN |
| Stylus Size | 0.3 x 0.7 mil |
| Type | VM Type |
| Weight | 6.4g |
