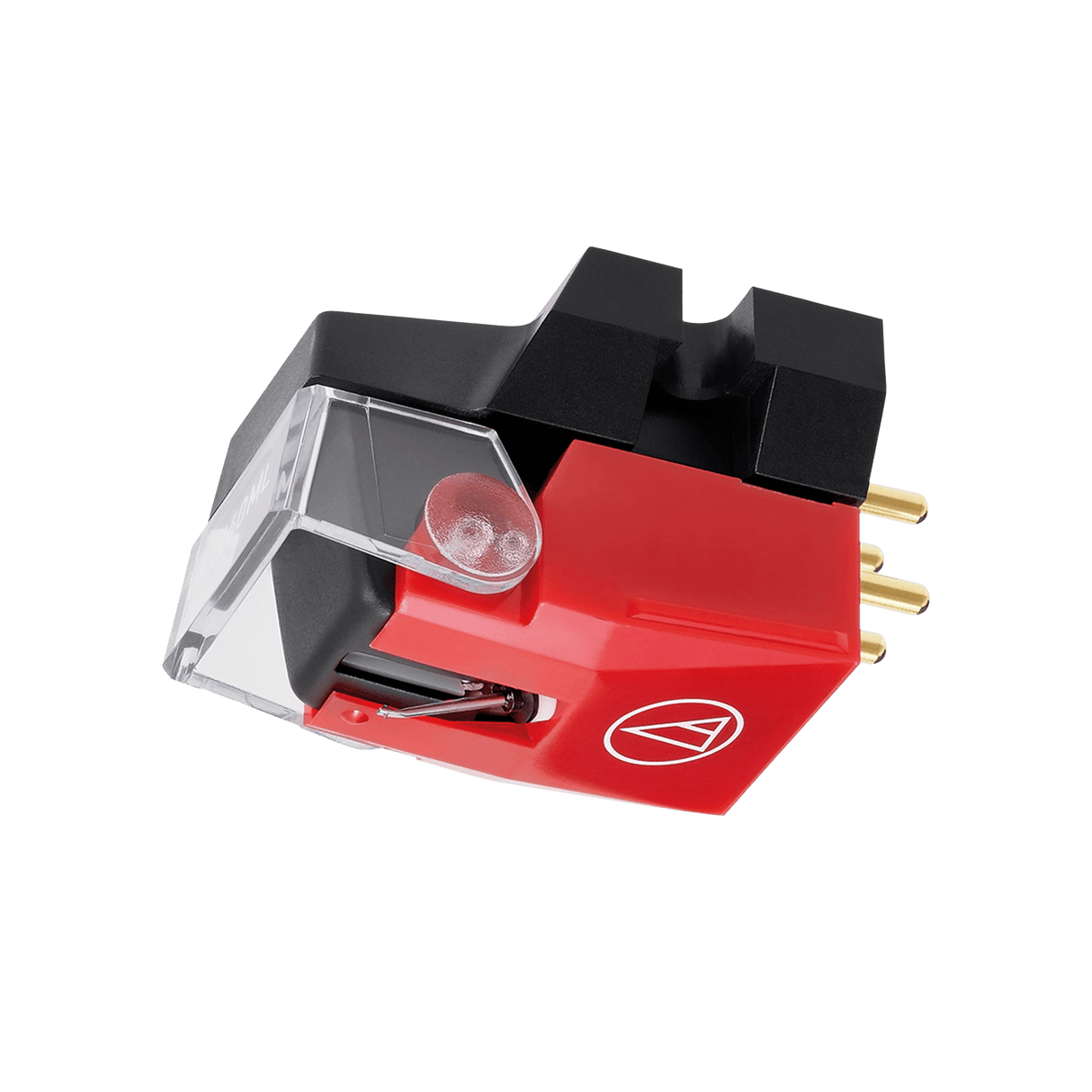

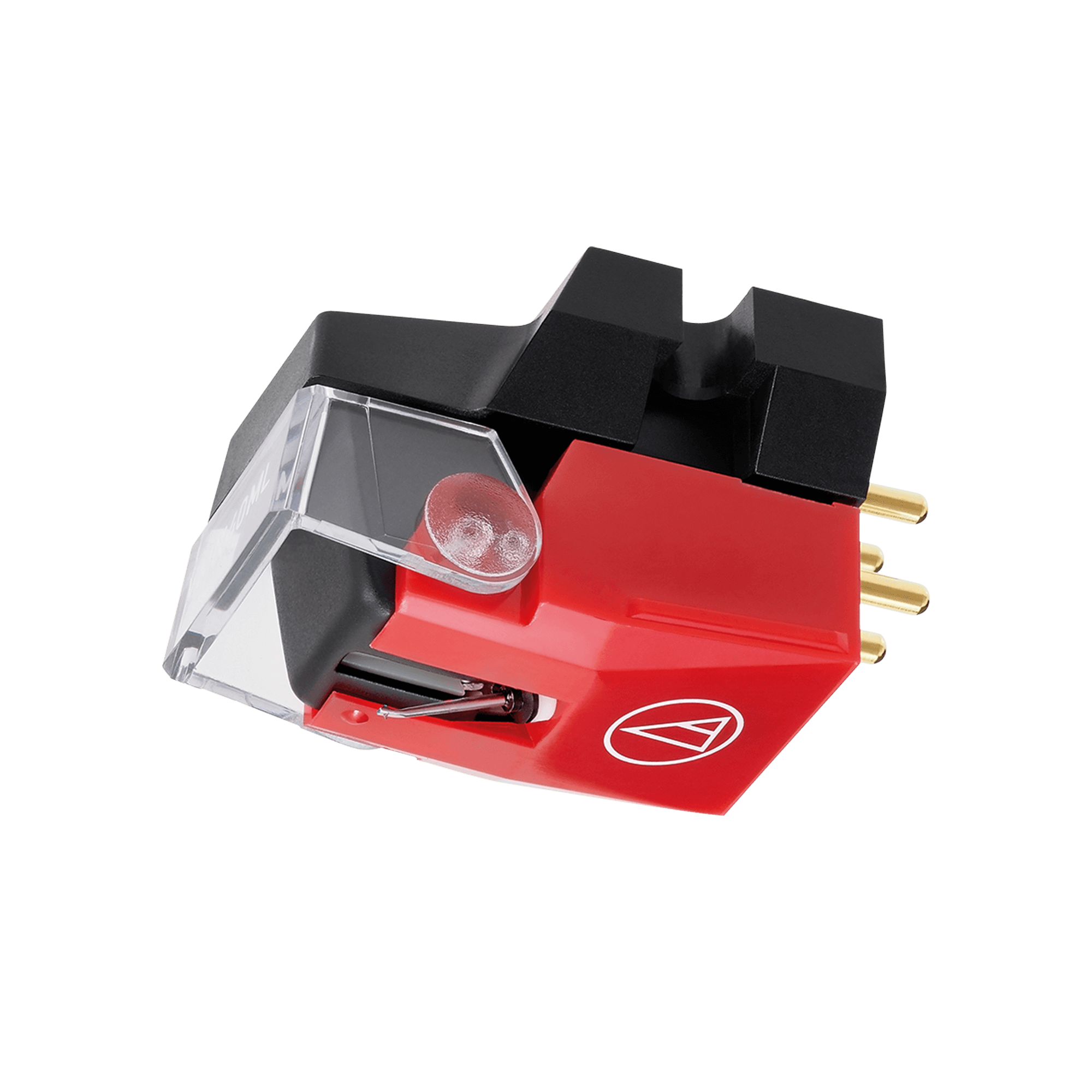

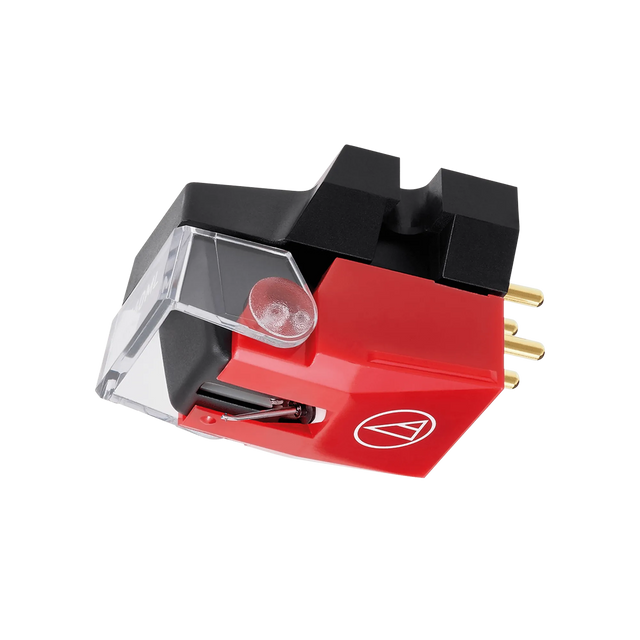

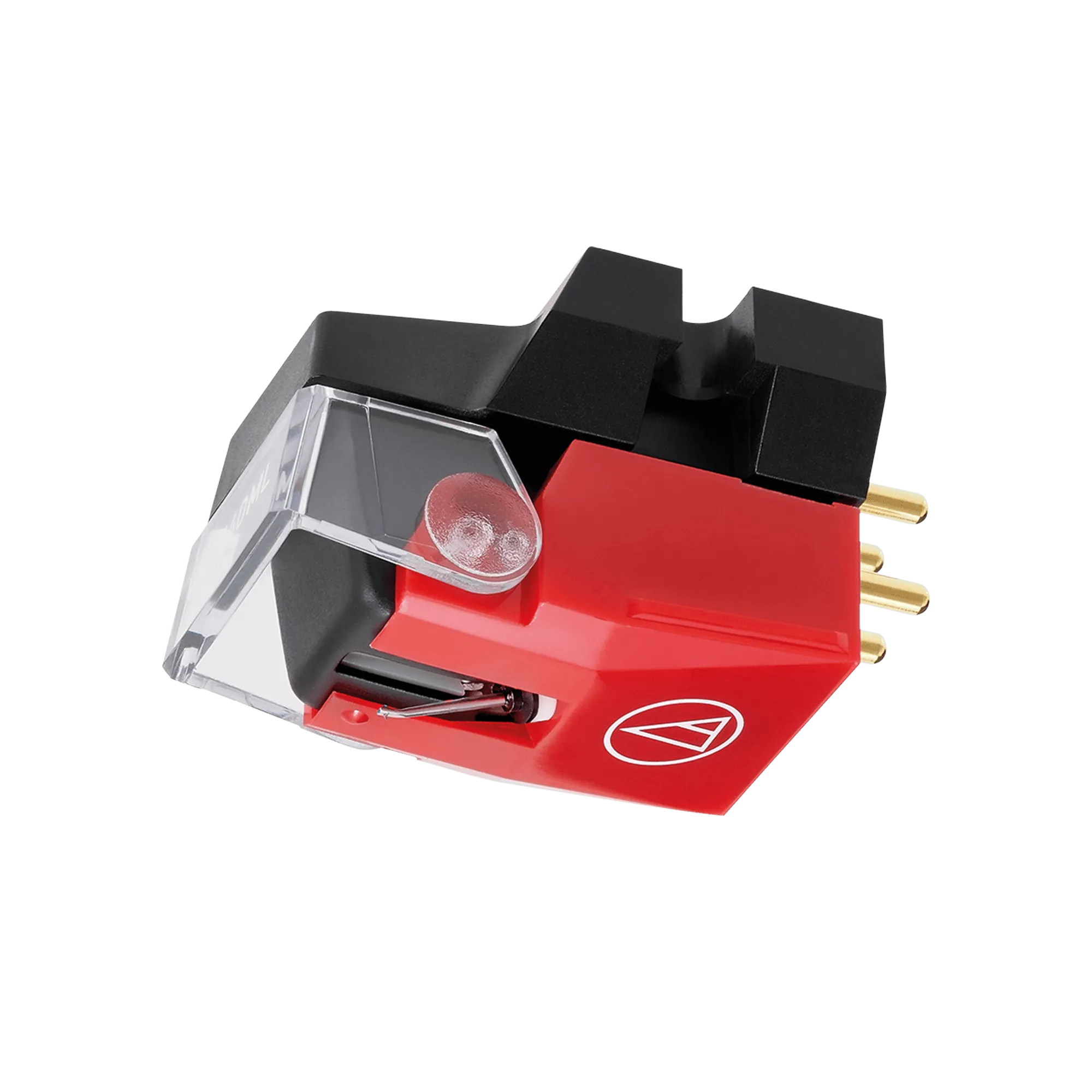

Audio-Technica VM540ML, cartridge
Audio-Technica VM540ML, cartridge - Ask you before buying whether we have this item in a warehouse if we do not have to be ordered and arrive within 2-21 days.
- Free delivery in Lithuania from 100 €: courier or parcel locker
- Pick up at our showroom in Kaunas, Armatūrininkų g. 1
- 14-day returns
▪️ Have questions about this product❓We can advise you by phone +370 683 90000 or visit our showroom at Armatūrininkų g. 1, Kaunas.
Delivery
Delivery
In Lithuania, we deliver parcels to your door by DPD courier for 5.99€ within 1-2 business days (if the item is in stock). Orders over 100€ qualify for free delivery.
Delivery outside Lithuania takes 3-7 business days. Delivery prices start from 15.00€.
Pick up in store
Pick up in store
You can pick up items ordered online at our store at Armatūrininkų g. 1, Kaunas. Please bring your order number.
We recommend calling before you arrive: +370 683 90000
Opening hours: Mon-Fri 9:00-18:00
INFORMATION
Magnetic Stereo Cartridge with MicroLine® style.
- Frequency band: 20 - 27,000 Hz.
- Cantilever: Aluminum.
- Channel separation: 28 dB (1 kHz).
- VM type cartridge.
DESCRIPTION
The VM540ML MicroLine® stylus cartridge is the premier 500 Series model in Audio-Technica's new VM cartridge line – a line that harks back to A-T's early days as a manufacturer primarily of high-end phono cartridges, while also incorporating today's advanced technology. Like all VM cartridges, the VM540ML is equipped with dual magnets that are positioned to match the left and right channels in the stereo record groove for outstanding channel separation and extended frequency response. The cartridge's MicroLine® stylus allows it to trace the record groove with incredible accuracy, resulting in nuanced audio reproduction that elliptical and conical styli simply can't match. The stylus's multilevel shape also wears better than other styli, while reducing the wear on your records. Includes mounting hardware.
TECHNICAL DATA
SPECIFICATIONS
| Frequency Response | 20-27,000 Hz |
|---|---|
| Channel Separation | 28dB (1kHz) |
| Vertical Tracking Angle | 23° |
| Stylus Construction | Nude square shank |
| Recommended Load Impedance | 47,000 ohms |
| Coil Impedance | 2,700 ohms (1 kHz) |
| DC Resistance | 800 ohms |
| Coil Inductance | 460 mH (1 kHz) |
| Output Voltage | 4.0 mV (at 1 kHz, 5 cm/sec) |
| Output Channel Balance | 1.0dB (1kHz) |
| Stylus Shape | 2.2 x 0.12 mil MicroLine® |
| Cantilever | Aluminum tapered pipe |
| Static Compliance | 40 x 10-6 cm/dyne |
| Dynamic Compliance | 10 x 10-6 cm/dyne (100 Hz) |
| Mounting | Half-inch |
| Dimensions | 17.3 mm (0.7") H x 17.0 mm (0.7") W x 28.2 mm (1.1") D |
| Accessories Included | Four cartridge installation screws (5 mm x 2, 10 mm x 2), two washers, two hexagon nuts, non-magnetic screwdriver, brush, lead wire set |
| Mounting Feature | Half-inch mount |
| Recommended Load Capacitance | 100-200 pF |
| Replacement Stylus | VMN40ML |
| Stylus Size | 0.12 x 2.2 mil |
| Type | VM Type |
| Weight | 6.4 g (0.2 oz) |
