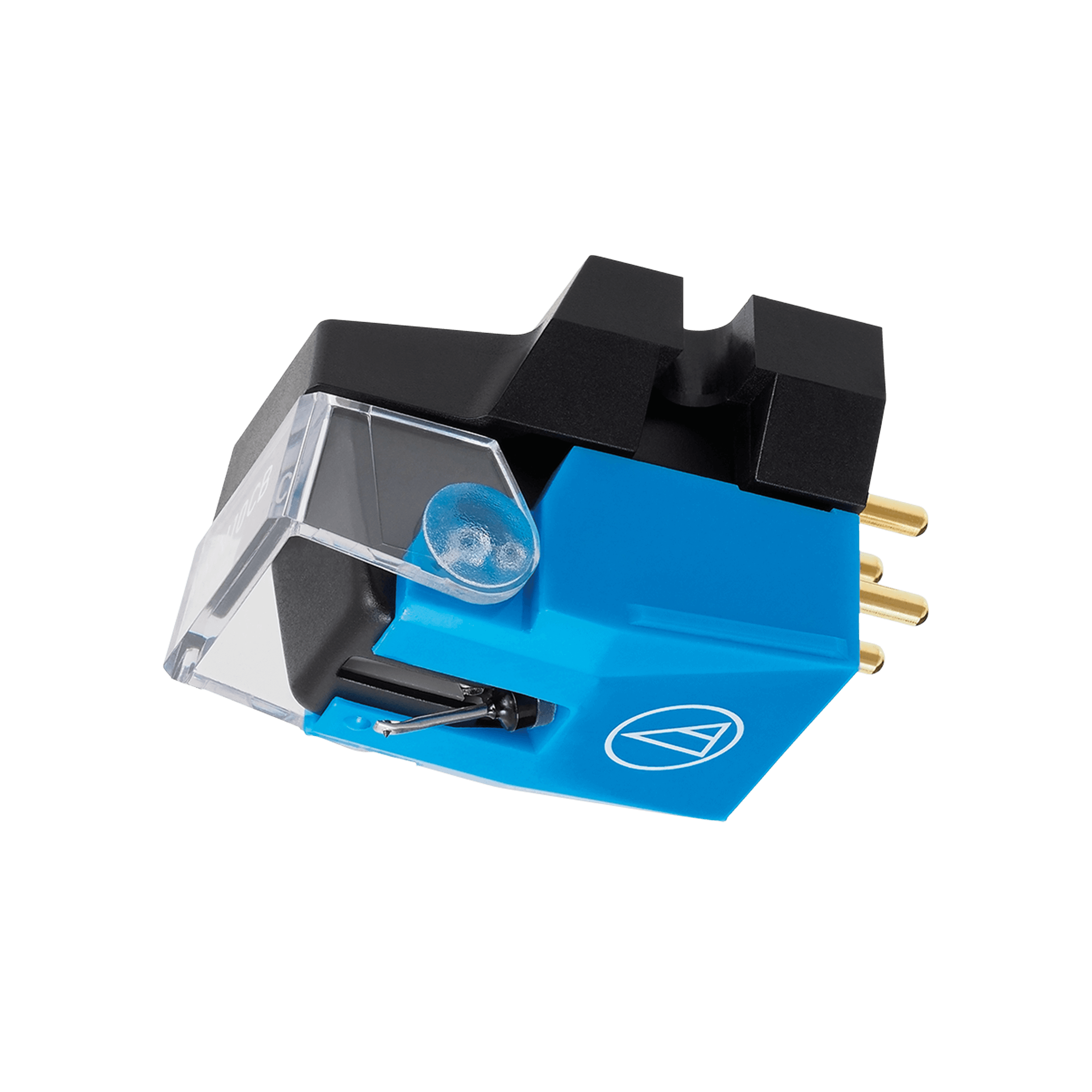

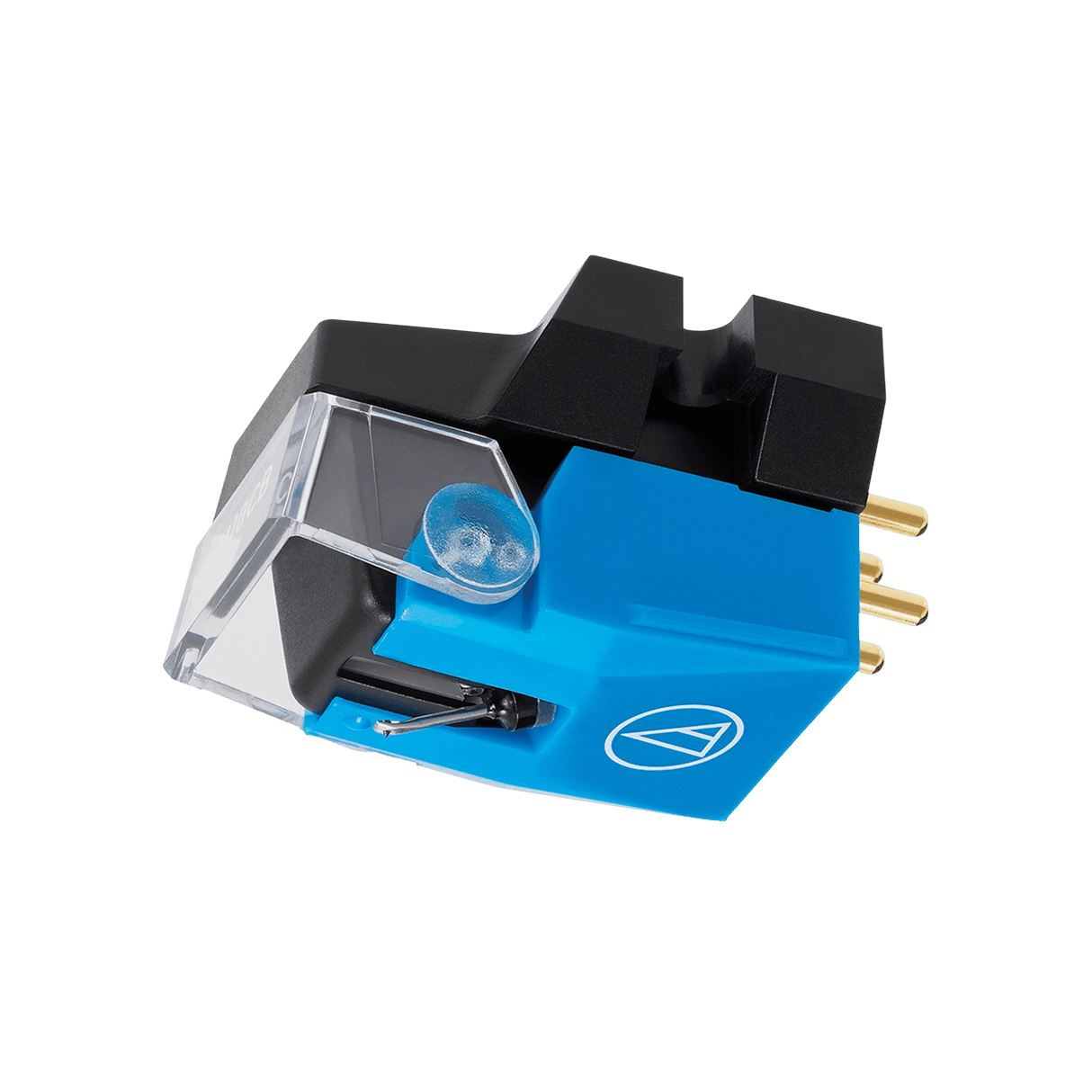

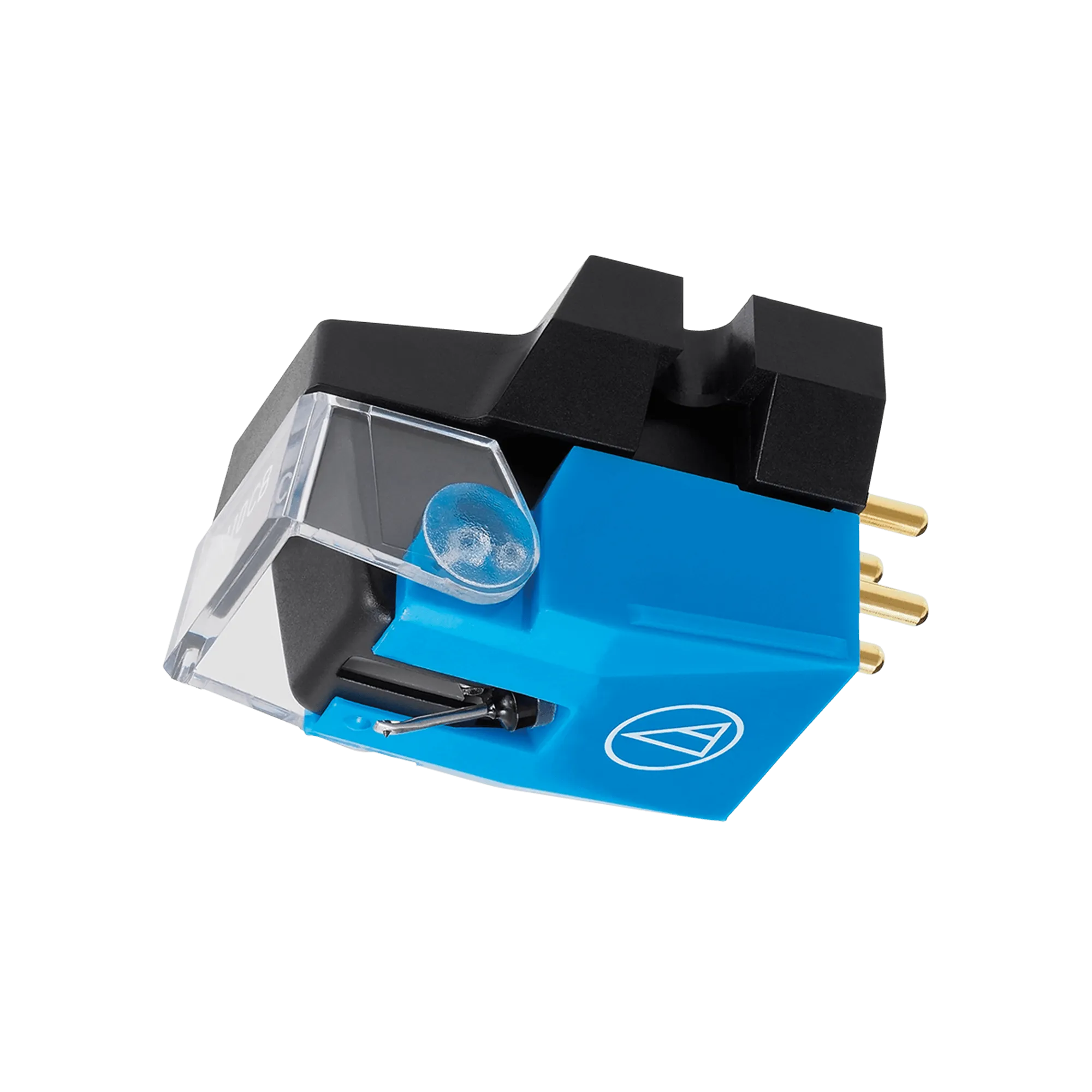

Audio-Technica VM610MONO, cartridge
Magnetic Stereo Cartridge with double magnet (conical style).
Regular price
€139.00 EUR
Unit price
/
Unattainable
Audio-Technica VM610MONO, cartridge - Ask you before buying whether we have this item in a warehouse if we do not have to be ordered and arrive within 2-21 days.
▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.
Free delivery in Lithuania from € 100
Free delivery in Lithuania from € 100
In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.
Pick up the goods in the store for € 0
Pick up the goods in the store for € 0
Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00
INFORMACIJA
- Frequency band: 20 - 20,000 Hz.
- Cantilever: Aluminum.
- DC Impedance: 400 ohms.
- VM type cartridge.
DESCRIPTION
TECHNICAL DATA
SPECIFICATIONS
| Frequency Response | 20-20,000 Hz |
|---|---|
| Vertical Tracking Angle | 23° |
| Stylus Construction | Bonded round shank |
| Recommended Load Impedance | 47,000 ohms |
| Coil Impedance | 1,400 ohms (1 kHz) |
| DC Resistance | 400 ohms |
| Coil Inductance | 230 mH (1 kHz) |
| Output Voltage | 3.0 mV (at 1 kHz, 5 cm/sec) |
| Stylus Shape | 0.6 mil conical |
| Cantilever | Aluminum pipe |
| Static Compliance | 35 x 10-6 cm/dyne |
| Dynamic Compliance | 8 x 10-6 cm/dyne (100 Hz) |
| Mounting | Half-inch |
| Dimensions | 17.3 mm (0.7") H x 17.0 mm (0.7") W x 28.2 mm (1.1") D |
| Accessories Included | Four cartridge installation screws (5 mm x 2, 10 mm x 2), two washers, two hexagon nuts |
| Mounting Feature | Half-inch mount |
| Recommended Load Capacitance | 100-200 pF |
| Replacement Stylus | VMN10CB |
| Stylus Size | 0.6 million |
| Type | VM Type |
| Weight | 6.4 g (0.2 oz) |
