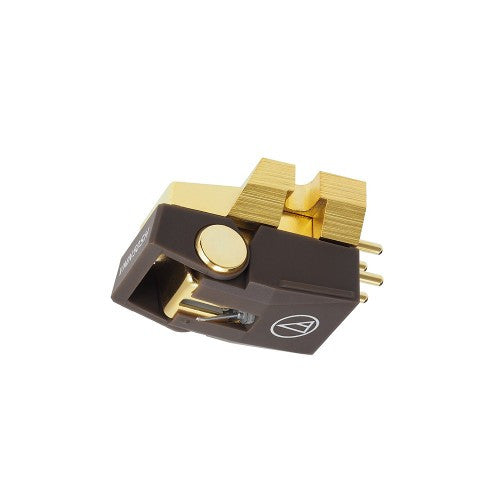

Audio-Technica VM750SH, cartridge

Magnetic Stereo Cartridge with Shibata style.
€429.00 EUR

▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.

Free delivery in Lithuania from € 100

In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.

Pick up the goods in the store for € 0

Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00

INFORMACIJA

.

  • Frequency band: 20 - 27,000 Hz.
  • Cantilever: Aluminum.
  • Channel separation: 30 dB (1 kHz).
  • VM type cartridge.

DESCRIPTION

Fitted with the Shibata stylus, which was developed for playing 4-channel vinyl records that demand high-frequency reproduction capabilities during playback. Not only for high-frequencies, it is also ideal for reproducing rich mid- and low-frequencies.

  • Aluminum tapered cantilever
  • Para-toroidal coils improve generating efficiency
  • Center shield plate between the left and right channels reduces crosstalk
  • Die-cast aluminum alloy housing reduces vibration and adds a natural electrical shield

TECHNICAL DATA

SPECIFICATIONS

Type VM Type
Mounting 1/2” centers
Frequency Response 20 - 27,000Hz
Channel Separation 30dB (1kHz)
Output Channel Balance 1.0dB (1kHz)
Output Voltage 4.0mV (1kHz, 5cm/sec.)
Vertical Tracking Angle 23˚
Vertical Tracking Force Range 1.8 – 2.2g (2.0g standard)
Stylus Shape Shibata
Stylus Size 0.26 x 2.7 mil
Stylus Construction Nude Square Shank
Cantilever Aluminum Tapered Pipe
Coil Impedance 2,700Ω (1kHz)
Static Compliance 40 x 10-6 cm/dyne
Dynamic Compliance 10 x 10-6 cm/dyne (100Hz)
Recommended Load Impedance 47,000Ω
Recommended Load Capacitance 100 - 200pF
Weight 8.0 g
Dimensions 17.3 (H) x 17.0 (W) x 28.2 (L) mm
Replacement Stylus VMN50SH
Accessories Included Cartridge installation screws 5mm ×2 and 10mm ×2, Washer ×2, Hexagon nut ×2, Non-magnetic screwdriver ×1, Brush ×1, Lead wire set ×1
