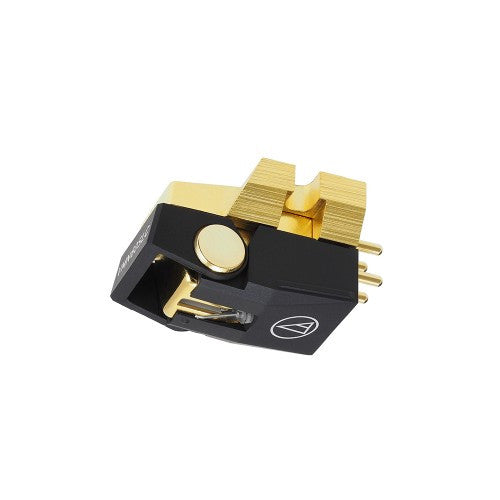

Audio-Technica VM760SLC, cartridge
Magnetic Stereo Cartridge with Special Line Contact style.
Regular price
€699.00 EUR
Unit price
/
Unattainable
Audio-Technica VM760SLC, cartridge - Ask you before buying whether we have this item in a warehouse if we do not have to be ordered and arrive within 2-21 days.
▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.
Free delivery in Lithuania from € 100
Free delivery in Lithuania from € 100
In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.
Pick up the goods in the store for € 0
Pick up the goods in the store for € 0
Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00
INFORMACIJA
- Frequency band: 20 - 30,000 Hz.
- Cantilever: Aluminum.
- Channel separation: 30 dB (1 kHz).
- VM type cartridge.
DESCRIPTION
- Special Line Contact diamond stylus
- VM type dual magnet system
- Para-toroidal coils improve generating efficiency
- Aluminum tapered cantilever
- Center shield plate between stereo channels
- Die-cast aluminum alloy housing reduces vibration
TECHNICAL DATA
SPECIFICATIONS
| Type | VM Type |
| Mounting | 1/2” centers |
| Frequency Response | 20 - 30,000Hz |
| Channel Separation | 30dB (1kHz) |
| Output Channel Balance | 1.0dB (1kHz) |
| Output Voltage | 4.0mV (1kHz, 5cm/sec.) |
| Vertical Tracking Angle | 23˚ |
| Vertical Tracking Force Range | 1.8 – 2.2g (2.0g standard) |
| Stylus Shape | Special Line Contact |
| Stylus Size | 0.28 x 1.5 mil |
| Stylus Construction | Nude Rectangular Shank |
| Cantilever | Aluminum Tapered Pipe |
| Coil Impedance | 2,700Ω (1kHz) |
| Static Compliance | 40 x 10-6 cm/dyne |
| Dynamic Compliance | 10 x 10-6 cm/dyne (100Hz) |
| Recommended Load Impedance | 47,000Ω |
| Recommended Load Capacitance | 100 - 200pF |
| Weight | 8.0 g |
| Dimensions | 17.3 (H) x 17.0 (W) x 28.2 (L) mm |
| Replacement Stylus | VMN60SLC |
| Accessories Included | Cartridge installation screws 5mm ×2 and 10mm ×2, Washer ×2, Hexagon nut ×2, Non-magnetic screwdriver ×1, Brush ×1, Lead wire set ×1 |
User manual / User manual.
