Audison  |  Bar code: 8018823135191

Audison AP 1P, car tweeter

Car tweeter that will take your bass experience to the next level and let you enjoy the perfect combination of sounds! Power: 150W (8 ohms).
€101.00 EUR

Audison AP 1P, car tweeter - Ask you before buying whether we have this item in a warehouse if we do not have to be ordered and arrive within 2-21 days.

▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.

Inbank lizingas | Autogarsas.lt

Free delivery in Lithuania from € 100

In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.

Pick up the goods in the store for € 0

Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00

INFORMACIJA

Car tweeter that will take your bass experience to the next level and let you enjoy the perfect combination of sounds!

  • Power: 150W (8 ohms).
  • Sensitivity: 92 dB.
  • Frequency band: 1.2 ÷ 25k Hz.
  • AIF installation technology.

DESCRIPTION

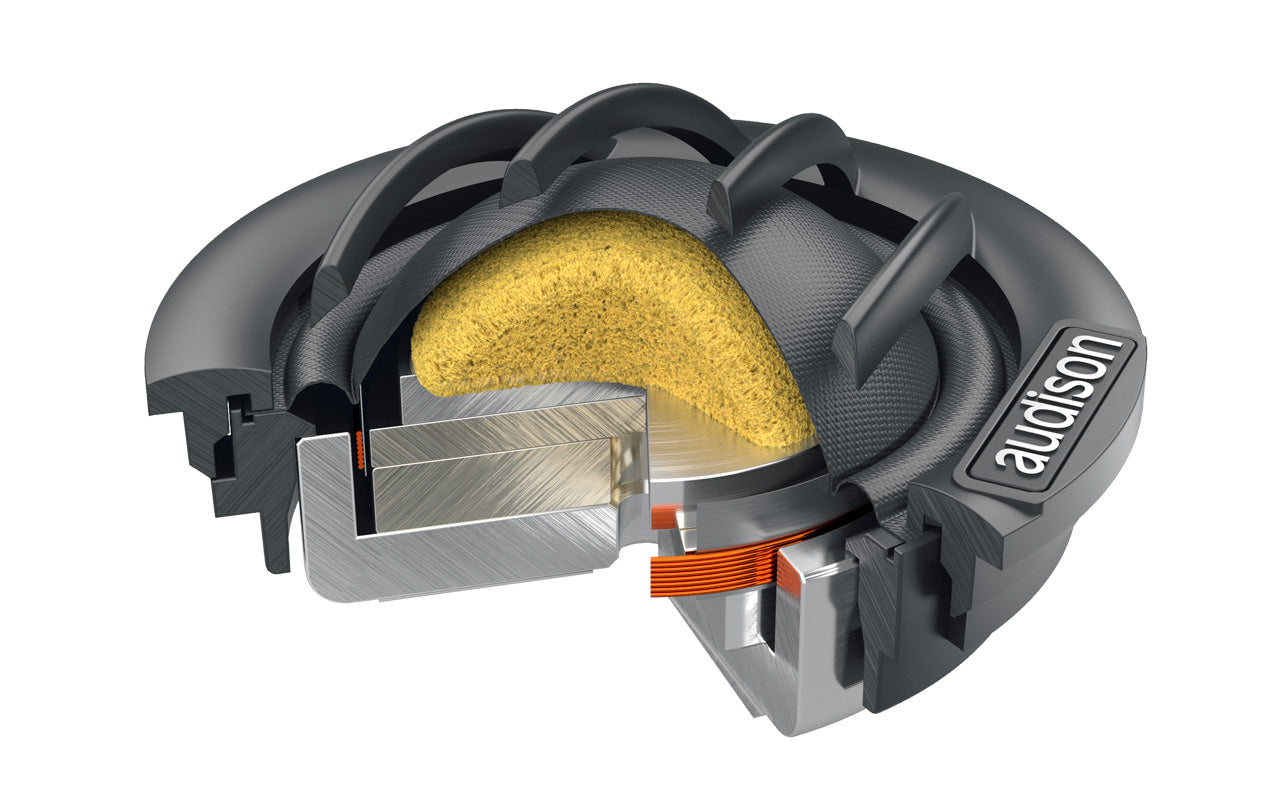

The exclusive AIF technology (Any Install Faceplate) of the AP 1P Tweeter component provides the installer with 3 different faceplates for total application versatility and a significant reduction in installation time. The double Neodymium tablet used in the motor provides an excellent extension in high frequency and together with the 1” CCAW voice coil ensures an outstanding dynamic response.

Audison_AIF

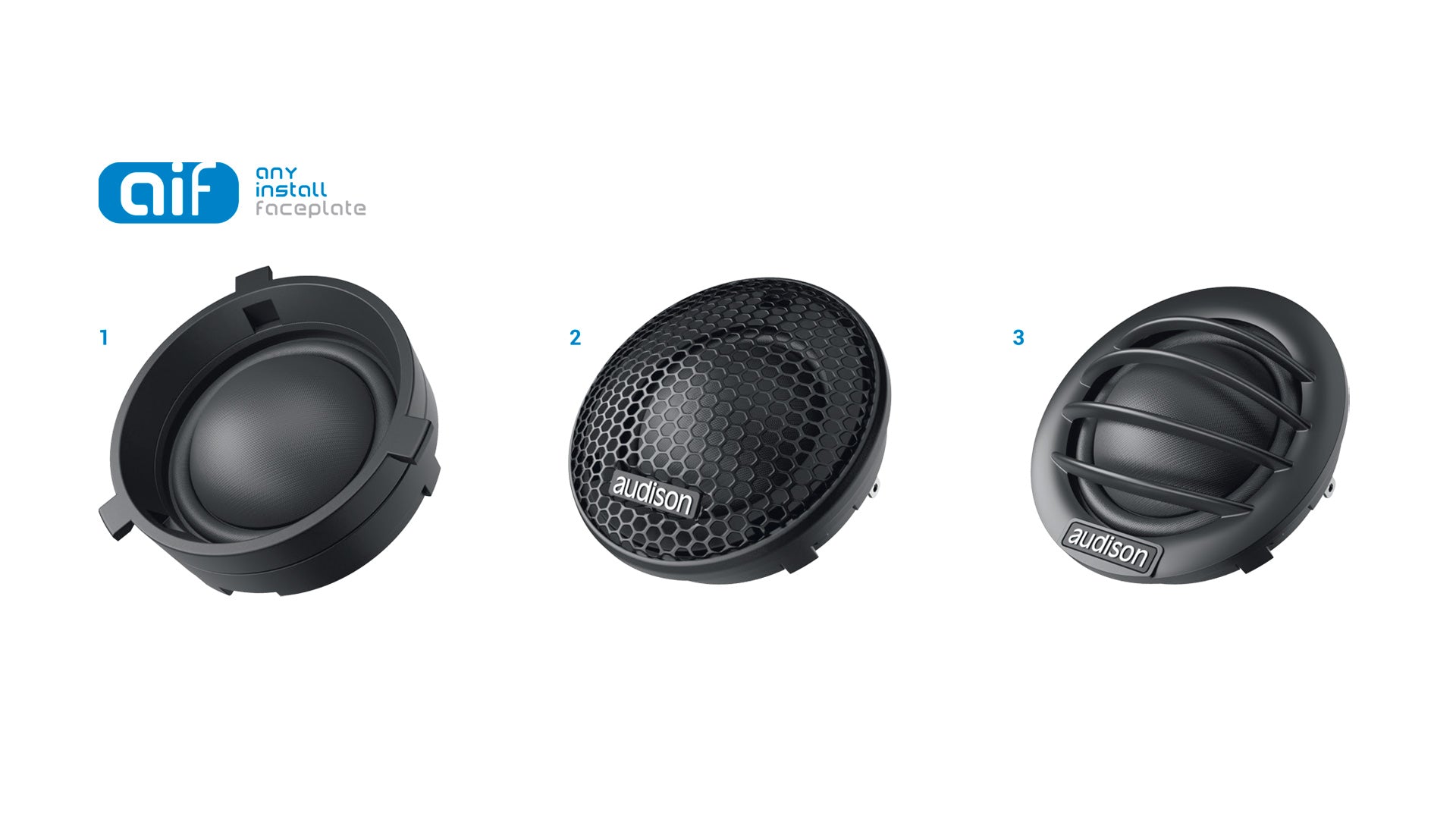

AIF technology, to support OEM integration, provides the specialist with three different types of faceplates:

1. OEM, for an easy and correct factory placement

2. Mesh grille: to obtain the best compromise between protection and performance with a-pillar installations

3. Spoke grille: for maximum acoustic performance with a-pillar installations

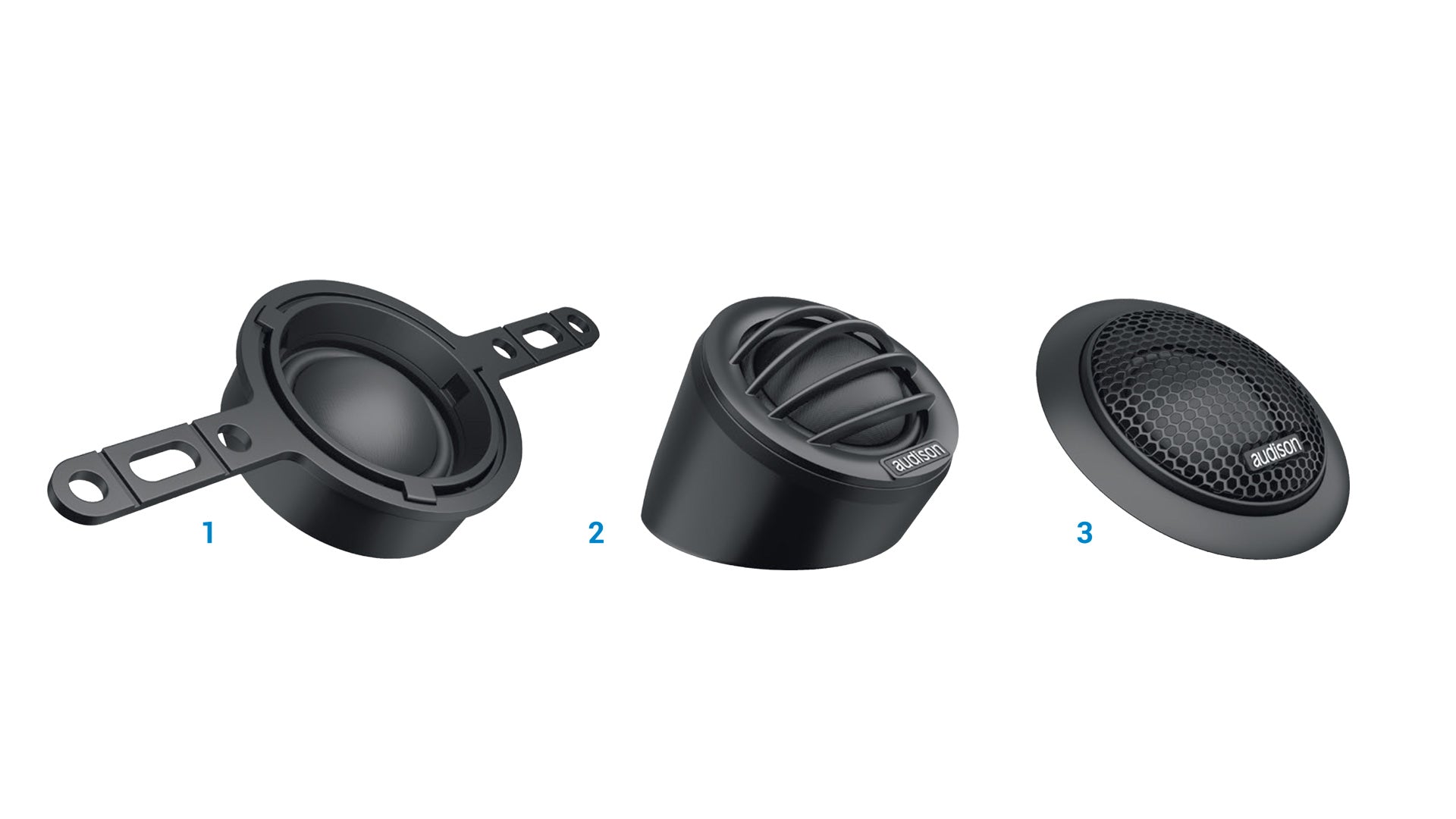

Thanks to the AIF, the AP 1P tweeter expresses its full potential in every application scenario. It is supplied with three mounting accessories that make the AP 1P install a breeze:

1. Watch bands

2. Double-angle cup

3. Flush Mounting Ring

4. Metal mounting spring

TECHNICAL DATA

SPECIFICATIONS

Comp Twitter
Size 29mm (1.14″)
Power Handling Hi-pass filtered 2.5 kHz @ 12 dB Oct. 150 W Peak Power
Impedance 8 Ω
Frequency Response 1.2 ÷ 25 kHz

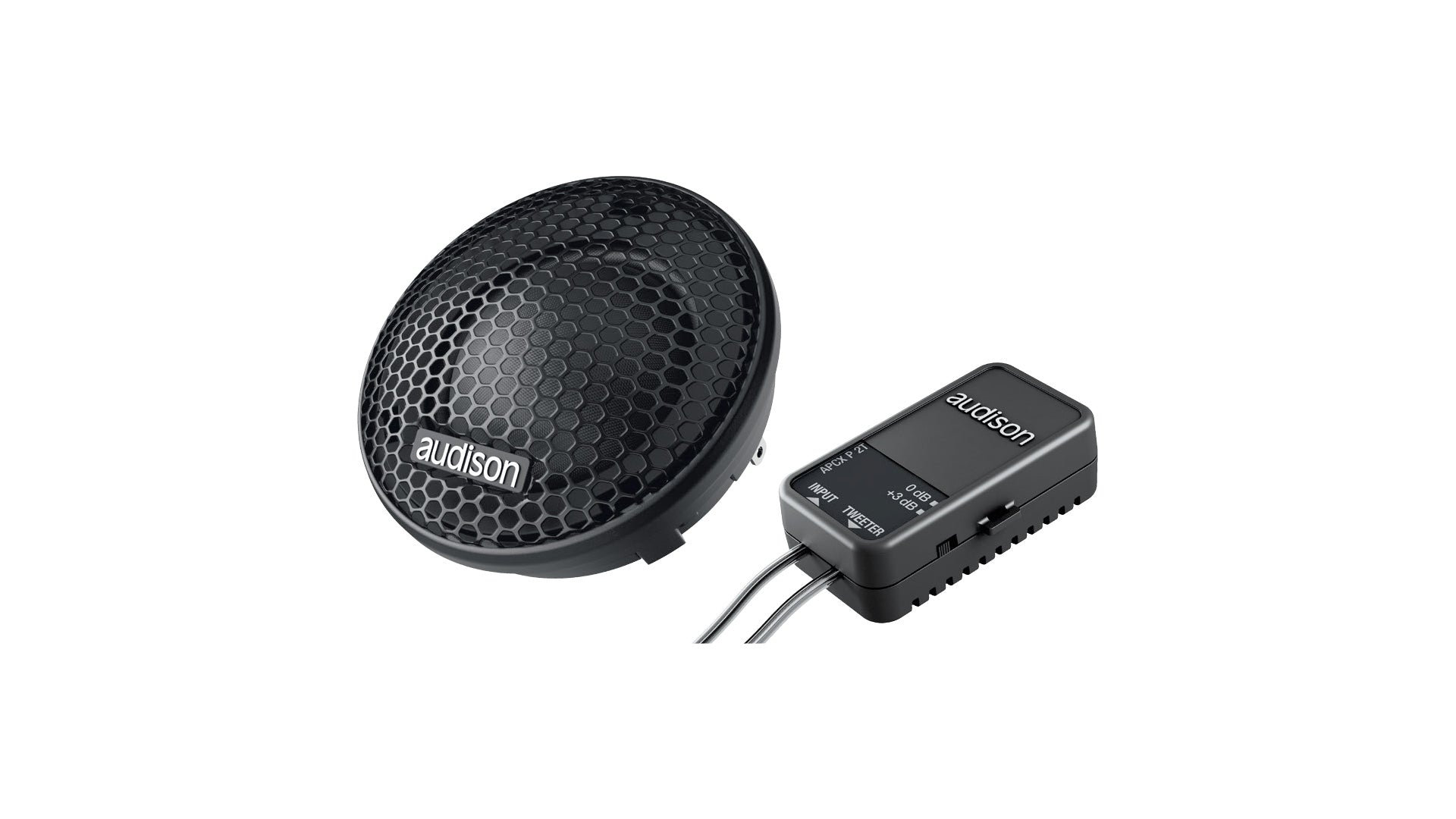

In the crossover house

APCX P 2T

Crossover Type

High Pass, 4kHz, 12 dB/oct.

Crossover adjustment

Tweeter Level: 0 / +3 dB
Sensitivity 92 dB/Spl
Magnetic Neodymium

Tweeter Voice Coil Ø

25mm (1″)
In the house Tetolon fibre


DOCUMENTS

INSTRUCTIONS

User Manual (EN).
