Audison  |  Bar code: 8018823126960

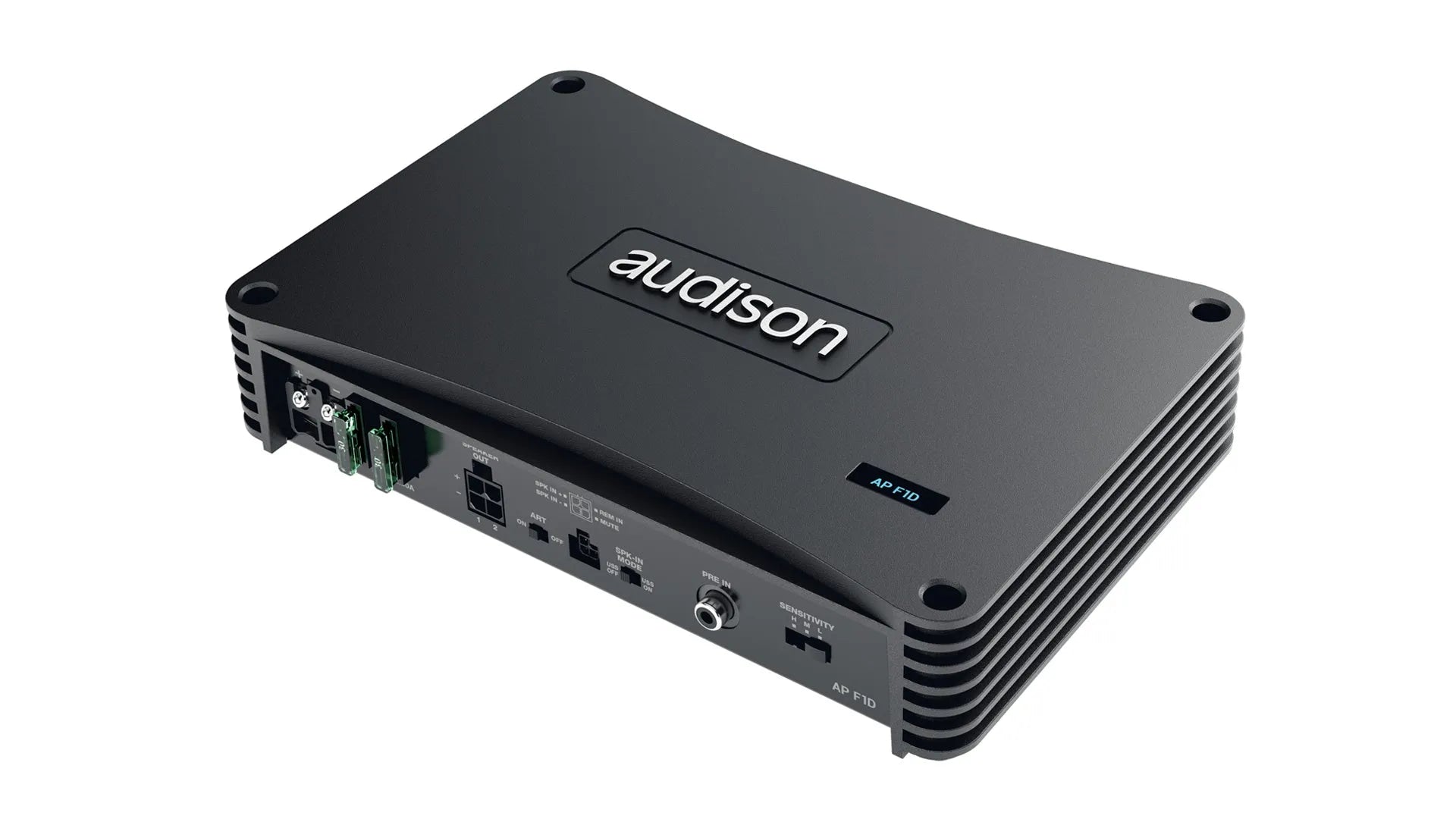

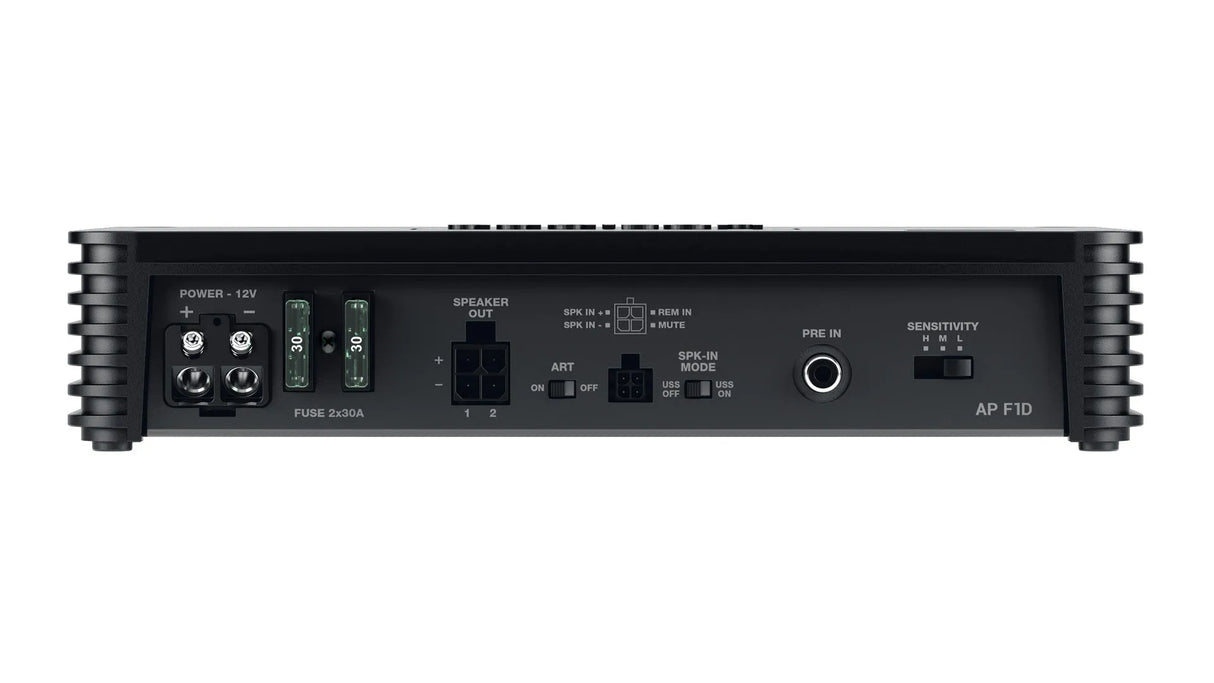

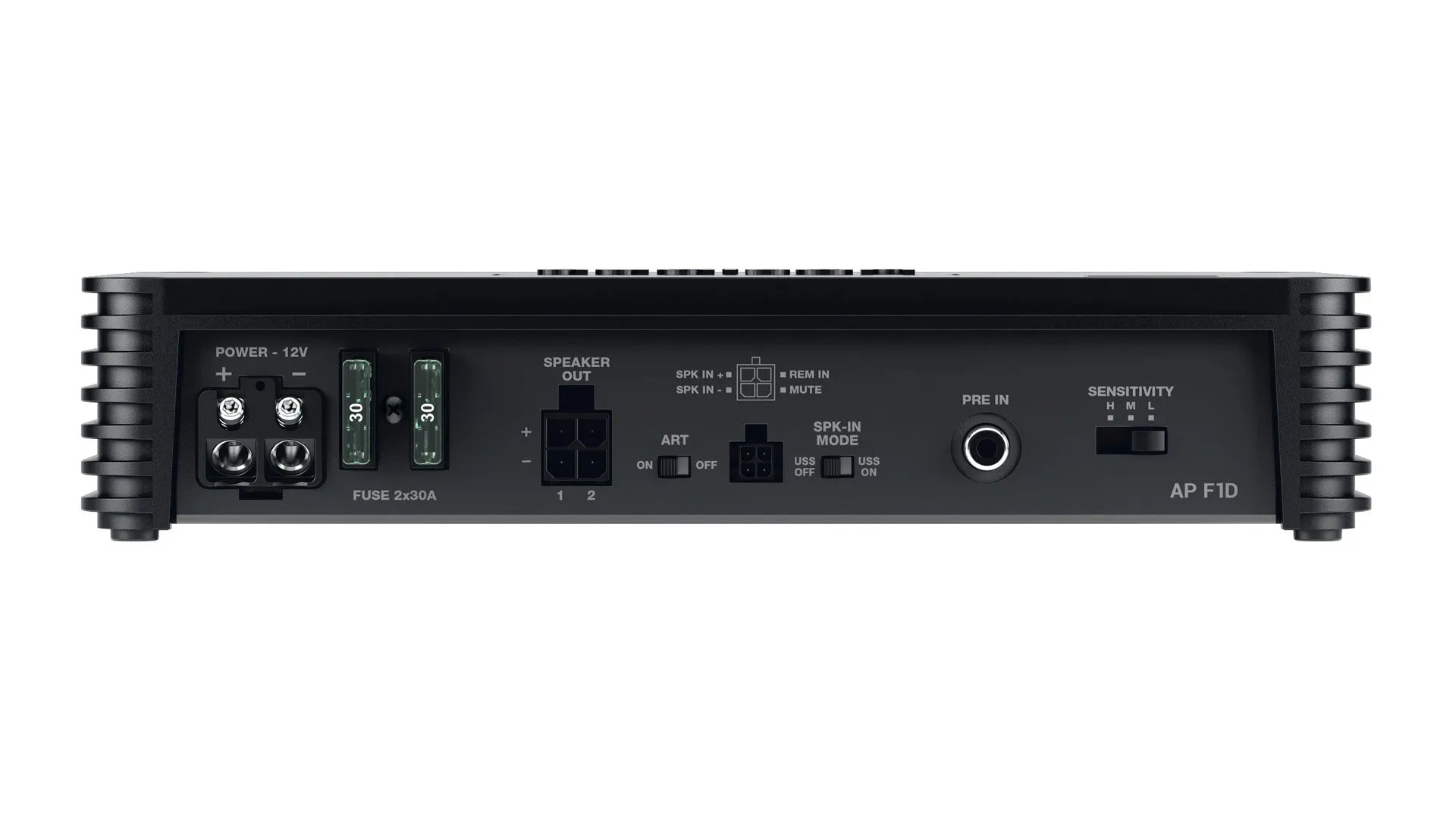

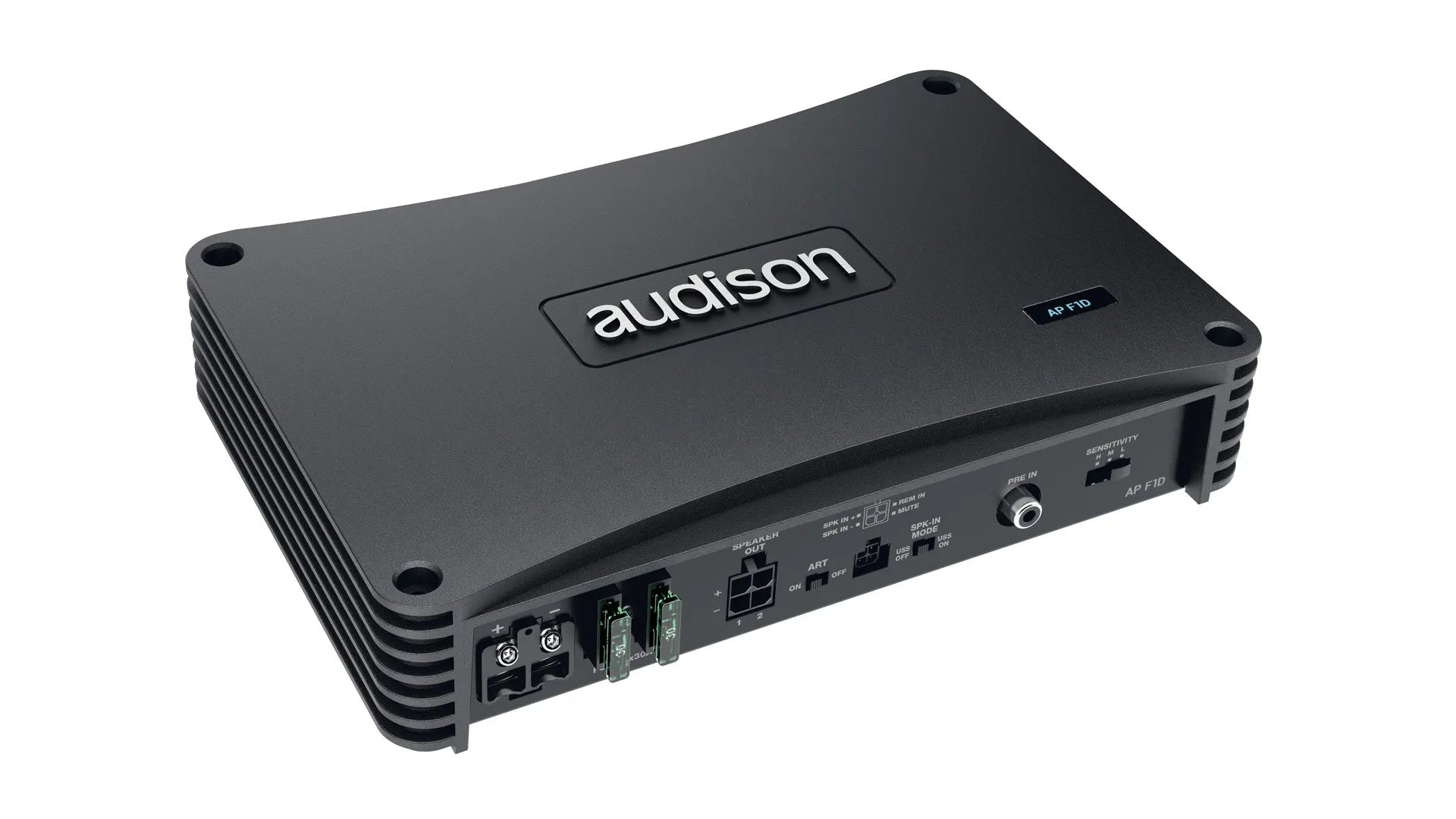

Audison AP F1D, Car Mono Audio Amplifier

The AP F1D amplifier has been designed for the most demanding subwoofers and is an ideal extension of the AP F8.
€495.00 EUR

Audison AP F1D, Car Mono Audio Amplifier - Ask you before buying whether we have this item in a warehouse if we do not have to be ordered and arrive within 2-21 days.

▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.

Inbank lizingas | Autogarsas.lt

Free delivery in Lithuania from € 100

In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.

Pick up the goods in the store for € 0

Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00

INFORMACIJA

.9 bit.

  • Power: 1000W.
  • Bandwidth: @ -3 dB 10 Hz ÷ 500 Hz.
  • Distortion - THD @ 100 Hz, 4Ω, 70% of rated power.
  • Resistance: 1 Ohm.

DESCRIPTION

The AP F1D amplifier was designed to drive the most demanding subwoofer and is the ideal extension of the AP F8.9 bit. At 1 Ohms it is stable and can supply up to 1000 W of power with extremely compact dimensions.

TECHNICAL DATA

SPECIFICATIONS

  • Power supply voltage / fuse 11 ÷ 15 VDC / 2 x 30A
  • Operating power supply voltage 6.5 ÷ 17
  • VDC Idling current 1.3 A
  • Idling current when off 0.05 mA
  • Consumption @ 14.4 VDC, 2Ω,
  • Max Musical Power 50 A Remote IN 6.5 ÷ 15 VDC (1 mA)
  • ART - Automatic Remote Turn on/off from
  • OUTPUT BTL speakers (Selectable) 2 ÷ 7 VDC
  • Distortion - THD @ 100 Hz, 4Ω, 70% Rated Power 0.1%
  • Damping factor @ 100 Hz, 4Ω, 2 VRMS 140
  • Bandwidth @ -3 dB 10 Hz ÷ 500 Hz
  • S/N ratio (A weighted @ 1 V Input) 110 dBA
  • Input sensitivity Pre-In Selectable: 0.6 - 2.0 - 6.0 VRMS
  • Input sensitivity Speaker-In Selectable: 2.0 - 6.5 - 20 VRMS
  • Minimum load impedance 1Ω

OUTPUT POWER (RMS) @14.4 VDC, 1% THD:

  • 1Ch @ 4Ω 500W x 1
  • 1Ch @ 2Ω 800W x 1
  • 1Ch @ 1Ω 1000W x 1

  • Pre-In Inputs RCA
  • Speaker-In Inputs wired Mute (Energy Saving control) wired (active to groung)
  • Ambient operating temperature range 0 °C to 55 °C (32 °F to 131 °F)
  • SIZE Max size W x H x D (mm/inch) 238 x 49.5 x 155 / 9.37 x 1.95 x 6.1
  • Weight (kg/lbs) 1.92 / 4.23
