Audison  |  Bar code: 8018823124171

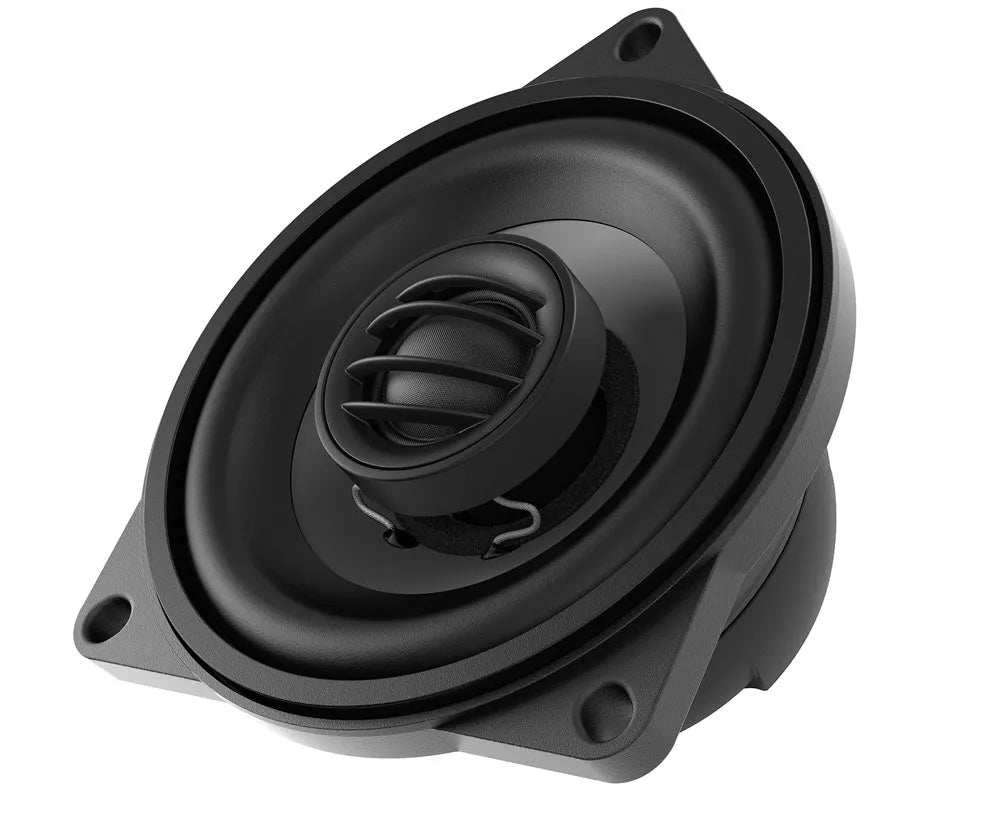

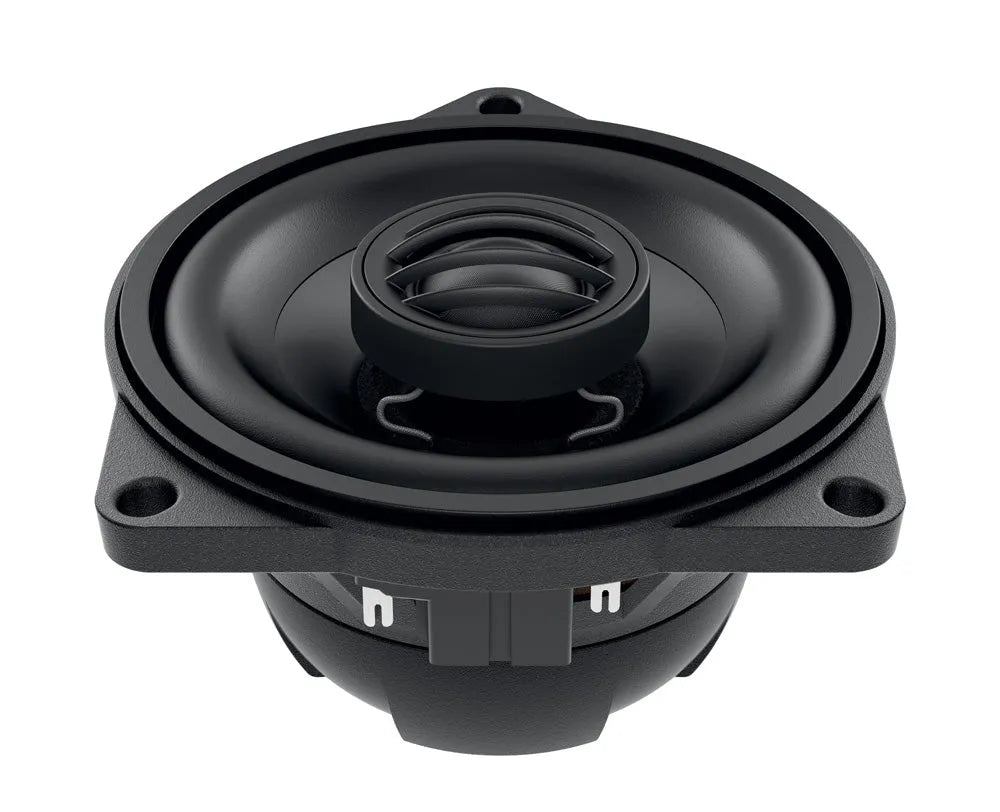

Audison APBMW X4M, coaxial speaker for BMW and MINI

Coaxial speaker for BMW-Mini cars.

€206.00 EUR

Audison APBMW X4M, coaxial speaker for BMW and MINI - Ask you before buying whether we have this item in a warehouse if we do not have to be ordered and arrive within 2-21 days.

▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.

Free delivery in Lithuania from € 100

In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.

Pick up the goods in the store for € 0

Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00

INFORMACIJA

. The speaker features all the best sound characteristics typical of the manufacturer and is quick and easy to install.

  • Power: 80W (4 ohms).
  • Frequency range: 100 ÷ 22k Hz.
  • The kit includes all the elements necessary for installation.
  • Simple Plug & Play connection.

DESCRIPTION

The APBMW X coaxials have been designed for BMW-MINI models that do not allow the installation of a two-way system on the front or the upgrade of the rear system.

The 100 mm (4″) APBMW X4M, with basket and fixing screws dedicated to the specific car model, features a water-repellent pressed-paper cone for natural and color-free mid-range frequencies.

The 20 mm coil and Tetolon dome tweeter, a material boasting lightness and damping properties, offers optimized dispersion features for OEM placement, elevating the sound stage to a realistic level.

FEATURES

450 cm long

The cable is 450 cm long to reach the vehicle boot, where the Audison Prima AP bit amplifier is installed

For BMW-Mini models with basic Sound System

Specially developed for BMW-Mini models that do not allow the installation of a two-way system on the front or for rear seat upgrade.

Neodymium Magnet group

To maximize performance while minimizing bulk and weight.

25 mm (1") fiberglass woofer voice coil

For high power dissipation and stiffness.

Waterproof pressed-paper cone

For medium natural frequencies free from any plastic resonance.

20 mm (0.8") Tetolon coil tweeter

Dispersion optimized with FEM simulations.

Aluminum die-cast basket

With Plug & Play connectors.

30 cm extension provided

Featuring Plug & Play connectors, for high flexibility of installation.

TECHNICAL DATA

SPECIFICATIONS

Component   Coax
Midrange size mm (in.) 100 (4)
Tweeter diaphragm mm (in.) 24 (0.9)
Power Handling W peak

W continuos

 80

40
Impedance Ω 4
Frequency Response Hz 100 ÷ 22k
Magnet size D xdxh mm

(in.)

 50 (1.97) x 29 (1.14) x 3 (0.12)
Weight of one speaker kg (lb.) 0.5 (1.1)
Woofer Voice Coil Ø mm (in.) 25 (1)
Tweeter Voice Coil Ø mm (in.) 20 (0.8)

DOCUMENTS

INSTRUCTIONS

User Manual (EN).
