Audison  |  Bar code: 8018823119887

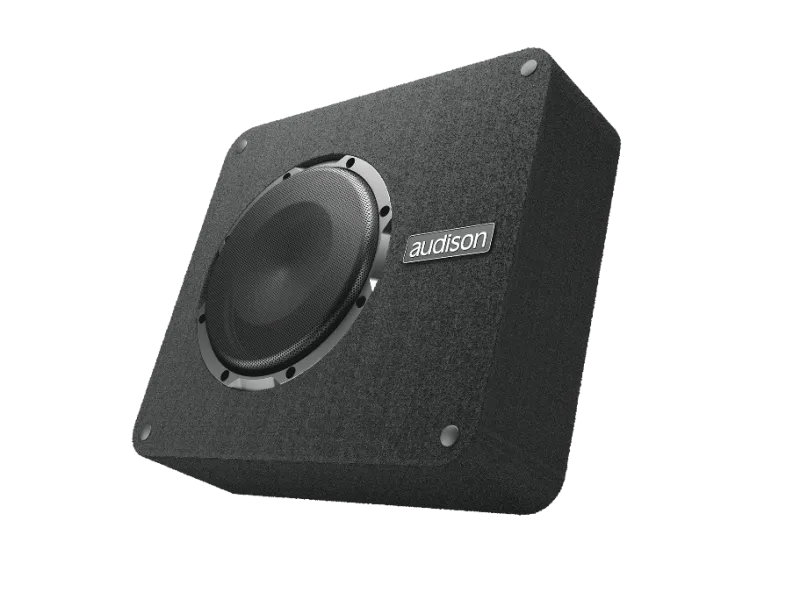

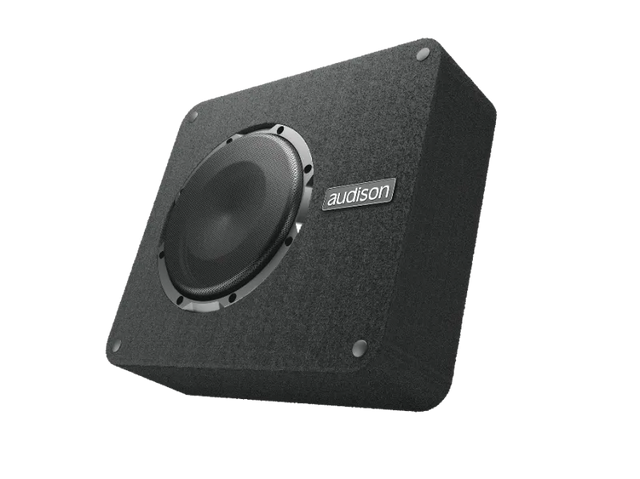

Audison APBX 8 DS, car subwoofer

A car subwoofer that will take your bass experience to the next level.
€287.00 EUR

Audison APBX 8 DS, car subwoofer - Ask you before buying whether we have this item in a warehouse if we do not have to be ordered and arrive within 2-21 days.

▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.

Inbank lizingas | Autogarsas.lt

Free delivery in Lithuania from € 100

In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.

Pick up the goods in the store for € 0

Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00

INFORMACIJA

  • Recommended amplifier power: 500W.
  • SSP (Sub Smart Plug) terminal block.
  • 2S² (2 sides / 2 sounds) design.

DESCRIPTION

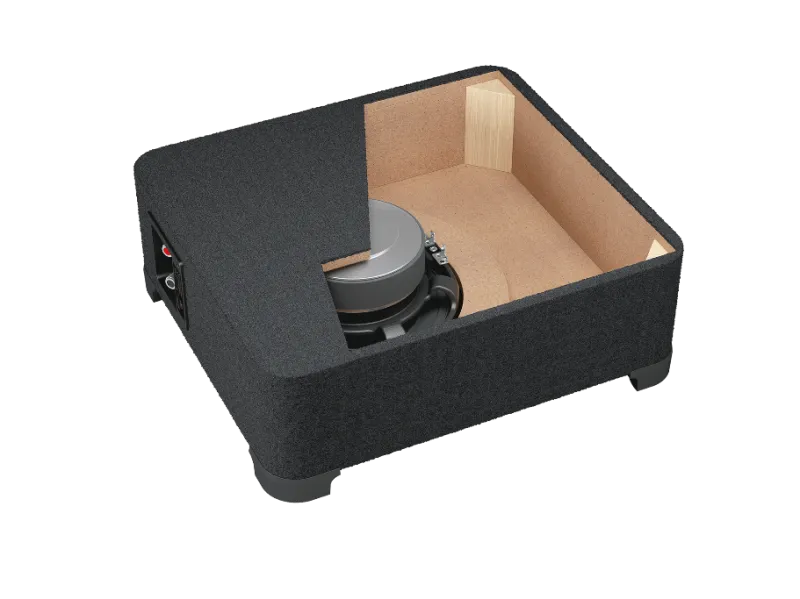

The APBX 8 DS loaded enclosure provides the highest performance/ size ratio. For this purpose an 8.5 lt. sealed enclosure with a 4+4 ohm dual voice-coil configuration was adopted to exploit the full power of an AP5.9 bit (paralleling voice coils for a 2 ohm load) or with two pairs of AP8.9 bit bridged channels (one bridged pair of channels to each voice coil). The speakers high excursion capability allows the use of the proprietary BASS BOOST of AP bit amplifiers to make use of all the available power for rich and dynamic bass.

  • Ultra-low profile (5.16 in. / 131 mm) box with sealed design perfectly
    tuned to fully exploit the APS 8 D driver.
  • 2S² (2 Sides/2 Sounds) design provides the ability to choose between
    Down-Firing mounting to increase the low-frequency extension and
    Up-Firing install to obtain more punch and definition.

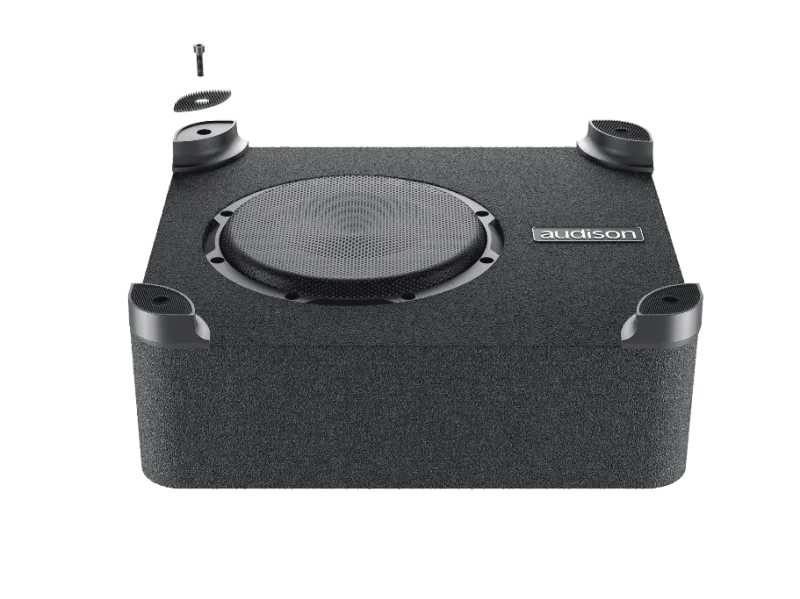

  • Leveling feet with velcro inserts included for a secure grip with the
    carpet while maintaining easy removal.
  • SSP (Sub Smart Plug) features both traditional push contacts and a
    Plug-&-Play terminal block to easily configure the impedance as required
    and provides a quick release.
  • Rounded corners allow easy positioning in the trunk and act as
    reinforcement to reduce enclosure resonance.
  • Special designed cone-dustcap-basket geometry which guarantees a
    long linear excursion capability (9 mm, one-way).
  • Massive driver motor assembly, optimized with FEM (Finite Element
    Modeling) for perfect control under high excursion conditions.
  • Water-repellent pressed paper 8 in. cone, featuring a profile developed
    with FEM simulation and optimized with the Klippel Scan Vibrometer. Specifically developed to be combined with either AP1 D mono or AP4.9
    bit/AP4 D (2 CH bridged) amplifiers taking advantage of the bass boost
    feature and integrated parametric equalizer of the built-in DSP.
  • Sturdy metal grid included for a total protection of the subwoofer driver.

    TECHNICAL DATA

    SPECIFICATIONS

    TECHNICAL SPECS

    Size 200 mm
    Power Handling - Peak 500 W
    Power Handling - Continuous 250 W
    Magnet Material HIGH DENSITY FLUX FERRITE
    Cone Material WATER REPELLENT PRESSED PAPER

    DIMENSIONS

    Dimension A 374 mm
    Dimension B 334 mm
    Dimension C 109 mm


    DOCUMENTS

    INSTRUCTIONS

    User Manual (EN).
