Audison  |  Bar code: 8018823119894

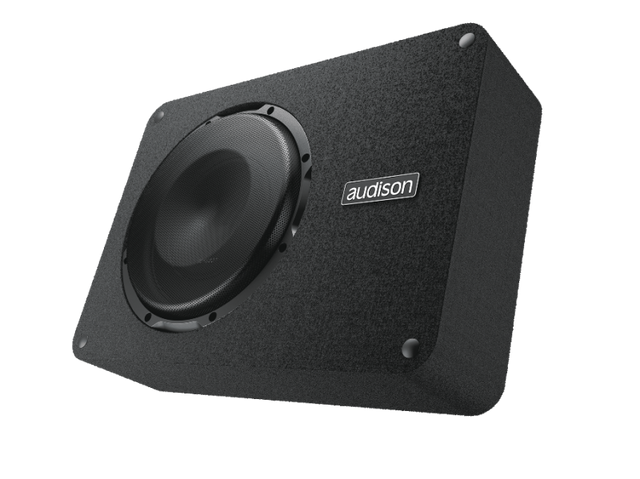

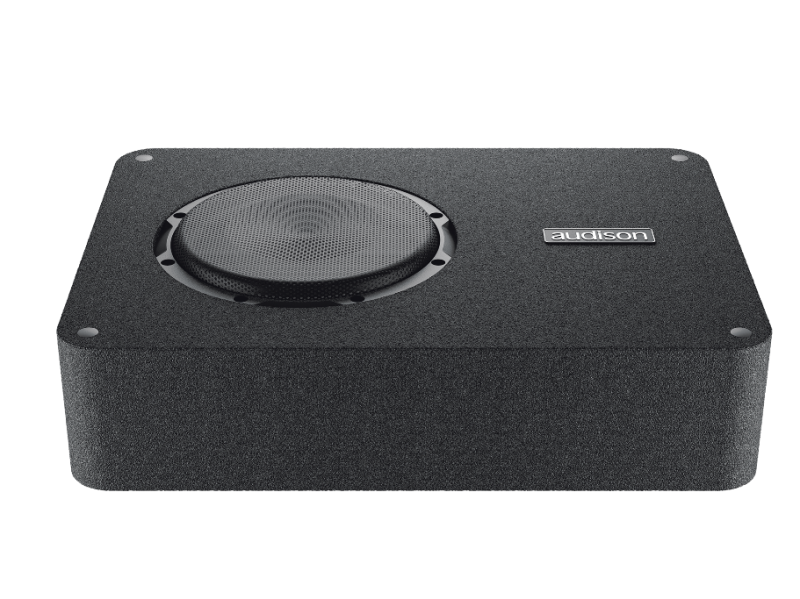

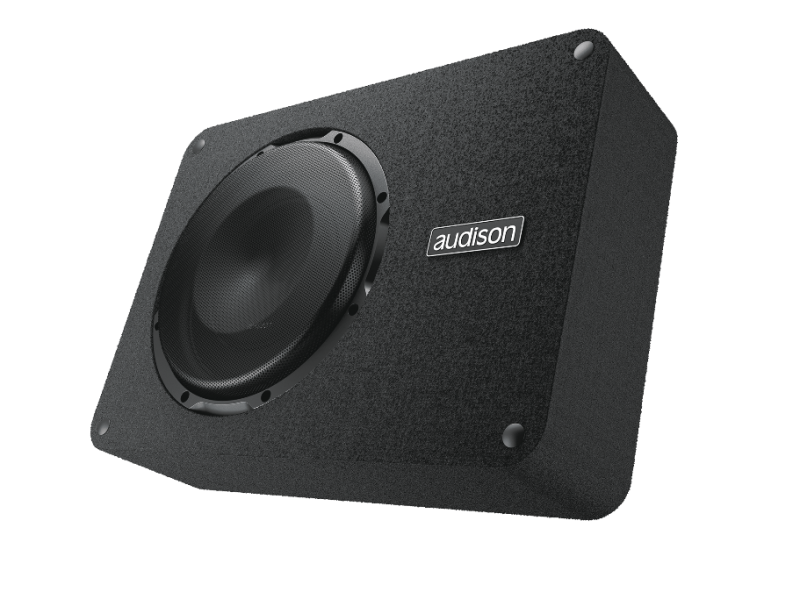

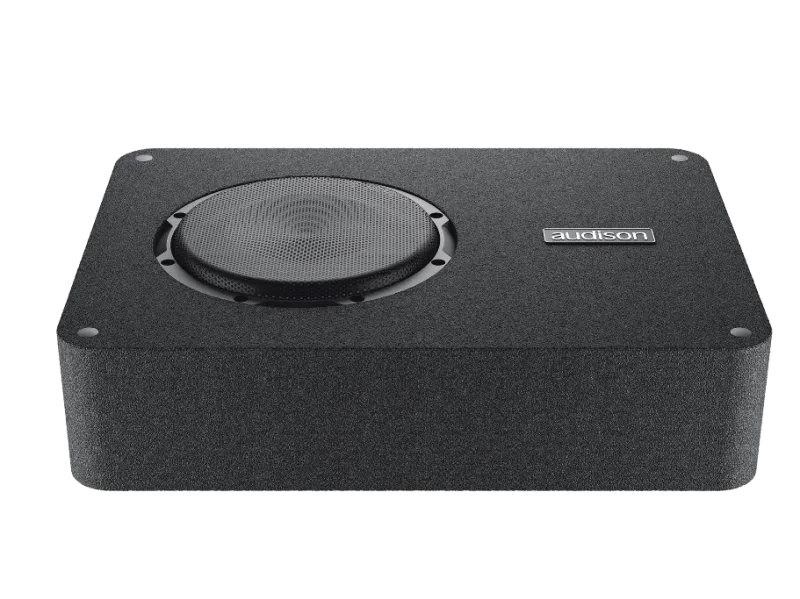

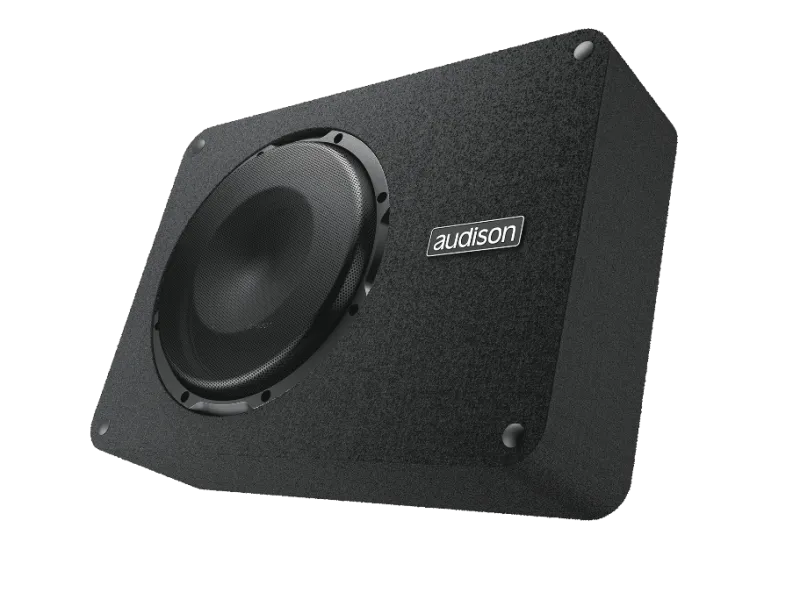

Audison APBX 8 R, car subwoofer

A car subwoofer that will take your bass experience to the next level.
€287.00 EUR

Audison APBX 8 R, car subwoofer - Ask you before buying whether we have this item in a warehouse if we do not have to be ordered and arrive within 2-21 days.

▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.

Inbank lizingas | Autogarsas.lt

Free delivery in Lithuania from € 100

In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.

Pick up the goods in the store for € 0

Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00

INFORMACIJA

  • Recommended amplifier power: 500W.
  • SSP (Sub Smart Plug) terminal block.
  • 2S² (2 sides / 2 sounds) design.

DESCRIPTION

FEATURES

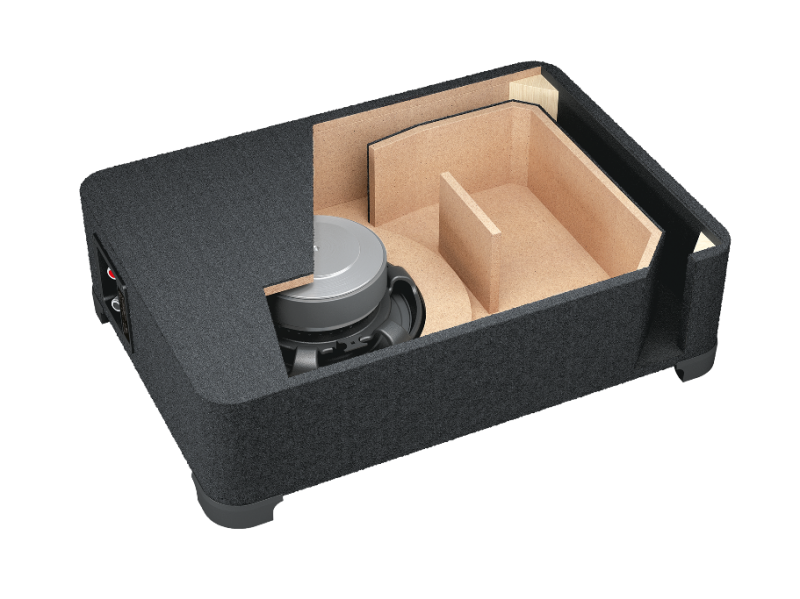

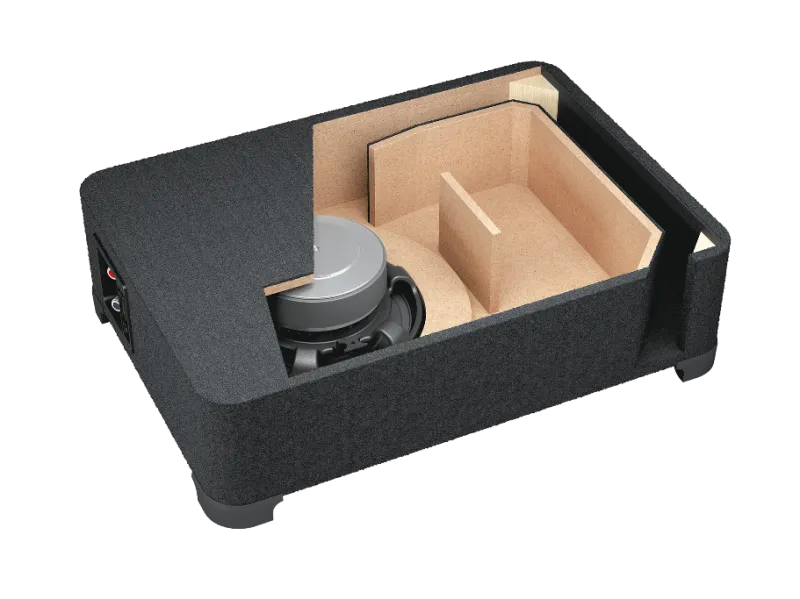

  • Ultra-low profile (5.16 in. / 131 mm) box with slot-ported design perfectly
    tuned to fully exploit the APS 8 R driver.
  • 2S² (2 Sides/2 Sounds) design provides the ability to choose between
    Down-Firing mounting to increase the low-frequency extension and
    Up-Firing install to obtain more punch and definition.
  • Leveling feet with velcro inserts included for a secure grip with the
    carpet while maintaining easy removal.
  • SSP (Sub Smart Plug) features both traditional push contacts and a
    Plug-&-Play terminal block to easily configure the impedance as required
    and provides a quick release.
  • Rounded corners allow easy positioning in the trunk and act as
    reinforcement to reduce enclosure resonance.
  • Special designed cone-dustcap-basket geometry which guarantees a
    long linear excursion capability (9 mm, one-way).
  • Massive driver motor assembly, optimized with FEM (Finite Element
    Modeling) for perfect control under high excursion conditions.
  • Water-repellent pressed paper 8 in. cone, featuring a profile developed
    with FEM and optimized with the Klippel Scan Vibrometer.
  • Specifically developed to be combined with either the AP8.9 bit (2 CH bridged)
    or AP4.9 bit /AP4 D (2 CH bridged) amplifiers taking advantage of the bass
    boost feature and integrated parametric equalizer of the built-in DSP.
  • Sturdy metal grid included for a total protection of the subwoofer driver.

TECHNICAL DATA

SPECIFICATIONS


TECHNICAL SPECS

Size 200 mm
Power Handling - Peak 500 W
Power Handling - Continuous 250 W
Magnet Material HIGH DENSITY FLUX FERRITE
Cone Material COTTON-FIBER PRESSES PAPER CONE

DIMENSIONS

Dimension A 470 mm
Dimension B 334 mm
Dimension C 109 mm

DOCUMENTS

INSTRUCTIONS

User Manual (EN).
