Audison  |  Bar code: 8018823107792

Audison AV Due, car audio amplifier

AV due is a powerful stereo amplifier with a power supply section and rear stage designed to operate in both mono and tri modes, providing very high output current and power up to 900 W (RMS).
€800.00 EUR

Audison AV Due, car audio amplifier - Ask you before buying whether we have this item in a warehouse if we do not have to be ordered and arrive within 2-21 days.

▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.

Inbank lizingas | Autogarsas.lt

Free delivery in Lithuania from € 100

In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.

Pick up the goods in the store for € 0

Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00

INFORMACIJA

.

  • Power: 2 x 260W @ 4Ω.
  • Distortion - THD (1kHz @ 4Ω): 0.04%.
  • Bandwidth: (-3 dB): 4 ÷ 60k Hz.

DESCRIPTION

AV due is a powerful stereo amplifier with the power supply section and final stage designed to work also in mono and tri-mode, ensure very high output current, with powers up to 900 W (RMS).

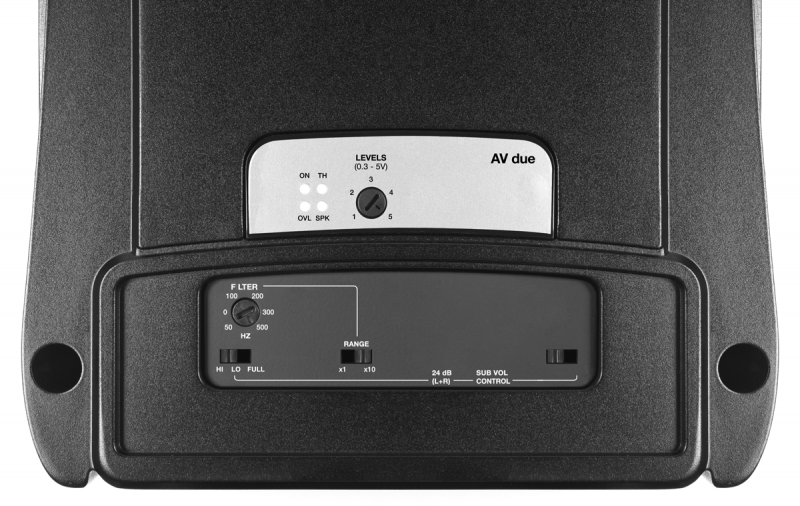

AMP (Amplifier Management Processor) constantly checks the operating status of the system and communicates with the user through 4 different colored LEDs, located on the top panel; ART (Automatic Remote Turn On-Off) allows automatic turn-on/off when a remote signal is not available from the source.


Hi-Res audio

According to the definition of HiRes audio provided by JAS (Japan Audio Society - jas-audio.or.jp), Voce amplifiers exceed the above 40 kHz bandwidth analog requirement, providing an astonishing 4 ÷ 60k Hz (@ -3 dB, 2 VRMS , 4 Ω).

Specifications

TECHNICAL DATA

SPECIFICATIONS

POWER SUPPLY
  • Power supply voltage: 11 ÷ 15 VDC
  • Idling current: 1.7 A
  • Idling current when off: 0.02 mA
  • Consumption @ 14.4 VDC (Max Musical Power): 65 A
AMPLIFIER STAGE
  • Distortion - THD (1kHz @ 4Ω): 0.04%
  • Bandwidth (-3 dB): 4 ÷ 60k Hz
  • S/N ratio (A weighted @ 1V): 100 dBA
  • Damping factor (1k Hz @ 4Ω): 120
  • Input sensitivity: 0.3 ÷ 5 V RMS
  • Input impedance: 15k Ω
  • Speaker-In sensitivity: 1.4 ÷ 24 V RMS
  • Speaker-In impedance: 5k Ω
  • Minimum load impedance: 2Ω
  • NOMINAL POWER (RMS) @ 12 VDC, THD 0.3%, 4Ω:
  • 210W x 2
  • OUTPUT POWER (RMS) @ 14.4 VDC, THD 1%:
  • 2 Ch: 260 W x 2 (4Ω)
  • 2 Ch: 450 W x 2 (2Ω)
  • 1 Ch: 900 W x 1 (4Ω)
SIGNALS INPUTS / FILTERS
  • Inputs: Pre IN / Speakers IN
  • Outputs: Pre OUT Full Range
  • Filters (Full / Hi-Pass / Lo-Pass):
  • 50 ÷ 5k Hz (2 range) @ 12 dB/Oct.
  • Filter (Lo-Pass 24 dB mono):
  • 50 ÷ 500 Hz @ 24 dB/Oct.
OTHER FUNCTIONS
  • Remote IN: 7 ÷ 15 VDC - 1mA
  • Remote OUT: 12 VDC - 50mA
  • Fuse (Strip type): 60 A
  • Remote SUB volume adj. (with Lo-Pass 24 dB):
  • (-50 ÷ 6) dB
  • Speakers IN Turn-on (ART): Selectable
DIMENSIONS
  • Max size (mm/inches): 220 x 470 x 58 / 8.66” x 18.50” x 2.28”


DOCUMENTS

INSTRUCTIONS

User Manual (EN).
