Audison  |  Bar code: 8018823107785

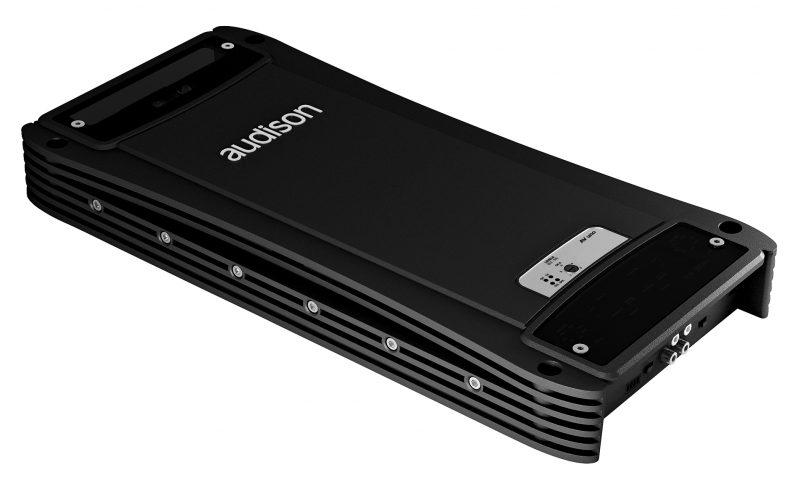

Audison AV Uno, car audio amplifier

€1,080.00 EUR

Audison AV Uno, car audio amplifier - Ask you before buying whether we have this item in a warehouse if we do not have to be ordered and arrive within 2-21 days.

▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.

Free delivery in Lithuania from € 100

In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.

Pick up the goods in the store for € 0

Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00

"AV uno" is an amplifier with an innovative scheme called POD (Power On Demand); it provides dynamic power to the Class AB final stage, which serves as a follower to the amplified signal to increase efficiency and reduce temperature.

  • Power: 700W @ 4Ω.
  • Class AB amplifier.
  • Distortion - THD (1kHz @ 4Ω): 0.04%.
  • Installed: AMP (Amplifier Management Processor).
  • ART (Automatic Remote Turn On-Off) function.

AV uno is an amplifier featuring an innovative circuitry called POD (Power On Demand); it provides at the final stage in AB class a dynamic power that serves as a tracker to the signal to be amplified so as to increase efficiency and reduce the temperature. AV uno allows to combine the plus points, in terms of audio quality and robustness, of the AB Class traditional amplifiers with the efficiency of the D Class amplifiers. AMP (Amplifier Management Processor) constantly checks the operating status of the system and communicates with the user through 4 different colored LEDs, located on the top panel; ART (Automatic Remote Turn On-Off) allows automatic turn-on/off when a remote signal is not available from the source. AV uno is a mono amplifier designed to drive the subwoofer but also suitable for high power Dual Mono systems.

Specifications

SPECIFICATIONS

POWER SUPPLY
  • Power supply voltage: 11 ÷ 15 VDC
  • Idling current: 2.0 A
  • Idling current when off: 0.02 mA
  • Consumption @ 14.4 VDC (Max Musical Power): 120 A
AMPLIFIER STAGE
  • Distortion - THD (1kHz @ 4Ω): 0.04%
  • Bandwidth (-3 dB): 7 ÷ 20k Hz
  • S/N ratio (A weighted @ 1V): 95 dBA
  • Damping factor (1k Hz @ 4Ω): 160
  • Input sensitivity: 0.3 ÷ 5 V RMS
  • Input impedance: 15k Ω
  • Speaker-In sensitivity: 1.4 ÷ 24 V RMS
  • Speaker-In impedance: 5k Ω
  • Minimum load impedance: 1Ω
  • NOMINAL POWER (RMS) @ 12 VDC, THD 0.3%, 4Ω:
  • 700W x 1
  • OUTPUT POWER (RMS) @ 14.4 VDC,THD 1%: 1 Ch: 700 W x 1(4Ω) | 1 Ch: 1300 W x 1(2Ω) | 1 Ch: 1700 W x 1(1Ω)
SIGNALS INPUTS / FILTERS

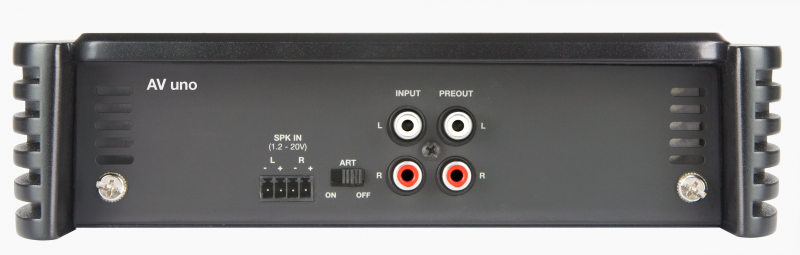

  • Inputs: Pre IN / Speakers IN
  • Outputs: Hi-Pass Pre OUT (50 ÷ 150 Hz)

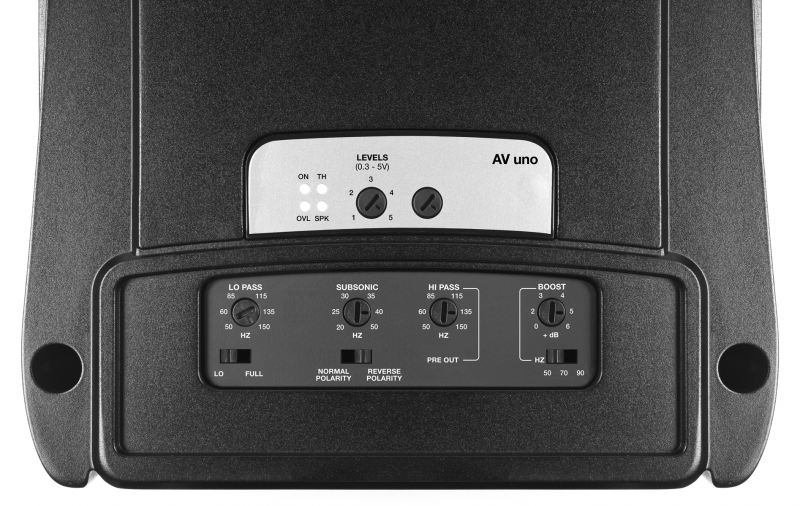

  • Filters (Full/Lo-Pass): 50 ÷ 150 Hz @ 24dB/Oct.
  • Speakers polarity: Normal / Inverted
  • Bass boost (Freq./Gain): 50-70-90 Hz / 0 ÷ 6 dB
  • Subsonic (Cont. adj.) Off ÷ 50 Hz @ 24dB/Oct.
OTHER FUNCTIONS

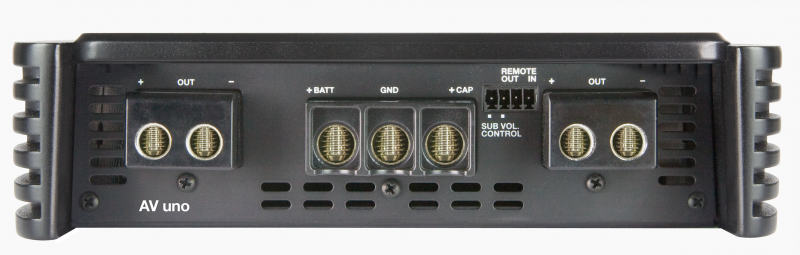

  • Remote IN: 7 ÷ 15 VDC - 1mA
  • Remote OUT: 12 VDC - 50mA
  • Fuse (Strip type): 100 A
  • Remote SUB volume adj.: (-50 ÷ 6) dB
DIMENSIONS:
  • Max size (mm/inches): 220 x 470 x 58 / 8.66” x 18.50” x 2.28”

INSTRUCTIONS

User Manual (EN).
