Audison  |  Bar code: 8018823111744

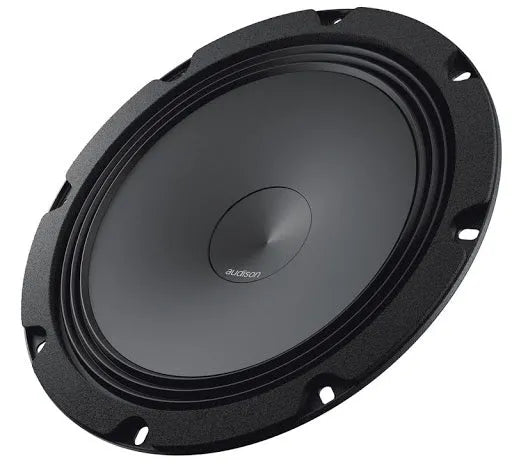

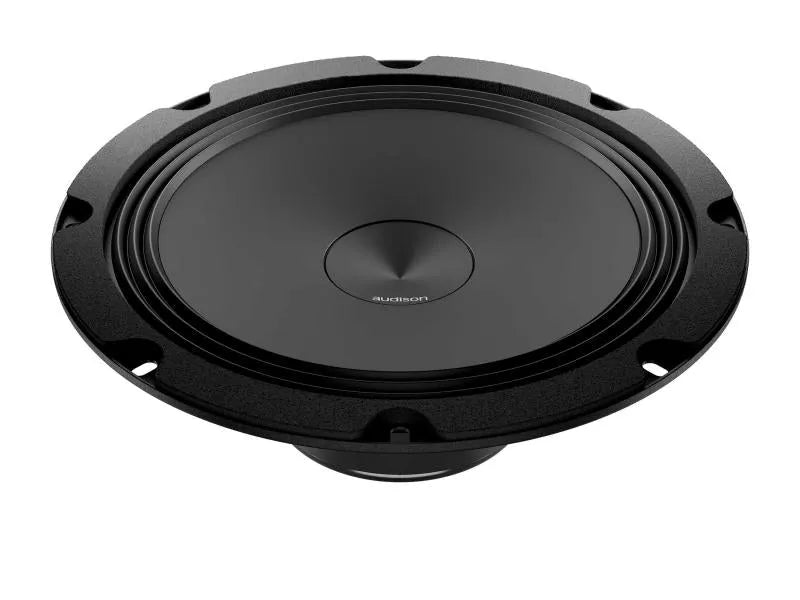

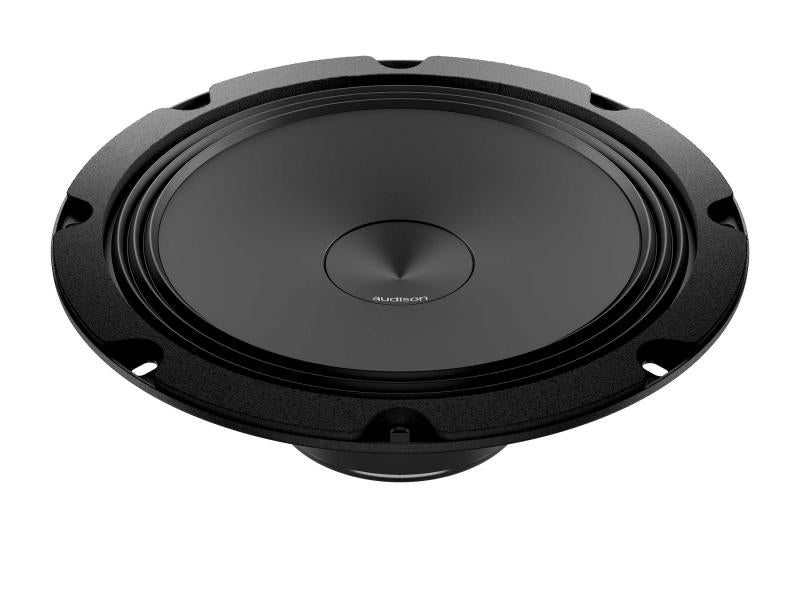

Audison AP 8, subwoofer

Compact but powerful Prima series car subwoofer.
€150.00 EUR

Audison AP 8, subwoofer - Ask you before buying whether we have this item in a warehouse if we do not have to be ordered and arrive within 2-21 days.

▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.

Inbank lizingas | Autogarsas.lt

Free delivery in Lithuania from € 100

In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.

Pick up the goods in the store for € 0

Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00

INFORMACIJA

.

  • Power: 300W.
  • Frequency band: 35-3K Hz.
  • Sensitivity: 93.5 dB/Spl.
  • Resistance; 4 ohms.

DESCRIPTION

1 Water-repellent treated paper cone, featuring a profile developed with FEM (Finite Element Method) simulation technology and optimized with the Klippel Scan Vibrometer.

2 No passive crossover required to maximize efficiency: dome profile optimized with Klippel R&D Scan Vibrometer to obtain a calibrated mechanical low-pass cut-off frequency.

3 Reduced mounting depth, providing ease of installation in OEM placements.

4 TPU (Thermoplastic Polyurethane) surround, featuring the exclusive shallow "Triple Wave" profile, for maximum excursion linearity.

5 Compact basket, protected by abrasion-resistant and scratch-proof coating, the motor affixed with damping epoxy adhesive.

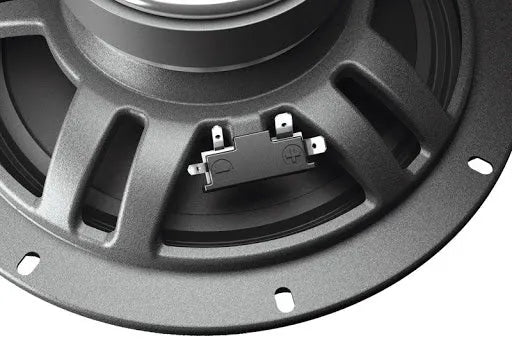

6 High current fast-on terminal with double contact on positive and negative poles for high flexibility and quick connection. The terminal features a temperature resistant plastic cover, protecting it against accidental short circuits.

7 Developed with the KLIPPEL suite.

TECHNICAL DATA

SPECIFICATIONS

Comp Woofer
Size 200mm (8″)
Power Handling 100 W Continuous Power
300 W Peak Power
Impedance 4 Ω
Frequency Response 35 ÷ 3k Hz
Sensitivity 93.5 dB/Spl
Magnetic High density flux ferrite
In the house Water-repellent pressed paper


DOCUMENTS

INSTRUCTIONS

User Manual (EN).
