- Audison THX 2 II, perėjimo blokas
Audison THX 2 II crossover unit
Audison THX 2 II crossover unit - Ask you before buying whether we have this item in a warehouse if we do not have to be ordered and arrive within 2-21 days.
▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.
Free delivery in Lithuania from € 100
Free delivery in Lithuania from € 100
In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.
Pick up the goods in the store for € 0
Pick up the goods in the store for € 0
Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00
INFORMACIJA
- Suitable for: 300W power systems.
- Lo-Pass Filter: Lo-pass 1.35 kHz @ 6 dB/Oct.
- Hi Pass Filter: Hi-pass 2.8 kHz @ 12 dB/Oct. Q=0.48.
DESCRIPTION

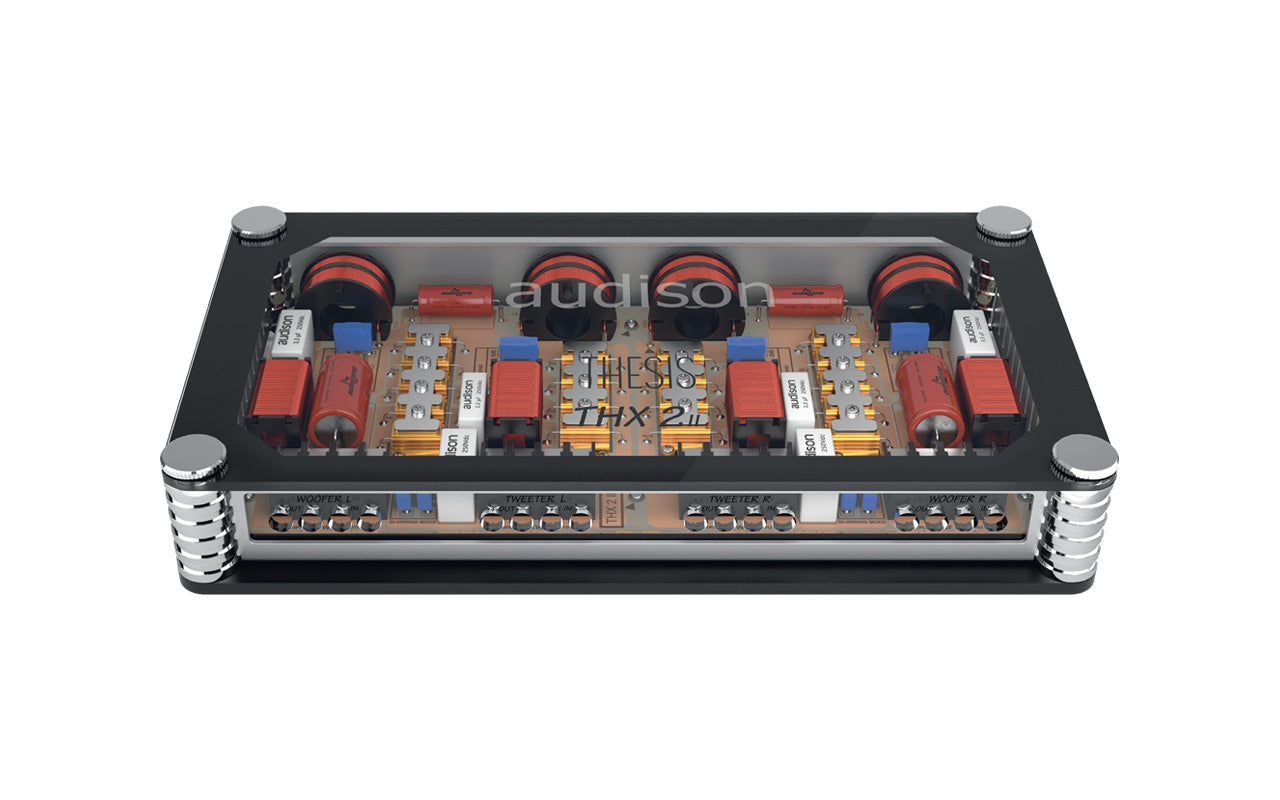

For the enthusiasts who prefer to use a passive filter, the R&D team has created THX 2 II, a crossover engineered without compromise with the use of high quality resistors, capacitors and inductors. The filter, for both woofer and tweeter, has special compensation networks that optimize the load seen by the amplifier. The filtering configuration originates from the active Best Envelopment configuration and allows the following fine-tuning options to improve the performance in the passenger compartment:
• 4 emission levels for the tweeter (-4, -2, 0, +1.5 dB), designed with L-Pad technique
• mid-frequency level control (-4 / -2 / 0 / +1.5 dB) centered at 900 Hz to vary the sound character from the analytical one obtained from professional monitors to the softer one typical of the most sophisticated home systems.
• possibility of bi-amplification
TECHNICAL DATA
SPECIFICATIONS
| Comp | 2-way Passive Crossover for TH 1.5 II + TH 6.5 II | |
| Size | mm (in.) | 348 x 190 x 66.5 (13.7 x 7.48 x 2.62) |
| Power Handling | W peak | 300 |
| W continuos | 150 | |
| Filters | Woofer cut-off | Low-pass 1.35 kHz @ 6 dB/Oct. |
| Tweeter cut-off | Hi-pass 2.8 kHz @ 12 dB/Oct. Q=0.48 | |
| Filters - Adjustment | Contour @ 1 kHz | -3 / -1.5 / 0 dB |
| Tweeter level | -4 / -2 / 0 / +1.5 dB | |
| Weight of one component | kg (lb) | 3.6 (7) |
DOCUMENTS
INSTRUCTIONS
Audison THX 2 II crossover unit
