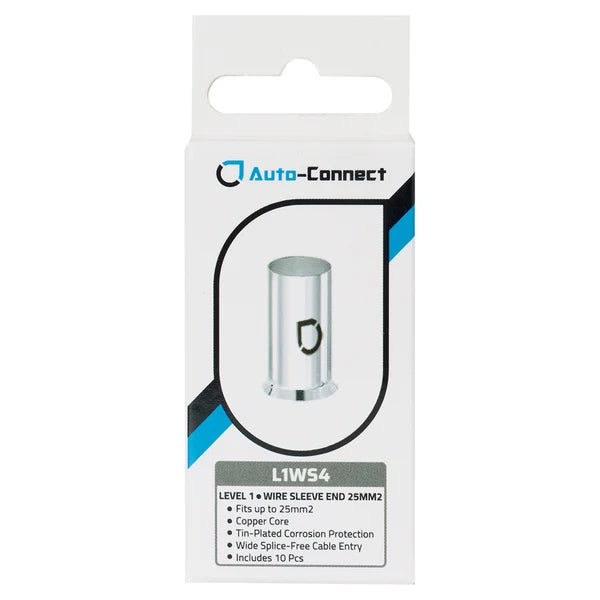

- Auto-Connect L1WS4, 25 mm² laidų antgaliai, 10 vnt. - Pakuotė su laidų antgalių detalės vaizdu
Auto-Connect L1WS4, 25 mm² wire ferrules, 10 pcs.
Auto-Connect L1WS4, 25 mm² wire ferrules, 10 pcs. - Ask you before buying whether we have this item in a warehouse if we do not have to be ordered and arrive within 2-21 days.
▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrininkų St. 1, Kaunas.
Free delivery in Lithuania from € 100
Free delivery in Lithuania from € 100
In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.
Pick up the goods in the store for € 0
Pick up the goods in the store for € 0
Armatūrininkų St. 1, Kaunas
Working hours: Monday-Friday 9:00-18:00
INFORMACIJA
Auto-Connect L1WS4 - designed for neat and reliable termination of thicker power or speaker cables. The ferrules help create a solid cable end, preventing individual strands from fraying, reducing damage, and making them easier to insert into terminals. They are made of copper and coated with a layer of tin, which helps protect the contact from oxidation and corrosion. The flared opening of the ferrule facilitates cable insertion, while the uniformly compressed conductor ensures more stable mechanical contact and a reliable electrical connection. The ferrules can be crimped or used with screw and spring-loaded terminals. If additional protection is required during installation, the connection point can be covered with heat-shrink tubing.
Cable cross-section: 25 mm² / 4 AWG
Length: 15.9 mm
Outer diameter: Ø 7.8 mm
Inner diameter: Ø 7.3 mm
Material: copper
Surface: tinned
Quantity: 10 pcs.
DESCRIPTION

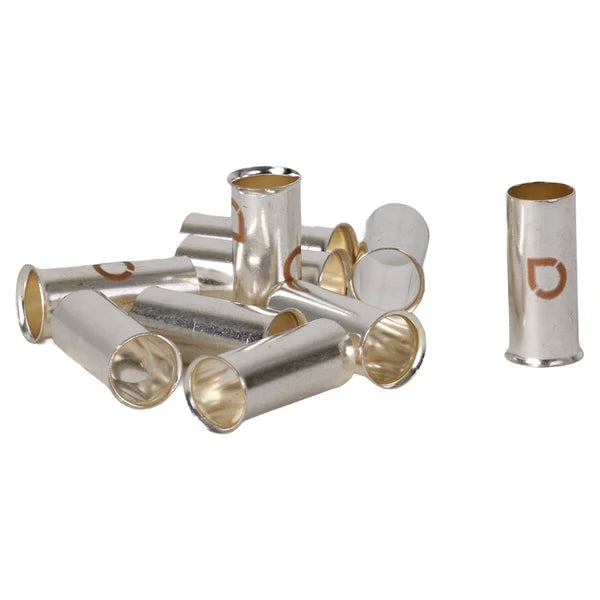

L1WS4 - A 10-pack of uninsulated 25 mm² (4 AWG) copper wire ferrules.
L1WS4 is a 10-pack of uninsulated wire ferrules designed for robust and stylish wire terminations. These ferrules support up to 25 mm² (4 AWG) wire and help maintain clean, consistent conductor ends during installation.
25 mm² / 4 AWG wire ferrules
10 pieces per pack
Copper core
Tin-plated for corrosion protection
Flared entry for easier cable insertion
Improves contact between conductor and terminal
Suitable for crimping or direct clamping in terminals
Wire ferrules
Uninsulated wire ferrules reduce strand spread and conductor damage when terminating power or speaker wire in screw or clamp terminals. By enclosing the stripped conductor, the ferrule creates a uniform contact surface that improves electrical conductivity and mechanical stability. This allows the cable to be installed, removed, and reinstalled without fraying or breakage. Finishing with tape or heat shrink adds strain relief and insulation where required.
TECHNICAL DATA
Length: 15.9 mm
Outer diameter: Ø 7.8 mm
Inner diameter: Ø 7.3 mm
SKU L1WS4
Product Type Wire Ferrule
EAN/GTIN 7394409045803
Product Status Active
Weight (each) 0.007 kg
Unit 10-pack
Packaging Dimensions (each, W x H x D) 3.5 x 9.0 x 2.0 cm
Auto-Connect L1WS4, 25 mm² wire ferrules, 10 pcs.
