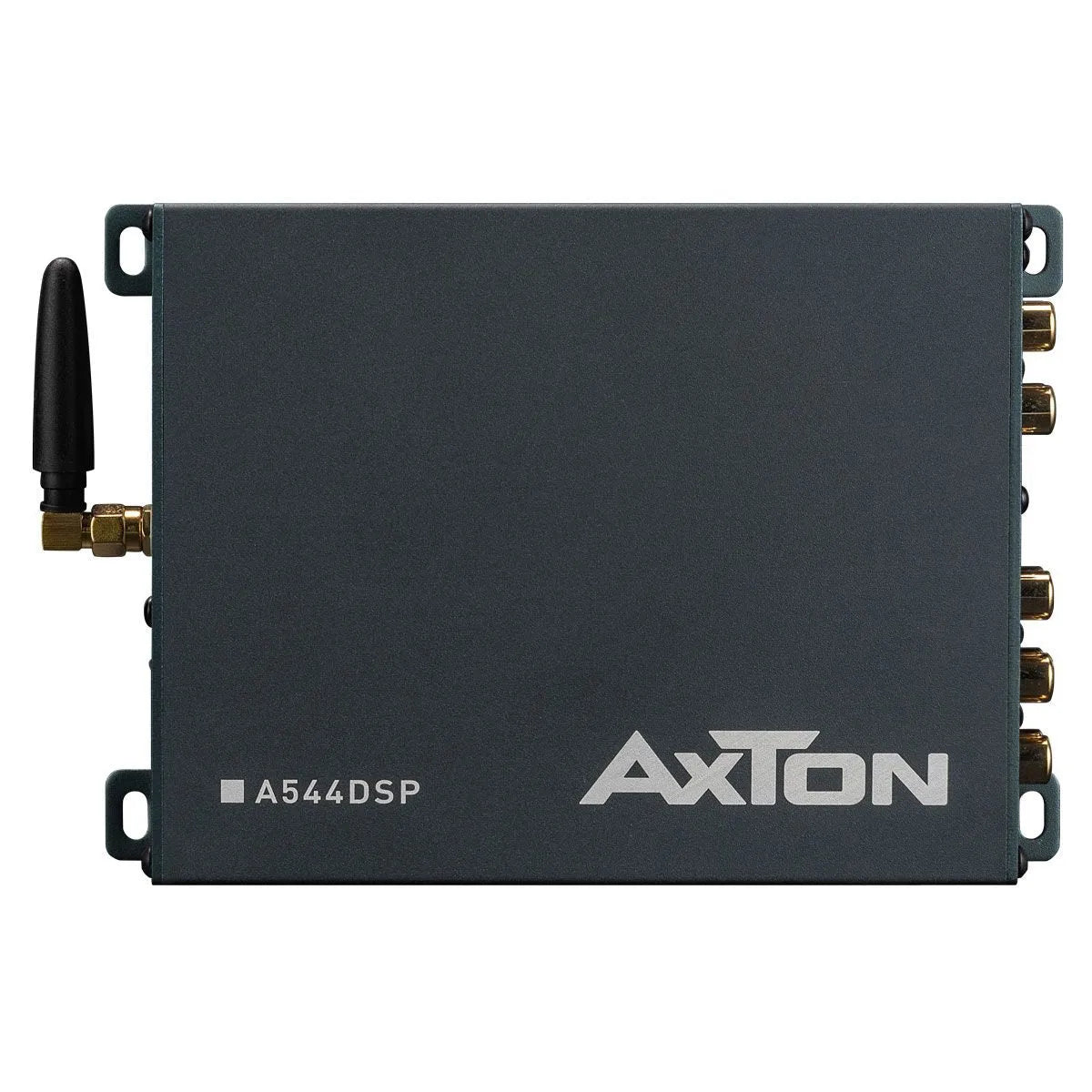

AXTON, A544DSP 4-channel car audio amplifier, 4x30W

INFORMACIJA

AXTON, A544DSP amplifier, 4x50W

The new AXTON DSP amplifier A544DSP is extremely strong not only in terms of features, but also in price. With the new A544DSP, an incredible 10 channels can be configured via the app. If even more DSP channels are needed, the audio signal can be transmitted losslessly via the optical output to another AXTON DSP amplifier with an optical input, thus obtaining up to 20 DSP channels. In fact, with this concept, it is theoretically even possible to create an UNLIMITED number of DSP channels. Of course, each DSP channel is equipped with a parametric 15-band equalizer, crossovers up to 24 dB/oct, delay correction, and phase correction. The revised crossover now offers three filter characteristics: Butterworth, Linkwitz, and Bessel. The new 9-band INPUT EQ ensures that all signal sources can be adjusted to an identical frequency response. The newly integrated channel routing significantly simplifies channel assignment. What used to be solved with cable adapters at the input is now done with a few movements in the AXTON DSP app. The integrated A/B class amplifier powers 4 output channels with 4 x 25 W RMS. This much power is enough to significantly boost series speakers and to drive tweeters in 2 or 3-way concepts. The other 6 pre-outputs can be conveniently routed to the Axton A601, giving you a powerful amplifier combination of 4 x 25 W RMS + 6 x 100 W RMS, applicable to multi-channel systems from many car manufacturers. The optionally available "plug & play" connection cable is also affordably priced - the "Axton" range covers more than 30 car brands. The ABT50 interface allows high-resolution audio or music playback in Studiomaster quality via the A544DSP.

MAIN FEATURES A544DSP

• 4-channel intelligent digital amplifier with audio DSP functions controlled by iOS or Android apps.
• 10-channel DSP with 6 processed pre-amplifier outputs (5 volts), including remote output for controlling additional amplifiers

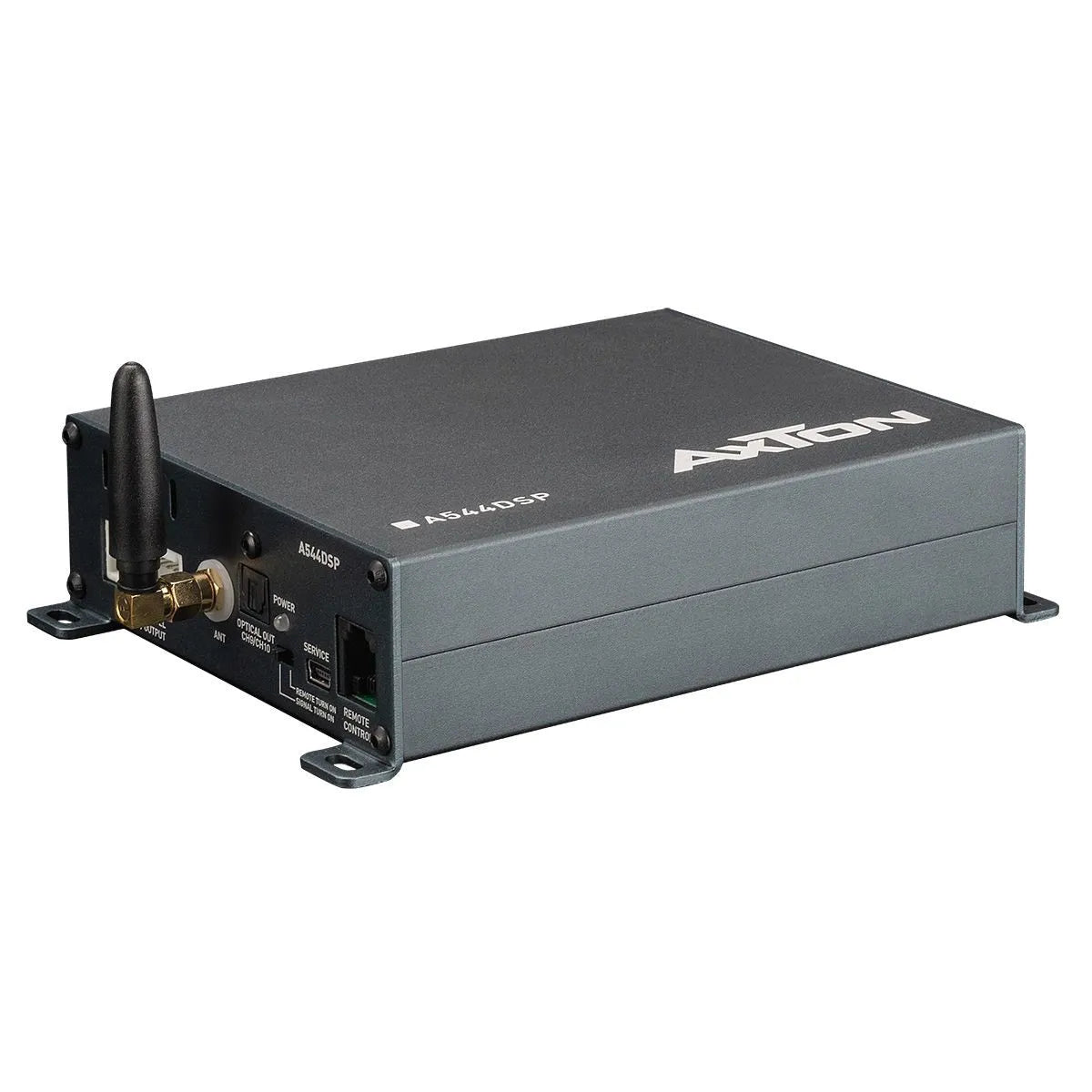

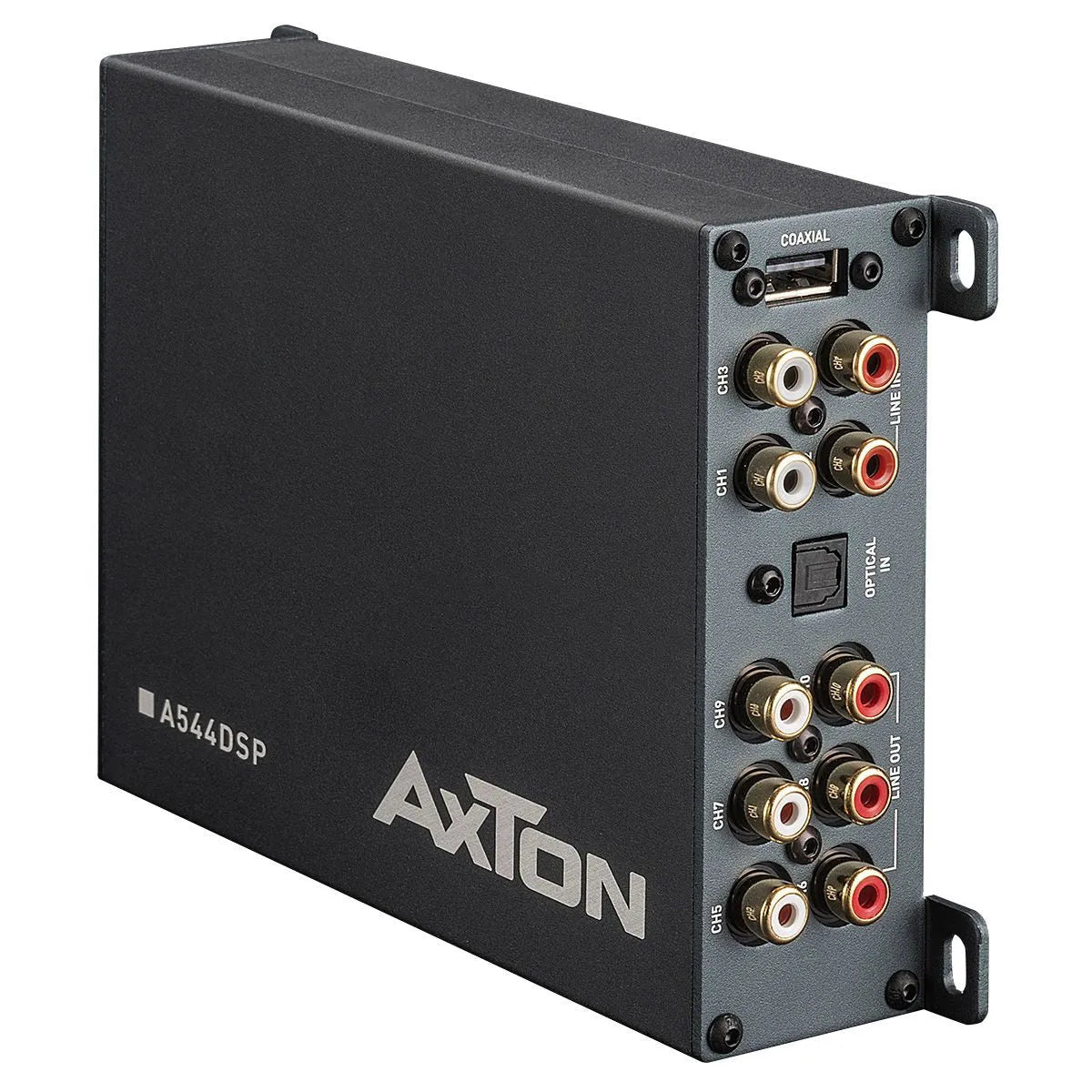

• Optical and coaxial input for ABT50 high-resolution audio interface or another Axton DSP
• Optical output for cascading the signal to another Axton DSP amplifier
• Bluetooth audio streaming with automatic source switching
• Plug'N'Play installation with optional vehicle-specific connection cables
• Auto-on function via high-level input

DSP FEATURES

• Freely adjustable active crossover: high/low/band/bypass with 6/12/18/24 dB/oct. channel slope (Butterworth, Bessel or Linkwitz-Riley)
• Freely adjustable 31-band parametric equalizer for each channel
• Freely adjustable 9-band parametric equalizer for each input source
• Gain, phase switch, and mute function for each channel
• Adjustable delay correction for each channel (0–550 cm / 0–15.8 ms)
• Memory for your settings: 5 in the amplifier, unlimited on the smartphone
• Dynamic bass function ensures powerful performance without a subwoofer
• Noise Gate function to reduce background radio noise

TECHNICAL SPECIFICATIONS

• Music power: 4 x 30 W, at 4/2 ohms
• RMS power: 4 x 25 W, at 4/2 ohms
• Information without / with additional power supply
• Frequency response 20 Hz - 20 kHz
• Signal-to-noise ratio > 120 dB
• Dynamic range > 100 dB
• Dimensions: 177 x 40 x 114 mm

Connection cables are not included. The cable, according to the car model connector, is purchased separately.

Universal cable ATS-ISO4. For inquiries, please call +370 687 85887

PLUG AND PLAY CONNECTIONS:

ATS-ISO4 Axton A5xxDSP cable, Universal

Alfa Romeo

• 145 1994 - 2001
• 146 1995 - 2001
• 147 2000 - 2006
• 155 1992 - 1997
• 156 1997 - 2007
• 164 1988 - 1998
• 166 2001 to today
• GT Coupé 2004 - 2006
• GTV (2G) 1994 - 2006
• Spider (5G) 1990 - 2006

Audi

• A2 (Type 8Z) all models 1999 - 2005
• A3 (1G - Type 8L) all models 1996 - 2003
• A3 (2G - Type 8P/8PA) all models 2003 - 2008
• A4 (Type B5) all models 1994 - 2001
• A4 (Type B6) all models 2000 - 2004
• A4 (Type B7) all models 2004 - 2006
• A6 (C4 Type 4A) all models 1994 - 2005
• A8 (Type D2/D3) all models 1994 - 2002
• TT Coupé / Roadster (G1 - Type 8N) all models 1998 - 2006

Citroen

• Berlingo I 2003 - 2008
• C1 (1G) all models 2005 - 2012
• C2 2003 - 2005
• C3 / Pluriel 2001 - 2004
• C5 (1G) 2001 - 2004
• C8 2002 - 2005
• Evasion 1994 - 2002
• Xsara / Xsara Picasso 2002 to today

Fiat

• Ulysse I (1st Generation) 1994 - 2002
• Ulysse II (2nd Generation) 2002 - 2005

Ford

• Galaxy (1G - WGR) all models 1995 - 2006

Hyundai

• Santa Fe (2G - Type CM) all models 2010 - 2012
• i10 (1G) all models 2008 - 2014
• i20 (1G - Type PB) all models 2008 - 2014
• i30 (1G - Type FD/FDH) all models 2007 - 2012
• i40 all models 2011 - 2014
• ix35 all models 2010 - 2013

Kia

• Carens (3G - Type UN) all models 2009 - 2013
• Cee'd (1G - Type ED) all models 2007 - 2012
• Cee'd (2G - Type JD) all models 2012 to today
• Pro-cee'd (1G - Type ED) all models 2008 - 2012
• Sorento (2G - Type XM) all models 2009 - 2012
• Soul (1G) all models 2008 - 2011
• Sportage (3G - Type SL) all models 2010 - 2012
• Venga (1G - Type YN) 2009 - 2015
• Lancia
• Phedra 2002 - 2005
• Zeta 1994 - 2002

Peugeot

• 1007 all models 2005 - 2009
• 107 all models 2005 - 2012
• 206 all models 1998 - 2012
• 307 2001 - 2005
• 406 2001 - 2004
• 806 1994 - 2002
• 807 2002 - 2005
• Partner (1G) 2003 - 2008

Porsche

• 911 (Type 964) all models 1988 - 1994
• 911 (Type 993) all models 1993 - 1998
• 911 (Type 996) all models 1997 - 2006
• 928 GTS all models 1992 - 1995
• 968 all models 1991 - 1995

Seat

• Alhambra 1996 - 2005
• Arosa (Type 6H+6HS) all models 1997 - 1999
• Cordoba (Type 6K/C - 6K GP01) all models 1993 - 2002
• Cordoba (Type 6L) all models 2002 - 2008
• Ibiza (2G -Type 6K) all models 1993 - 2002
• Ibiza (3G - Type 6L) all models 2002 - 2008
• Leon (1G - Type1M1) all models 2000 - 2005
• Toledo (2G - Type 1M) all models 1998 - 2004

Skoda

• Fabia I (Type 6Y) all models 1999 - 2007
• Octavia I (Type 1U) all models 1997 - 2010
• Superb I (Type 3U4) all models 2001 - 2008

Toyota

• Aygo (1G) all models 2005 - 2012

Volkswagen

• Bora 1998 - 2005
• Corrado 1989 - 1993
• Golf-2 (Type 19E) 1988 - 1992
• Golf-3 (Type 1H) 1991 - 2002
• Golf-4 (1J) 1997 - 2003 Lupo 1998 - 2005
• Passat B5 (Type 3B) all models 1997 - 2000
• Passat B5 GP (Type 3BG) all models 2000 - 2003
• Polo II (Type 86c 2F) all models 1990 - 1994
• Polo III (Type 6N) all models 1994 - 1999
• Polo III (Type 6N2) all models 1999 - 2001
• Polo IV (Type 9N) all models 2001 - 2005
• Sharan-1 (Type 7M8) 1995 - 2000
• Sharan-1 (Type 7M9) 2000 - 2004
• Vento all models 1992 - 1998

Honda

• ATS-ISO10 Axton A5xxDSP cable Honda 24 Pin

  Honda
  Accord (9G) all models 2012 - 2017
  Civic (9G) all models 2011 - 2016
  CR-V (4G) all models 2013 - 2017
  CR-Z all models 2010 - 2016
  Freed (1G) all models 2008 - 2016
  Inside (2G) all models 2009 - 2015
  Jazz (Type GE) 2008 - 2015
  Mobilio (2G) 2014 ->
  Odyssey (5G) 2013 ->
  Pilot (2G) 2008 - 2015
  Ridgeline (1G Facelift) 2009 - 2014

• ATS-ISO6 Axton A5xxDSP cable Mazda

  Mazda
  323 (Type BJ - 6G) 2000 - 2003
  626 (Type GF/GW - 5G) after facelift 2001 - 2002
  BT-50 (1G) 2006 - 2012
  CX-5 (1G) 2012 ->
  CX-7 (1G after facelift) 2009 - 2013
  CX-7 (1G) 2007 - 2008
  CX-9 (1G) 2007 - 2012
  Demio (1G after facelift) 2000 - 2003
  MPV 2000 - 2004
  MX-5 (2G - Type NB/NB-FL) 2001 - 2005
  MX-5 (3G - Type NC) all models 2005 - 2014
  Mazda2 (1G - DY) 2003 - 2007
  Mazda2 (2G - DE) 2007 - 2014
  Mazda3 (1G) 2003 - 2008 Mazda3 (2G) 2009 - 2012 Mazda3 (3G) 2013 ->
  Mazda5 (1G) 2005 - 2010 Mazda5 (2G) 2010 ->
  Mazda6 (1G) 2002 - 2007 Mazda6 (2G) all models 2008 - 2013
  Mazda6 (3G) 2014 ->
  Premacy 2001 - 2005
  RX-8 (1G) all models 2004 - 2012
  Tribute (1G) 2000 - 2006
  Xedos 9 (1G) 2001 - 2002

• ATS-ISO7 Axton A5xxDSP cable CITROEN, PEUGEOT, SUBARU, TOYOTA, LEXUS

  Citroen


  C1 (2G) 2014 ->

  Lexus
  GS (2G - Type JZS160) 2003 - 2005
  GX470 (1G) 2003 - 2009
  IS (1G - Type XE1) 2001 - 2005

  Peugeot
  108 2014 ->

  Subaru
  BRZ 2012 ->

  Toyota
  4Runner (2G - Type N130) 1989 - 1995
  4Runner (3G - Type N180) 1995 - 2002
  4Runner (4G - Type N210) 2002 - 2009
  4Runner (5G - Type N280) 2009 ->
  Auris (1G - Type E150) 2006 - 2012
  Avensis (1G Type T22) 1998 - 2003
  Avensis (2G Type T25) 2003 - 2009
  Avensis (3G - Type T27) 2009 - 2015
  Avensis (3G Type T27) 2015 ->
  Avensis Verso 2001 - 2005
  Aygo (2G) 2014 ->
  Camry (4G Type XV20) 1996 - 2001
  Camry (5G Type XV30) 2001 - 2006
  Camry (6G - Type XV40) 2006 - 2011
  Carina 1988 - 2001
  Celica (7G Type T23) 1999 - 2005
  Celica (G1 to G6) 1986 - 1999
  Corolla (1G to 8G) 1988 - 2001
  Corolla (9G - Type E120) 2002 - 2007
  Corolla (10G - Type E14/E15) 2007 - 2013
  Corolla (11G - Type E160/E170) 2013 ->
  Corolla Verso (2G - Type E120N) 2001 - 2004
  Corolla Verso (2G - Type ZER/ZZE) 2004 - 2009
  GT86 all models 2012 ->
  Highlander (1G) 2001 - 2007
  Hilux (7G - Type N25) 2005 ->
  Land Cruiser (12G - Type J12) 2002 - 2009
  MR2 (2G - Type W2) 1989 - 1999
  MR2 (3G - Type W3) 1999 - 2007
  Paseo 1991 - 1999
  Picnic 1990 - 1999
  Previa (1G - Type XR10/XR20) 1990 - 1999
  Previa (2G - Type XR30/XR40) 2000 - 2006
  Prius (3G - Type ZVW30) 2009 ->
  RAV4 (1G - Type SXA10/11/15/16) 1994 - 2000
  RAV4 (2G - Type ACA20/21/ZCA25/26) 2001 - 2006
  RAV4 (3G - Type CA30W) 2006 - 2010
  RAV4 (4G - Type XA40) 2013 ->
  Starlet (9G - Type P9) 1996 - 1999
  Supra (2G - Type JZA80) 1993 - 2003
  Tercel (5G - Type L50) 1994 - 2000
  Verso all models 2009 ->
  Verso-S all models 2010 ->
  Yaris (1G - Type P1) 1999 - 2005
  Yaris (2G - Type XP9) 2006 - 2011
  Yaris (3G - Type XP13) pre-facelift 2011 - 2016
  Yaris Verso 1999 - 2005

• ATS-ISO55 Axton A5xxDSP cable CITROEN, PEUGEOT from 2016

  Citroen

  C3 Aircross II 08/2017 ->
  C3 III 01/2017 ->
  C5 Aircross 09/2017 ->
  C5 III 04/2017 ->
  Jumpy III 01/2016 ->
  Spacetourer 03/2016 ->

  Peugeot
  2008 06/2017 ->
  3008 II 08/2016 ->
  5008 II 06/2017 ->
  Expert III 01/2016 ->
  Traveller 03/2016 ->

• ATS-ISO53 Axton A5xxDSP cable VOLVO

  Volvo
  C 70 (Type N) 2000 - 2005
  S 40 (I) 2000 - 2003
  S 60 2001 - 2004
  S 80 (Type TS) 1998 - 2006
  V 40 2000 ->
  V 70 (P26) 2000 - 2006
  XC70 2002 - 2007


• ATS-ISO40 Axton A5xxDSP cable Fiat, Jaguar, Jeep

  Fiat Viaggio, Ottimo
  Jaguar XF
  Jeep Cherokee

• ATS-ISO36 Axton A5xxDSP cable Opel

Opel Astra K, Insignia, Meriva B, Mokka, Zafira C

• ATS-ISO106 Axton A5xxDSP cable Fiat Ducato Series 8


Fiat

Ducato Series 8 2021 ->

• ATS-ISO97 Axton A5xxDSP cable Ford Focus Transit Tourneo Custom

Ford
Eco Sport II FL (only Standard Sound System) 2018 ->

Fiesta VIII (only Standard Sound System) 2017 ->

Focus IV (only Standard Sound System) 2018 ->

Kuga III (only Standard Sound System) 2019 ->

S-Max II FL (Standard Sound System) 2019 ->
Tourneo MY18 (only Standard Sound System) 2018 ->

Transit MY18 (Type 7G) all models 2019 ->
Transit Custom (2G - Type FCC) all models 2019 -

• ATS-ISO90 Axton A5xxDSP cable Mercedes M-Bux


Mercedes M-Bux System from model year 2017

• ATS-ISO45 Axton A5xxDSP cable Hyundai, Kia

Hyundai from 2017
Accent (5G) 2017 ->
Genesis (G80) 2016 ->
Grandeur (6G) 2016 ->
i30 (Type PD) 2017 ->
Tucson (TL Facelift) 2018 ->

KIA from 2017
Carens (Type RP Facelift) with Navi 2017 ->
Picanto (Type JA) 2017 ->
Ceed (Type JD Facelift) with Navi 2017 ->
Niro (Type DE) Navi without CD 2017 ->
Optima (Type JF Facelift) with Navi 2017 ->
Rio (Type YB) 2017 ->
Sportage (Type QL Facelift) with Navi 2017 ->
Stonic with Navi 2017 ->

• ATS-ISO43 Axton A5xxDSP cable Audi, Mercedes

Audi
A3 (2G - Type 8P/8PA) all models 2003 - 2008
A4 (Type B6 - 8E/8H) all models 2001 - 2006
A6 (C5 Type 4B) all models 2003 - 2005
A6 (C6 Type4F) 2004 - 2006

Mercedes
B-Class
C-Class (Type 205) 2014 ->
GLC (Type X253) 2015 - 2019

• ATS-ISO18 Axton A5xxDSP cable Citroen, Peugeot, Fiat, Mitsubishi


Citroen
C-Crosser 2007 ->
C4 Aircross 2012 ->

Fiat
Fullback 2016 - 2019

Mitsubishi
ASX (all models) 2010 ->
L200 (5G) 2015 ->
Lancer (8G) 2007 ->
Outlander (2G) 2006 -> 2012
Outlander (3G) 2012 ->
Pajero (4G) 2006 ->
Space Star (1G) 2012 ->

Peugeot
4007 2007 ->
4008 SUV 2012 ->

• ATS-ISO19 Axton A5xxDSP cable for Ford, Land Rover, Mazda


  Ford
  B-MAX 2013 ->
  C-MAX (2G - DXA) all models 2011 ->
  Fiesta (7G) all models 2010 - 2013
  Fiesta (7G) all models 2013 ->
  Focus (3G - DYB) all models 2011 - 2014
  Kuga (2G) all models 2013 ->
  Mondeo (5G) no Sync3 2015 ->
  Ranger all models 2012 ->
  Tourneo Connect (2G - Type PU2) no Sync3 2013 - 2018
  Tourneo Custom (Type FAC) no Sync3 2013 ->
  Transit (7G) no Sync3 2013 - 2018
  Transit (Type T - V363) no Sync3 2014 - 2019
  Transit Connect (2G - Type LWB) no Sync3 2013 - 2018
  Transit Custom (2G - Type FCC) no Sync3 2013 - 2016

  Land Rover
  Discovery (4G) all models 2012 - 2016
  Freelander (2G - Type LF) all models 2013 - 2014

  Mazda
  BT-50 (2G) all models 2012 ->

• ATS-ISO2 Axton A5xxDSP cable for Hyundai, Kia


Hyundai
Accent (3G - Type MC) all models 2005 - 2010
Coupé / Tiburon (3G - Type GK) all models 2007 - 2009
Elantra (2G - Type HD) all models 2007 - 2011
Grandeur (4G - Type TG) all models 2005 - 2011 H-1 (2G - Type TQ) all models 2008 - 2010
Santa Fe (2G - Type CM) all models 2006 - 2010
Sonata (5G - Type NF) all models 2004 - 2010
Starex (2G - Type TQ) all models 2008 - 2010
Tucson (1G - Type JM) all models 2004 - 2010

Kia
Carens (3G - Type UN) all models 2006 - 2008
Carnival (1G - Type UP/GQ) all models 2003 - 2005
Carnival (2G - Type VQ) all models 2006 - 2011
Magentis (2G - Type MG) all models 2006 - 2008
Rio (2G - Type JB) all models 2005 - 2011
Sorento (1G - Type JC) all models 2007 - 2009
Sportage (2G - Type JE) all models 2004 - 2008
Sportage (2G - Type JE) all models 2008 - 2010

• ATS-ISO24 Axton A5xxDSP cable for Ford, Land Rover


Ford
Fiesta (7G) all models 2008 - 2010

Land Rover
Defender (2G) all models 2007 - 2016
Discovery (4G) all models 2009 - 2012

• ATS-ISO26 Axton A5xxDSP cable for Peugeot

Peugeot 307, 308, 407, 408, 508, 5008 etc. with PSA Quadlock

• ATS-ISO15 Axton A5xxDSP cable for Opel, Chevrolet

  Chevrolet (KOR)
  Aveo 2011 ->
  Cruze 2009 ->
  Opel
  Adam all models 2012 ->
  Astra J all models 2009 - 2015
  Corsa E all models 2014 ->
  Insignia all models 2008 ->
  Meriva (Type B) all models 2010 ->
  Mokka all models 2012 ->
  Zafira Tourer (Type C) all models 2011 - 2016

• ATS-ISO13 Axton A5xxDSP cable for Subaru

Subaru XV, Outback

• ATS-ISO28 Axton A5xxDSP cable for Chrysler, Dodge, Jeep

Chrysler
300 2008 -> 2010
Aspen 2007 -> 2010
Grand Voyager RT 2008 ->

Dodge
Avenger (II) 2007 - 2010
Caravan (V) 2007 ->
Journey 2008 - 2009
Nitro 2006 - 2007
Ram 1500 2006 - 2009
Ram 2500 2006 - 2009

Jeep
Cherokee (KK) 2007 ->
Commander 2007 ->
Compass 2007 - 2008
Grand Cherokee (WH) 2008 - 2010
Wrangler 2008 - 2010

• ATS-ISO3 Axton A5xxDSP cable for Hyundai, Kia

Hyundai
Accent (4G - Type RB) all models 2010 - 2017
Aslan 2014 - 2017
Elantra (3G - Type MD/UD) all models 2011 ->
Santa Fe (3G - Type DM) all models 2012 ->
Sonata (6G - Type YF and LFA) all models 2009 ->
Tuscon (3G - Type TL without CarPlay) 2015 - 2018
Veloster all models 2011 -> i10 (2G) with Navi 2014 ->
i20 (2G - Type GB) with Navi 2014 ->
i30 (2G - Type GD/GDH) with Navi 2011 -> 2016
i40 (Type VF) with Navi 2011 ->
ix20 with Navi 2010 ->
ix35 with Navi 2009 - 2015

Kia
Carens (4G - Type RP) Radio/Navi without CD 2013 - 2016
Cee'd (2G - Type JD Facelift) Navi without CD 2012 - 2016
Optima (Type JF) with Navi 2010 - 2016
Picanto (Type TA) 2011 - 2016
Pro-cee'd (2G - Type JD) all models 2013 ->
Rio (Type UB Facelift) 2011 - 2016
Sorento (Type UM) with Navi 2014 ->
Soul (Type PS) all models 2014 ->
Sportage (Type SL) 2010 - 2015
Venga (Type YN facelift) 2014 ->

• ATS-ISO32 Axton A5xxDSP cable for CITROEN, PEUGEOT, SUBARU, TOYOTA, LEXUS with new connector

Citroen
C1 (2G) 2014 ->

Lexus
GS (2G - Type JZS160) 2003 - 2005
GX470 (1G) 2003 - 2009
IS (1G - Type XE1) 2001 - 2005

Peugeot
108 2014 ->

Subaru
BRZ 2012 ->

Toyota
4Runner (2G - Type N130) 1989 - 1995
4Runner (3G - Type N180) 1995 - 2002
4Runner (4G - Type N210) 2002 - 2009
4Runner (5G - Type N280) 2009 ->
Auris (1G - Type E150) 2006 - 2012
Avensis (1G Type T22) 1998 - 2003
Avensis (2G Type T25) 2003 - 2009
Avensis (3G Type T27) 2009 - 2015
Avensis (3G Type T27 Facelift) 2015 ->
Avensis Verso 2001 - 2005
Aygo (2G) 2014 ->
Camry (4G Type XV20) 1996 - 2001
Camry (5G Type XV30) 2001 - 2006
Camry (6G - Type XV40) 2006 - 2011
Carina 1988 - 2001
Celica (7G Type T23) 1999 - 2005
Celica (G1 to G6) 1986 - 1999
Corolla (1G to 8G) 1988 - 2001
Corolla (9G - Type E120) 2002 - 2007
Corolla (10G - Type E14/E15) 2007 - 2013
Corolla (11G - Type E160/E170) 2013 ->
Corolla Verso (2G - Type E120N) 2001 - 2004
Corolla Verso (2G - Type ZER/ZZE) 2004 - 2009
GT86 all models 2012 ->
Highlander (1G) 2001 - 2007
Hilux (7G - Type N25) 2005 ->
Land Cruiser (12G - Type J12) 2002 - 2009
MR2 (2G - Type W2) 1989 - 1999
MR2 (3G - Type W3) 1999 - 2007
Paseo 1991 - 1999
Picnic 1990 - 1999
Previa (1G - Type XR10/XR20) 1990 - 1999
Previa (2G - Type XR30/XR40) 2000 - 2006
Prius (3G - Type ZVW30) 2009 ->
RAV4 (1G - Type SXA10/11/15/16) 1994 - 2000
RAV4 (2G - Type ACA20/21/ZCA25/26) 2001 - 2006
RAV4 (3G - Type CA30W) 2006 - 2010
RAV4 (4G - Type XA40) 2013 ->
Starlet (9G - Type P9) 1996 - 1999
Supra (2G - Type JZA80) 1993 - 2003
Tercel (5G - Type L50) 1994 - 2000
Verso all models 2009 ->
Verso-S all models 2010 ->
Yaris (1G - Type P1) 1999 - 2005
Yaris (2G - Type XP9) 2006 - 2011
Yaris (3G - Type XP13) before facelift 2011 - 2016
Yaris Verso 1999 - 2005

• ATS-ISO33 Axton A5xxDSP cable for Audi, Seat, Skoda, VW


Audi
A1 (Type 8X) all models 2010 ->
A3 (3G - Type 8V) all models 2012 ->
A4 (Type B8) all models 2007 - 2015
A5 (Type 8T) 2007 -> 2015
A5 (Type F5) 2016 ->
A6 (Type C8) 2018 ->
A7 (Type C8) 2018 ->
Q2 (Type GA) 2016 -> br> Q3 (Type 8U) 2011 - 2018
Q3 (Type F3) 2018 ->
Q5 (Type 8R) 2008 - 2016
Q5 (Type FY) 2017 ->
Without Audi Sound System

Seat
Alhambra II Facelift 2016 ->
Arona 2017 ->
Ateca 2016 ->
Leon (Type 5F) 2012 ->
Toledo (4G - Type KG) all models 2015 ->

Skoda
Enyaq iV 2021 ->
Fabia (Type NJ) 2014 ->
Karoq 2017 ->
Kodiaq 2017 ->
Rapid (Type NH) 2011 ->
Rapid Spaceback (Type NH) 2011 ->
Octavia III (Type 5E) 2013 ->
Superb (Type 3V) 2015 ->

Volkswagen
Amarok 2016 ->
Arteon (Type 3G) 2017 ->
Beetle 5C Facelift 2015 ->
Caddy V 2020 ->
Crafter II 2017 ->
Golf Sportsvan 2014 ->
Golf 7 Type AU 2012 ->
Golf 8 2019 - >
ID.3 2019 ->
ID.4 2020 ->
Jetta 6 (Type 162) all models 2015 ->
Passat B8 (Type 3G) 2014 - 2020
Passat B8 Facelift (Type 3G) 2020 ->
Polo 6 (Type 6C) 2014 - 2017
Polo 7 (Type AW) 2017 ->
Scirocco 3 Facelift 2014 - 2017
Sharan 2 Facelift 2016 ->
T-Roc (Type A1) 2017 ->
T6 2015 - 2019
T6.1 2019 ->
Tiguan II (Type AD1) 2016 ->
Touareg II (Type 7P) 2010 - 2018
Touareg III (Type CR) 2018 ->
Touran II (Type 5T) 2015 ->
Up! (Type AA Facelift) 2016 ->

• ATS-ISO5 Axton A5xxDSP cable for BMW, Citroen, Fiat, Ford, MB, Lancia, Opel, Peugeot, Seat, Toyota, VW

BMW
The green cables of the hands-free system may need to be reconnected.
Only supports standard stereo sound system
1 Series (Type E81/82/87/88) 2004 - 2011
2 Series (Type F22/23/45/46/87)
3 Series (Type E90/91/92/93 / F30/31/34/35) 2005 - 2019
4 Series (Type F32/33)
5 Series (Type F07/10/11/18/G30/31/38)
6 Series (Type F06/12/13)
i3 Series (Type I01)
i8 Series (Type I12)
X1 (Type E84/F48/49) all models 2009 ->
X2 (Type F39)
X3 Series (Type E83/F25/G01) 2004 - 2019
X4 Series (Type F26)
X5 Series (Type E70/F15)
X6 Series (Type E71/72)
Z4 (Type E85/86/89) all models 2009 ->

Mini
The green cables of the hands-free system may need to be reconnected.
R56/57/58/59 2007 - 2014
F54/55/56 2014 ->

Citroen
C1 (1G) all models 2012 - 2014
C2 2006 ->
C3 (2G) / Picasso 2009 ->
C3 / Pluriel 2005 - 2010
C4 (Type L) / Picasso / Coupé 2004 - 2010
C4 (Type N) / Picasso 2010 ->
C5 (1G) 2004 - 2008
C5 (2G) 2008 ->
C6 2006 - 2012
C8 2005 ->
DS 3 2010 ->
DS 4 2011 ->
Jumpy 2007 ->

Fiat
Scudo 2007 - 2016
Ulysse II (2nd Generation) 2005 ->

Ford
C-MAX (1G - DM2) 2007 - 2010
Fiesta (6G) 2005 - 2008
Focus (2G - C307) 2004 - 2010
Focus C-MAX (C214) 2003 - 2007
Fusion 2005 - 2012
Galaxy (2G - WA6) 2006 - 2015
Kuga (1G) 2008 - 2012
Mondeo (1G - Type GBP/BNP) 1993 - 1994
Mondeo (3G - Type B4Y/B5Y/BWY) 2003 - 2007
Mondeo (4G - Type BA7) 2007 - 2014
S-MAX 2006 - 2015
Tourneo Connect (1G) all models 2006 - 2012
Transit (6G) 2006 - 2013

Mercedes-Benz
A-Class (169 Series) 2004 - 2012
B-Class (245 Series) 2005 - 2011 C-Class (203 Series) 2004 - 2008
E-Class (212 Series) 2009 - 2016
CLC-Class (203 Series) 2008 - 2011
G-Class (461 / 463 Series) 2007 - 2012
GLA (X156 Series) 2013 - 2019
GL-Class (164 Series) 2006 - 2012
ML (164 Series) 2005 - 2011
R-Class (251 Series) 2005 - 2012
Sprinter (2G - 906 Series) 2006 - 2018
V-Class (3G - 447 Series) 2014 ->
Vito (3G - 447 Series) 2014 ->
Vito / Viano (2G - 639 Series) 2006 - 2014

Lancia
Phedra 2005 ->

Opel
Agila A (1G - Type 0HAF68) 2005 - 2007
Antara 2005 - 2017
Astra H 2004 - 2010
Combo C (G2) 2006 - 2011
Corsa D 2006 - 2014
Meriva (Type A) 2005 - 2010
Signum 2005 - 2008
Tigra Twin Top 2004 - 2009
Vectra (Type C) 2004 - 2008
Vivaro (Type A) 2006 - 2010
Zafira (Type B) 2005 - 2014

Peugeot
1007 2005 - 2009
107 2012 - 2014
207 2006 -> 207 CC 2007 ->
3008 2009 ->
307 2005 ->
308 2007 - 2009
407 2004 -> 607 2005 -> 807 2005 -> Expert 2007 - 2015
RCZ 2010 - 2015

Seat
Alhambra 2005 - 2010
Alhambra II 2010 - 2015 Altea 2004 ->
Exeo 2008 - 2013 Ibiza (4G - Type 6J/6P) 2008 - 2014
Leon (2G - Type 1P) 2005 - 2012
Mii 2011 -> Toledo (3G - Type 5P) 2004 - 2009
Toledo (4G - Type KG) 2012 - 2015
Citigo 2011 ->
Fabia II (Type 5J) 2007 - 2014
Octavia II (Type 1Z) 2004 - 2013
Rapid (Type NH) 2012 - 2015
Roomster (Type 5J) 2006 ->
Superb II (Type 3T) 2008 - 2015
Yeti (Type 5L) all models 2009 - 2015

Smart
forfour (1G - 454 Series) 2004 - 2006

Toyota
Aygo (1G) all models 2012 - 2014
ProAce (1G) all models 2013 - 2016

Volkswagen
Amarok 2010 - 2014
Beetle all models 2011 - 2014
Caddy (2K) 2003 - 2014
Crafter 2006 - 2014
Eos Coupé-Cabriolet (Type 1F) 2006 - 2014
Fox (Type 5Z) 2005 - 2011
Golf-5 (1K1) 2003 - 2008
Golf-6 (1L1) 2008 - 2012
Jetta-5 (Type 1K5/1KM) 2005 - 2010
Jetta-6 (Type 162) 2011 - 2014
Passat B5 GP (Type 3BG) all models 2003 - 2005
Passat B6 (Type 3C) all models 2005 - 2010
Passat B7 (Type 3C/36) all models 2010 - 2014
Passat CC (Type 3C/35) all models 2008 - 2014
Polo IV (Type 9N3) all models 2005 - 2009
Polo V (Type 6R) all models 2009 - 2014
Scirocco III (Type 13) 2008 - 2014
Sharan-1 (Type 7M9) 2004 - 2010
Sharan-2 (Type 7N) 2010 - 2014
T5 2003 - 2014
Tiguan 2007 - 2014
Touareg (1G - Type 7L) 2002 - 2010
Touareg (2G - Type 7P) 2010 - 2014
Touran 2003 - 2014
up! (Type VW120) 2011 - 2014>

• ATS-ISO46 Axton A5xxDSP cable for Dacia, Fiat, MB, Nissan, Opel, Renault

Dacia
Dokker all models 2012 - 2018
Duster all models 2012 - 2018
Lodgy all models 2012 - 2018
Logan all models 2012 ->
Sandero all models 2012 - 2018

Fiat
Talento all models 2016 ->

Mercedes-Benz
Citan (Type W 415) all models 2012 ->

Nissan
NV300 all models 2016 ->
Nv400 all models 2010 - 2014
Primastar (1G) all models 2011 - 2014
Primastar (2G) all models 2014 ->

Opel
Movano (Type B) all models 2010 - 2014
Vivaro (Type A) all models 2011 - 2014
Vivaro (Type B) all models 2014 - 2019

Renault
Kangoo (2G - Type W) all models 2012 ->
Master (3G) all models 2014 - 2019
Megane (3G) all models 2012 ->
Scénic 3G (Type JZ) all models 2012 ->
Trafic II all models 2011 - 2014
Trafic III (3G) all models 2014 - 2019
Twingo II all models 2012 - 2014
Wind all models 2012 ->

• ATS-ISO12 Axton A5xxDSP cable for Dacia, Fiat, Mazda, Nissan, Opel, Renault, Subaru


Dacia
Dokker all models 2018 ->
Duster II all models 2018 ->
Lodgy all models 2018 ->
Sandero all models 2018 ->

Fiat
Talento all models 2016 ->

Mazda
CX5 II 2017 ==>

Nissan
370Z 2009 ->
Altima 2007 ->
Cube (Z12) 2010 ->
Juke all models 2010 - 2014 Juke all models 2014 ->
Leaf all models 2010 ->
Maxima (6G - Type A34) all models 2006 - 2008
Maxima (7G - Type A35) all models 2008 - 2014
Micra (4G - Type K13) all models 2011 - 2013
Micra (4G - Type K13) all models 2014 ->
Murano (2G - Type Z51) all models 2008 - 2015
NV300 all models 2016 ->
Navara (3G - Type D40) all models 2008 - 2010
Navara (3G - Type D40) all models 2010 - 2015
Note (1G - Type E11) all models 2007 - 2013
Note (2G - Type E12) all models 2013 ->
Nv200 (Vanette) all models 2009 - 2012
Nv200 (Vanette) all models 2013 ->
Nv400 all models 2015 ->
Pathfinder (3G - Type R51) all models 2007 - 2010
Pathfinder (3G - Type R51) all models 2010 - 2013
Pathfinder (4G - Type R52) all models 2013 ->
Primastar (2G) all models 2014 ->
Qashqai (1G - Type J10) all models 2007 - 2010 Qashqai (1G - Type J10) all models 2010 - 2013
Qashqai (2G - Type J11) all models 2014 ->
Tiida (Type C11) all models 2007 - 2011
X-Trail (2G - Type T31) all models 2007 - 2010 X-Trail (2G - Type T31) all models 2011 - 2014

Opel
Movano (Type B) all models 2014 ->
Vivaro (Type B) all models 2014 - 2019

Renault
Master (4G) all models 2019 ->
Trafic III (3G) all models 2014 - 2019
Twingo III all models 2014 ->

Subaru
Forester (3G - Type SH) all models 2008 - 2011 Forester (3G - Type SH) all models 2011 - 2013 Forester (4G - Type SJ) all models 2012 - 2015
GT86 (AHS Facelift) all models 2016 ->
Impreza - WRX (3G) all models 2007 - 2011
Impreza - WRX (4G) all models 2011 - 2015
Justy (4G - Type M300F) all models 2007 - 2011 Legacy (5G - Type BM/BR) all models 2009 - 2015
Outback 2007 - 2009

• ATS-ISO12 Axton A5xxDSP cable for Alfa Romeo, Audi, Citroen, Fiat, Ford, Hyundai, Kia, Lancia, Peugeot, Porsche, Seat, Skoda, Toyota, VW

Alfa Romeo
145 1994 - 2001
146 1995 - 2001
147 2000 - 2006
155 1992 - 1997
156 1997 - 2007
164 1988 - 1998
166 2001 -> GT Coupé 2004 - 2006
GTV (2G) 1994 - 2006
Spider (5G) 1990 - 2006

Audi
A2 (Typ 8Z) all models 1999 - 2005
A3 (1G - Typ 8L) all models 1996 - 2003
A3 (2G - Typ 8P/8PA) all models 2003 - 2008
A4 (Typ B5) all models 1994 - 2001
A4 (Typ B6) all models 2000 - 2004
A4 (Typ B7) all models 2004 - 2006
A6 (C4 Typ 4A) all models 1994 - 2005
A8 (Typ D2/D3) all models 1994 - 2002
TT Coupé / Roadster (G1 - Typ 8N) all models 1998 - 2006

Citroen
Berlingo I 2003 - 2008
C1 (1G) all models 2005 - 2012
C2 2003 - 2005
C3 / Pluriel 2001 - 2004
C5 (1G) 2001 - 2004
C8 2002 - 2005
Evasion 1994 - 2002
Xsara / Xsara Picasso 2002 ->

Fiat
Ulysse I (1st Generation) 1994 - 2002
Ulysse II (2nd Generation) 2002 - 2005

Ford
Galaxy (1G - WGR) all models 1995 - 2006

Hyundai
Santa Fe (2G - Typ CM) all models 2010 - 2012 i10 (1G) all models 2008 - 2014
i20 (1G - Typ PB) all models 2008 - 2014
i30 (1G - Typ FD/FDH) all models 2007 - 2012
i40 all models 2011 - 2014
ix35 all models 2010 - 2013

Kia
Carens (3G - Typ UN) all models 2009 - 2013
Cee'd (1G - Typ ED) all models 2007 - 2012
Cee'd (2G - Typ JD) all models 2012 ->
Pro-cee'd (1G - Typ ED) all models 2008 - 2012
Sorento (2G - Typ XM) all models 2009 - 2012
Soul (1G) all models 2008 - 2011
Sportage (3G - Typ SL) all models 2010 - 2012
Venga (1G - Typ YN) 2009 - 2015

Lancia
Phedra 2002 - 2005
Zeta 1994 - 2002

Peugeot
1007 all models 2005 - 2009
107 all models 2005 - 2012
206 all models 1998 - 2012
307 2001 - 2005
406 2001 - 2004
806 1994 - 2002
807 2002 - 2005
Partner (1G) 2003 - 2008

Porsche
911 (Typ 964) all models 1988 - 1994
911 (Typ 993) all models 1993 - 1998
911 (Typ 996) all models 1997 - 2006
928 GTS all models 1992 - 1995
968 all models 1991 - 1995

Seat
Alhambra 1996 - 2005
Arosa (Typ 6H+6HS) all models 1997 - 1999
Cordoba (Typ 6K/C - 6K GP01) all models 1993 - 2002
Cordoba (Typ 6L) all models 2002 - 2008
Ibiza (2G -Typ 6K) all models 1993 - 2002
Ibiza (3G - Typ 6L) all models 2002 - 2008
Leon (1G - Typ1M1) all models 2000 - 2005
Toledo (2G - Typ 1M) all models 1998 - 2004

Skoda
Fabia I (Typ 6Y) all models 1999 - 2007
Octavia I (Typ 1U) all models 1997 - 2010
Superb I (Typ 3U4) all models 2001 - 2008

Toyota
Aygo (1G) all models 2005 - 2012

Volkswagen
Bora 1998 - 2005
Corrado 1989 - 1993
Golf-2 (Typ 19E) 1988 - 1992
Golf-3 (Typ 1H) 1991 - 2002
Golf-4 (1J) 1997 - 2003 Lupo 1998 - 2005
Passat B5 (Typ 3B) all models 1997 - 2000
Passat B5 GP (Typ 3BG) all models 2000 - 2003
Polo II (Typ 86c 2F) all models 1990 - 1994
Polo III (Typ 6N) all models 1994 - 1999
Polo III (Typ 6N2) all models 1999 - 2001
Polo IV (Typ 9N) all models 2001 - 2005 Sharan-1 (Typ 7M8) 1995 - 2000
Sharan-1 (Typ 7M9) 2000 - 2004
Vento all models 1992 - 1998
