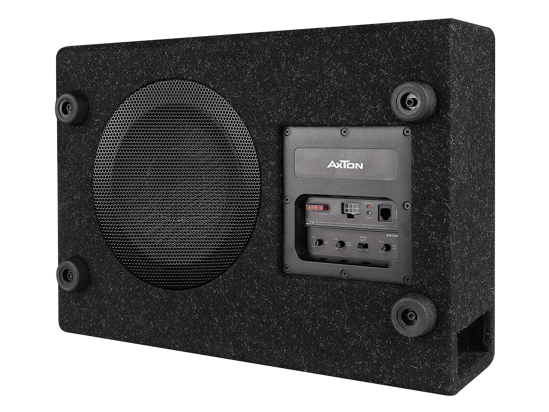

AXTON, ATB120A subwoofer, slim

INFORMACIJA

All about the ATB120A - the flattest subwoofer from AXTON

However you look at it – there is always room for the ATB120A. Thanks to its practical dimensions, the flat 20 cm / 8-inch subwoofer chassis, the reflex duct and the integrated amplifier are guaranteed to fit in almost any car boot: whether on the floor, hidden under the floor, permanently attached to the side panel or on the rear seat backrest - the extremely small space requirement is immediately apparent.

Of course, in addition to optimal mounting options, the sound characteristics are not neglected. As can be expected from AXTON, the ATB120A enhances the music with rich and melodic bass, which, of course, can kick in when needed. The 100 W RMS amplifier module is well protected on the bottom of the housing. All settings such as low-pass filter, phase, gain and bass boost can be conveniently adjusted. High-level inputs with auto-turn-on function are useful for connecting to factory radios (without REM output). The bass level can be conveniently adjusted from the driver's seat using the bass level remote control.

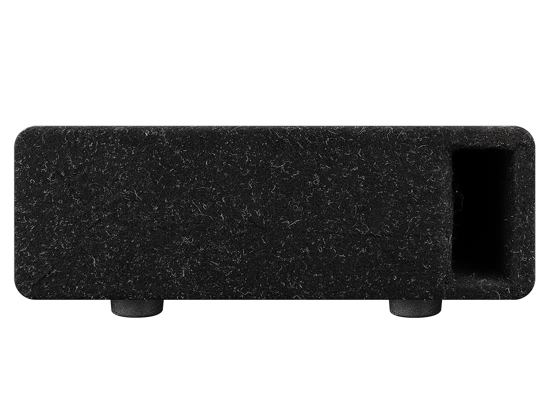

The intelligent component selection and the precise tuning of the reflex ducts are the basis for the level stability and dynamics of this active enclosure subwoofer, as well as the high linear Xmax value of ± 4 mm. The bass reflex enclosure is made of sturdy MDF and covered with robust fleece. The subwoofer is mounted according to the downfire principle, i.e., the speaker points downwards for optimal radiation and even distribution of the bass waves. The port is flow-optimized to reduce disruptive air turbulence.

The ATB120A amplifier module is compatible with AXTON's Easiest Bass Upgrade concept: For plug and play, simply combine the ATS-ISOATB accessory cable with one of the vehicle-specific ATS-ISOxx T-cables. The range includes more than 400 vehicle-specific cables from over 30 vehicle brands.

Highlights

• 1 x 20 cm/8-inch subwoofer in a reflex enclosure based on the downfire principle
• Active subwoofer in bass reflex enclosure operating on the downfire principle, flow-optimized port design

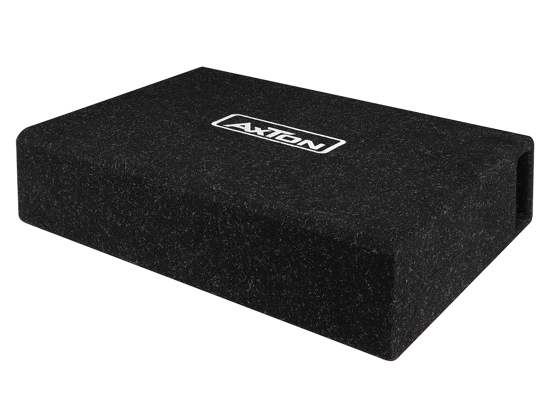

• Enclosure made of sturdy MDF with durable fleece cover
• Flow-optimized port design
• Flexible use due to compact enclosure dimensions
• 20 cm subwoofer with stiff fiberglass/paper cone with butyl rubber surround, 1.5-inch / 38 mm voice coil on polyamide former
• Class D amplifier module with 100 W RMS output
• Variable low-pass filter: 50 - 150 Hz / 12 dB/oct.
• Bass boost: 0 dB - 12 dB Phase switch: 0 / 180 degrees
• Auto-turn-on function Compatible with AXTON's Easiest Bass Upgrade concept: ATS-ISOATB and one of the vehicle-specific ATS-ISOxx cables for optional plug-and-play connection
• Bass level remote control

Specifications

• Frequency response: 60 - 220 Hz
• Amplifier power: 100 W RMS
• Signal-to-noise ratio: 90 dB
• Dimensions (H x W x D): 135 x 485 x 345 mm

Manufacturer: AXTON, Switzerland
