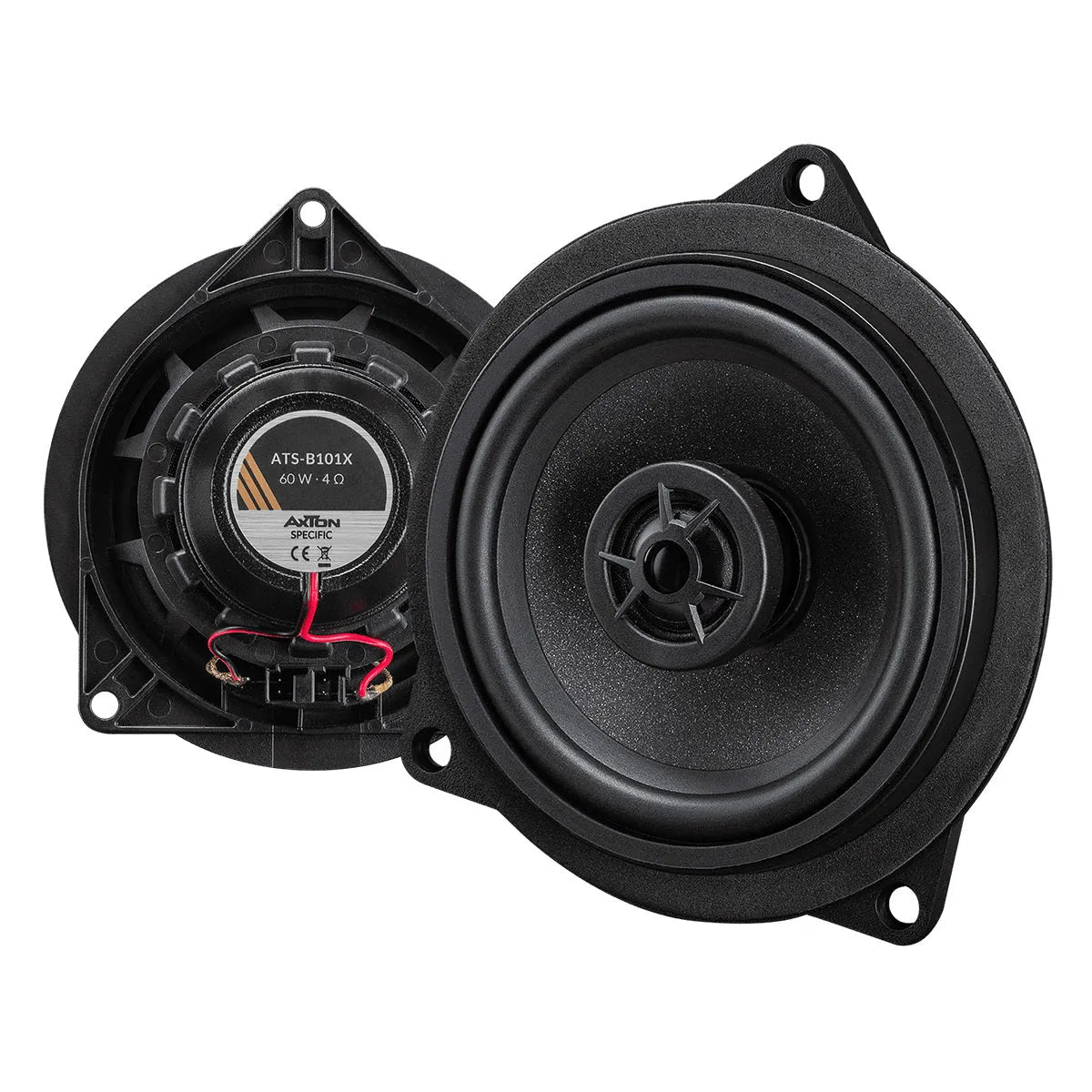

AXTON, ATS-B101X 10 cm 2-way, BMW coaxial speakers

INFORMACIJA

BMW

All about AXTON SPECIFIC ATS-B101X 2 Coaxial Speakers for BMW

An impressive "Hi-Fi" model for almost every "AXTON" BMW

Hear stunning highs, feel the bass fill your BMW, and enjoy the unique design of the new AXTON SPECIFIC speaker series. Created for maximum hi-fi pleasure in your BMW and perfectly adapted to essential requirements.

MOTTO:

You have our promise that you will receive a system tailored to your car. All components and connections fit perfectly; the acoustics are optimized for your car. The SPECIFIC series for BMW cars consists of eight models. Three "Compo" and "Coaxial" systems for different vehicle models, as well as two under-seat subwoofer variants with 2 ohm or 4 ohm coils.

TWEETERS

Equipped with an analytically precise 25mm aluminum cone embedded in a lightly damped material, this tweeter reproduces accurate musical details and an extremely pleasant soundstage. The dome geometry is chosen to ensure the best performance in the specified vehicle mounting position. This means you get a consistent high-frequency level and fantastic spatial depth in a large area of the vehicle. The dome is enclosed by a robust, unique AXTON design protection. For reliable signal transmission, the wires are not only soldered but also equipped with additional vibration protection. These measures ensure durability.

MIDS

Sounds that get under your skin (goosebumps): that is our goal. We use new membrane technology, a special material blend consisting of an acoustically very harmonious and highly damped paper membrane with a coating of ultra-hard quartz crystals. These crystals, with their extraordinarily high step response, ensure the desired precision of the sound image. We call this special diaphragm CRYSTAX. The diaphragm with rubber surround, Nomex spider, and 1" voice coil are securely mounted in a newly designed composite basket. This new basket provides excellent stability despite its filigree struts, which in turn allows plenty of room for the rear sound to unfold and reduce powerful, yet compact neodymium magnets provide the necessary power for clear and impressive clarity.

MIDS

• 10 cm component speaker system
• OE mounting composite basket
• OE mounting connections
• Neodymium magnet
• AXTON CRYSTAX cone
• Rubber surround
• NOMEX spider
• 25 mm coil

TWEETERS

• 25 mm black aluminum dome tweeter
• Fabric
• Ferrofluid-cooled voice coil
• 12 dB / octave In-Line Crossover network
• OE mounting connections
• Mounting adapters included

Specifications

• Impedance 4 ohms
• Nominal power 60 W RMS
• Frequency response 85 Hz – 22 kHz/div>
• Sensitivity 1W/1m 85 dB

Vehicle compatibility list

BMW front doors: E63, E64, E81, E82, E84, E87, E88, E90, E91, E92, E93, F10, F11, F12, F13

BMW rear doors: E91, F10, F11

BMW rear parcel shelf: E63, E64, E88, E92, E93, F12, F13
