DD Audio

Basskit DD 712d

Experience powerful bass with upgraded subwoofers and a robust enclosure. The latest series delivers lower frequencies and greater efficiency.

€862.92 EUR
Nebegaminama. Ši prekė nebegaminama ir nebebus papildoma. Žemiau rasite panašių prekių.

▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.

Free delivery in Lithuania from € 100

In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.

Pick up the goods in the store for € 0

Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00

INFORMACIJA

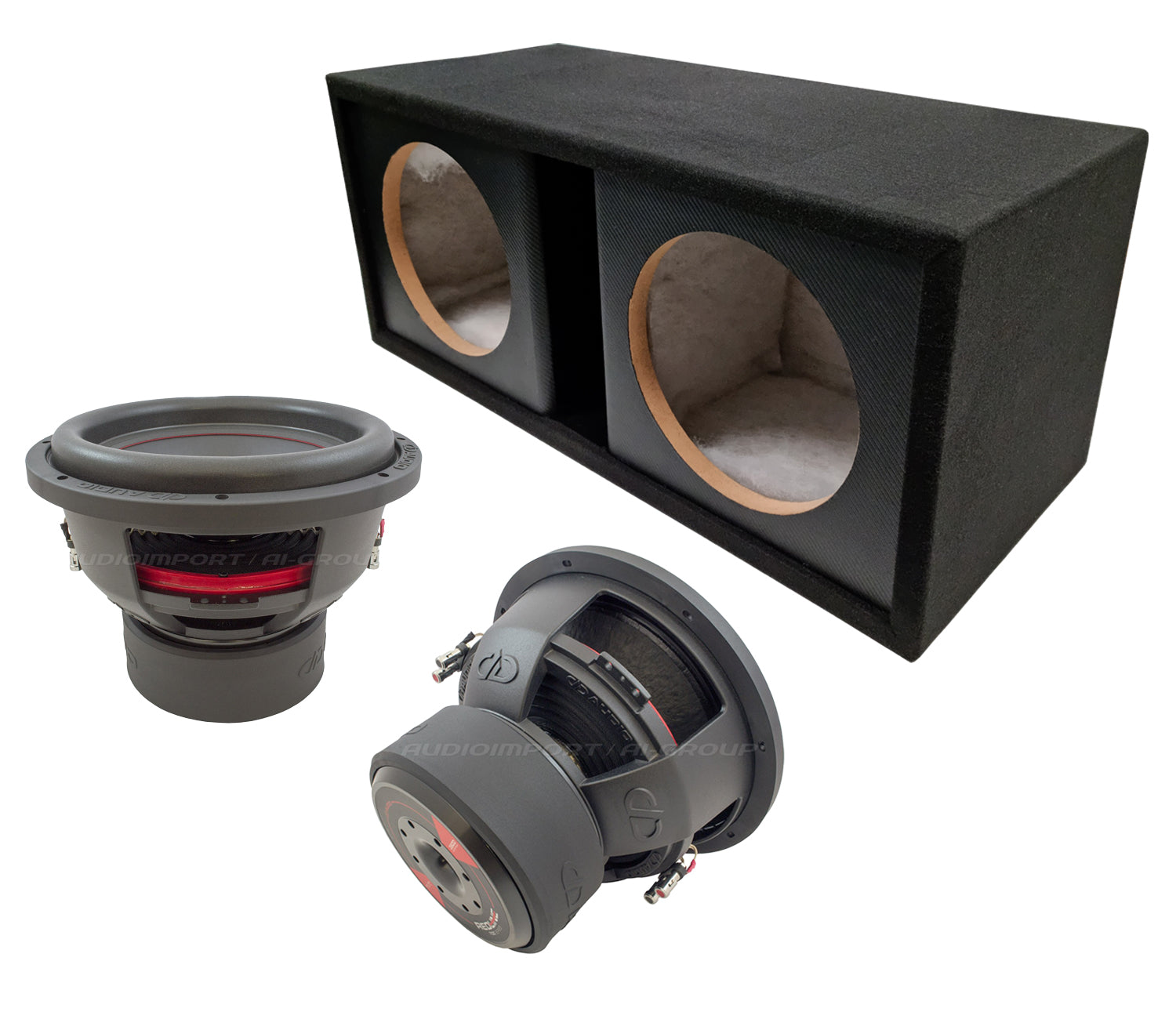

The BASSKIT DD 712 includes 2 DD Audio 712d subwoofers and a sturdy 4-AI212SLOT enclosure.

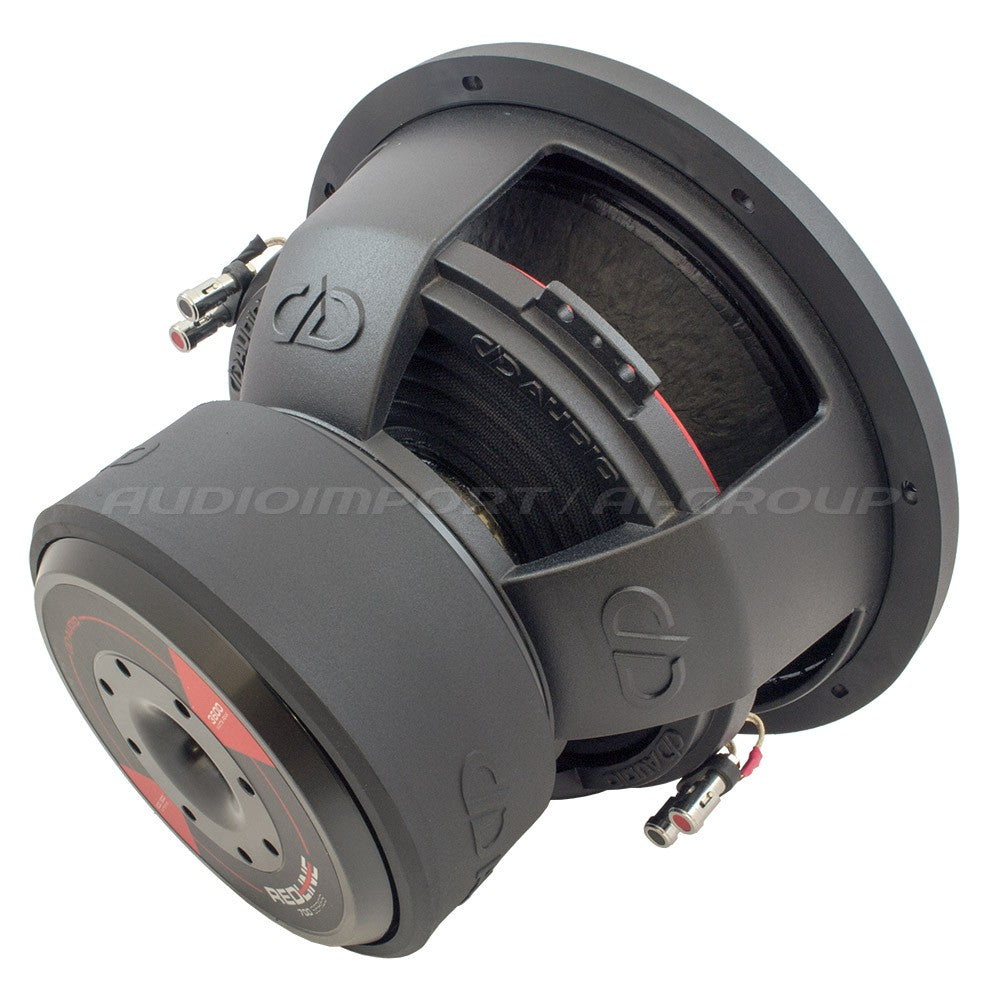

DD Audio 712d:

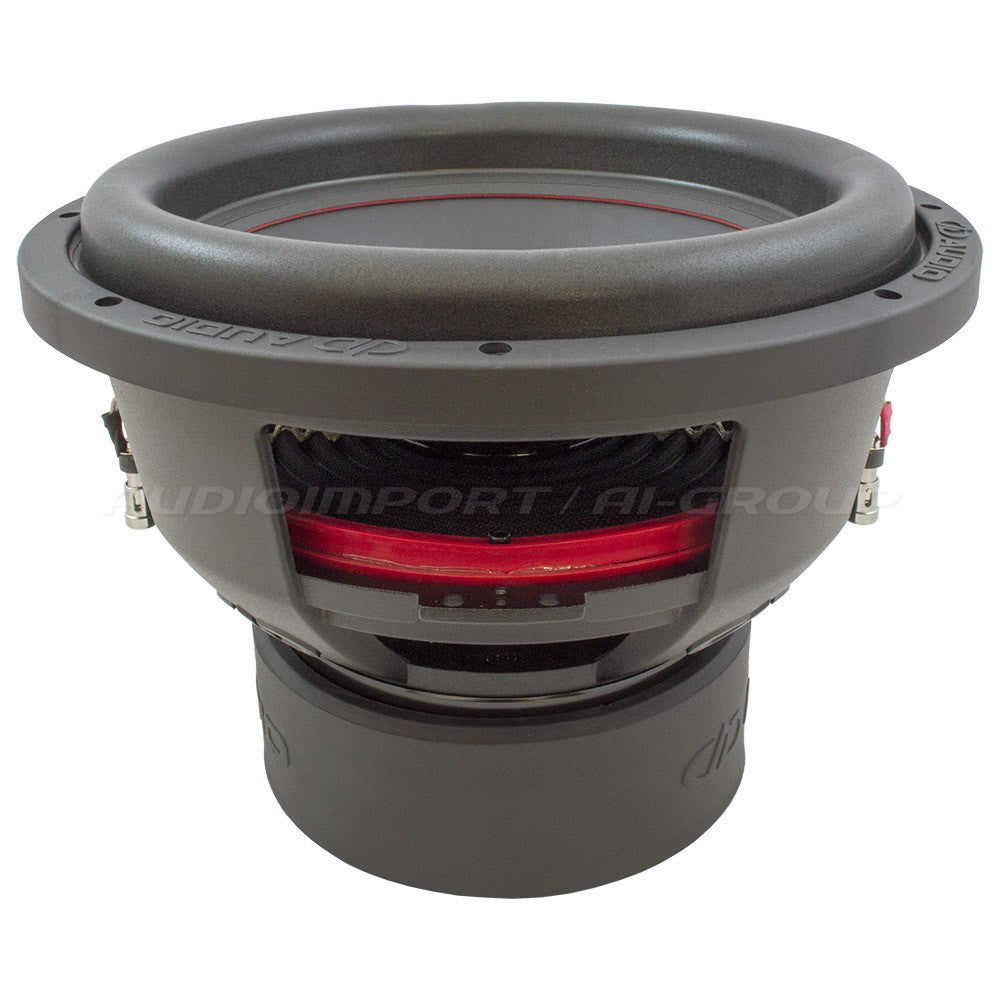

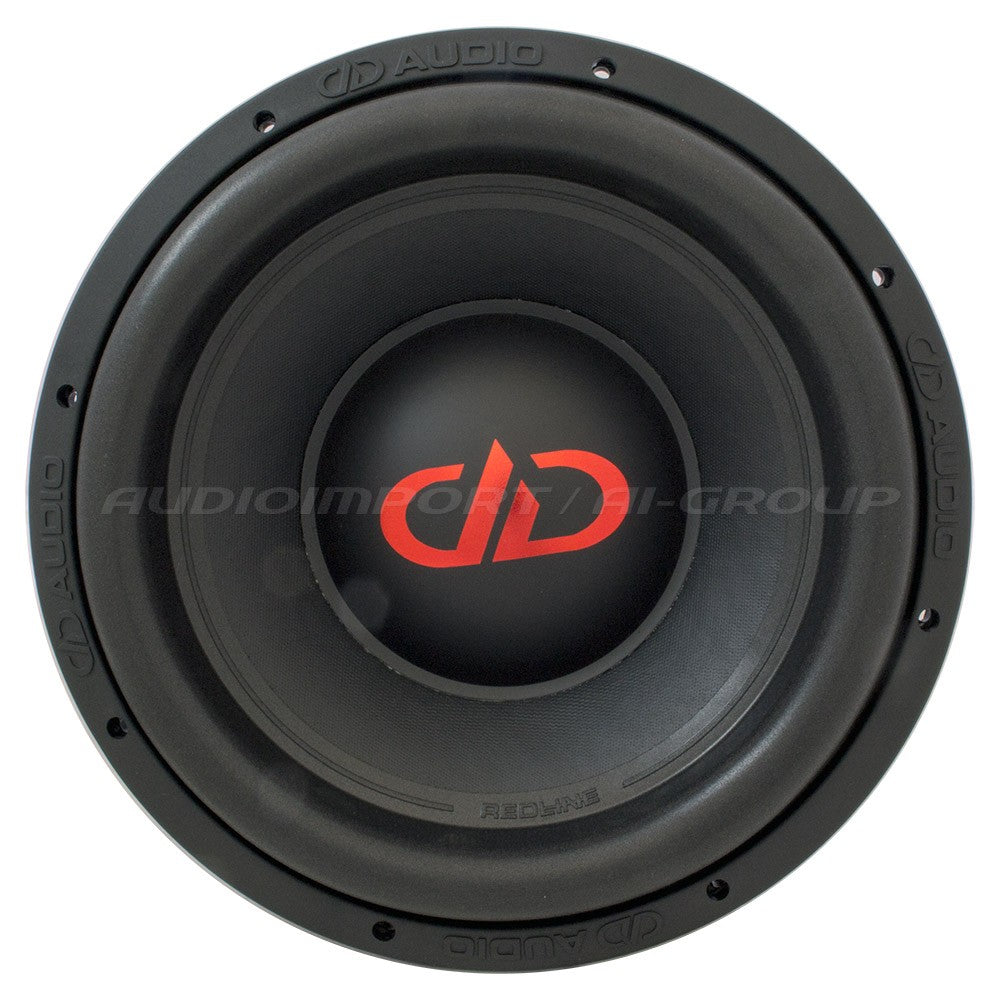

The completely redesigned Redline 700 series offers numerous advantages over the older design. Redesigned frames and suspension geometry allow for a lower Fs and greater excursion potential. These two features combined give you PLENTY OF BASS, especially at lower frequencies. Revised voice coils feature increased thermal management, reduced inductance, and increased efficiency. These features provide a smoother response, more output with the same amplifiers, and greater power handling. Aesthetic improvements have also been made. The red double stitching is gone, the red line is now visible between the cone and the thermoformed multi-layer surround. The dust cap logo is made of a reflective foil layer. All cones and dust caps now have a black matte finish. Alucast frames feature DD branding. Triple voice coil ventilation, laminated multi-spiders, and extended pole pieces that made DD subwoofers so exceptional are still present in these new models.

FOUR Audio 4-AI212SLOT:

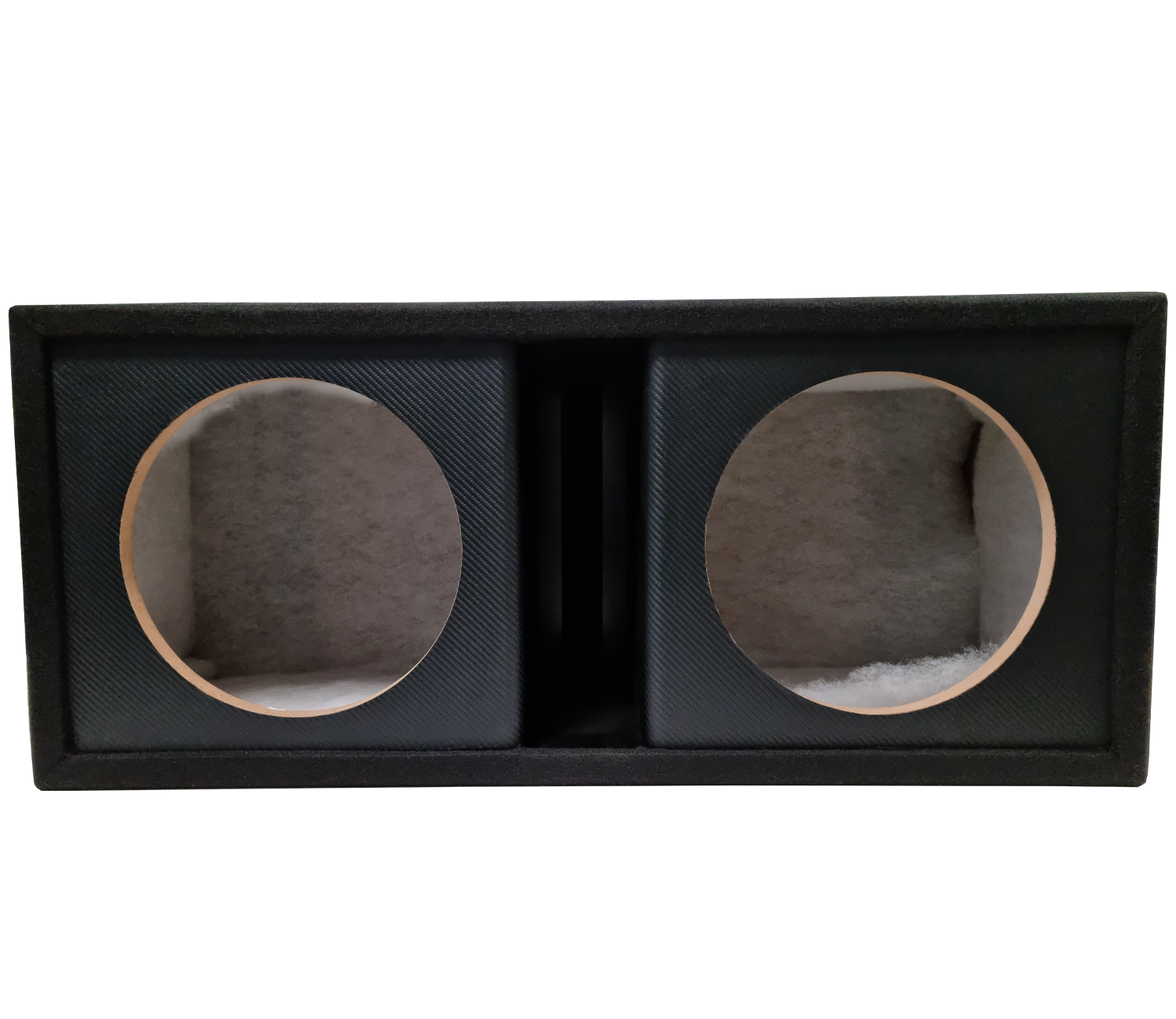

The 4-AI212SLOT model is a LARGE subwoofer enclosure, made of MDF board.
Large port with rounded edges.

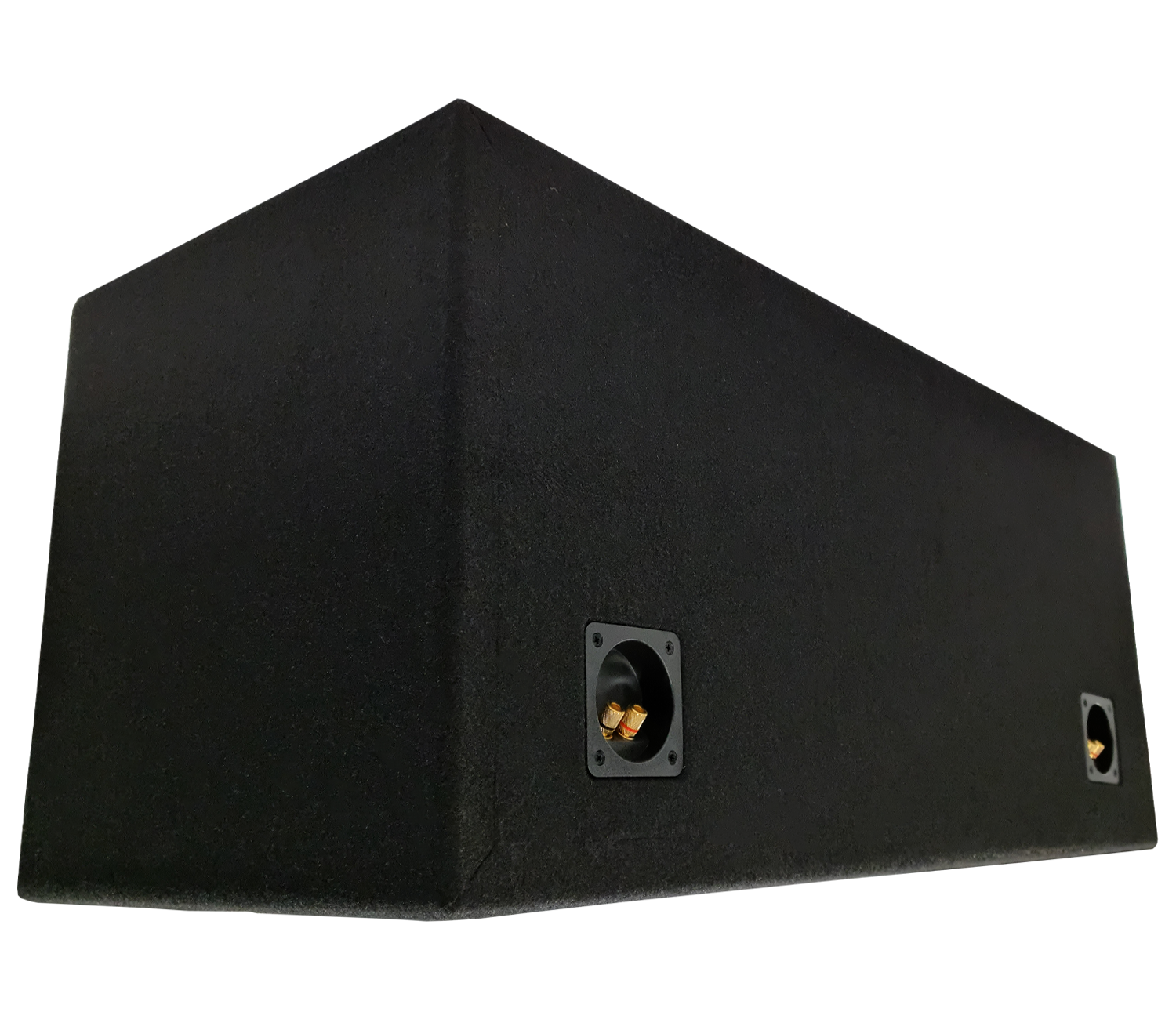

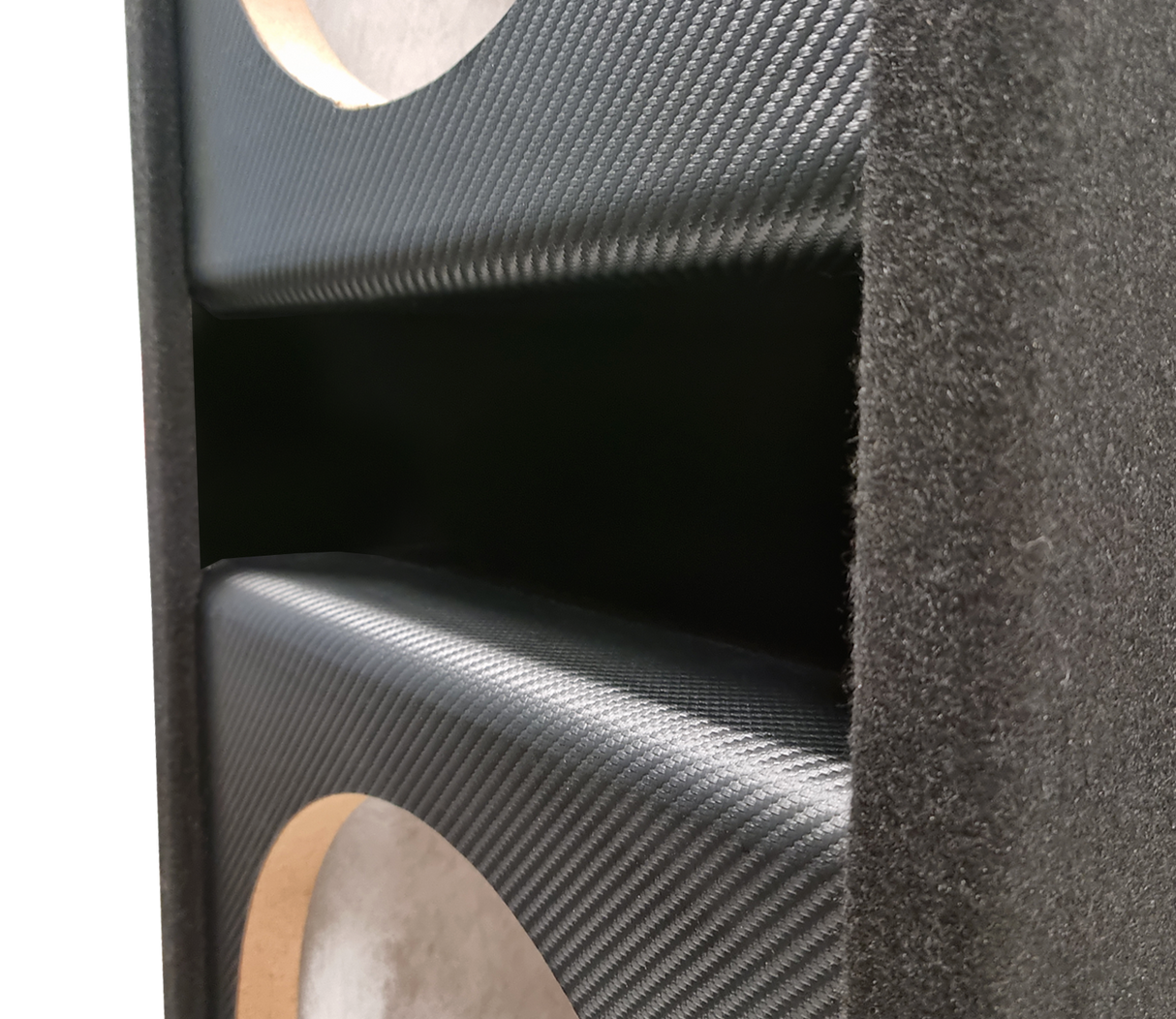

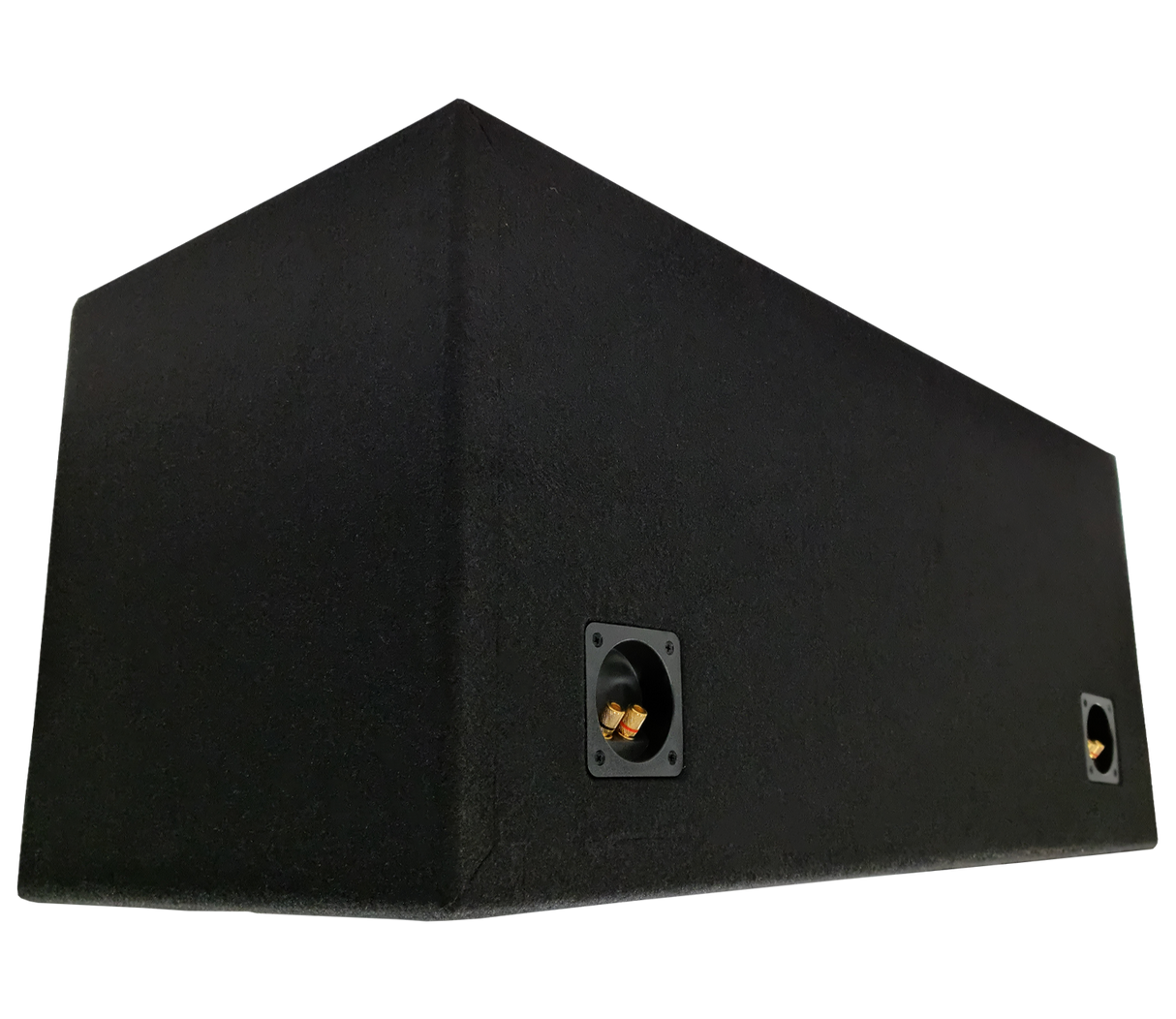

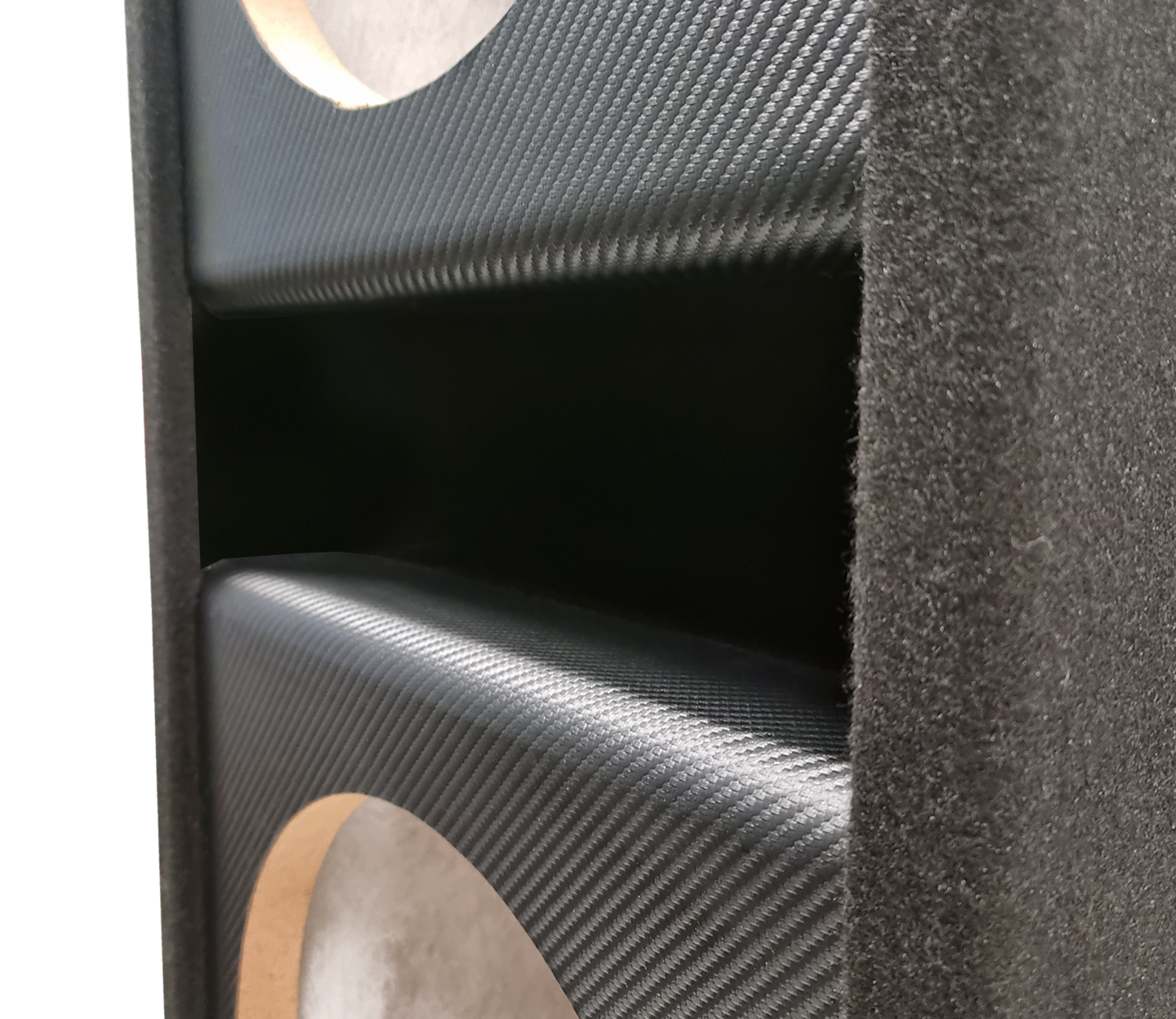

The enclosure is covered with black carpet, and the front panel has a carbon fiber-look strip. The enclosure also has cable terminals.
Dimensions: width 930mm x height 380mm x depth 400mm

Technical data

DD Audio 712d

- 12″ subwoofer
- 3″ voice coil wound of Made in USA wire
- 2x 2 ohms
- alucast frame with DD logos
- power handling 1200 W RMS, 3600 W Peak
- weight: 17,3 kgs
- mounting diameter: 289 mm
- mounting depth: 218 mm
- x-mech: 80 mm
- x-max: +- 14 mm
- fs: 28,26 Hz
- qts: 0,4341
- vas: 39,64 liters
- recommended ported enclosure: 49-78 liter ( NET )
- recommended sealed enclosure: N/A.


FOUR Audio 4-AI212SLOT

Ported enclosure for 2x12″ subwoofer
Net volume: 2x40 liters.
Port area: 350 cm2
Port height: 350mm
Port width: 100mm
Tuning frequency: 38 Hz
Diameter of speaker hole: 285mm
Measurements ( W x H x D ): 930 x 380 x 400.
