DD Audio

Bass box DD Audio VOW12 DOUBLE

Experience a new dimension of car audio with this powerful bass kit. High-quality subwoofers and a specially designed enclosure ensure intense and clear sound.

€599.00 EUR
Nebegaminama. Ši prekė nebegaminama ir nebebus papildoma. Žemiau rasite panašių prekių.

▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.

Free delivery in Lithuania from € 100

In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.

Pick up the goods in the store for € 0

Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00

INFORMACIJA

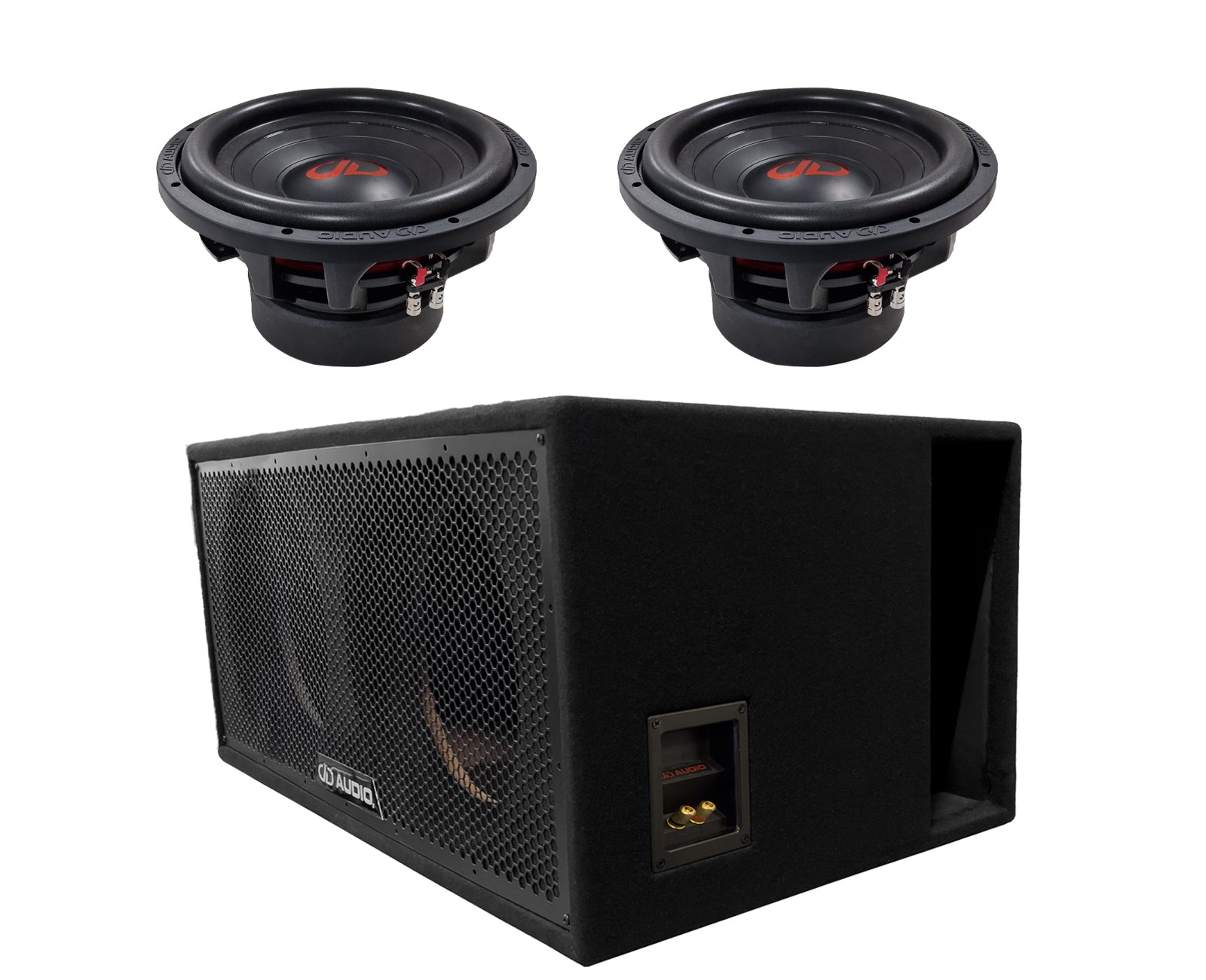

The DD Audio VOW12 Basskit includes 2 pcs. 12″ VOW12a-D4 subwoofers and a UE-12.2a-C ported enclosure.

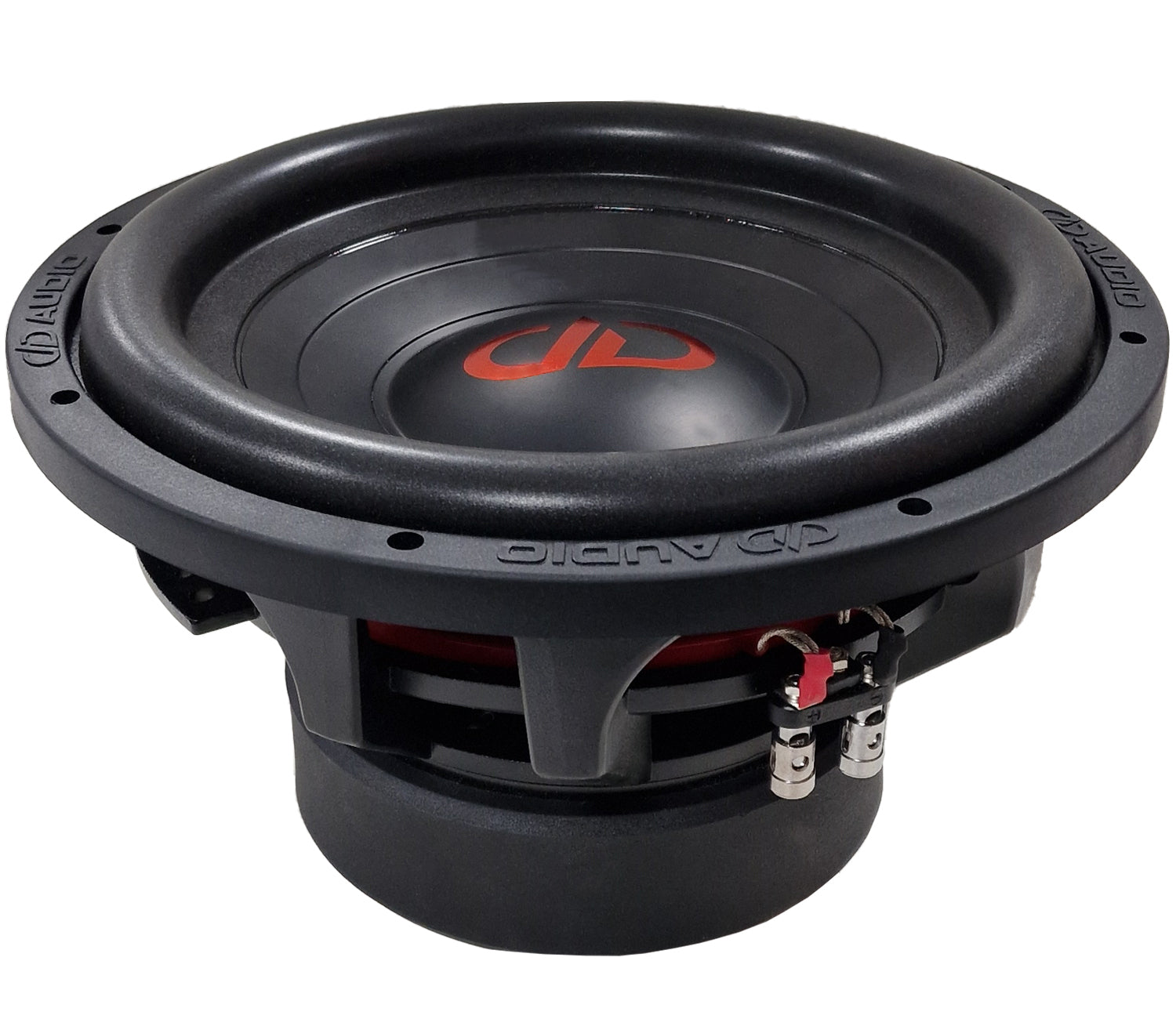

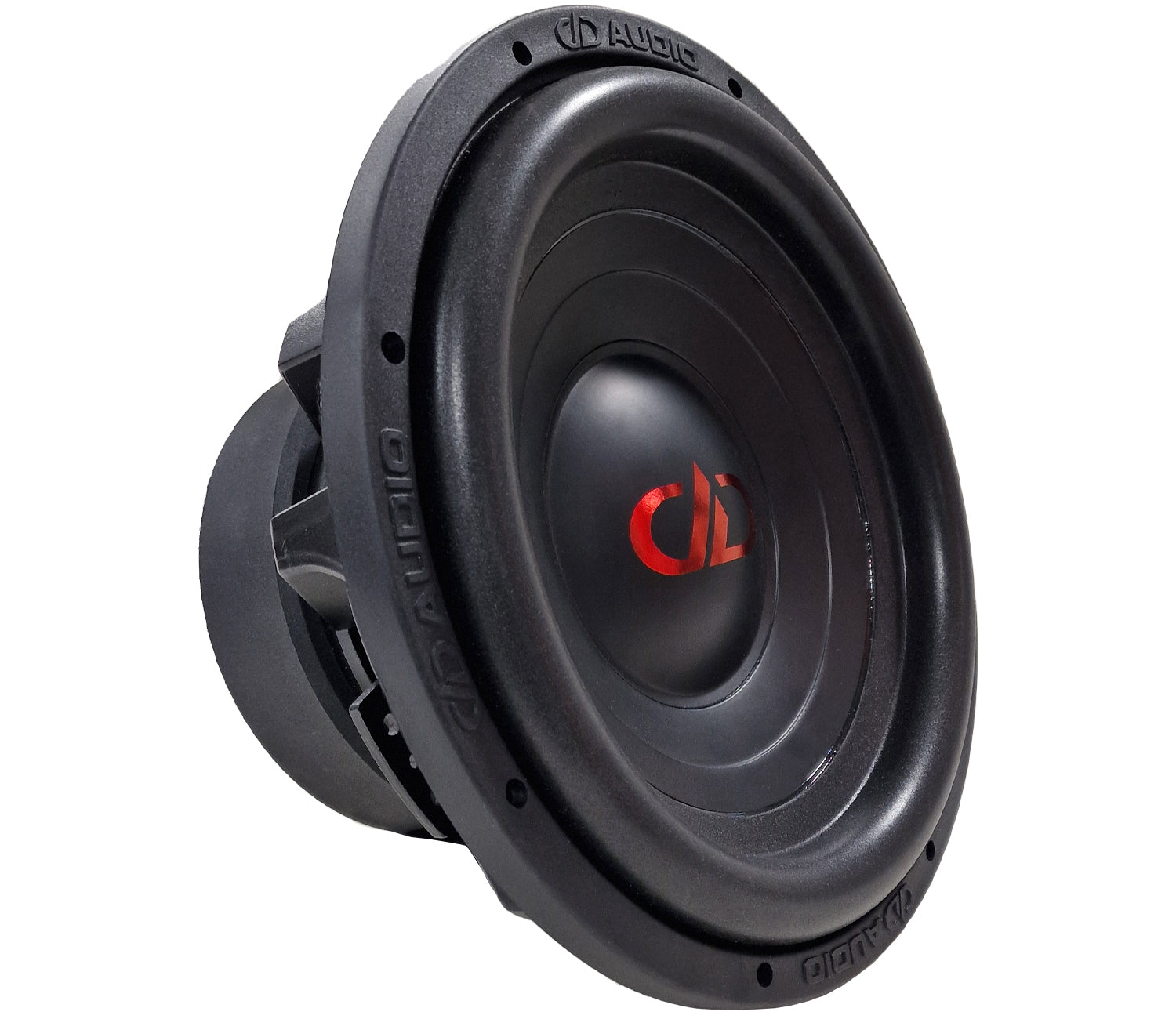

VOW12a-D4:

The new VO-W12a adds a new dimension to your car audio system, making it more lively and intense. VO-W woofers are PA-style, high-performance woofers designed for enthusiasts who want sound quality and high performance. By combining design elements from professional audio and high-end car audio, DD has created a new type of ultra-efficient speaker designed to deliver high levels of clean output. VO-W woofers feature performance enhancements such as large diameter voice coils, high-energy motors, and cast frames. The low moving mass design combined with precise motor tolerance creates ultra-fast transients and high performance capable of keeping up with any subwoofer system, or you can use them as standalone PA speakers. VO-W woofers will transform an ordinary system into a concert-level audience delight.

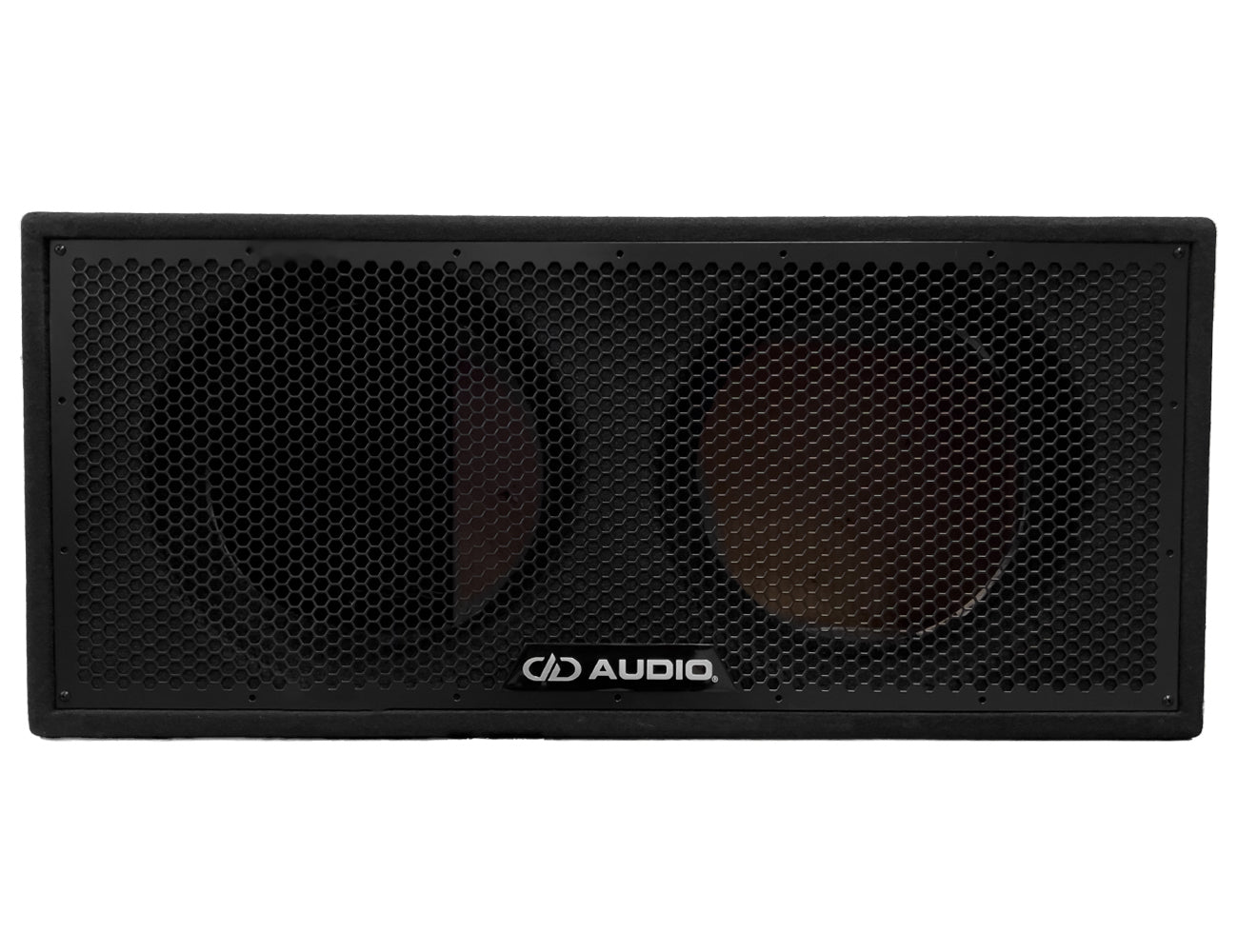

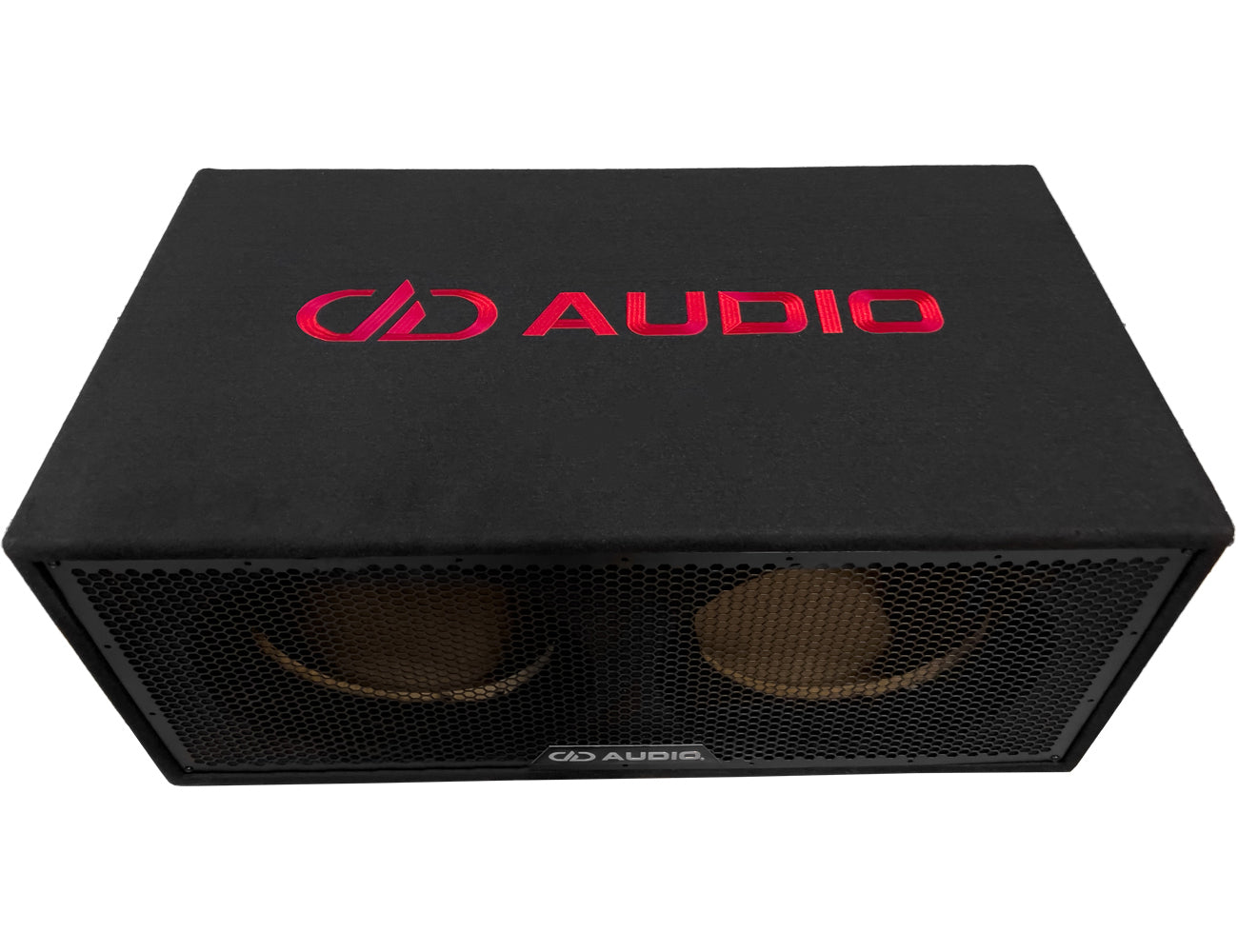

UE-12.2a-C:

New DD Audio 2 x 12″ unloaded enclosure.

Note!

Technical Specifications

VOW12a-D4

Speaker Size12″
Watts RMS500-1500
Watts Peak3000
Voice Coil Diameter - in3
Voice Coil ImpedanceDual 4 Ohm
Piston Diameter - in10.25
Fs - Hz39
Qms4.381
Qes0.439
Qts0.399
Vas - liters30.301
dBSPL88
Xmech - mm70
Xmax - mm8
Frame OD - in12.625
Frame OD w/Gasket - in12.75
Mounting Diameter - in11.125 (28,25cm)
Mounting Depth - in6.75 (17.14cm)
Motor Depth - in3 (7.62cm)
Motor Diameter - in7.87 (19,98cm)
Magnet Weight - oz160 (4,5kg)
Woofer Displacement - ft30.12
Sealed Enclosure - cu ft1.5-2.5 (42-70l)
Ported Enclosure - cu ft1.75-2.75 (49-78l)

Note! The enclosure is designed for subwoofers with a cast-frame, and the mounting hole for the element is therefore 292mm.

Note! If you install a subwoofer with a long xmax we recommend not installing the protective grill ( cone of the subwoofer could hit the grille )

Enclosure litres: 87

Size: W x H x D 773 x 410 x 510mm
