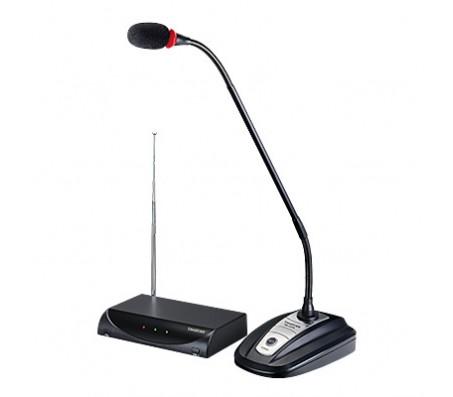

Wireless conference microphone Takstar MS-208W

INFORMACIJA

• VHF frequency band and selected frequencies for interference-free reception
• D-PLL RF frequency lock technology for accurate frequency and stable performance
• Professional audio companding technique for reducing the noise and increasing the dynamic range
• Advanced pilot signal lock function can better avoid interference
• Long operating range up to 50m in open area
• Transmitter is powered by 2pcs 1.5V batteries for long play time and easy replacement
• Low power warning function on the transmitter reminds the user to replace the battery timely

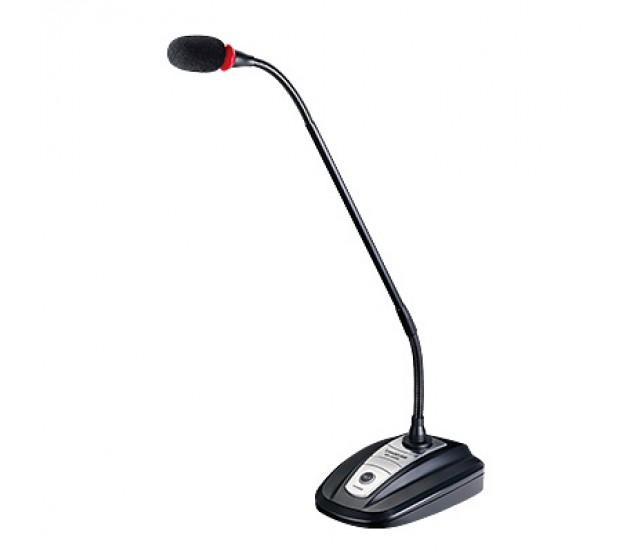

• Transmitter is designed with XLR socket which can be used as an independent wired conference microphone and can be powered by external 48V phantom power
• 6.35mm unbalanced output for convenient connection with various audio equipment

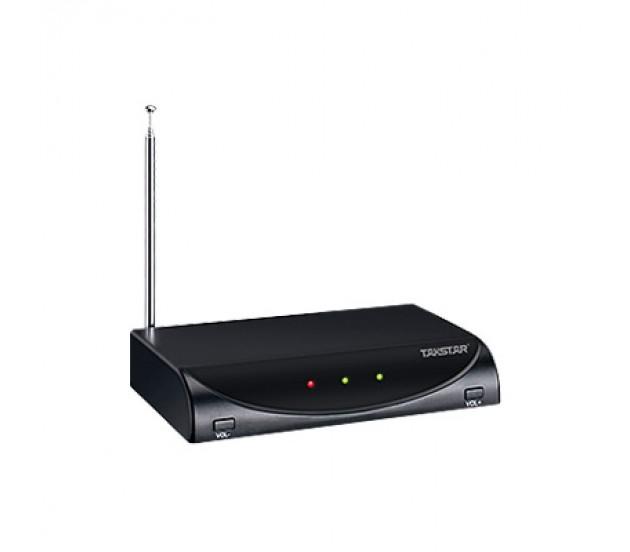

• Receiver adopts USB power interface which can be conveniently powered by various devices with USB function directly

TECHNICAL DATA

• Frequency Range: 220MHz-270MHz(fixed)
• Modulation Mode: FM
• Number of Channels: Single channel
• Frequency Steadiness: ±0.005%
• Sensitivity: ≤-80dBm
• Transmit Power: ≤10mW
• Frequency Deviation: ≤±45KHz
• Frequency Response: 60Hz-15kHz
• S/N Ratio: ＞85dB (A+1KHz)
• Total Harmonic Distortion: ≤1%（1KHz A+)
• Operating Range: 50m in open area
• Transmitter Power Supply: 3V(2pcs AA batteries)
• Battery Playtime: Approx.10hrs（depending on the battery）
• Receiver Power Supply: DC=5V/500mA (USB)
• Output Type: Unbalanced output

In the package:

• Conference microphone: 1pc
• Receiver: 1 pc
• Adapter: 1pc
• USB power cable: 1pc
• AA battery: 2pcs
• Audio connecting cable: 1pc
• User manual: 1 pc
