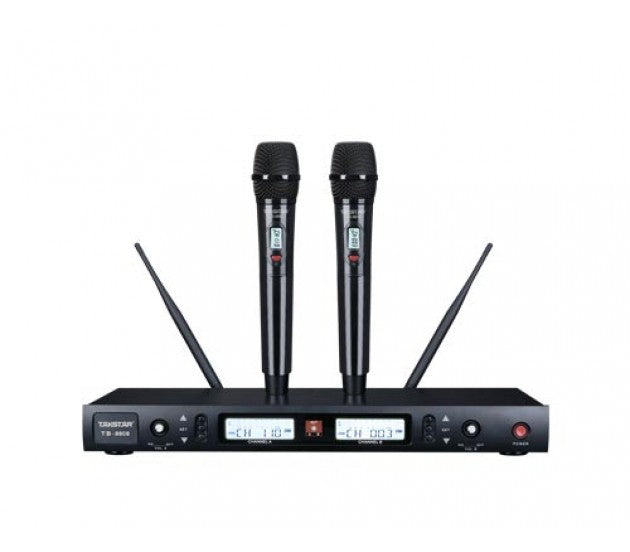

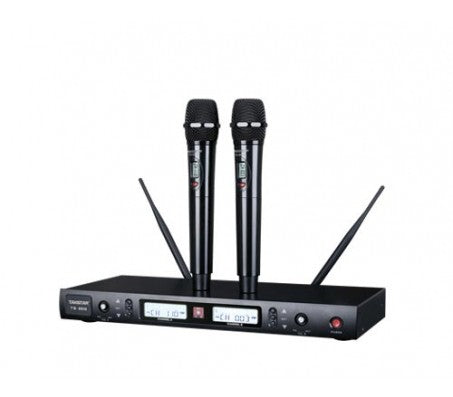

Wireless microphone Takstar TS-8808

UHF wide frequency band design provides 200 selectable channels, multiple sets of systems can be used simultaneously D-PLL RF frequency lock technique for accurate frequency and stable performance Twice frequency conversion receiving technique features high interference-resistant capability Professional audio companding technique for reducing the noise and increasing the dynamic range Button lock function on receiver prevents mis-operation Transmit power switching function for reducing radiation and extending the battery life when switching to low transmit power under short operating range Adjustable receiving sensitivity function for desired receiving effect or operating range according to actual environment Receiver and transmitters feature intuitive working status LCD for convenient use TECHNICAL DATA Specifications: Frequency Range: 740-790MHz Modulation Mode: FM Bandwidth: 50MHz Number of Frequencies: 200 Frequency Spacing: 250KHz Frequency Steadiness: within ±0.
€299.00 EUR

▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.

Inbank lizingas | Autogarsas.lt

Free delivery in Lithuania from € 100

In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.

Pick up the goods in the store for € 0

Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00

INFORMACIJA

  • UHF wide frequency band design provides 200 selectable channels, multiple sets of systems can be used simultaneously
  • D-PLL RF frequency lock technique for accurate frequency and stable performance
  • Twice frequency conversion receiving technique features high interference-resistant capability
  • Professional audio companding technique for reducing the noise and increasing the dynamic range
  • Button lock function on receiver prevents mis-operation
  • Transmit power switching function for reducing radiation and extending the battery life when switching to low transmit power under short operating range
  • Adjustable receiving sensitivity function for desired receiving effect or operating range according to actual environment
  • Receiver and transmitters feature intuitive working status LCD for convenient use

TECHNICAL DATA

Specifications:

  • Frequency Range: 740-790MHz
  • Modulation Mode: FM
  • Bandwidth: 50MHz
  • Number of Frequencies: 200
  • Frequency Spacing: 250KHz
  • Frequency Steadiness: within ±0.005ï¼…
  • Dynamic Range : ¼ž100dB
  • Max. Frequency Deviation: ±45KHz
  • Frequency Response: 80Hz-18KHz(±3dB）
  • S/N Ratio: ＞105dB A+
  • Total Harmonic Distortion: ≤1.0ï¼…

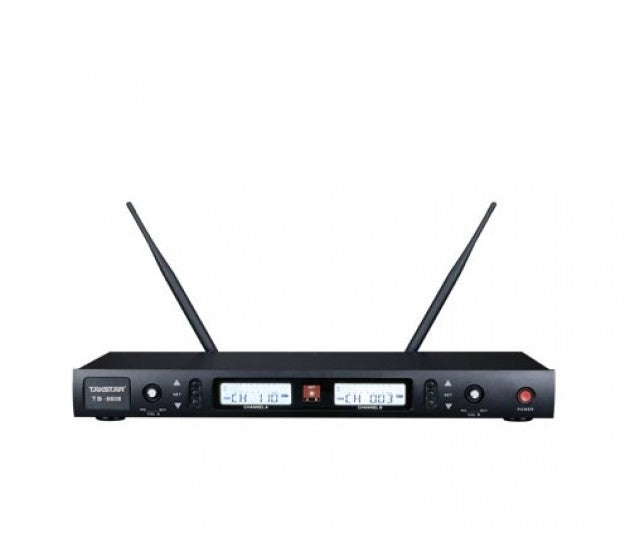

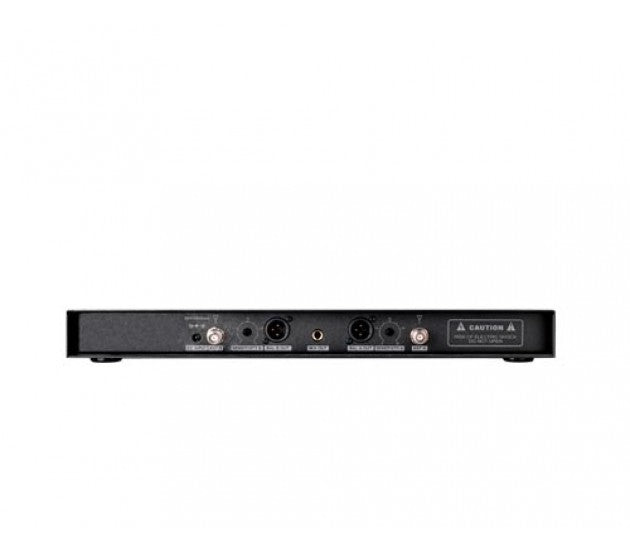

Receiver Specifications:

  • Receiver Mode: Double frequency conversion superheterodyne
  • Intermediate Frequency: First: 110MHzï¼› Second: 10.7MHz
  • Antenna Interface: TNC/50Ω
  • Sensitivity: 12 dB μV (80dBS/N)
  • Sensitivity Space: ：12-32 dBμV
  • Spurious Suppression: ≥75dB
  • Max. Output Level: +10dBV

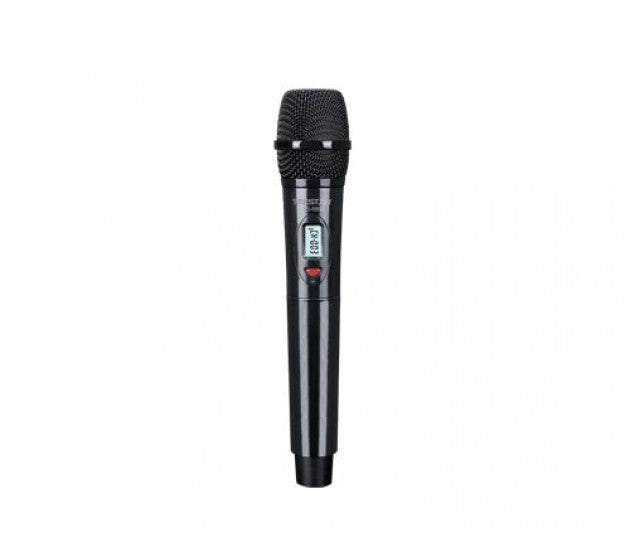

Transmitter Specification:

  • Output Power: High power 10mWï¼›Low power 3mW
  • Spurious Suppression: -60dB
  • Power Supply: 2pcs AA batteries
  • Operating Time: More than 10 hours under power 10mW, more than 15 hours under power 3mW

Applications:

  • Classroom, karaoke, home entertainment, live performance

Product Content:

  • TS-8808 Receiver 1pc
  • TS-8808 Transmitter 2pcs
  • Audio Connecting Cable 1pc
  • Power Adapter 1pc
  • Antenna 2 pcs
  • Rack mount 1 pair
  • 1.5V Battery 4pcs
  • User Manual 1pc
