Bose

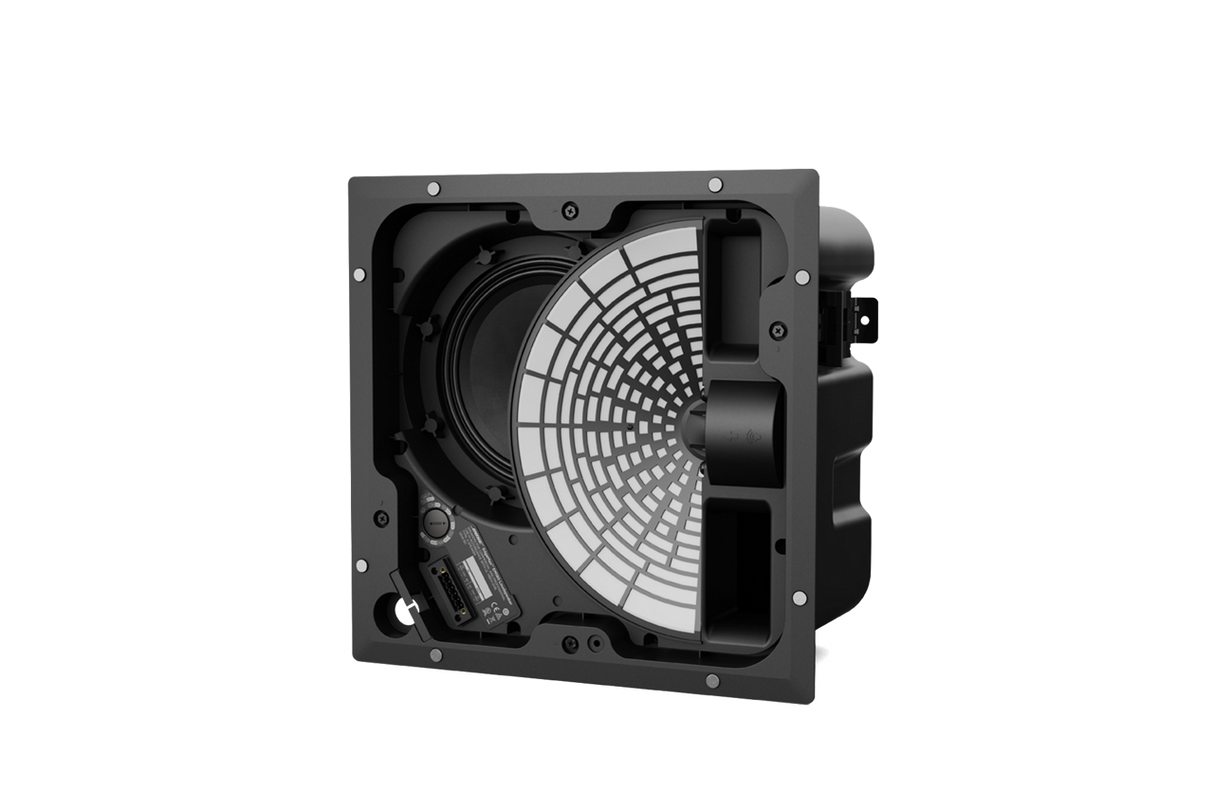

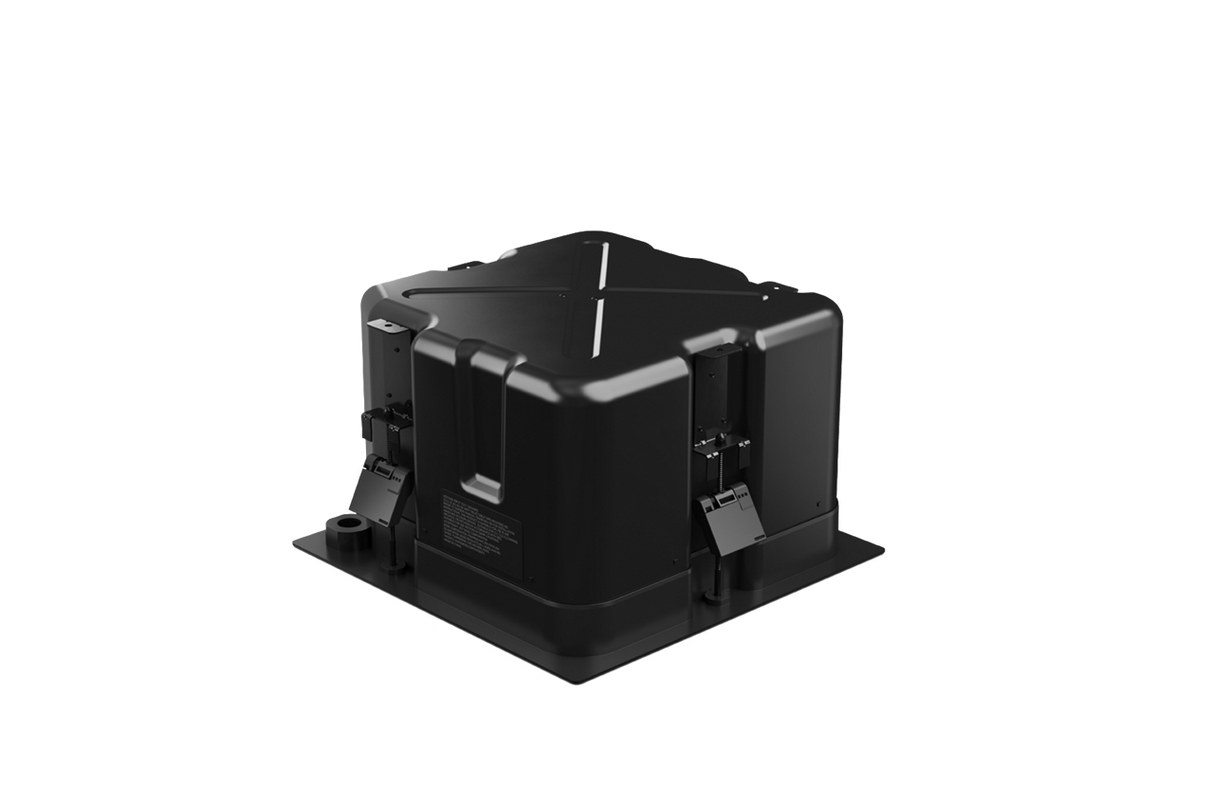

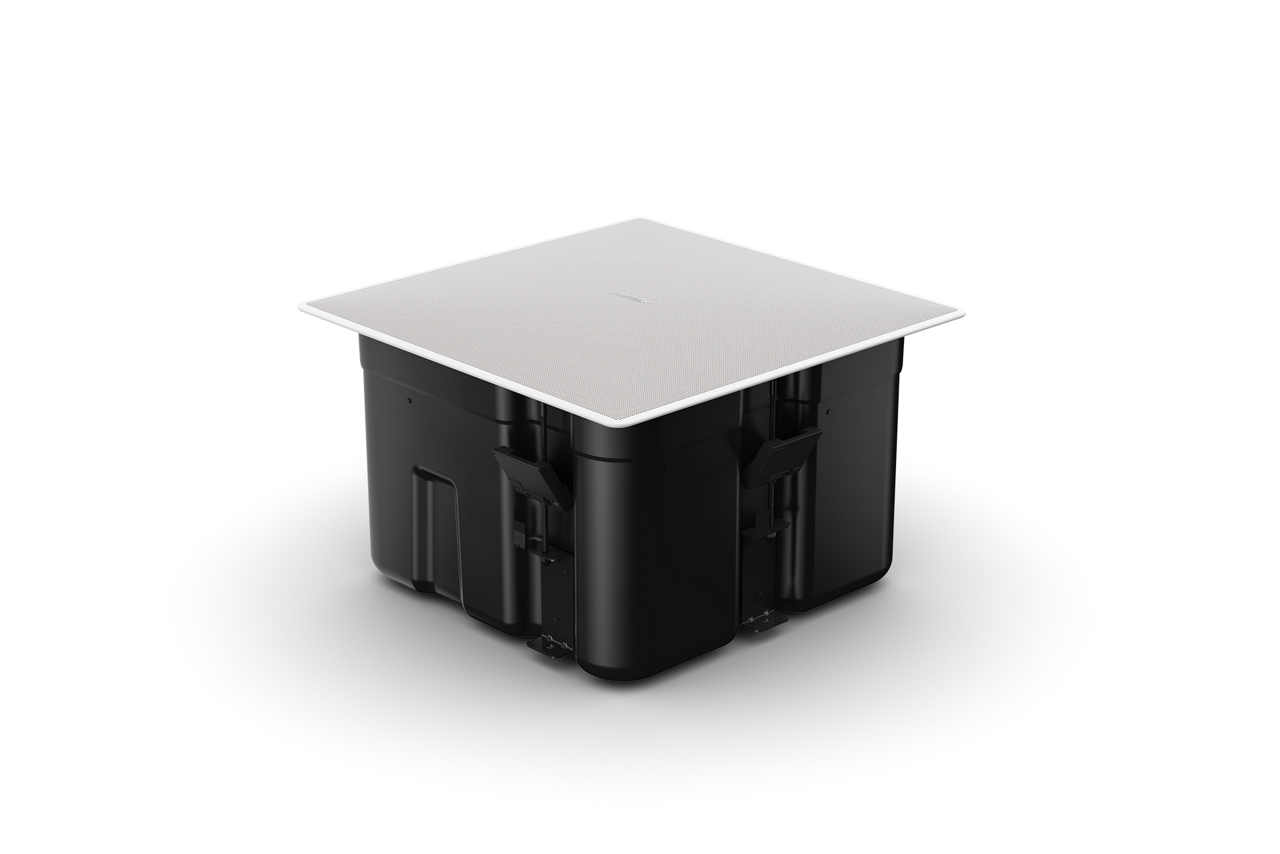

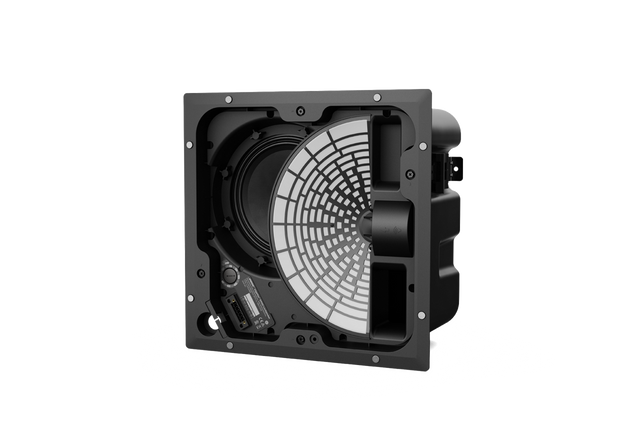

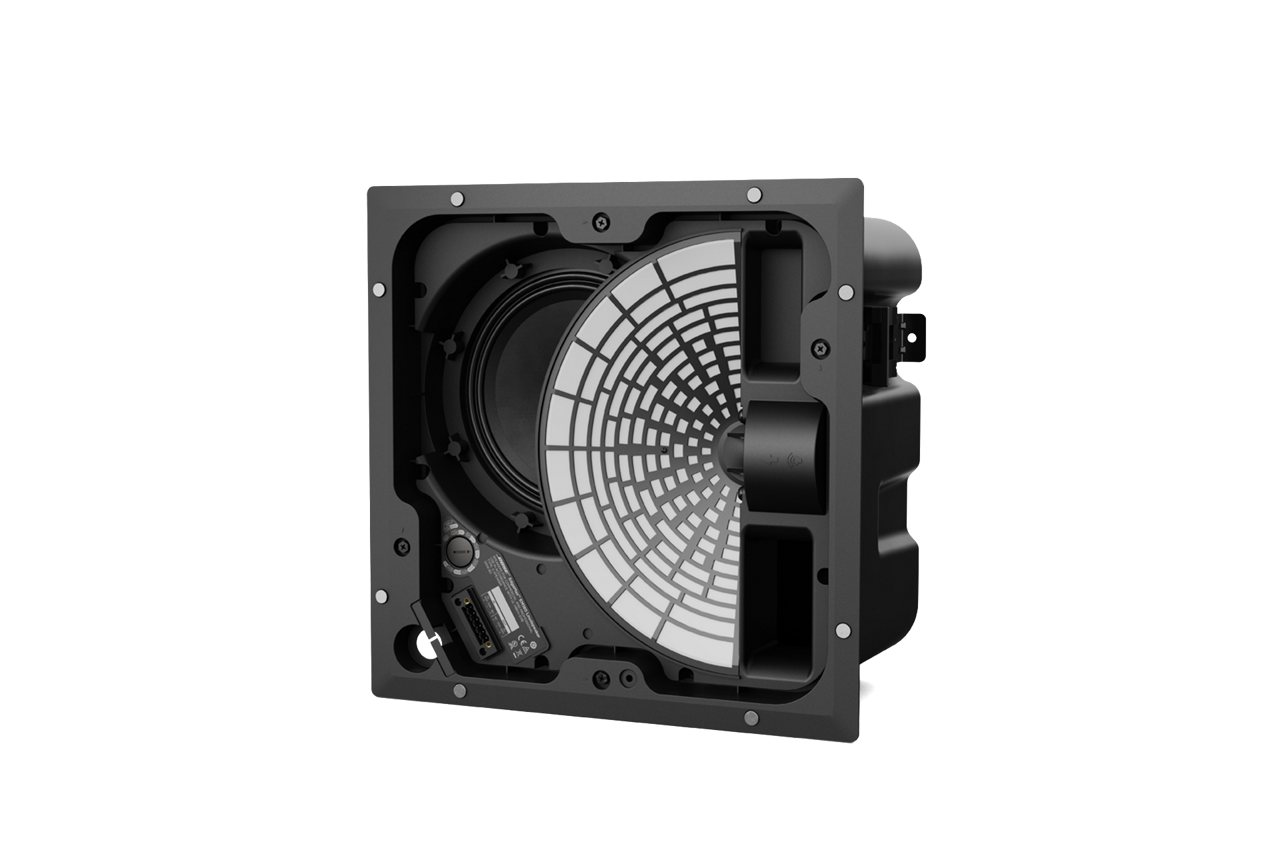

Bose EdgeMax EM180, ceiling speaker (installation depth: 236 mm.)

€854.00 EUR

Bose EdgeMax EM180, ceiling speaker (installation depth: 236 mm.) - Ask you before buying whether we have this item in a warehouse if we do not have to be ordered and arrive within 2-21 days.

▪️ Do you have questions about this product?❓We can consult by phone +370 683 90000 or come to our salon Armatūrinininkų St. 1, Kaunas.

Free delivery in Lithuania from € 100

In Lithuania, Venipak courier delivery is available via 1-2 business days.
Delivery outside Lithuania within 4-10 business days.

Pick up the goods in the store for € 0

Armatūrinininkų St. 1, Kaunas
Working hours: Thursday 9:00-18:00

INFORMACIJA

Powerful Professional EdgeMax ceiling speaker from Bose. The column is made on the principle of Bose PhaseGuide technology, which fills the room with high-quality sound!

  • Recommended amplifier power: 125 W.
  • Frequency band: 50 Hz - 18 kHz.
  • Sensitivity: 93 dB.
  • Resistance: 8 Ohms.
  • Installation depth: 236 mm.
  • Installation cutout dimensions: 345 × 345 mm.


DESCRIPTION

Bose Professional EdgeMax in-ceiling premium loudspeakers feature proprietary Bose PhaseGuide technology with high-frequency compression drivers to create a new category that combines the room-filling coverage patterns typical of larger surface-mount speakers with the architect-preferred aesthetics of in-ceiling models . Designed to mount near wall-ceiling boundaries, EdgeMax loudspeakers provide improved audio quality and coverage, while reducing the number of required units, compared to conventional dome-tweeter ceiling speakers.

FEATURES

PhaseGuide technology – provides a unique asymmetrical vertical pattern for room-filling coverage when mounting near the wall-ceiling boundary

Provides improved room visual appearance – for demanding interior designs by eliminating center-of-ceiling or wall-mounted loudspeakers

Nominal 180° horizontal coverage – designed for in-ceiling mounting along wall coverage zones

High-frequency compression driver – for best-in-class audio quality with superior frequency response and coverage consistency versus typical dome tweeters

8-inch woofer – with wall-boundary loading provides extended bass impact

2-way passive crossover with 70/100V transformer

New auto-hold, spring-loaded mounting arms – for fast, easy installations

Magnetically attached grill - for quick access to wiring and tap settings

UL1480A listing – for air-handling (plenum) space installation

Applications

  • Retail stores
  • Restaurants and bars
  • Concourse
  • Transportation facilities
  • Resorts and hospitality venues
  • Houses of worship
  • Conferencing
TECHNICAL DATA

SPECIFICATIONS

Technical Summary

Frequency Response (+/-3 dB)
50 Hz - 18 kHz

Frequency Range (-10 dB)
45 Hz - 20 kHz

Nominal Dispersion
75° Vertical
180° horizontal

Long-Term Power Handling
125 W (500 W peak)


Sensitivity (SPL / 1 W @ 1 m)
93dB SPL

Maximum SPL @ 1 m
114 dB SPL (120 dB SPL peak)

Transducers
 1 x 8-inch woofer
1 x compression driver

Nominal Impedance
8 Ω (transformer bypassed)

DOCUMENTS

INSTRUCTIONS

User Manual (EN).
